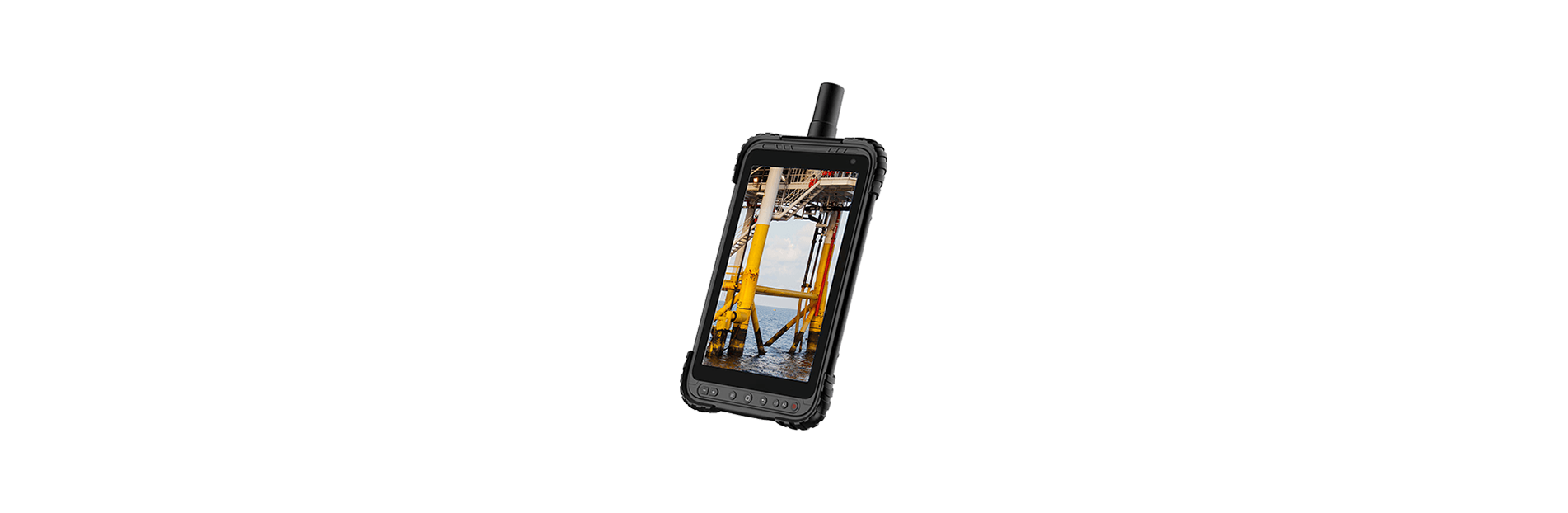

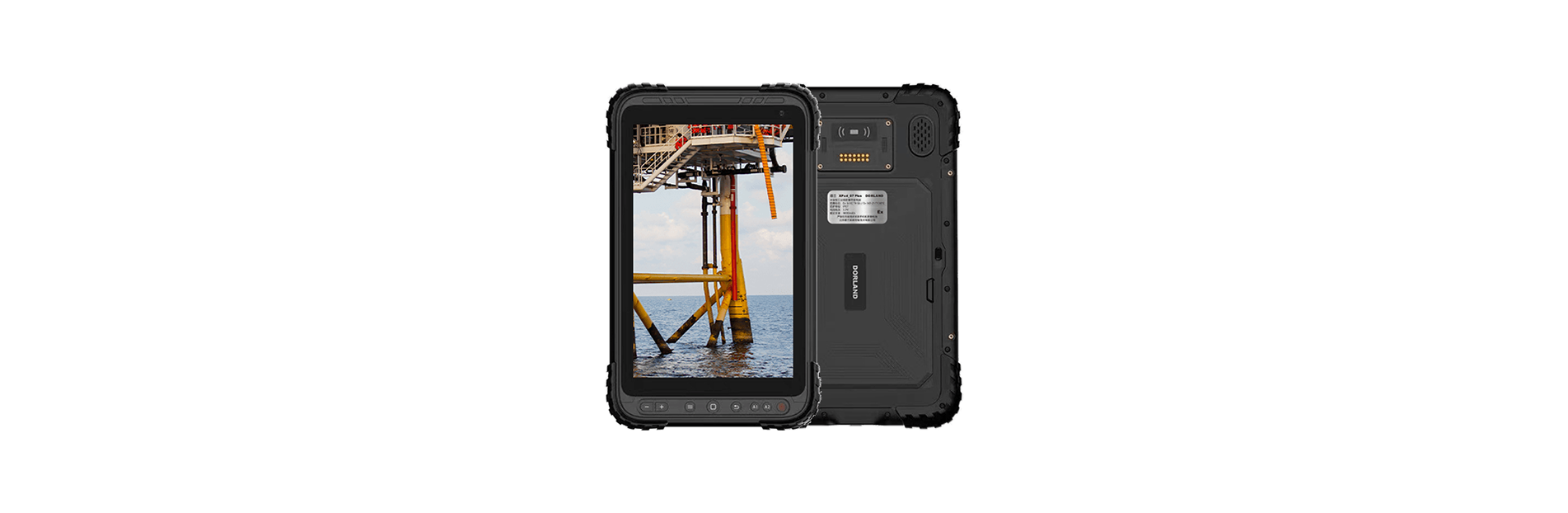

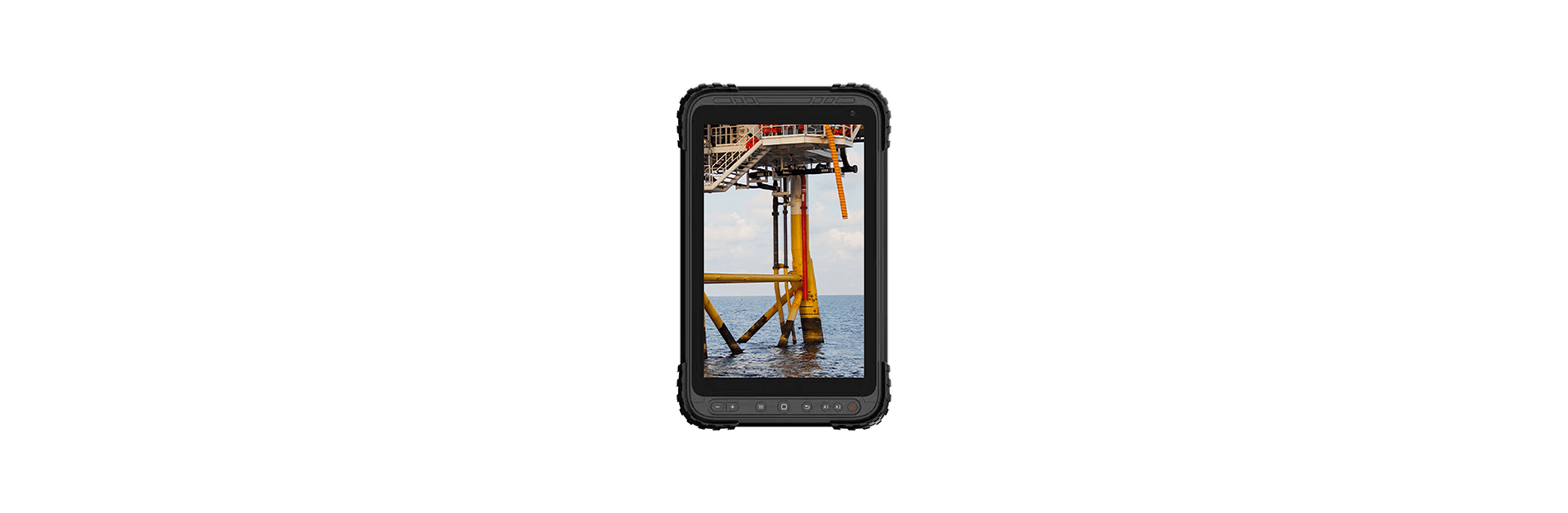

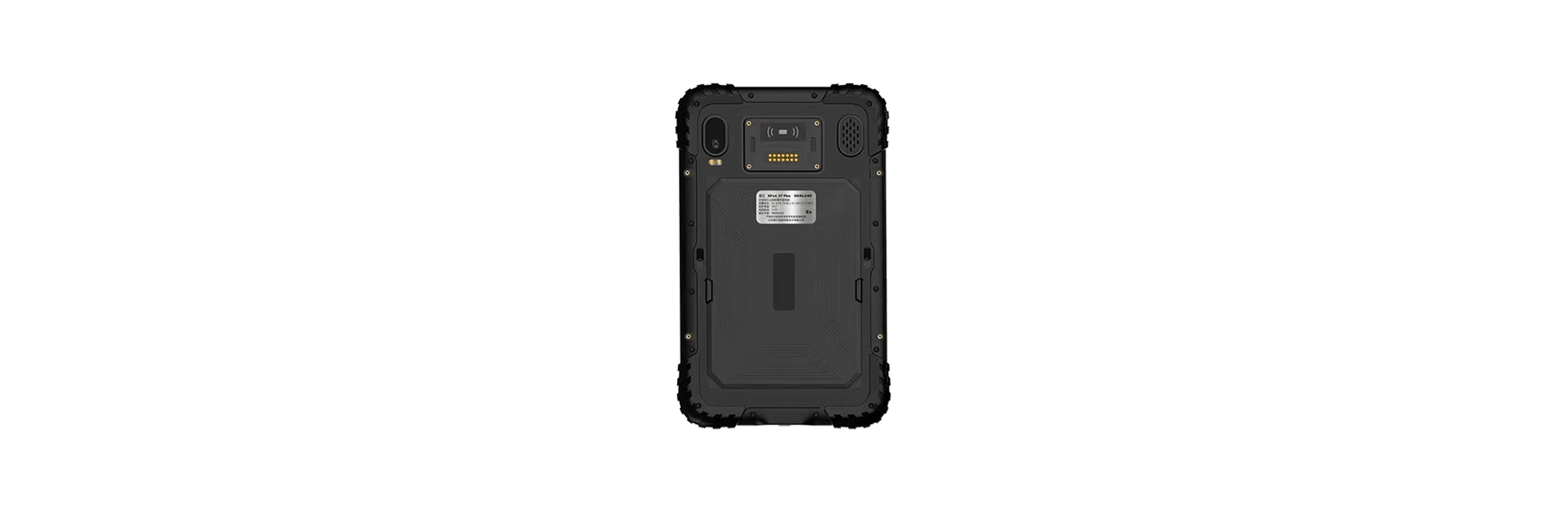

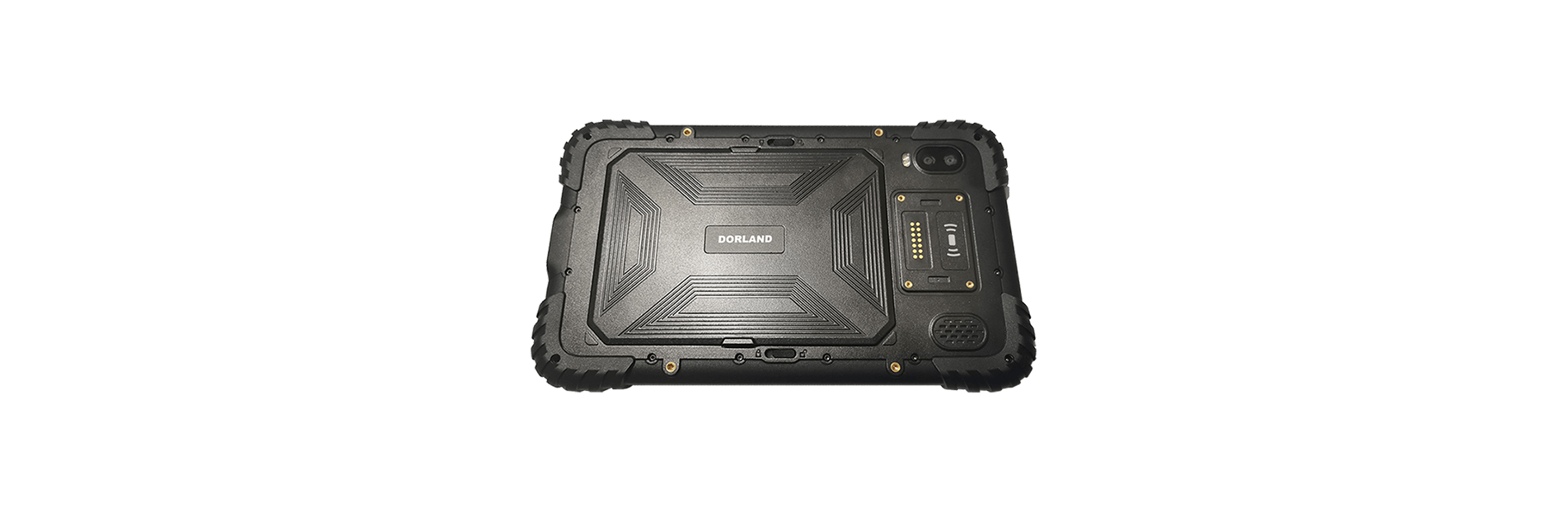

Intrinsically Safe Industrial Explosion-proof Pad XPad

Beijing Delan System Control Technology Co. , Ltd. , the latest launch of the security-based intelligent industrial-grade explosion-proof tablet computer XPad Plus, the use of advanced technology, the security-type circuit design, the appearance of power, strong fuselage. The PAD uses 8.0-inch touch screen design, with the first 8 million + after 16 million pixels ultra-high definition Sony Camera, 3.7 v, 9000mAh polymer lithium battery, removable battery replacement, its waterproof, dust-proof performance up to international IP67 standards.

In addition, we have also configured the GPS/BEIDOU dual satellite system inside the PAD, Elevation Measurement, compass and other functions suitable for outdoor construction, pipeline inspection and other functions, cAN COOPERATE WITH OA office system, Inspection Positioning System, data acquisition system and other applications. Especially suitable for dangerous explosion environment, such as petroleum, chemical industry, pharmacy, military industry, oil depot, tank farm and other dangerous places with inflammable and explosive gas, to facilitate users and production, scheduling timely communication.

Ex-Marking：

Ex ib IIC T4 Gb / Ex ibD 21T 130℃
Protection grade：

IP67
CPU：

Qualcomm msm8953 2.2GHZ Octa CPU
operating system：

Android 10.0
storage：

4GB RAM 64GB ROM
display：

8.0 inch 800 * 1280 resolution Capacitive Touch HD large screen strong light viewing (also available for FHD customization 1920 * 1080)
keyboard：

On the front, there are 2 user-defined entity keys F1 ~ F2, volume ± key, on / off key, menu key, main interface key and return key
Indicating sensor：

Vibrator, charging indicator
Battery：

3.7V, 9000mah polymer lithium battery, removable and replaceable
camera：

Front: 8 megapixels, rear: 16 megapixels (Sony imx298), with flash and auto focus function
Navigation and positioning：

Yes
extend：

Support 128GB micro T card
Interface：

1 type-C interface, 1 extension interface
Expansion card slot：

2 SIM card slots, support dual card dual standby, 1 TF card slot
Dimension (mm)：

237(W)×144(D)×14mm(H)
weight：

About 660g (including battery)
working temperature：

‘-20℃~+60℃
Storage temperature：

‘-40℃~+70℃
WIFI：

2.4g/5g dual band, conforming to IEEE802.11a/b/g/n/ac
Frequency band：

4G：TDDLTE:B38/B39/B40/B41 FDDLTE:B1/B2/B3/B4/B5/B7/B8/B17/B20/B28
3G：WCDMA: B1/B2/B5/B8
2G：GSM:850/900/1800/1900
VoLTE / ViLTE：

Yes
WPAN RADIO：

Bluetooth
Bar code acquisition：

1D/2D Barcode
NFC (optional)：

Yes
UHF (optional)：

Frequency range: 902mhz ~ 928mhz in the United States and 1:920mhz ~ 925mhz in China China 2: 840mhz ~ 845mhz Europe: 865mhz ~ 867mhz
UHF (optional)：

Performance: the number of tags read per second is more than 50, and the reading distance is more than 3m (2dB circularly polarized ceramic antenna, az-9624 tag)
Low frequency：

Optional: support
Fingerprint acquisition：

Optional: support

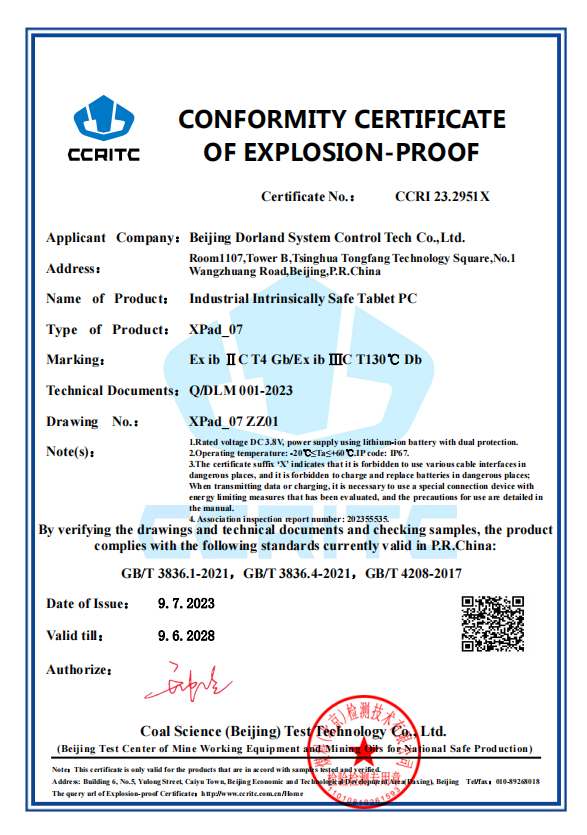

XPad_07 Plus Explosion proof Certificate EN
