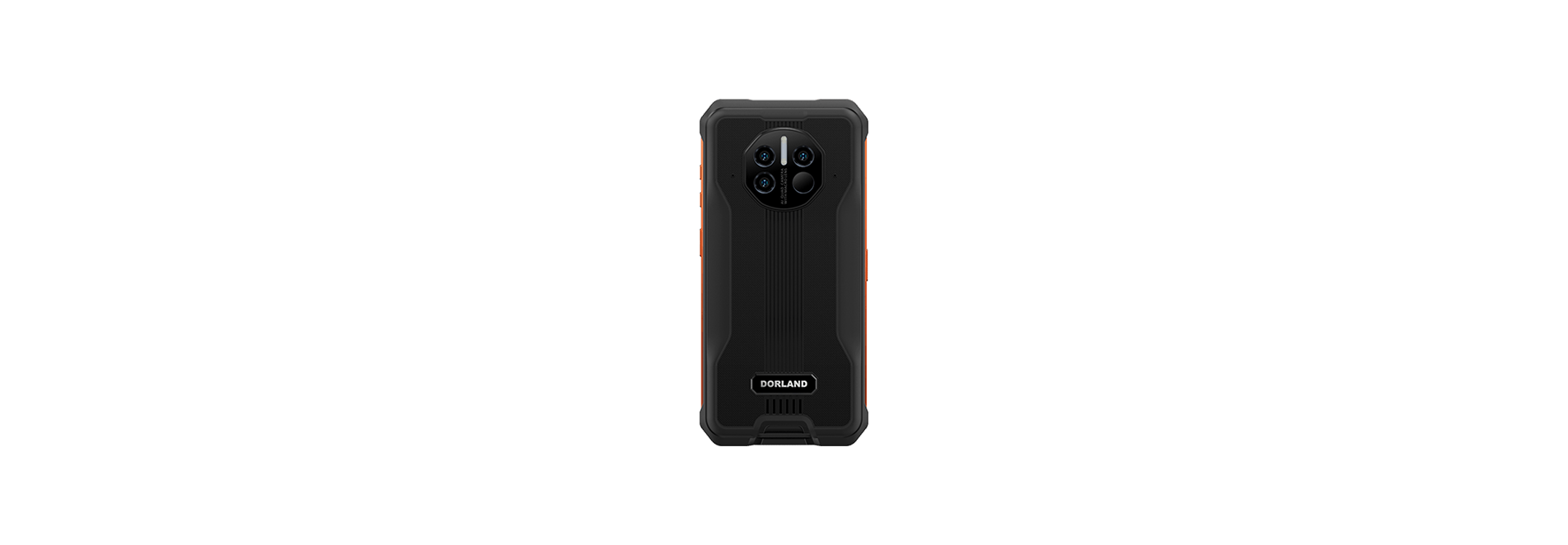

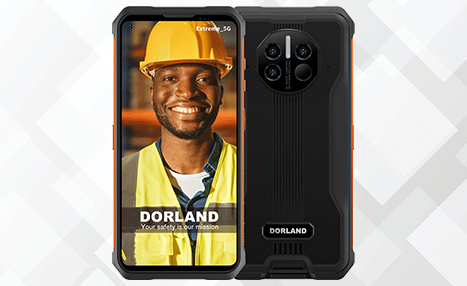

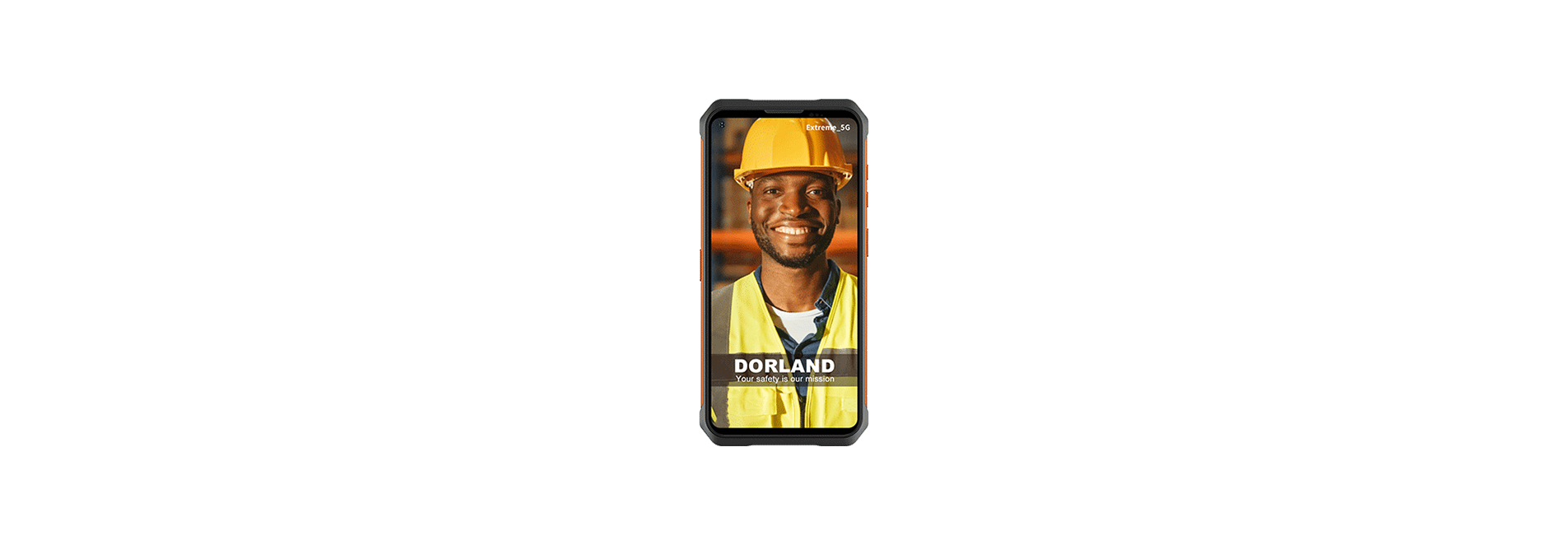

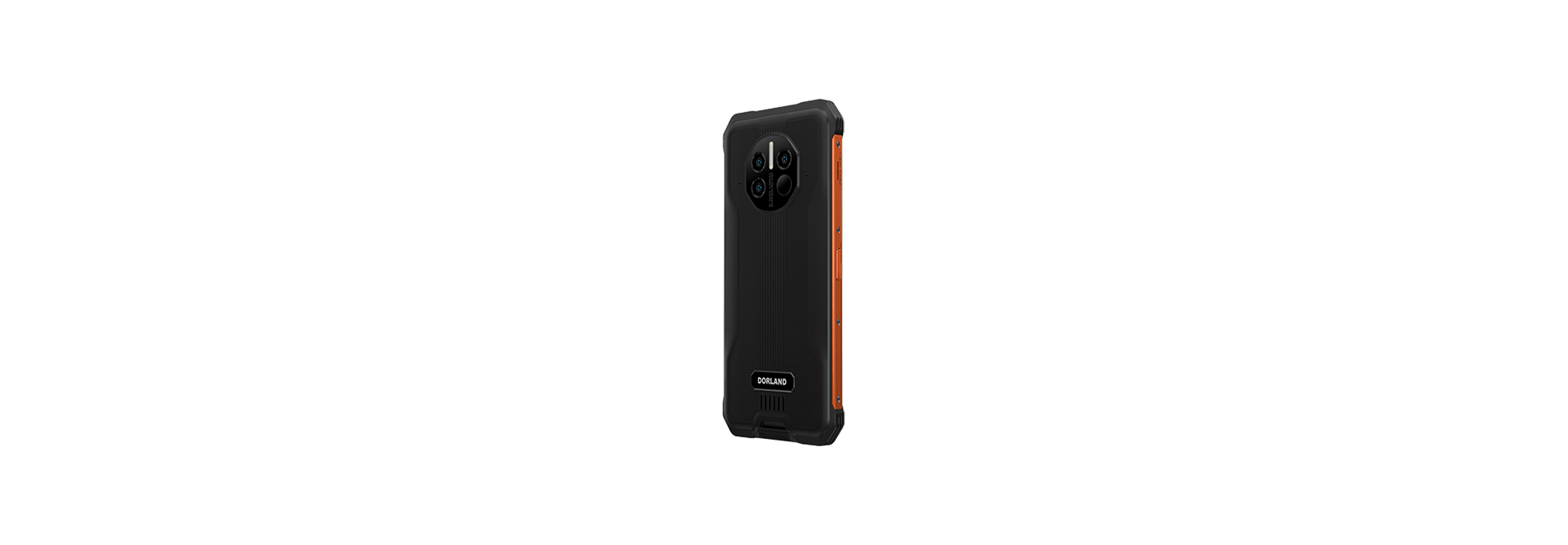

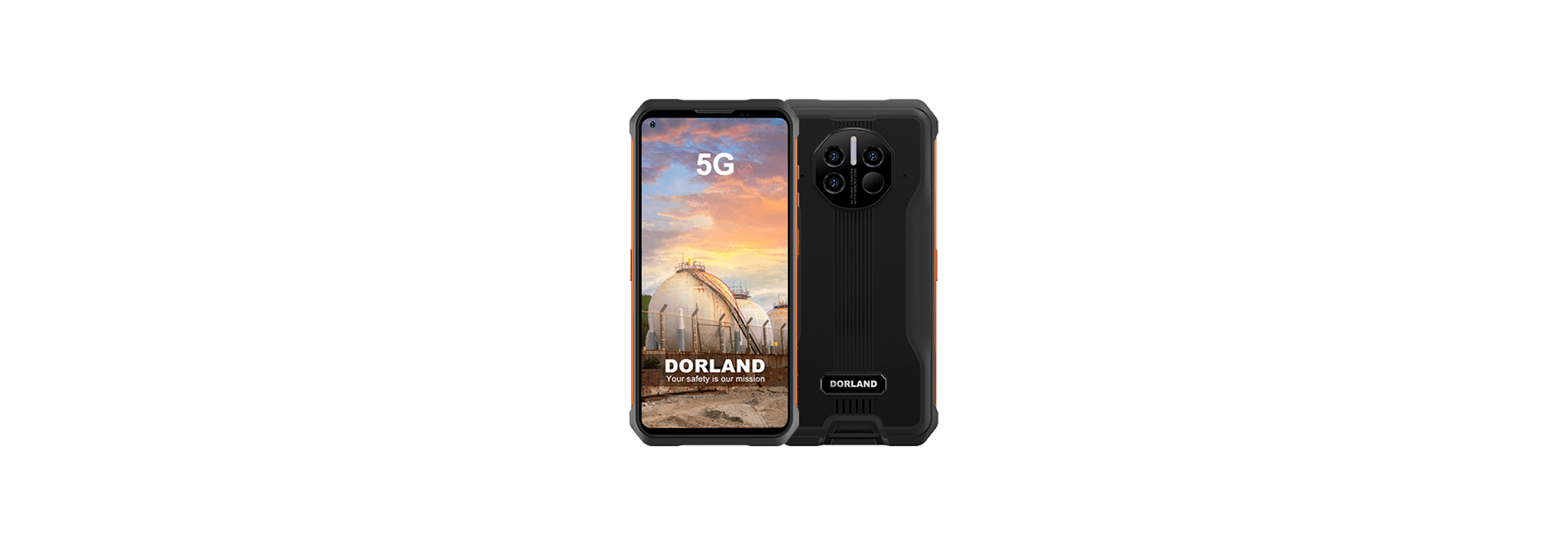

Dorland Industrial Intrinsically Safe 5G Smartphone Extreme

Developed by Beijing Dorland System Control Technology Co. Ltd., the industrial Intrinsically Safe 5G Smartphone Extreme_5G adopts advanced technology with intrinsically safe circuit, 6.39” 19.5:9 touch screen and 16M (Front Camera) &48M+8M+2M+30W (Rear Camera).

Its waterproof and dustproof performance can meet the international IP68 standards. Side fingerprint unlock function, NFC function meets read-write needs on any occasion. In addition, built-in GPS+Beidou+Galileo+Glonass and other functions are suitable for outdoor construction and pipeline inspection. ExTreme_5G can also cooperate with OA office system, checking positioning system and data acquisition system etc. This model is especially suitably used in dangerous environment such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas.

It is convenient for users’ timely production dispatching and communication.

Ex-Marking：

Ex ib IIC T4 Gb / Ex ibD 21 T130℃
Certification No.：

CCRI 21.2841
Protection grade：

IP68
Overall weight：

340g (including battery)
Package size：

199*184*37mm
Dimension (mm)：

169.3*81.2*16.1mm
operating system：

Android 11.0
Model：

Mt6833 Tianji 700 8-core
Frequency band：

GSM：B2/3/5/8 WCDMA：B1/2/4/5/6/8/19 CDMA:BC0/BC1/BC10
LTE_FDD(B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66) LTE_TDD(B34/38/39/40/41) NR(N1/3/5/7/8/20/28/38/40/41/77/78/79)
EDGE/GPRS：

Yes
RAM：

8GB /DDR4
ROM：

128GB /DDR4
SIM card type：

SUPPORT Nano SIM+Nano SIM
Memory card type：

No
Extended memory：

No
Front camera：

16mp, sensor sensor: Sony imx351-oaphs-c 1600W
Rear camera：

Fourth photo 4800W + 800W + 200W + 30W, rear main photo Samsung s5kgm1st03-fgx9 4800W
flash lamp：

Yes
software function：

Panorama, video, picture, beauty, bokeh, pro, mono, HDR, water mark
sensor：

Samsung,s5k4h7 800w
Optical dimension：

1/4inch
Pixel size：

2448*3264
aperture：

2.2±5%
angle：

118.8°
Phase focusing：

AF
Size, technology：

6.39 IPS
Screen color：

16.7M
Type：

LCD
resolving power：

720*1560 HD+
Pixel density：

270ppi
Aspect ratio：

19:09
brightness：

430cd/m2 (MIN)
contrast ratio：

1000/1
Navigation：

Beidou,Galileo,Glonass,GPS
WIFI：

2.4G/5G（802.11ac/a/b/g/n）
Bluetooth：

BT5.2
FM：

Support / plug in headphones to support external playback
OTG：

Yes
NFC：

Yes
sensor：

Gravity sensing, distance sensing, light sensing, compass, geomagnetism, gyroscope
Unlocking mode：

Side fingerprint identification
Fast charging：

Support maximum charging 11v3a
Sound amplifier：

Intelligent power amplifier, fs1894su
Panel technology：

Double layer multipoint
IC：

FT8615-AB
Induction technology：

Capacitive touch screen
Material Science：

Panda tempered glass
Screen fitting method：

Full paste
Entity key：

Power key, volume key, custom key
Virtual key：

Home key, menu key, return key
Drive Unit：

1813 box single box horn rated 1.0W, maximum 1.2W
Vibration motor model：

0827 flat motor
receiver：

1008 shrapnel type
Microphone：

Silicon wheat
Charging port：

Type-c
capacity：

Non loadable, 8500mah
Charging frequency：

400 times
Material Science：

Lithium cobalt oxide
Voltage：

4.4V
Battery capacity factor：

1.5
Setting out coefficient：

MAX 0.5C
Cell density ratio：

663Wh/L
Shell structure：

Two color injection molding
Shell material：

PC + 10% fiber + tup90 degrees
colour：

black
System navigation mode：

Gesture navigation, 3-button navigation
Intelligent gesture：

Yes supports gestures based on the actual situation. This function is turned off by default
Somatosensory transmission：

Flip mute and intelligent answer are turned off by default, and wake up when picking up the device is turned on by default
Systemic somatosensory：

Three finger screen capture, three finger access to the camera, two finger volume adjustment, alarm clock flip pause. This function is off by default
Support language：

Simplified Chinese, traditional Chinese, English, and other languages

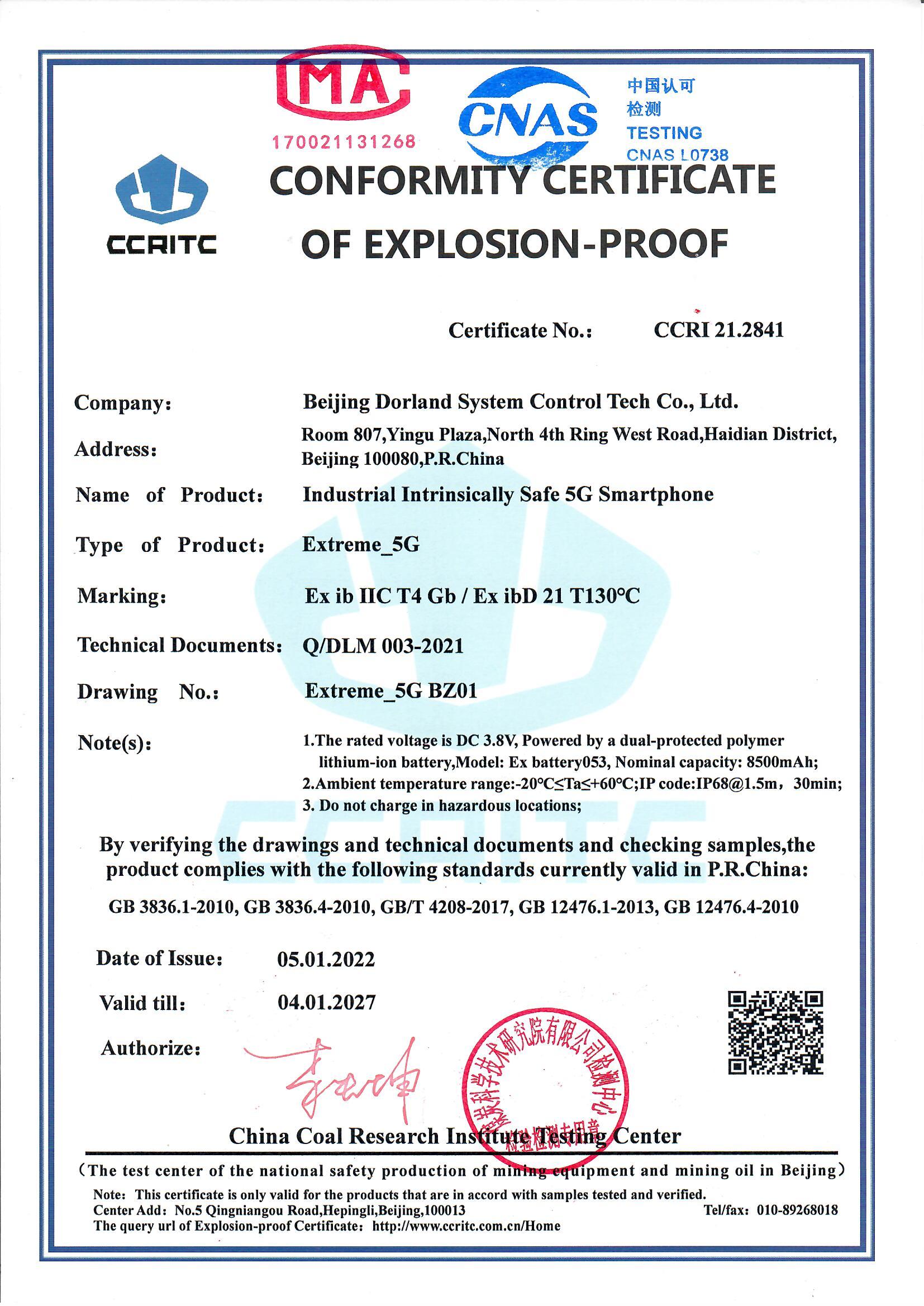

Extreme_5G Explosion proof Certificate EN
