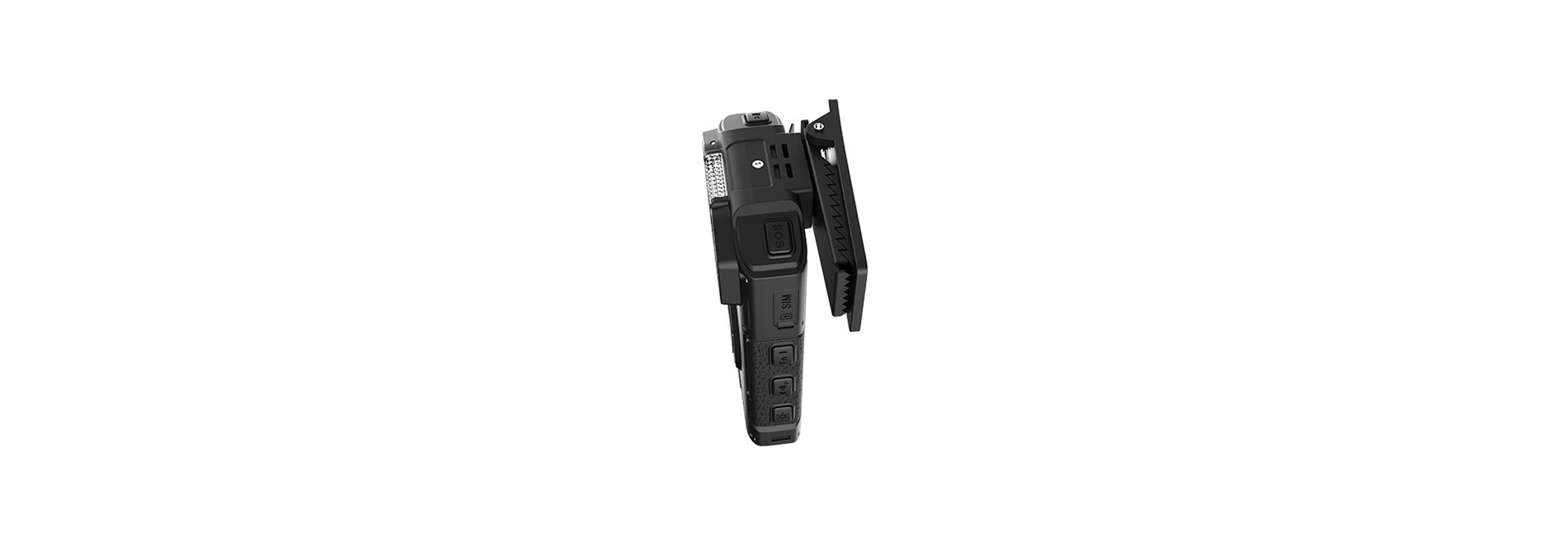

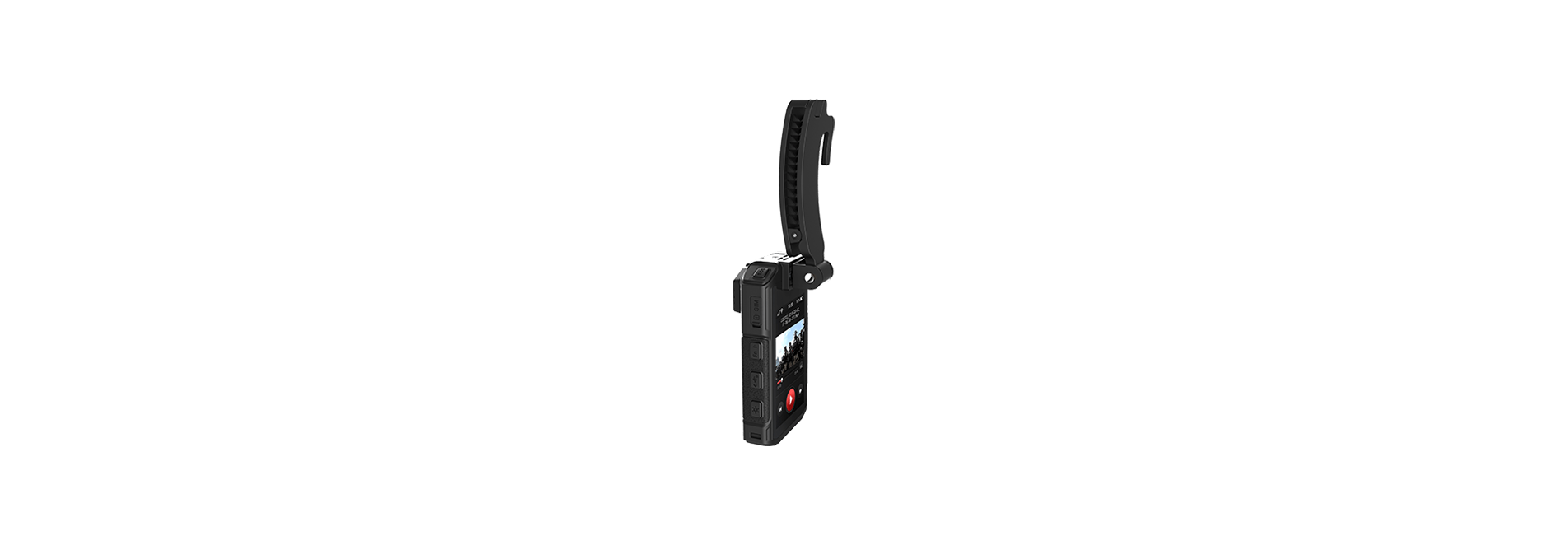

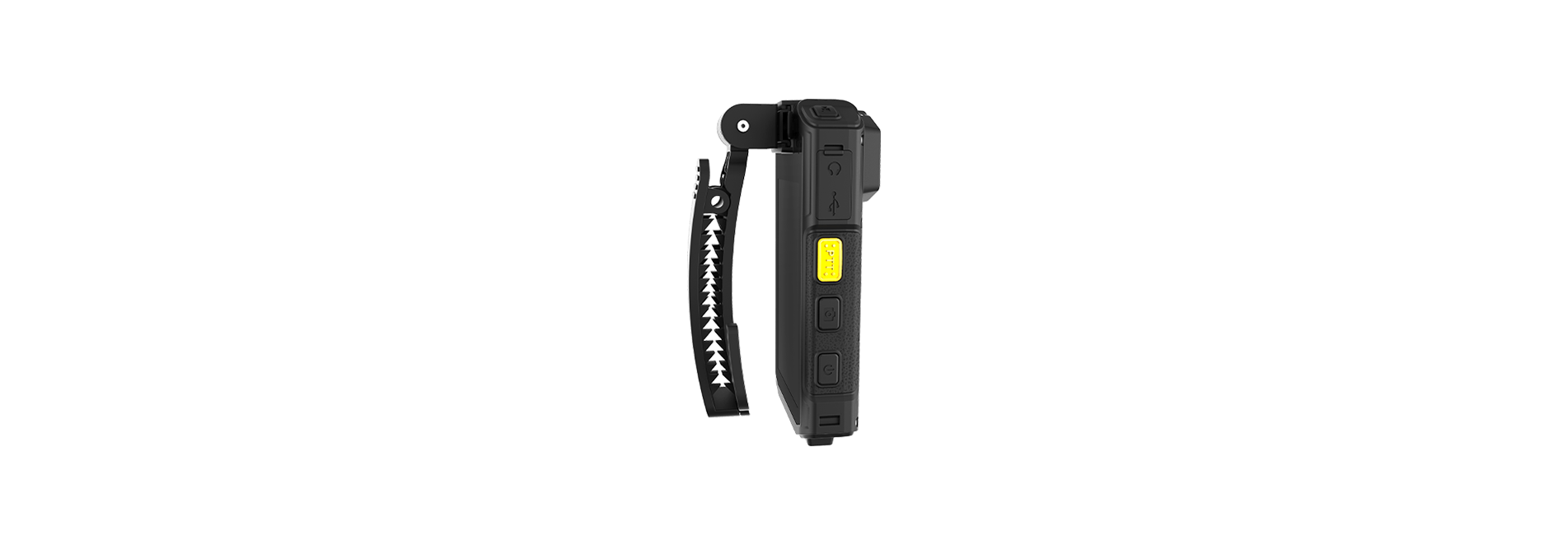

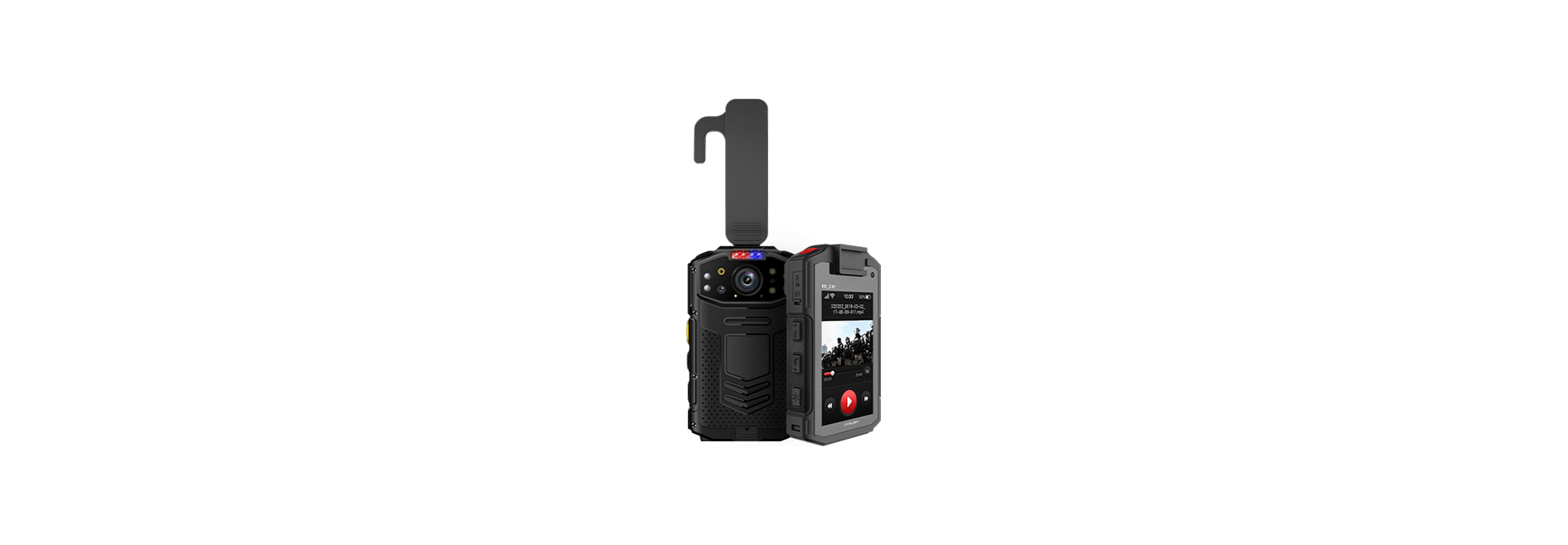

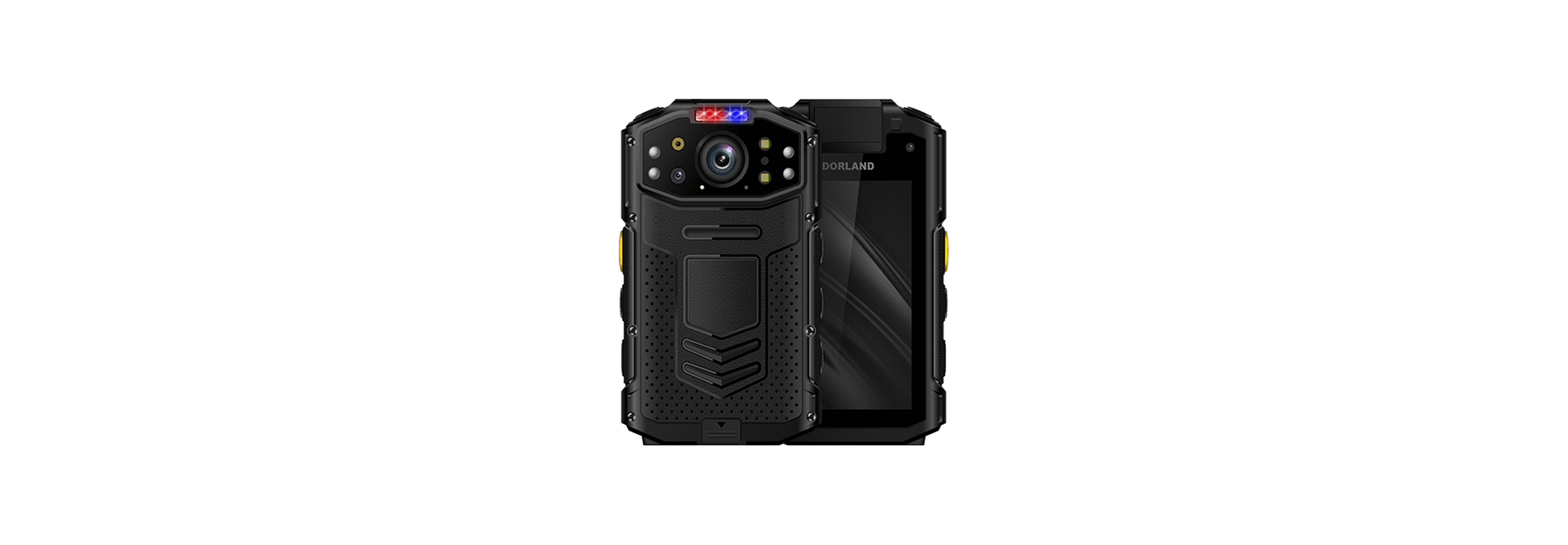

DORLAND Industrial Intrinsically Safe Smart Body Worm Camera EE

Beijing DORLAND System Control Technology Co., Ltd. recently released the intrinsically smart body worm camera EE_ C01, adopted advanced technology with intrinsically safe circuit design, aggressive appearance, strong body. 4G HD single police video audio law enforcement recorder is highly integrated equipment specially developed for public security, armed police, urban management, industry and Commerce and other law enforcement departments. The device supports photographing, video recording, sound recording, local storage, infrared night vision, laser positioning and 3G / 4G wireless transmission. The video can be directly uploaded to the background through 4G / 3G / WiFi / AP network. Users can watch videos through mobile phones and PC to meet the recording requirements of various scenes.

In addition, built-in GPS and other functions suitable for outdoor construction and pipeline inspection. EE_ C01 can also cooperate with OA office system, checking positioning system and data acquisition system and other applications etc. Especially EE_ C01 is used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas, which is convenient for users to dispatch communicate timely.

Ex-Marking：

Ex ib IIC T4 Gb/Ex ibD 21 T130℃
Certification No.：

CCRI 20.2138
Protection grade：

IP68
Appearance Type：

Straight Plate
Dimensions：

102.7x62.4x17.8mm
Weight：

175g
TDD_LTE:B38/B39/B40/B41, FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B17/B20/B28AB
Default band：

GSM:850/900/1800/1900, WCDMA:850/900/1900/2100, EVDO:800,
Frequency band：

Network, wireless, support 2G/3G/4GNetwork
Operating system：

Android 8.1
CPU：

64-bit octa-core 2.0 ghz processor
Memory：

2GB+16GB
Bluetooth：

Yes
Wifi：

Support 2.4+5G
Reserved serial port：

NC (USB magnetic suction port (high priority) OTG)
PTT：

Support Soft intercom (customer APK)
Earphones：

Yes
USB stick function：

Yes
Memory Card：

Support micro-sd card (maximum 128G)
Blue-red warning light：

Yes
Working Light：

1. In standby mode, light green when not recording, photographing or recording; 2. Light red when recording or photographing
3, recording process bright yellow 4, low battery Green Flash
Laser lamp：

Support (application scenario to be determined)
Light perception：

Feel the intensity of the light. Turn on the infrared light when the light is dim, and turn off the infrared light when the light is bright
Infrared lamp：

One on the left and one on the right, which works when the light goes dark, and the video turns black and white
White Light：

When power on, long press “Shoot key”to turn on/off white light, which can be used as lighting lamp and fill light
GPS：

Yes
AGPS：

Yes
GLONASS：

Yes
The Big Dipper：

Support (comes with the platform)
NFC：

Yes
Free Fall：

Greater than or equal to 3000 mm
Power supply：

Support Special Adapter USB interface charging and vehicle charging DC5V, 1.5A
Sustained flight：

The battery can be replaced, and the continuous recording time of the two batteries is ≥14h
Standby time：

≥48h
Interface：

Data interface Mini USB2.0
Forward motion：

2M-5M
Secondary Rear Camera：

13M
Main and rear camera：

4M
Image Sensor：

1/3 inch color CMOS image sensor
Wide Angle Lens：

135 Degree Wide Angle, level angle 140 °
Take a picture：

4 megapixels; 8 megapixels; 16 megapixels; 32 megapixels; JPG
Video resolution：

1280720(frame 30) ; 19201080(frame 25)
Video format：

MP4
Audio recording format：

WAV
Live resolution：

1280*720，720*480
LCD display：

HD 3.1 inch TFT LCD WVGA
TP：

G+F
Luminous compensation：

Led White Light compensation, infrared night vision, 5 meters to see facial expressions, 10 meters to see the Human Body Contour
Infrared night vision：

Automatic infrared night vision on/off, automatic filter switching
Data interface：

Mini USB， SIM，TF，Magnetic Suction ，headphones
Batteries：

Dual replaceable battery, 2500mAh, 3.8 v
Continuous working time：

14 hours
4G Network：

All Netcom
Full charge time：

≤4 hours
WIFI network：

Support 802.11 b/g protocol, 2.4 Ghz + 5 Ghz, with AP hotspot and client functions
GPS/BEIDOU positioning：

BUILT-IN GPS real-time positioning, can support Beidou positioning, satellite time synchronization
Support Protocol：

Support for Onvif, 28181, etc.
Peripheral equipment：

External Intercom headset
Plinth：

The equipment is equipped with a special base, which can be used for charging and data transmission. The dock can charge both the law enforcement and the backup batteries
911 emergency：

Long press the corresponding button, the device issued an alarm prompt
Operating temperature：

Negative 20 °C to 60 °C
Working Humidity：

Humidity less than 90%
Power key：

Long press-switch,
Power key：

Short Press -- Lights up the screen,
PTT Key：

Short press-talk, do not press: Answer; Press and hold: Talk
Video key：

Short press-record, start/stop recording: start/stop recording; light up the screen when the screen is silent, start recording at the same time; power off: Start, then start recording directly (one-button recording function)
The SOS button：

Long press-alarm, open 4G function, send alarm information to the software background;
Recording key：

Short press-recording, BOOT status: start/stop recording; the screen can be lit when the breath, while recording; eject keyboard, you can choose the cursor to move to the left;
Photo button：

Long press-white light, power on, long press “Shoot key”can turn on/off white light;
Photo button：

Short press -- take a picture
Multifunctional interface：

External Equipment: Connect Earphone, External Camera, etc.
SIM：

SIM Cut
USB ：

Data transmission interface, charging interface;
Keyboard backlight：

White

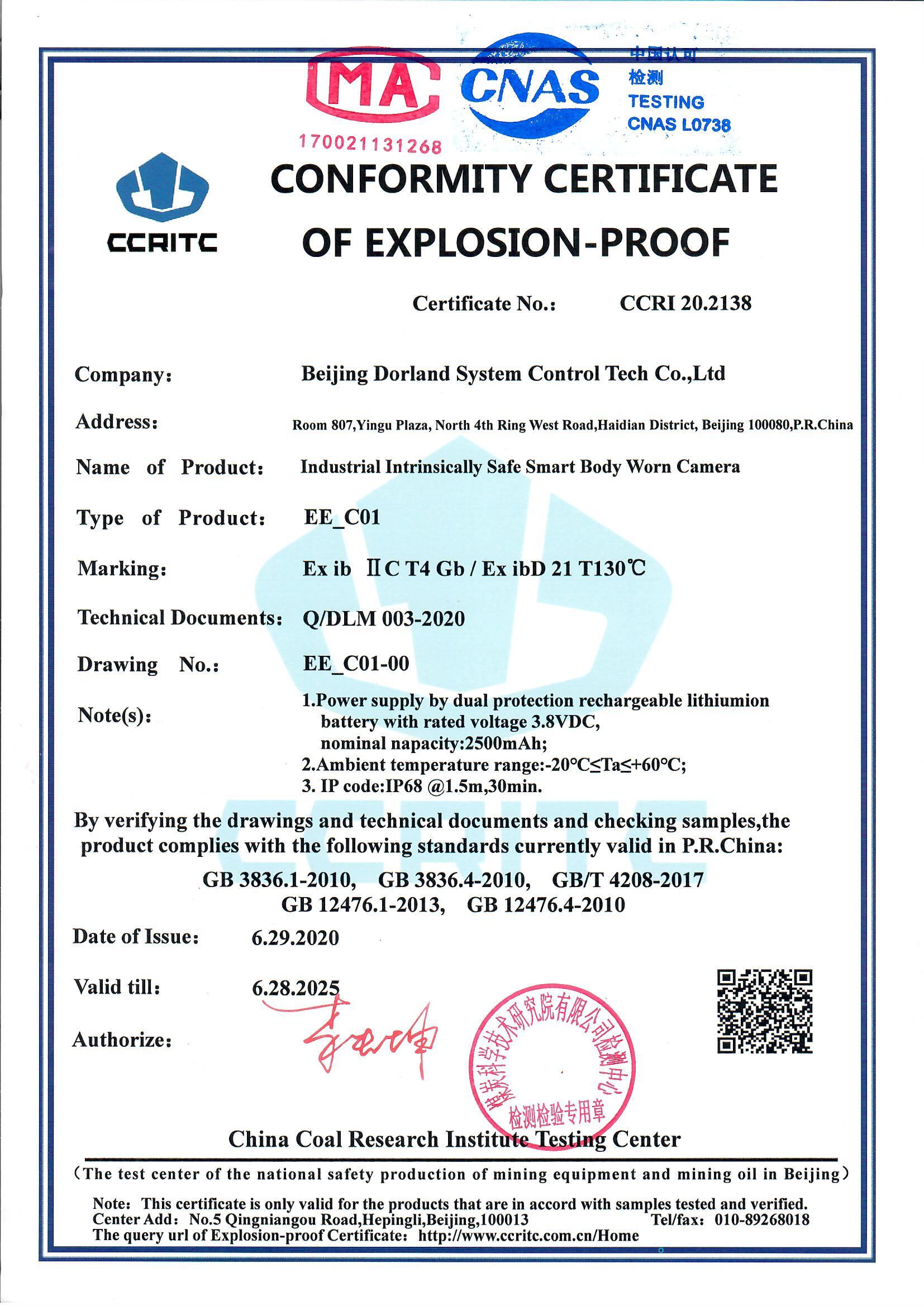

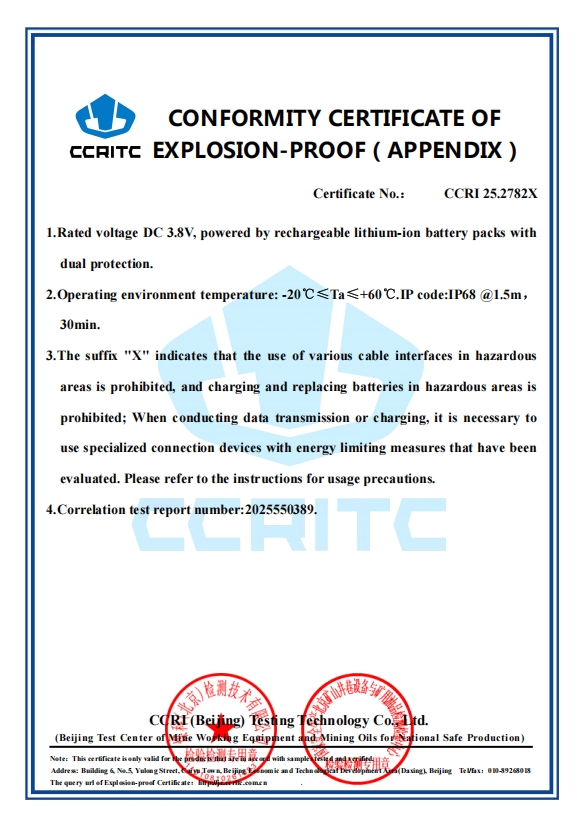

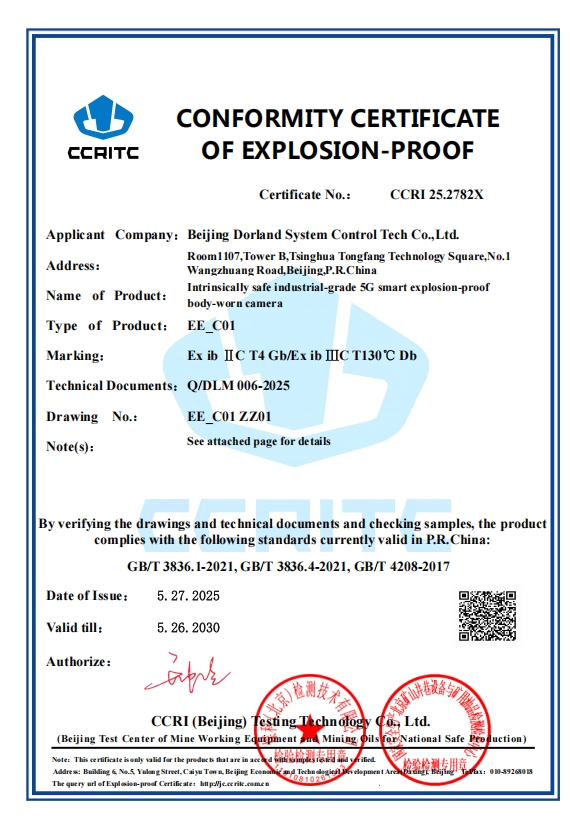

EE_C01 Explosion proof Certificate EN

Download

EE_C01 Inspection Report

Check the details Download
