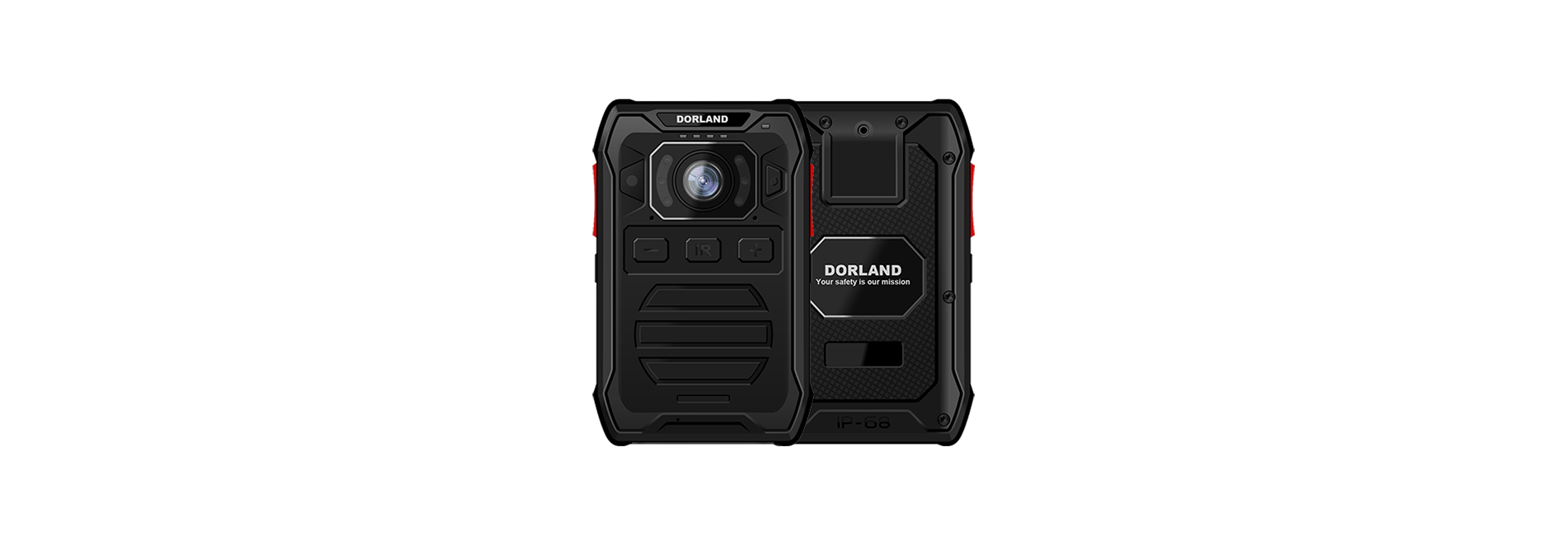

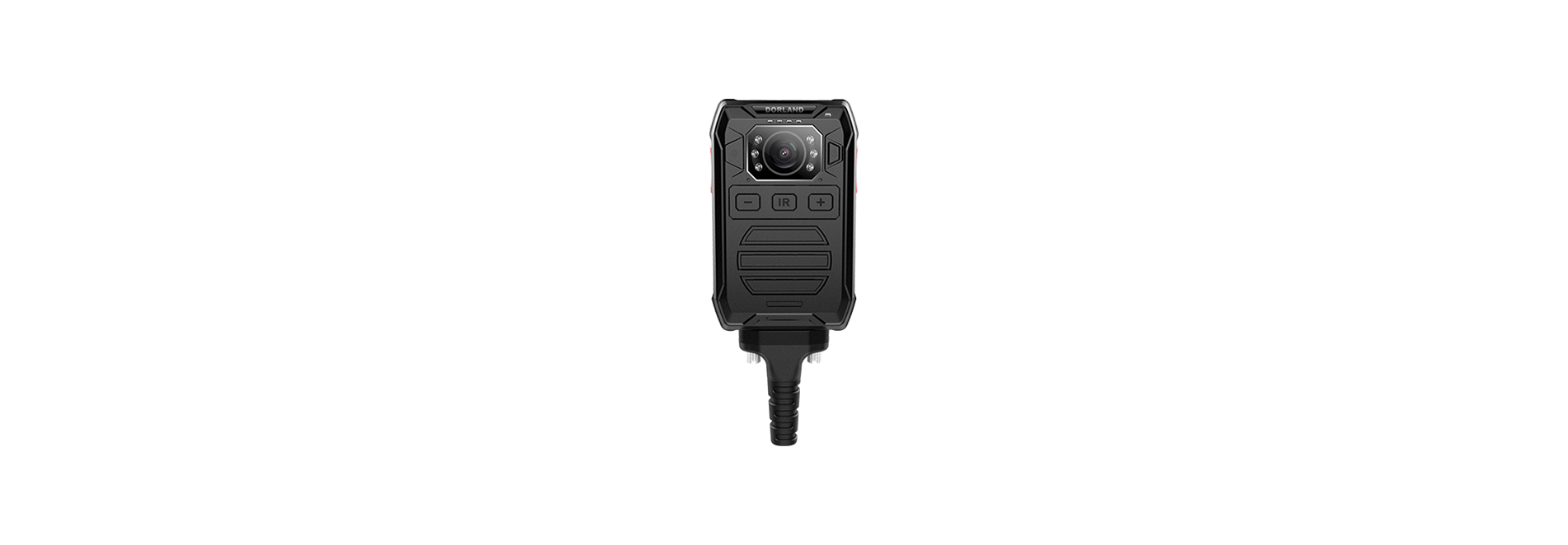

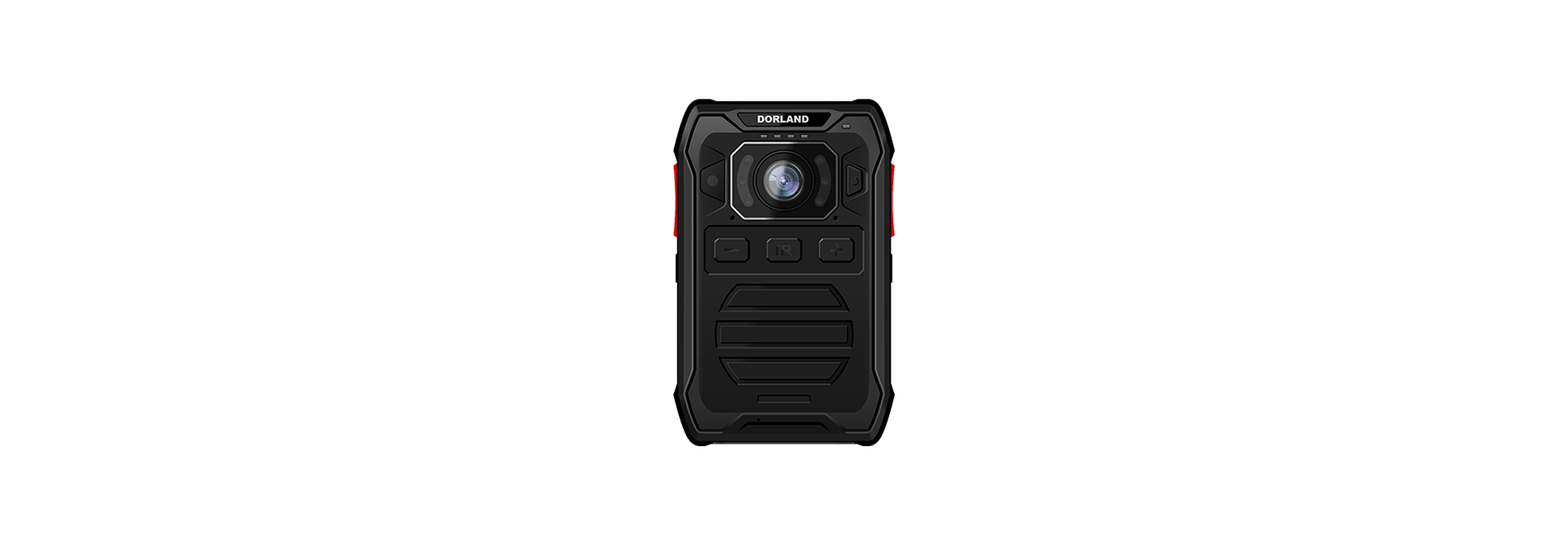

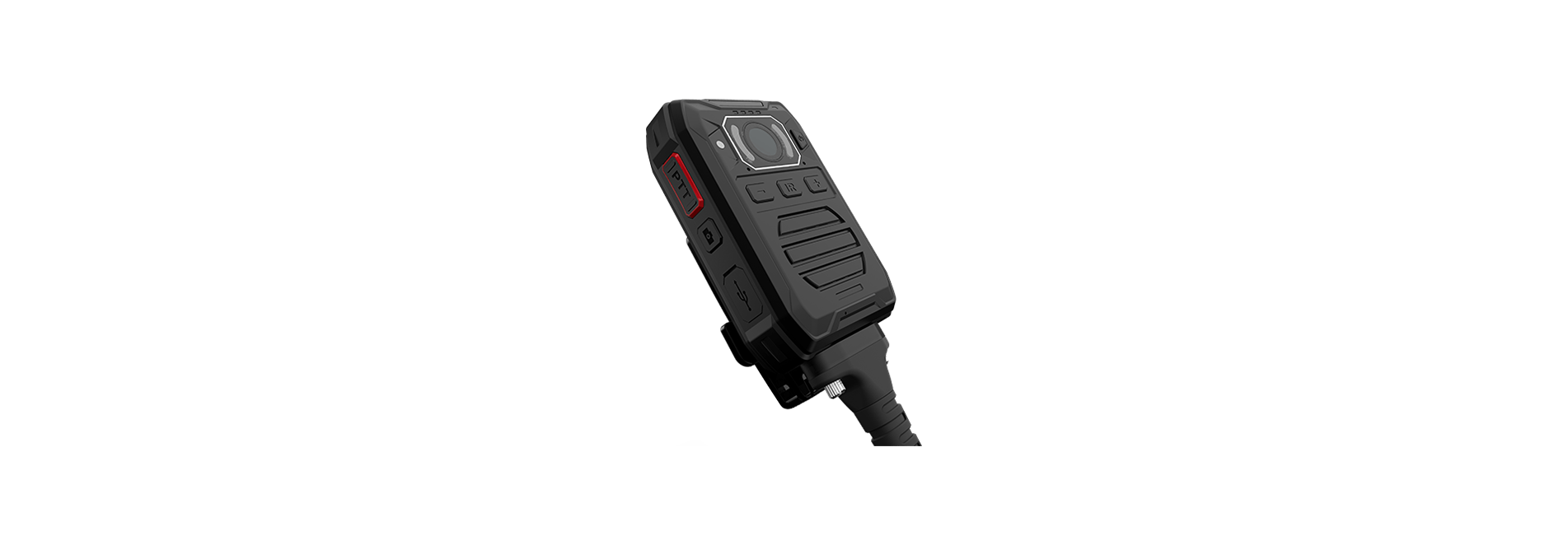

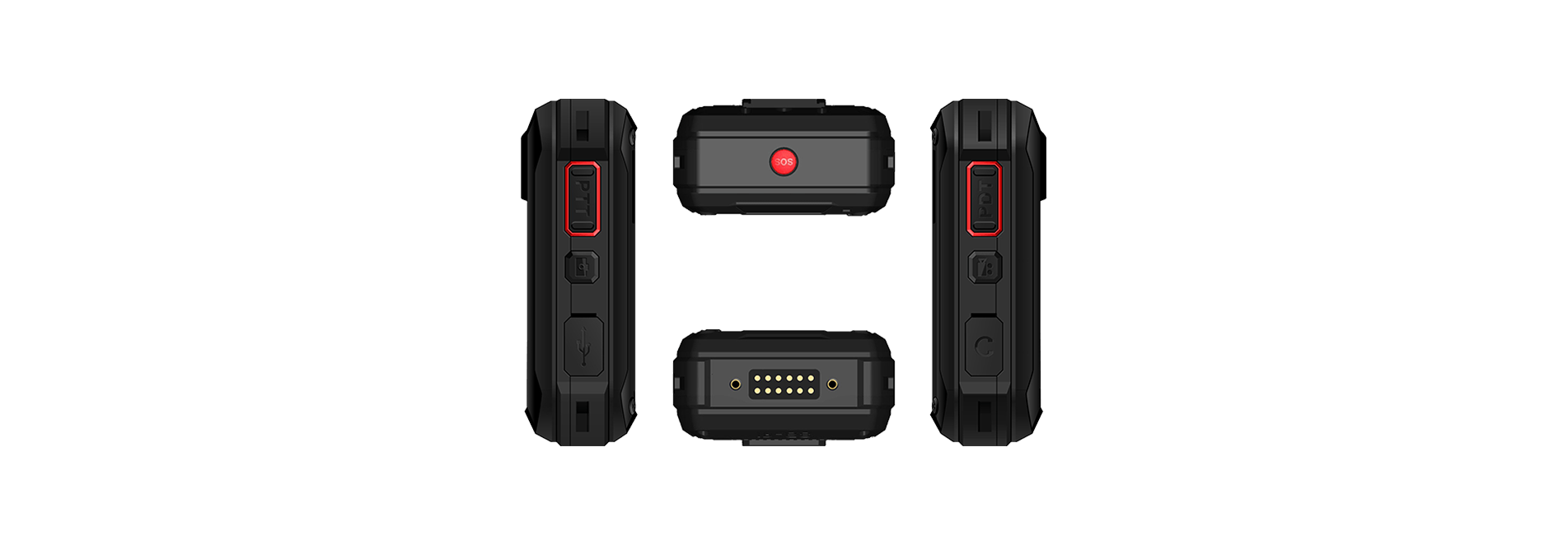

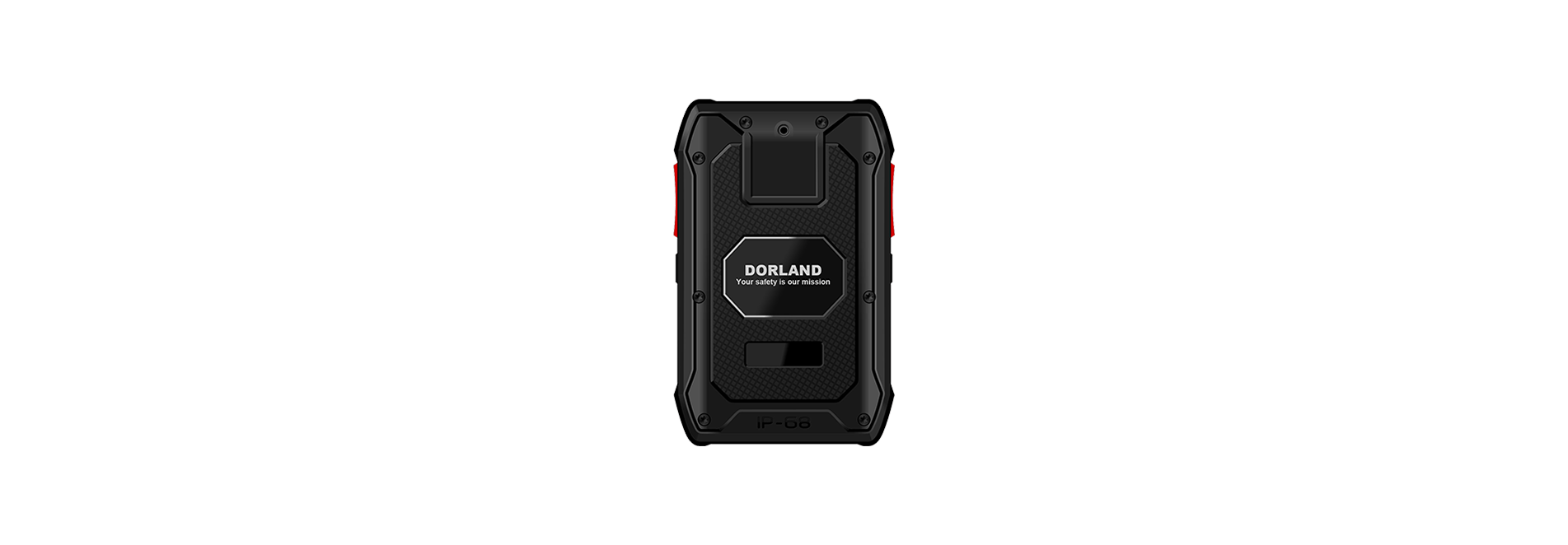

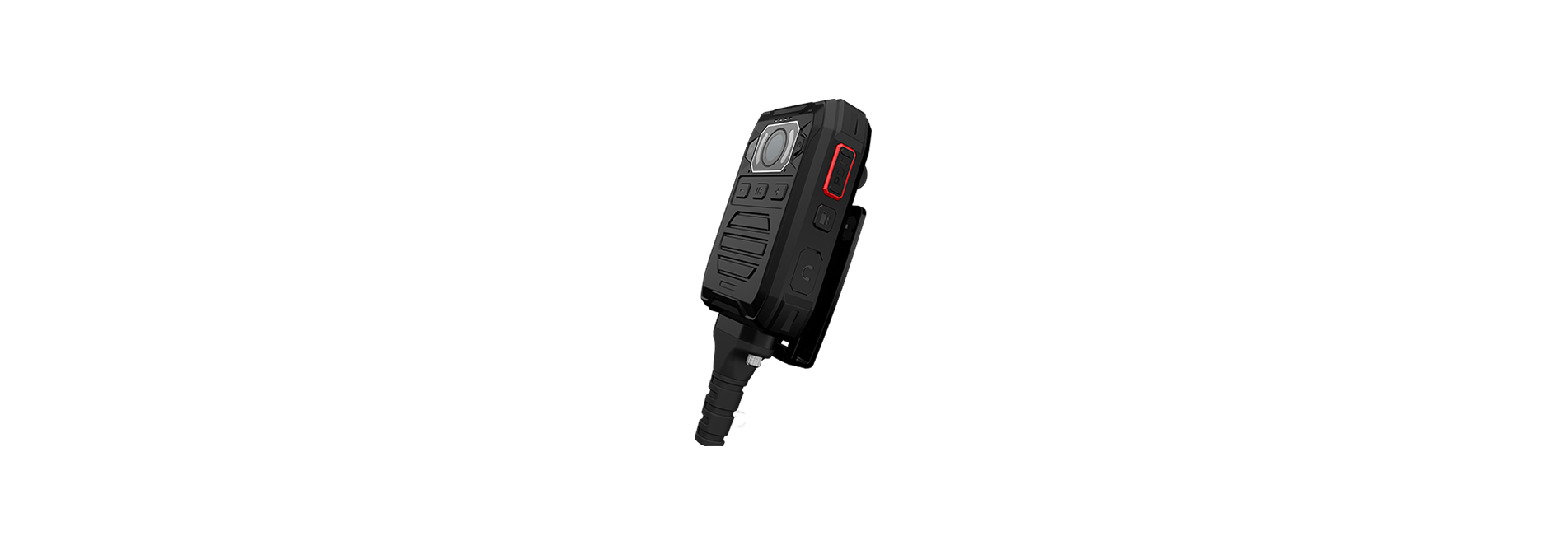

DORLAND Industrial Intrinsically Safe Smart Body Worm Camera EE_H08

Ex-Marking：Ex ib IIC T4 Gb / Ex ibD 21 T130°C

Certification No.：CCRI 20.2178

Protection grade：IP68

Battery capacity：2500mAh

Beijing DORLAND System Control Technology Co., Ltd. recently launched the intrinsically safe industrial class intelligent explosion-proof law enforcement recorder EE_ H08 adopts advanced technology, intrinsically safe circuit design, aggressive appearance and strong body. Delan EE_ H08 external law enforcement recorder, 1080p high resolution, support infrared star night vision function, with 2 million pixels, infrared night vision laser positioning lamp, one key photo / camera, PTT intercom button, external high speaker, separate power supply, hands free, easy to operate! We also configure multiple buttons outside the law enforcement recorder, which are suitable for users of public security law enforcement, fire law enforcement, traffic police law enforcement, urban management law enforcement, road administration law enforcement, industrial and commercial law enforcement, customs law enforcement, security patrol and other industries, and can cooperate with OA office system, patrol positioning system, data acquisition system and other applications.


It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.




  • Ex-Marking：

    Ex ib IIC T4 Gb / Ex ibD 21 T130°C

  • Certification No.：

    CCRI 20.2178

  • Protection grade：

    IP68

  • Product characteristics：

    Support infrared lamp, laser lamp, separate power supply

  • Cameras：

    2 million illuminance, compatible with 1080 * 1920

  • Frame rate：

    1080P、30FPS

  • Field of view：

    D:108;H:87.6:V:47.1

  • Structure：

    Six layers of glass

  • Focal length：

    4MM

  • Aperture：

    2.2MM

  • Flash lamp：

    Six infrared lights

  • Indicator light：

    5(power on working lamp, 25%/50%/75%/100% display lamp)

  • Electrical interface：

    Yes

  • Battery capacity：

    2500mAh

  • Standby time：

    200 hours

  • Talk Time：

    12 hours

  • Charging time：

    Three hours

  • Dimensions(mm)：

    L95.0*W62.0*H30.0MM Below

  • Weight：

    170g

  • Color：

    Black

  • Water proof grade：

    IP68

  • Trumpets：

    ￠36.0MM

  • Microphones：

    Silicon wheat

  • Charging interface：

    Micro5Pin USB

  • Headphone Jack：

    ￠3.5MM

  • Switch key：

    Heads

  • Reset key：

    Side face (inside earphone plug)

  • PTT Key：

    Side Key

  • PDT(DMR)：

    Side Key

  • Volume+：

    Heads

  • Volume-：

    Heads

  • Photo button：

    Side Key

  • Camera key：

    Side Key

  • Ir Laser Lamp, infrared switch key：

    Front (Long Press on, off; infrared light preferred)

  • ALARM/SOS：

    Side (top side)

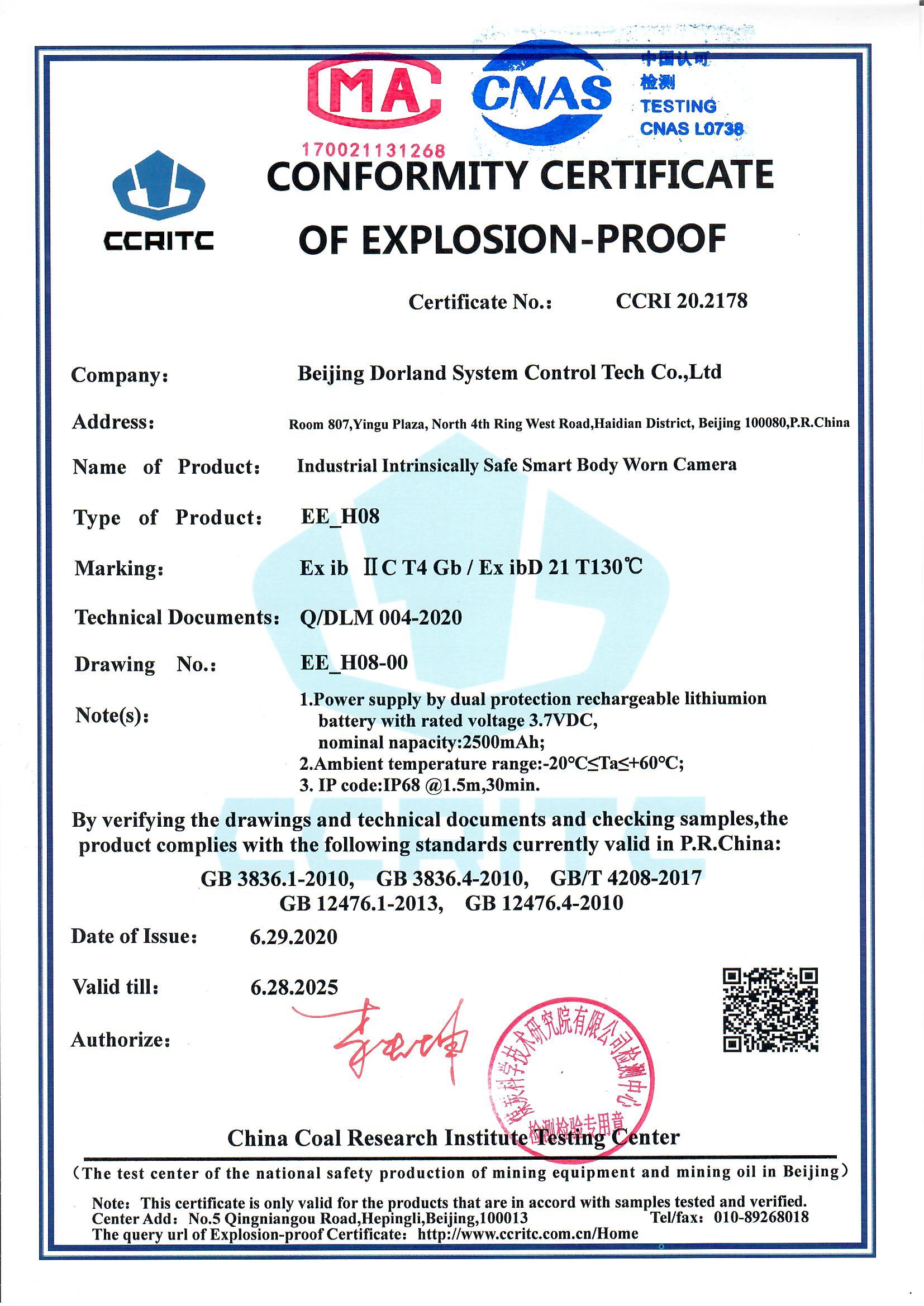

EE_H08 Explosion proof Certificate EN

Download

EE_H08 Inspection Report
