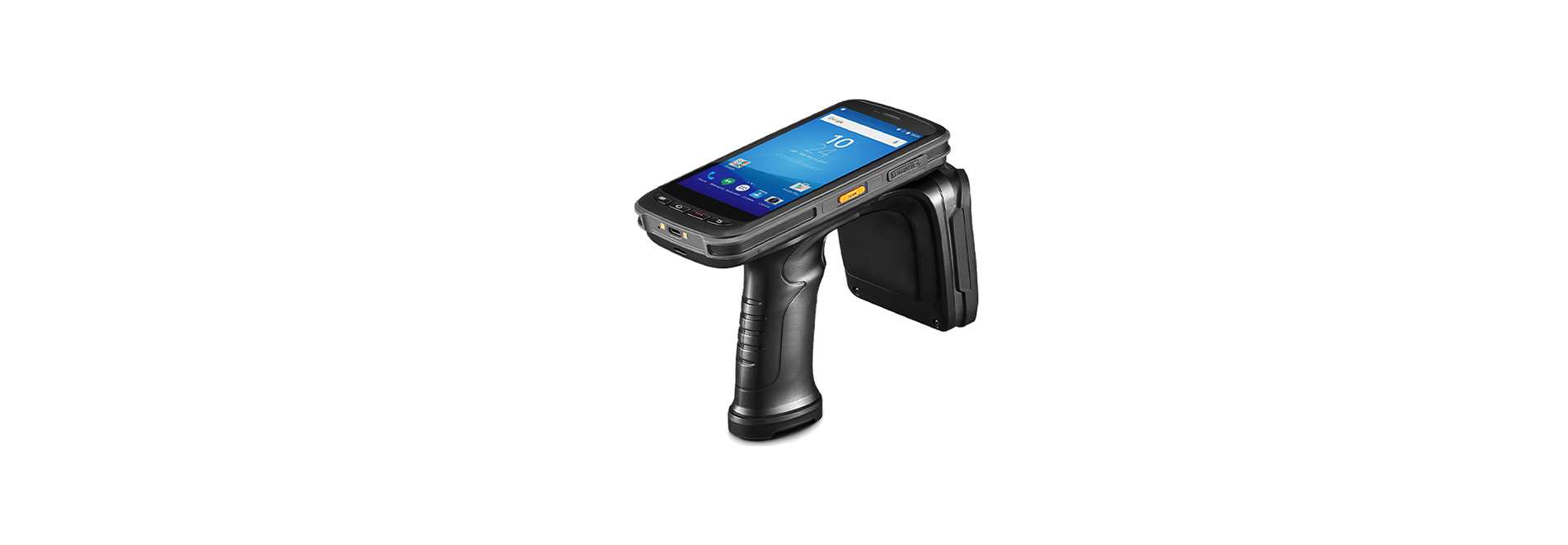

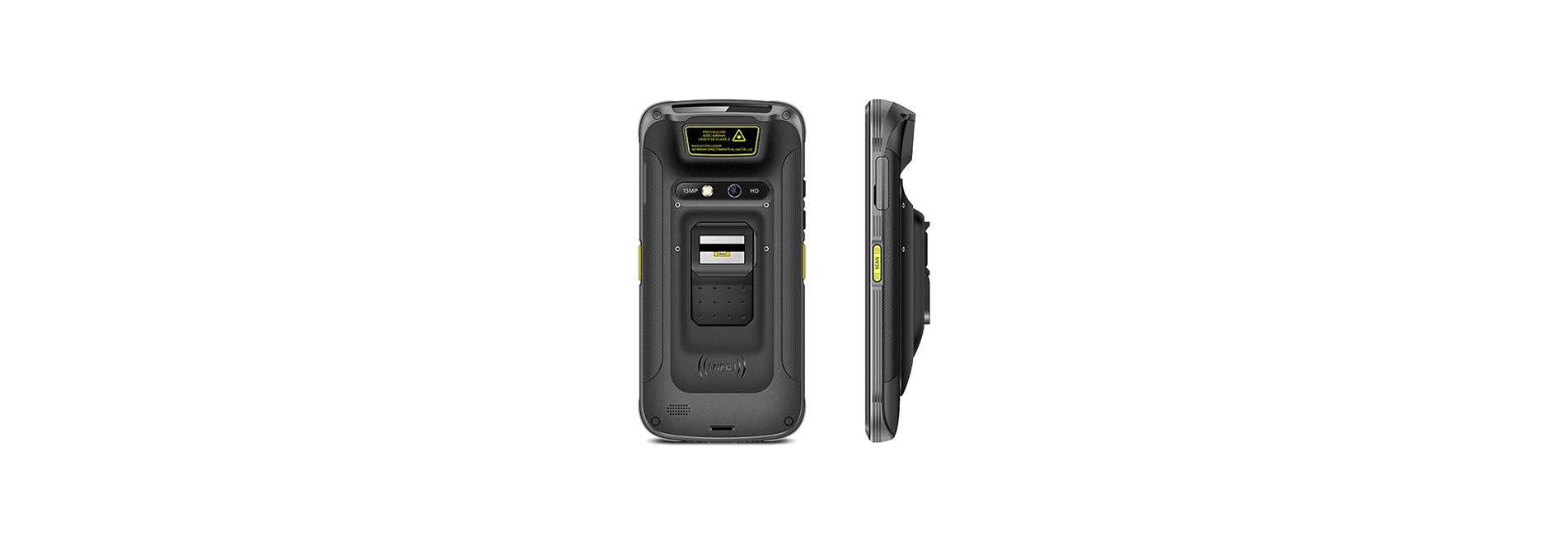

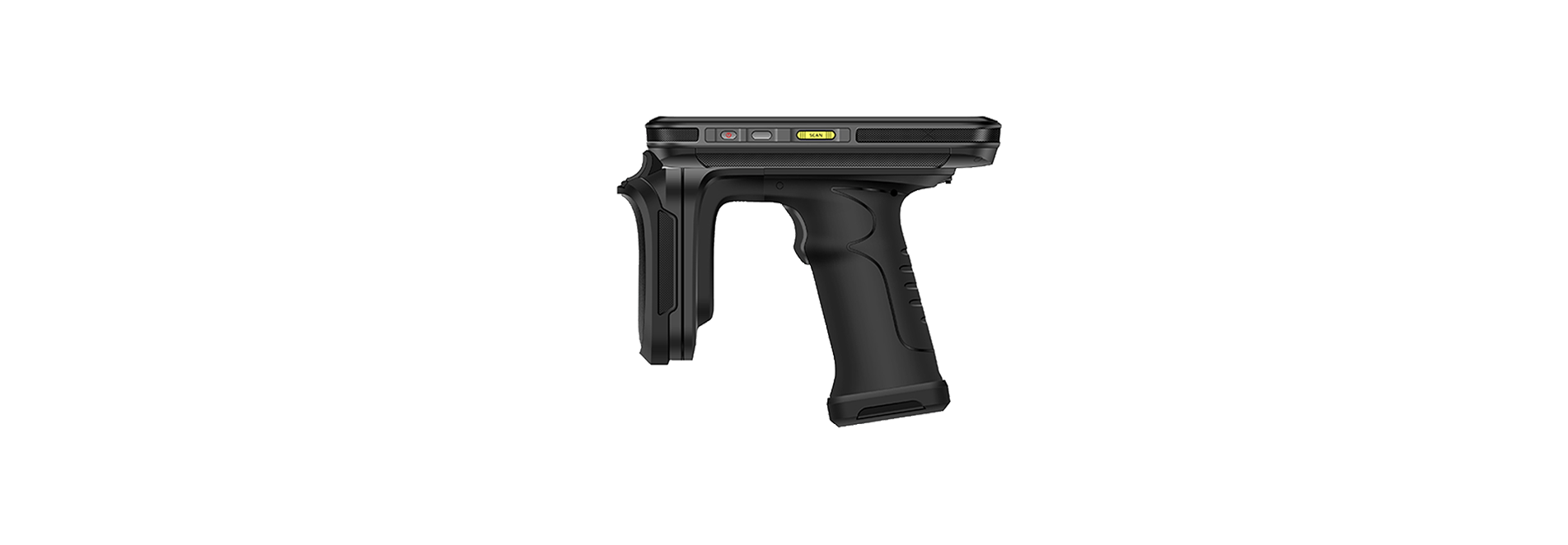

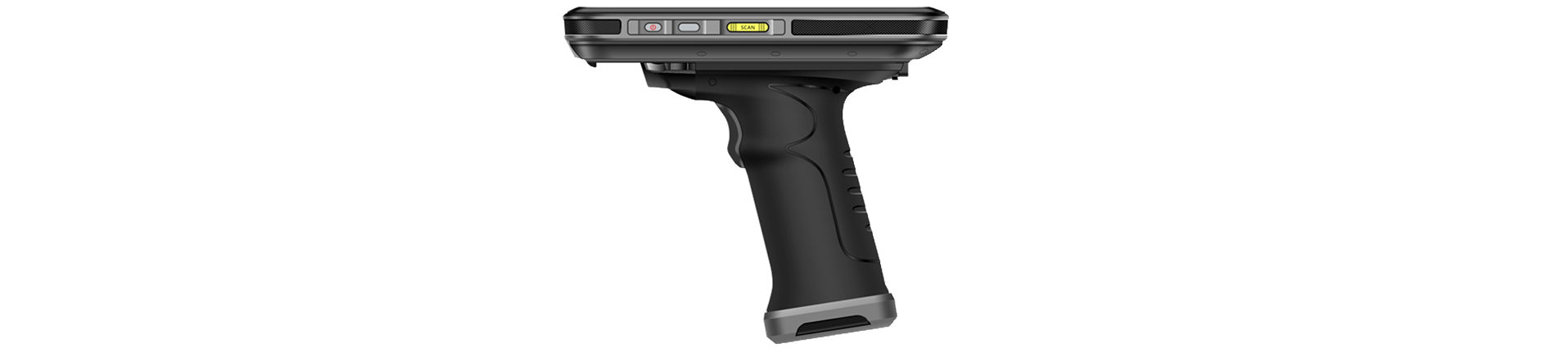

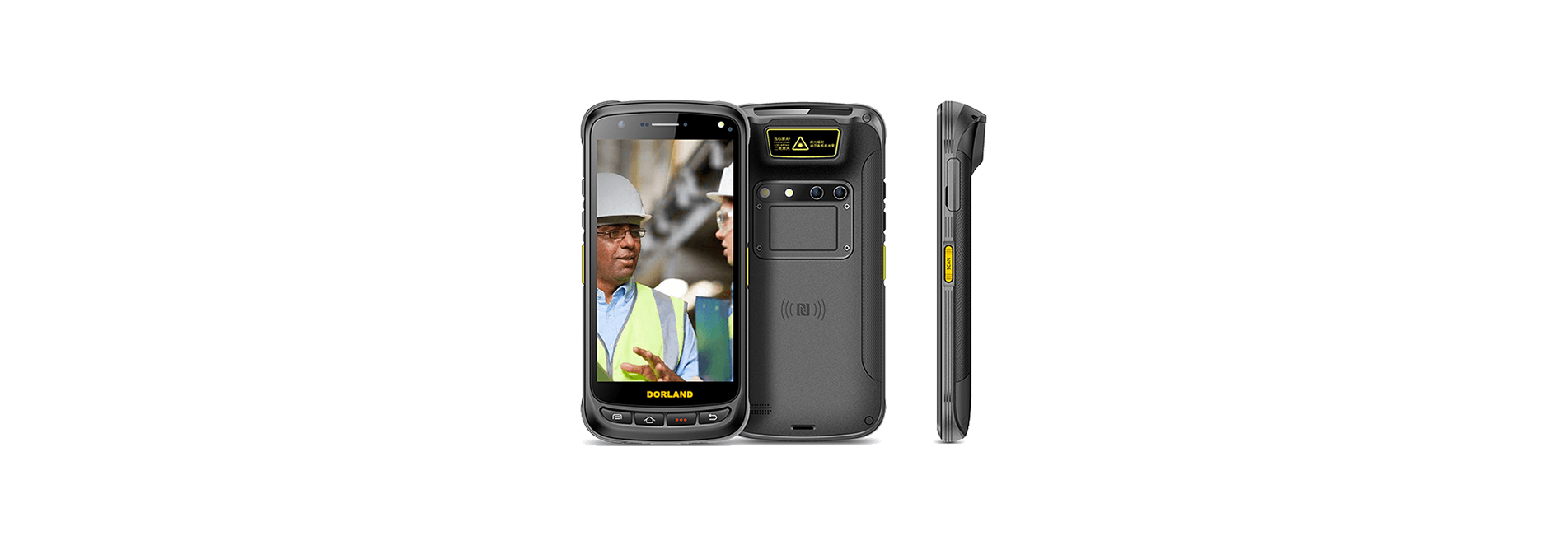

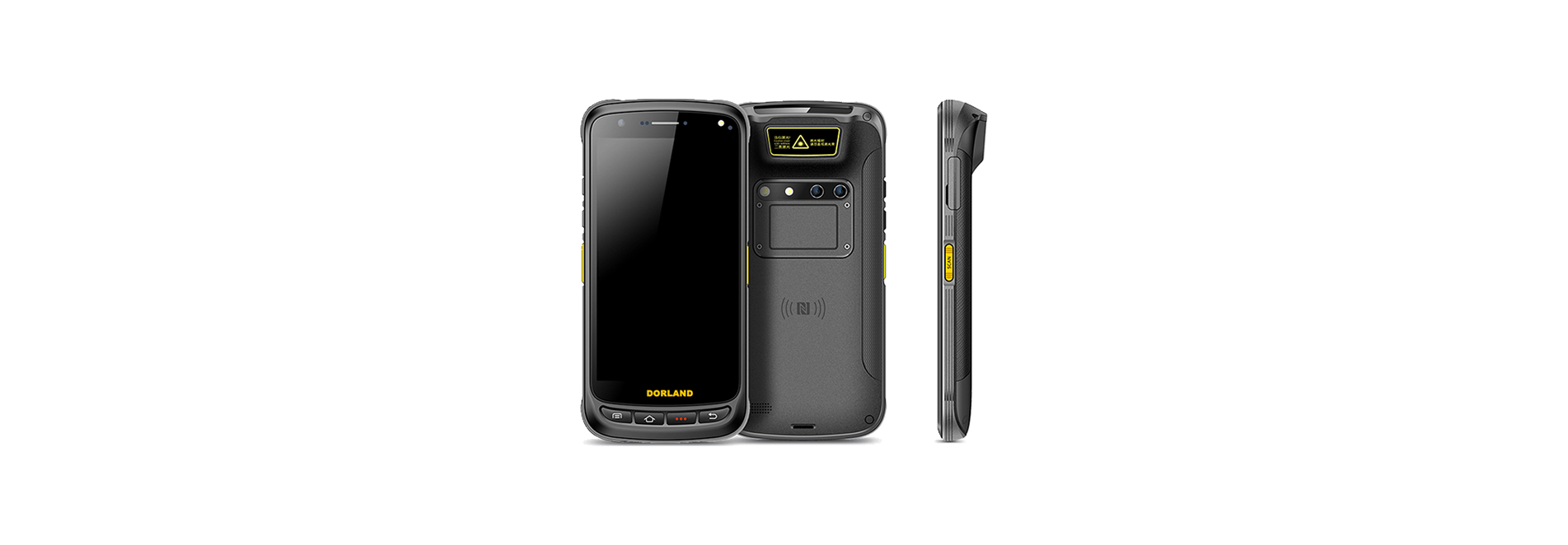

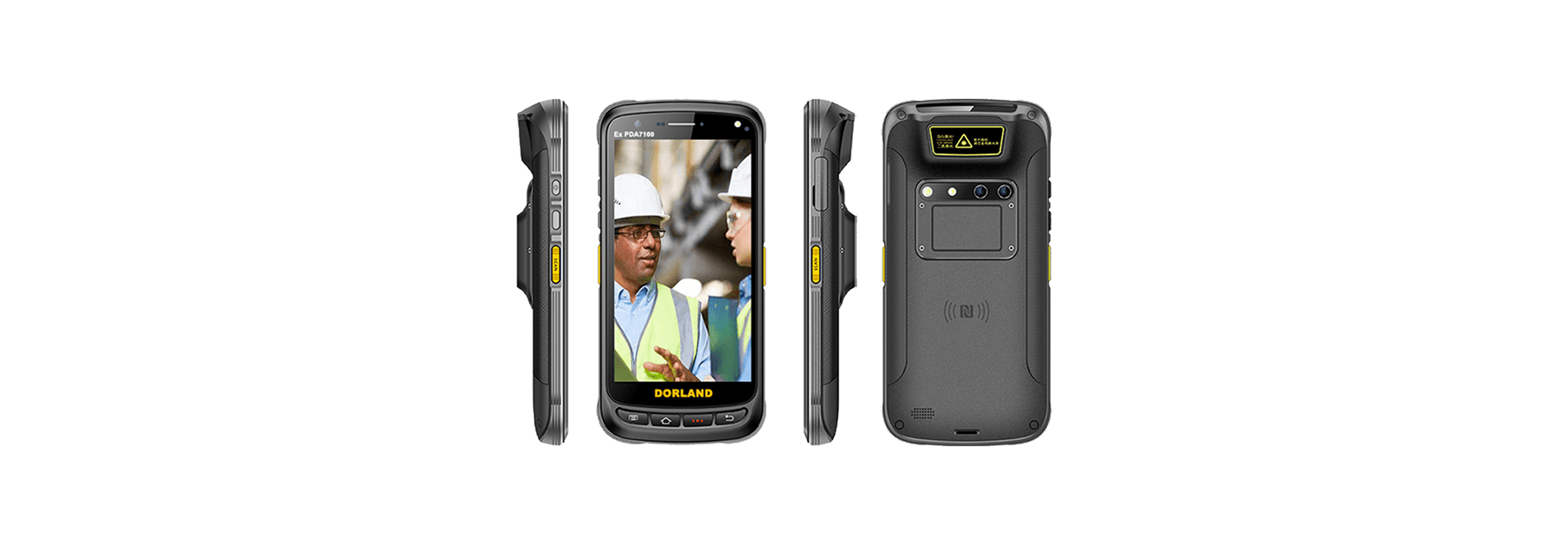

Dorland Industrial Intrinsically Safe PDA Ex PDA 7100/7200

Newly released by Beijing Dorland System Control Technology Co. Ltd., the industrial intrinsically safe smart handheld terminal ExPDA 7100/7200, adopts advanced technology, designed with intrinsically safe circuit, and with rugged and solid body.

This model carries OS Android11.0 and high-performance quad-core CPU, equipped with built-in RFID, barcode scanning, NFC, iris identification, HD cameras, GPS,Beidou and other modules and functions suitable for outdoor construction and pipeline inspection. It can cooperate with OA office system, checking positioning system and data acquisition system and other applications.

It is especially suitably used in dangerous environment such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other hazardous sites with combustible and explosive gas. This product shall facilitate users’ timely communication with the production management.

Ex-Marking：

Ex ib IIC T4 Gb/Ex ib D21 T130℃
Explosive-proof Certificate No.：

CCRI 19.2166
Protection Grade：

IP65
OS：

Android 11.0
Screen ：

5.2”, IPS FHD 1920x1080
Memory：

RAM+ROM： 3GB+32GB / 4GB+64GB （6GB+64GB / 6GB+128GB Customization）
Storage Card ：

SD card up to 128GB
CPU ：

Cortex-A53 2.5 / 2.3 GHz 8-core
Cameras：

front 5.0 MP
Rear 13.0 MP AF, flash
Bluetooth ：

ver 4.2, downward compatibility
Frequency：

2G GSM850/GSM900/DCS1800/PCS1900
3G WCDMA：B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA：A/F
4G B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/B34/B38/B39/B40/B41
Dimensions：

164.2*78.8*17.5mm/164.2mm x 80.0mm x 24.3mm
Weight：

654g
Battery：

5000mAh/8000mAh
Standby Time：

Standby Time: >350 hrs
Working Time：

Working Time: >12 hrs
NFC：

yes
Keyboard：

4 main keyboards, 1 power key, 2 scan keys, 1 multifunction key

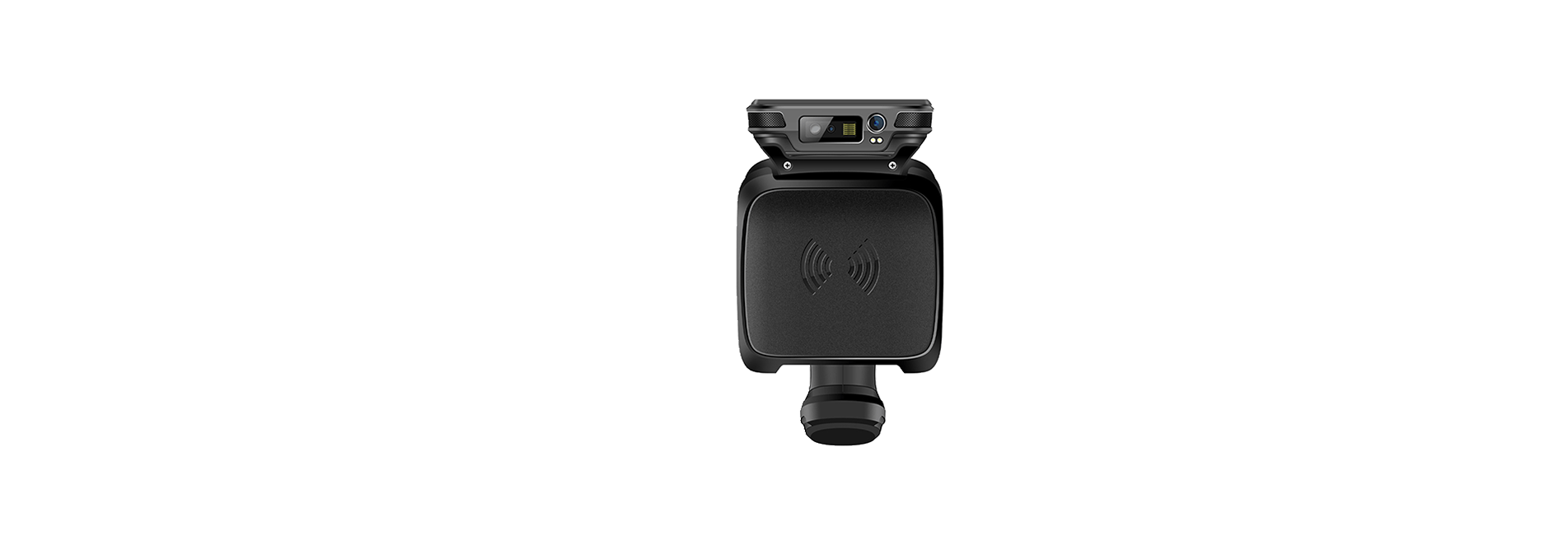

RFID UHF (optional)：

Operating frequency： (860-960 MHz, customized frequency band as required)
Chinese frequency： 920-925 MHz
Us frequency ： 902-928 MHz
European frequency： 865-868 MHz（ETSI EN 302 208）
Other frequencies ： Other multinational frequency standards (customizable)
engine ：Cm2000-1, based on Impinj Indy R2000； Cm710-1, based on Impinj e710 chip (forthcoming)
Protocol standard ：EPC C1 GEN2 / ISO18000-6C
Antenna parameters ：Linearly polarized antenna (1.8 DBI) / circularly polarized antenna (4dbi)
power ：1 W (30 DBM, supporting + 5 DBM to + 30 DBM adjustment) ；Optional 2 w (33 DBM for Latin America, etc.)
Card reading distance ：Up to 15m (circular polarization, outdoor open environment, Impinj mr6 label)； Up to 7m (linear polarization, outdoor open environment)
Group read rate ：Up to 900 tags / S (circular polarization)
* The card reading distance and group reading rate are related to the actual environment
NFC (optional)：

Operating frequency ： 13.56 MHz
Protocol standard ： Iso14443a / B, iso15693, nfc-ip1, nfc-ip2, etc
Label standard ： M1 card (S50, S70), CPU card, NFC tag, etc
Read write distance： 2-4 cm
* Four core optional, eight core standard
Bar code acquisition (optional)：

One dimensional scanning engine ： Zebra: SE965; Honeywell: N4313
Support one-dimensional barcode type ：UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS， etc
2D scanning engine ：Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
Support 2D barcode type ：PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX)， etc

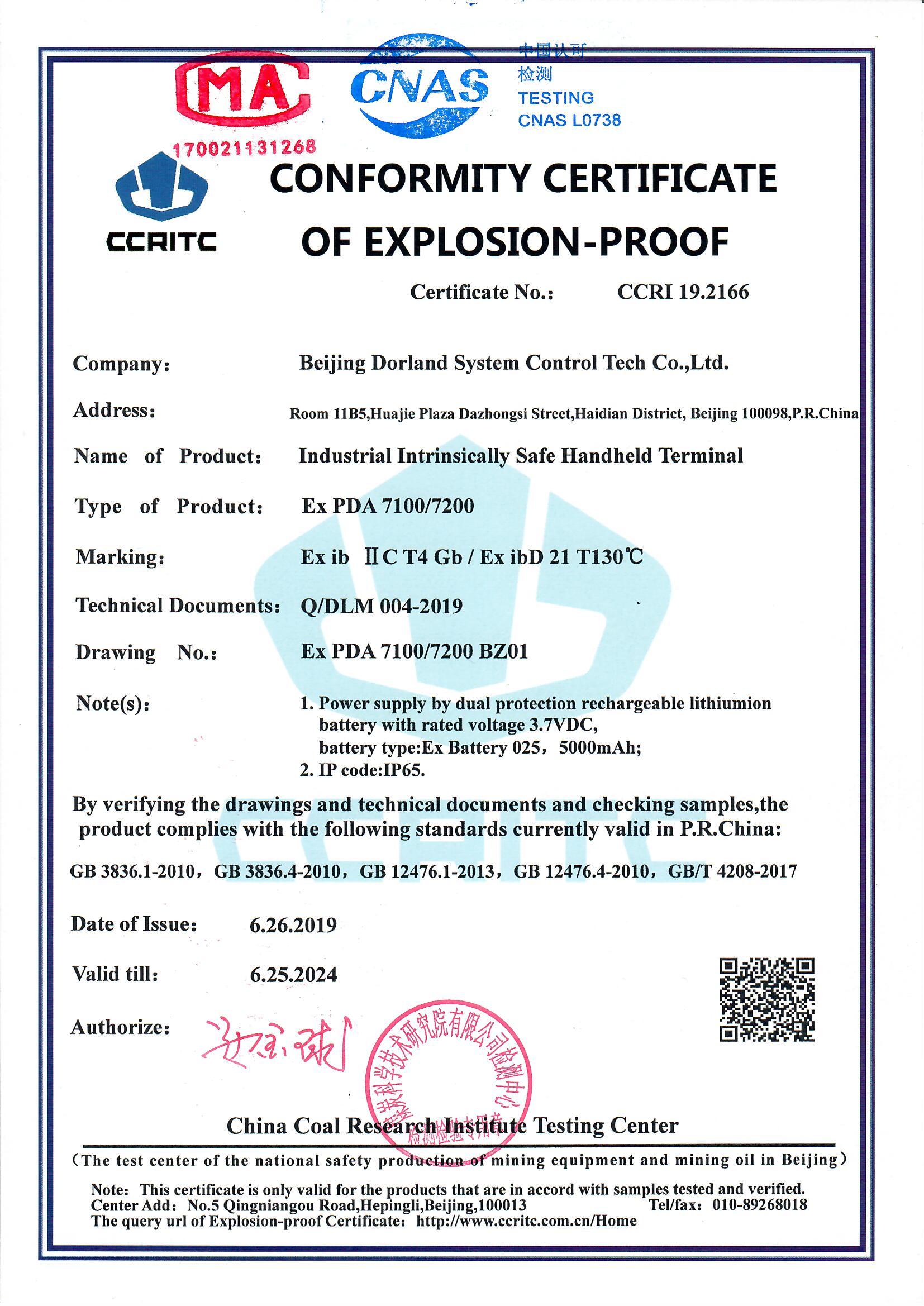

PDA Ex PDA 7100/7200 Explosion proof certificate EN
