Ex Tablet10

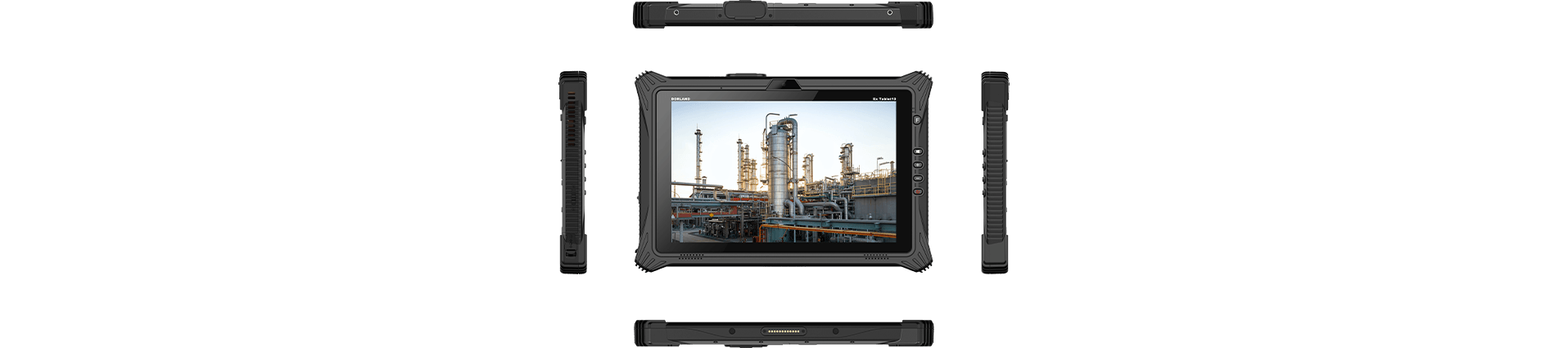

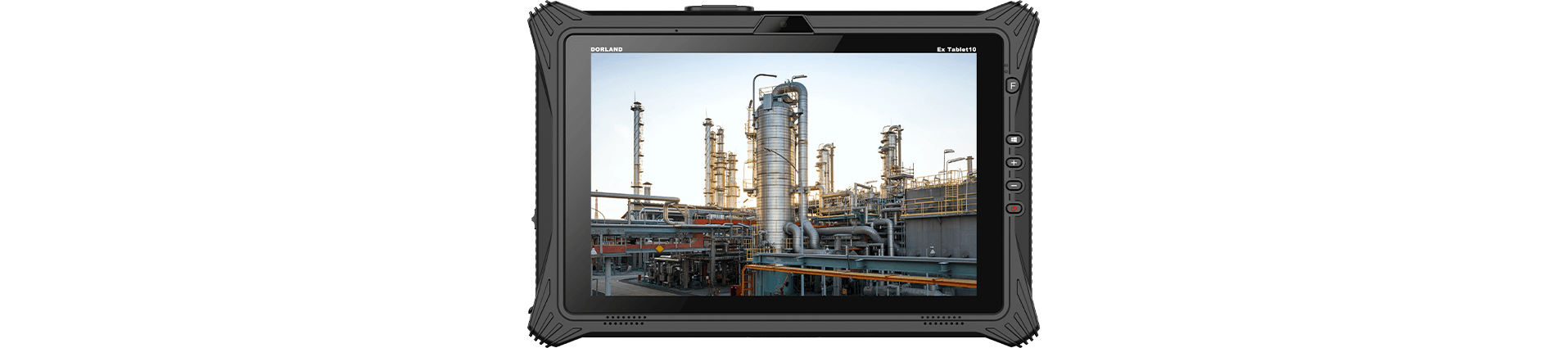

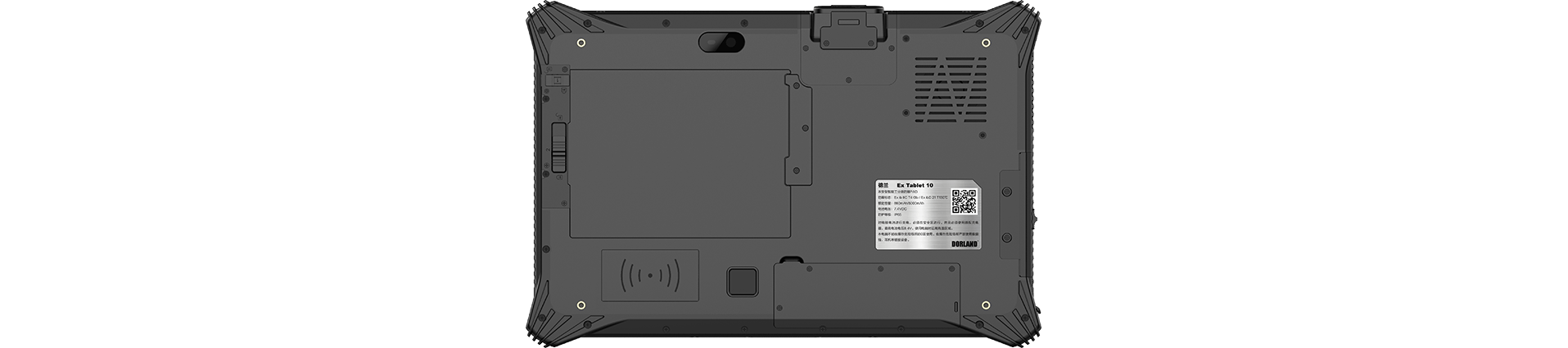

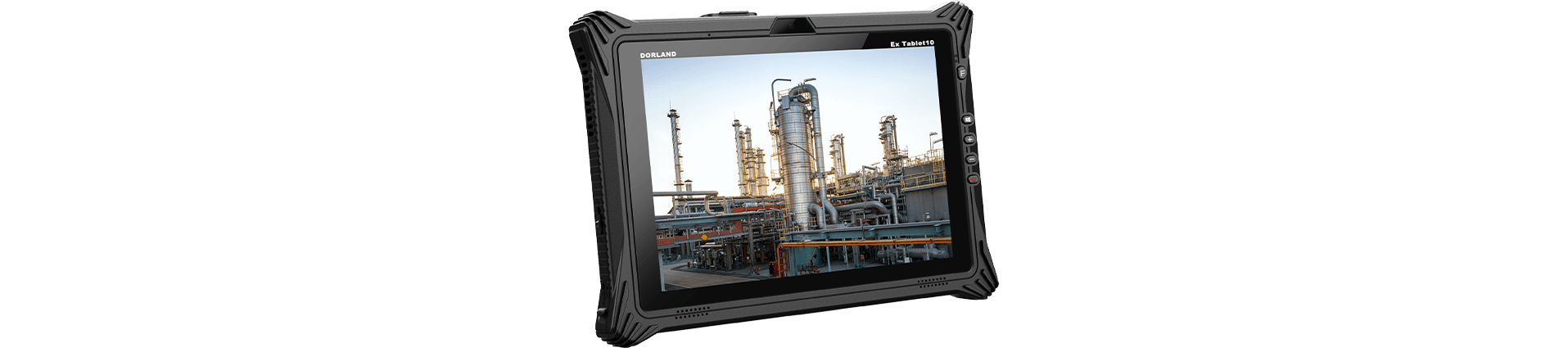

DORLAND Industrial Intrinsically Safe Tablet PC/Pad Ex Tablet10

Ex-Marking：Ex ic IIB T5 Gc

Certification No.：CCRI 20.2620

Protection grade：IP65

CPU：I5,4 cores, 8 threads, 3.40 Ghz

Product Introduction
Technical Parameters

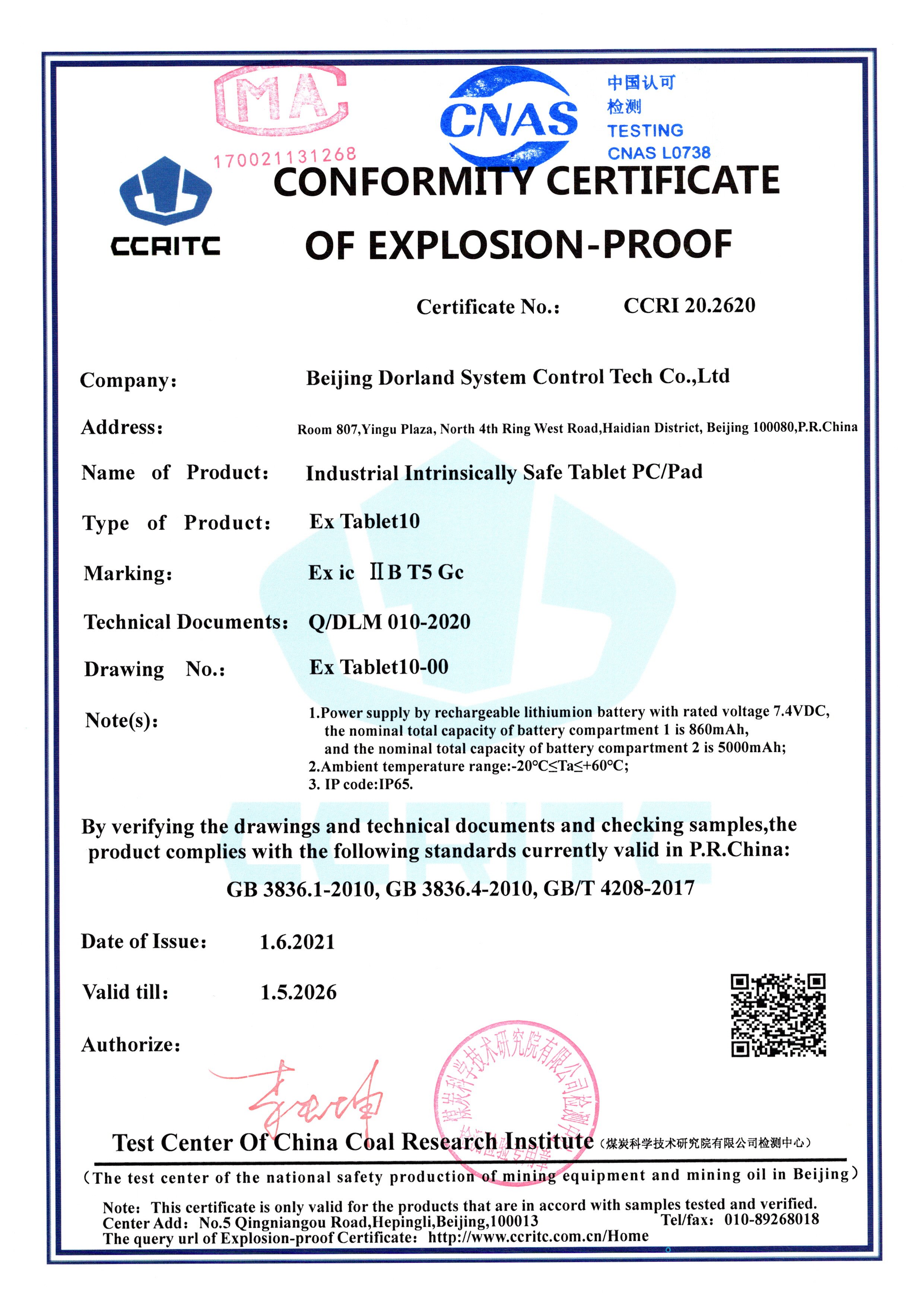

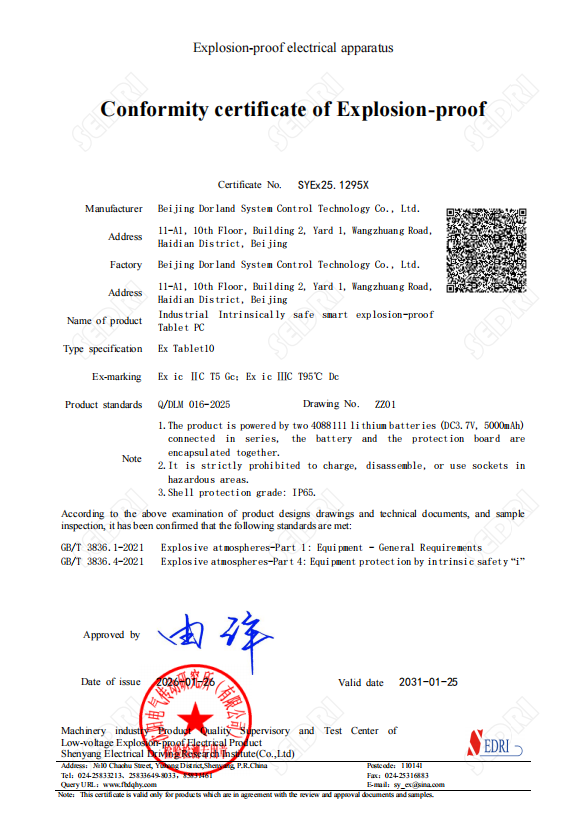

Product Certificate
Product Report
Product Video

Beijing DORLAND System Control Technology Co., Ltd. recently launched Ex Tablet 10, intrinsically safe intelligent industrial-grade explosion-proof tablet computer. It adopts advanced technology and intrinsically safe circuit design, with a strong appearance and strong body. This product adopts windows 10 operating system and 10.1 inch touch screen design, equipped with front 2 MP + rear 8 MP cameras, its waterproof and dust-proof performance reaches the international IP65 standard.

In addition, we also configured GPS / Beidou / GLONASS, altitude measurement, compass and other functions suitable for outdoor construction and pipeline inspection, which can cooperate with OA office system, patrol positioning system and data acquisition system And other applications.

It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Ex-Marking：

Ex ic IIB T5 Gc
Protection grade：

IP65
Overall color：

Black black (bottom shell face shell black, panel black)
Screen：

10.1 Inches 16:10，1200×1920 ，330 cd/m2
Touch screen：

10 point capacitance screen, G G, hardness of more than 7H, scratch proof
Cameras：

Front： Front 2.0 MP BACK：Rear 8.0 MP (USB) with flashlight
Loudspeakers：

Built-in 8Ω/0.8W Waterproof Horn x 1
Nipple：

Sensitivity：-42db, Output impedance 2.2kΩ
Battery Life：

8 hours (default 50% volume, default 200 lumens, 1080P HD video)
Battery type：

Polymer lithium-ion battery, removable hot swap with Battery Support
Battery capacity：

7.4V/860mAh + 5000mAh
CPU：

Types：8th Generation KBL-R Intel® Core™ i5-8250U
CPU：

Speed： Processor 4 cores, 8 threads, Max frequency 3.40 Ghz
GPU：

Intel® UHD Graphics 620
RAM：

16GB
SSD：

128GB Detachable
TPM：

Built-in TPM2.0 SLB9665T
G_sensor：

Gravity accelerometer
Fingerprints：

X 1 SPI fingerprint (Windows hellow BOOT login)
Fan：

×1 IPX5 Fan
NFC：

NA
WIFI：

WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G Dual frequency WIFI intel 3165D2WG(3.3v)
Bluetooth：

BT4.2 (BLE) class1 Transmission Distance：10m
Frequency band：

4G：Move AwayEC25-EC(European edition） LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (UNICOM, telecom, mobile support bad only B8 does not support TDD band) Europe, Middle East, Africa, Taiwan, Japan
GPS：

U-BLOX M8Q Module. Support GPS, The Big Dipper,glonass
type A usb：

x1 USB 3.0
Type C：

*1 Type C (USB3.0/HDMI/Charging)
Headphone Jack：

∮3.5mm Standard headphone Jack x1
HDMI Interface：

HDMI 1.4a mini x1
TF storage card holder：

Supportable TF x1 max：128G
SIM Card holder：

SIM x1
DC interface：

DC 19V 3.42A ∮4.0mm Power interface x1
pogo pin：

x1 12pin (USB & AMP; dock charging)
Code scanner key：

X 1 scan key, no barcode can be customized (GPIO)
Volume key：

X 1 volume -
Volume key：

X 1 volume
Windows key：

X 1 windows page
Switch key：

x1
Power indicator：

X 1 power on for Bright Blue, turn off lights out
Baterry light：

X 1(red and green) charging red, full of green, low power red light flashing, discharge is not bright
Extended module selection：

USB 2.0, one-dimensional Code Module, two-dimensional Code Module (optional)
Power adapter：

100~240V Inputting 19V3.42A/65W Output Ce Certification
Operating system：

windows 10 Home （Standard issue）Pro / IOT (optional)
Apparent size：

290*196*22mm
Weight：

Bare 1140G, 5000mAh battery: 250G
Operating temperature：

’-20 °C to 60 °C
Storage temperature：

’-30 °C to 70 °C
Humidity：

Humidity: 95% Non-Condensing
