Ex-Marking：
Ex ib IIC T4 Gb / Ex ibD 21 T130°C
-

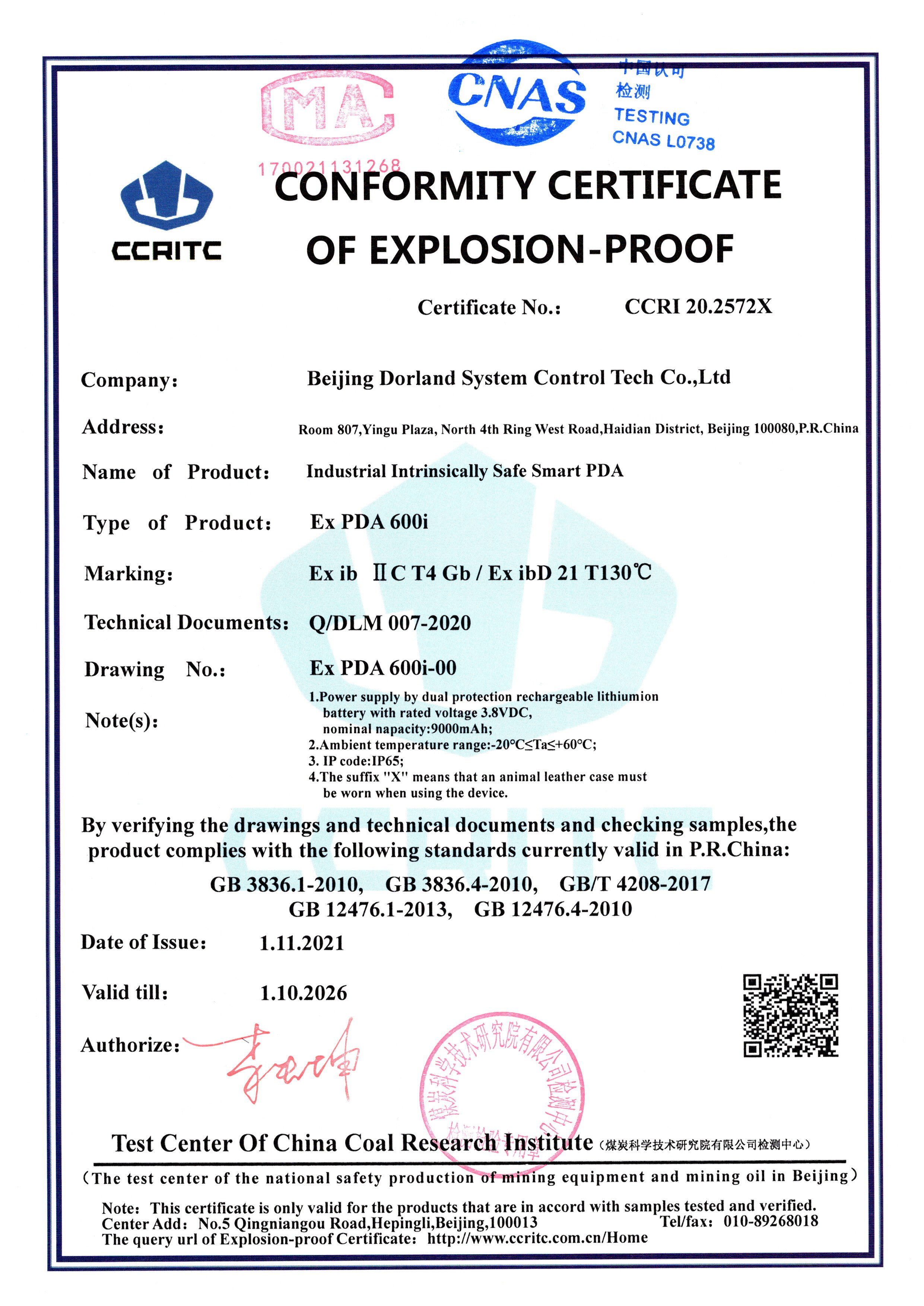

Certificate No.：
CCRI 20.2572X
-
Protection Grade：
IP65
-
OS：
android 10.0
-
CPU：
Number of cores and dominant frequency： Qualcomm 8-core 2.0GHz
-
Highest core architecture： Arm cortex-a73 architecture
-
Process：TSMC's leading 12NM FinFET process
-
Support AI architecture：support tensorflow, TF Lite, Caffe / caffe2 or other third-party AI architectures
-
Memory：
2GB RAM；16GB ROM
-
4GB RAM；64GB ROM(optional)
-
Screen：
5.5” Capacitive touch screen 1440*720
-
Keyboard：
2 scan keys, 3 screen control keys
-
Indicating sensor：
Vibrator, charging indicator, network indicator
-
Speakers：
Power 1W+
-
Battery ：
apacity 3.8V, 9000mah integrated lithium polymer battery
-
Fast charging：support 15W fast charging
-
Cameras：
(front) 5MP(Optional)
-
(rear) 13MP With flash and auto focus function (optional)
-
GPS ：
GPS(AGPS), GLONASS, BEIDOU, Error range 5m±
-
Storage Card：
up to 256G SD card
-
Interface ：
Type-C
-
Expansion card slot：
1 SIM card slot (mup-c785), 1 TF card slot
-
Size：
166(W)×79(D)×31±2mm(H)
-
Weight：
About 650g (including battery)
-
Operating temperature：
-20℃～+60℃
-
Storage temperature：
-40℃～+70℃
-
Relative humidity ：
5%～95% (no condensation)
-
WLAN RADIO
WIFI： 2.5G/5G Dual frequency，conforming to IEEE802.11a/b/g/n/ac
-
WWAN RADIO：
2G： GSM/GPRS/Edge（850/900/1800/1900MHz）
-
3G ：WCDMA（850/1900/2100MHz）
-
4G ：TDD-LTE（B38/B39/B40/B41） FDD-LTE（B1/B2/B3/B4/B7/B17/B20）
-
VoLTE/ViLTE：
Yes
-
Bluetooth ：
Bluetooth 4.2，Downward compatibility
-
Barcode collection ：
2D Barcode (optional) ： Scan engine ：ME5600/NLS-CM60/NLS-2596/NLS-N1/Zebra-SE4710/Honeywell-N
-
Identify barcode type and CMOS accuracy (≥ 3M): code128, UCC / EAN-128, aim-128, ean-8, jan-8, ean-3, ISBN / ISSN, upc-e, UPC-A, interleave 2 / 5, itf-6, itf-14, Deutsche 14, Deutsche 12, coop25, matrix2 / 5, industrial 2 / 5, standard 25, code39, code93, code11, CodeBar / NW7, Plessey, MSI / Plessey, GSI DataBar and other one-dimensional code types and PDF417 QR code, data matrix, Hanxin code and other QR code types
-
RFID：
NFC(optional)：frequency：13.56MHz
-
Agreement： ISO14443A/B、ISO15693，NFC-IP1，NFC-IP2 ec.
-
Identify distance： 3-5cm(related to label type and environment)
-
Card reading position ： Scan head window position
-
CPU card (optional)：Support reading and writing of CPU card and use with PSAM
-
RFID UHF (optional）：Frequency： 840-960mhz (can be customized according to national and regional regulations), the default is 920-925mhz
-
Agreement： For epcc1gen2 / iso18000-6c protocol
-
Read distance：① Bx6103 - 96 * 62mm white card test, indoor reading distance of about 20m, outdoor open environment reading distance of 11m (the specific reading distance is related to the label and environment), supporting single label reading ② Bx6105 - 96 * 62mm white card test room with a reading distance of about 35m and outdoor open environment with a reading distance of 15m (the specific reading distance is related to the label and environment). R2000 module of 30dBm is adopted to support multi label reading ③ Bx6106 -- 96 * 62mm white card test room with a reading distance of about 40m and an outdoor open environment with a reading distance of 20M (the specific reading distance is related to the label and environment). It adopts a 33dbm R2000 module to support multi label reading
-
Group reading speed：1200-1500 tags take about 10 seconds, and the peak reading rate is 900tags / S (tested by Impinj H47, which is actually affected by tags and environment)
-
Parts ：
Standard accessories： battery (built-in), power adapter, data line, hand strap
-
Optional accessories： charging base
