XPad_07

Intrinsically Safe Industrial Explosion-proof Pad XPad_07

Ex-Marking：Ex ib IIC T4 Gb / Ex ib IIIC 130°C Db

Certification No.：CCRI 23.2951x

Protection grade：IP67

CPU：Qualcomm ® Snapdragon SDM4350 Eight Core 2.2GHz

Product Introduction
Technical Parameters
Product Certificate
Product Report
Product Video

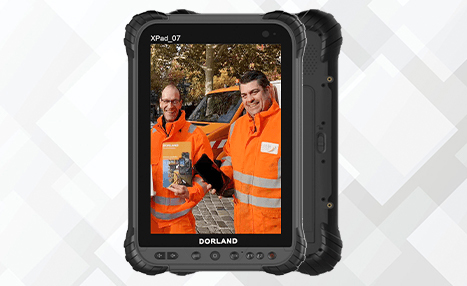

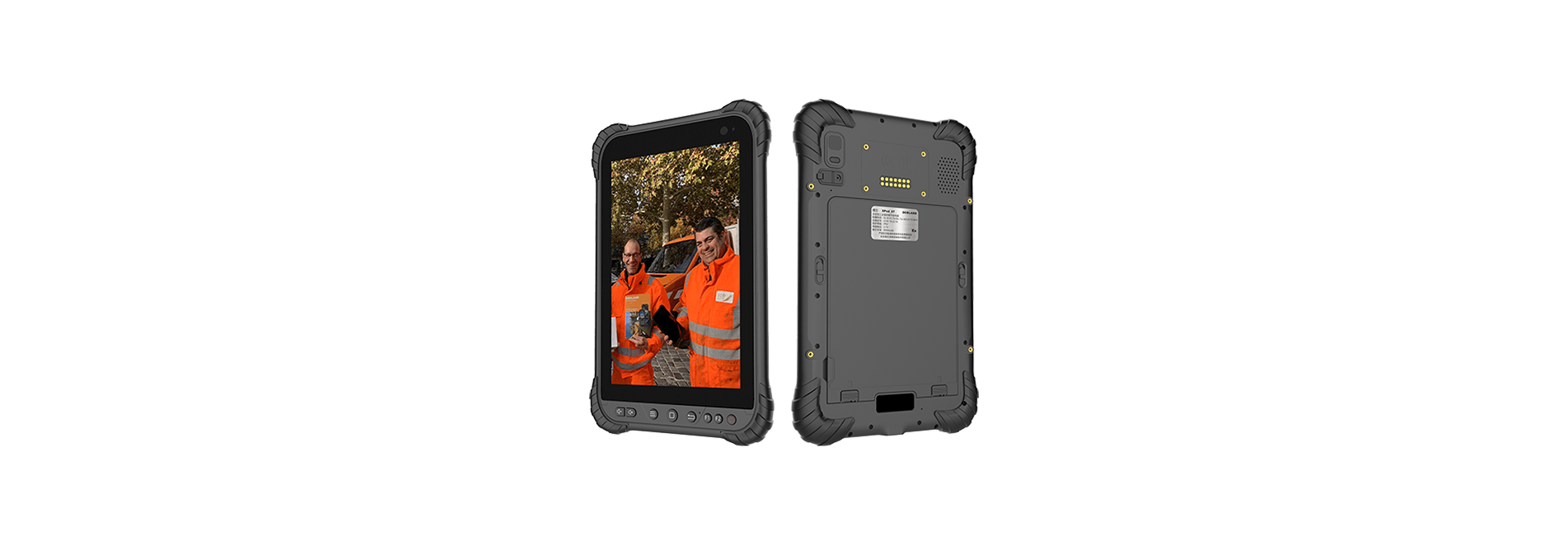

DORLAND System Control Tech Co., Ltd. has recently launched the intrinsically safe industrial explosion-proof Pad XPad_07 4G, which adopts advanced technology, intrinsically safe circuit design, powerful appearance, and sturdy body. The PAD adopts an 8.0-inch touch screen design and is equipped with a front 5-megapixel and rear 32 megapixel ultra high definition Sony camera. Its waterproof and dustproof performance meets the international IP67 standard.

In addition, we have also equipped the PAD with various functions suitable for outdoor construction, pipeline inspection, etc., such as Beidou/GPS/Galileo/GLONASS (optional single Beidou satellite positioning module) system, altitude measurement, compass, etc., which can be used in conjunction with OA office system, inspection positioning system, data acquisition system and other applications. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.

Ex-Marking：

Ex ib IIC T4 Gb/ Ex ib IIIC T130℃ Db

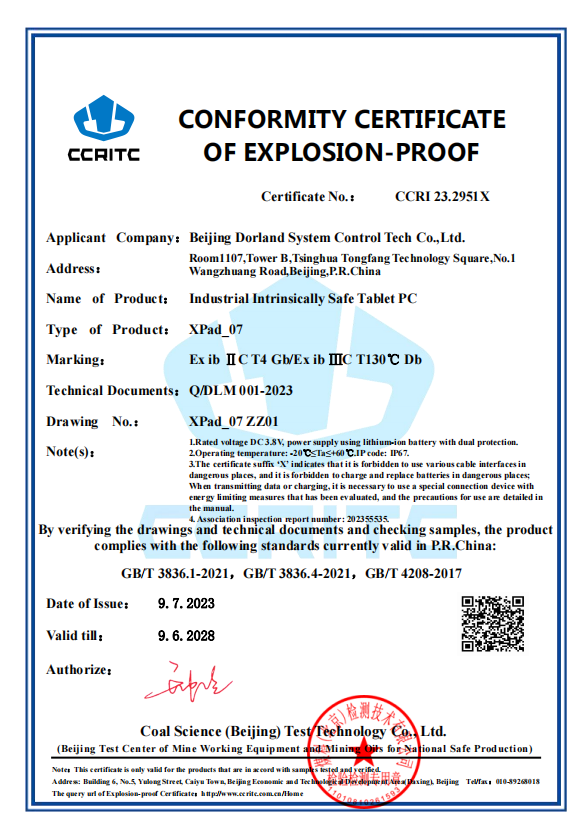

Explosion proof Certificate No：

CCRI 23.2951x
Protection grade：

IP67
OS:

Android 15.0
screen：

8-inch IPS screen, resolution: 1920 * 1200, 500nits, visible in sunlight
Memory：

8GB RAM/128GB ROM
processor：

Qualcomm ® Snapdragon SM6225pro, 8-core, 2.8GHz
Camera：

Rear camera with 32 megapixel autofocus and flash, front camera with 5 megapixel
Battery capacity：

3.8V/9000mAh, detachable, supports tool free replacement
Frequency band：

GSM: 850/900/1800/1900 EVDO: BC0 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39 TDD-LTE: B38/B39/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28A/B28B/B19/B26/B66
size：

235*146*13mm
Weight：

Approximately 594 grams
Bluetooth：

Bluetooth 5.1
Wireless：

802.11 a/b/g/n/ac/ax ready
NFC：

Yes
sensor：

accelerometer/light sensor/gyroscope/compass
GPS：

Standard configuration: Four star positioning: Ublox M10N, Beidou/GPS/Galileo/GLONASS Optional: Single Beidou satellite positioning module, UMD220 (meter level single Beidou), UM980 (centimeter level full satellite), UMD980 (centimeter level single Beidou), F9P (centimeter level full satellite)
