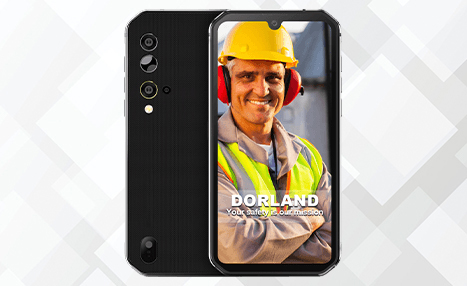

DORLAND Industrial Intrinsically Safe Smartphone Unicorn9

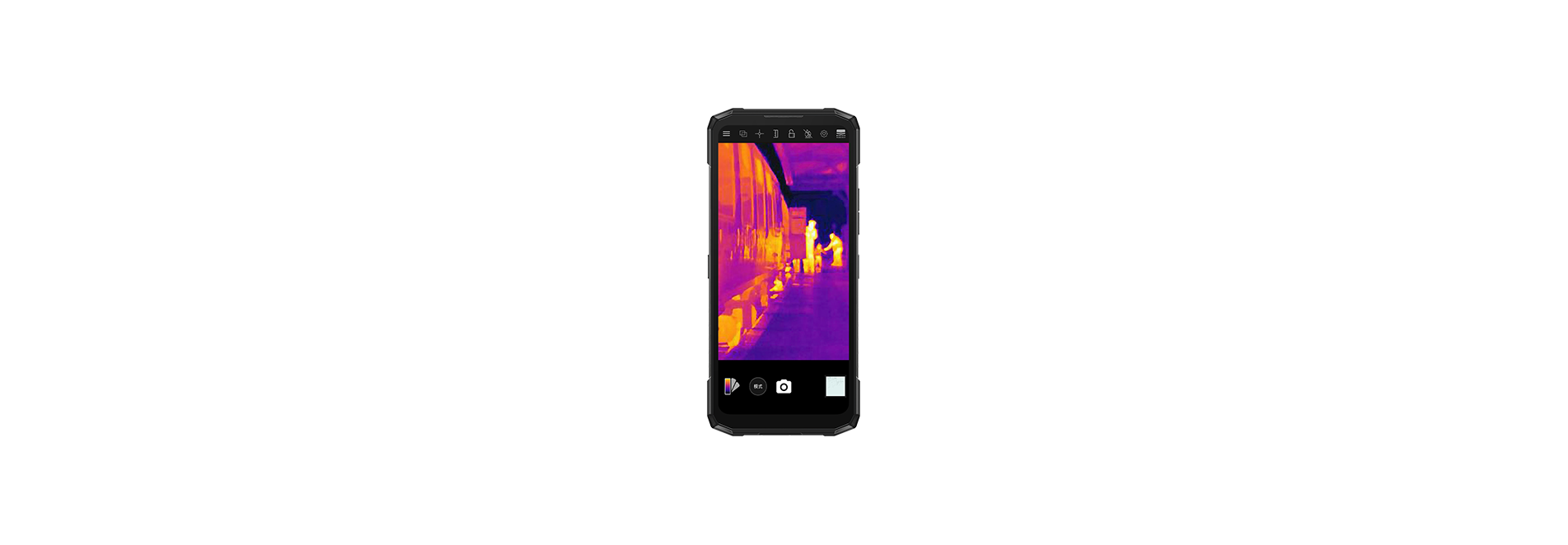

Beijing Dorland System Control Technology Co., Ltd. recently launched the industrial intrinsically Safe Smartphone Unicorn9, which adopts advanced technology and intrinsically safe circuit design, with a strong appearance and strong body. The mobile phone adopts a 5.84 inch (19:9) water drop screen design, equipped with a front 16mp, a rear 48mp + 5MP + 2MP + thermal imaging module, its waterproof and dustproof performance meets the international IP68 standard.

In addition, the mobile phone supports OTG, fingerprint unlocking and other functions. The mobile phone is equipped with GPS + GLONASS + Beidou + Galileo positioning system, which is suitable for outdoor construction, pipeline inspection and other functions, and can cooperate with OA office system, patrol positioning system, data acquisition system and other applications.

It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Ex-Marking：

Ex ib IIC T4 Gb / Ex ibD 21 T130℃
Certification No.：

CCRI 21.2044
Protection Grade：

IP68
CPU：

MT6779 8-core 2.2GHz
OS：

Android 9.0
Dimensions:

156.5X78.3X14.2 MM
Screen Size：

5.84inch
Resolution：

1080*2280 19:9
Display resolution：

FHD+ IPS
Weight：

273g
Multi-touch：

Five points(Multi point + gesture)
Glass：

Corning 5th gorilla glass
Wi-Fi：

802.11a/b/g/n/ac
Bluetooth：

BT5.0
Connectivity 3G ：

WCDMA B1/2/4/5/6/8/19 TDS34/39 CDMA BC0/BC1/BC10
GSM ：

850/900/1800/1900
LTE：

FDD B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66 TDD B34/38/39/40/41
GPS：

GPS+GLONASS+beidou+Galileo
CPU：

MT6779V/CE
CPU clock：

Two ARM® Cortex-A75 cores operating at 2.2GHz Six ARM® Cortex-A55 cores operating at 2.0GHz
Memory：

128G ROM+8GB RAM
Max TF card capacity：

128GB
USB type & qty：

24pin TYPE-C
Camera Rear：

48MP+5MP+2MP+Thermal imaging module
Camera Front：

16MP
BSI:

Yes
Front Flash：

No
ARRAY SIZE：

8000*6000+2592*1944+1600*1200
Battety type & V/A：

4.35v 3.85V
Speaker qty：

1
Max charging current for the battery:

9v 1.67A
Battery ：

4380mAh
Battery working :

3.4V~4.4V
video：

mp4,3gp,3gpp,avi,x-flv ,etc.
audio：

ogg ,aac,imy,amr,x-flac,mp3,etc.
image：

jpeg\png\gif\bmp
Navigation support：

GPS+GLONASS+beidou+Galileo
Sim-card quantity：

2
Sim-card type：

Two nano card, two cards are in it at the same time, one 4G traffic, one 2 / 3 / 4G standby, (dual 4G standby, choose any one to use traffic) one card is receiving and making calls, and the other card cannot answer and make calls
Sensors：

Yes (Proximity, Light, G-sensor etc)
Gesture：

Yes
Gyroscope：

Yes
Gyroscope：

Yes
Magnetic：

Yes
Magnetic：

Yes
Compass：

Yes
Air pressure sensor：

Yes
fingerprint：

Yes
RGB：

Yes
Coulomb Counter：

Yes
Wireless charging：

YES
Hardware intercom：

No
NFC：

Yes
UV：

Yes
FM：

Yes
Heart rate test：

Yes
Earphones 3,5mm jack type ：

No
OTG：

Yes
Total standby time：

528H
Total talk time：

26H
User Manual：

Yes
Power adaptor ：

9V 1.67A, white
USB charging ：

Yes
OTG cable：

Yes
USB connector type：

24pin TYPE-C
Earphones：

TYPE-C
Earphones：

TYPE-C
USB cable：

White

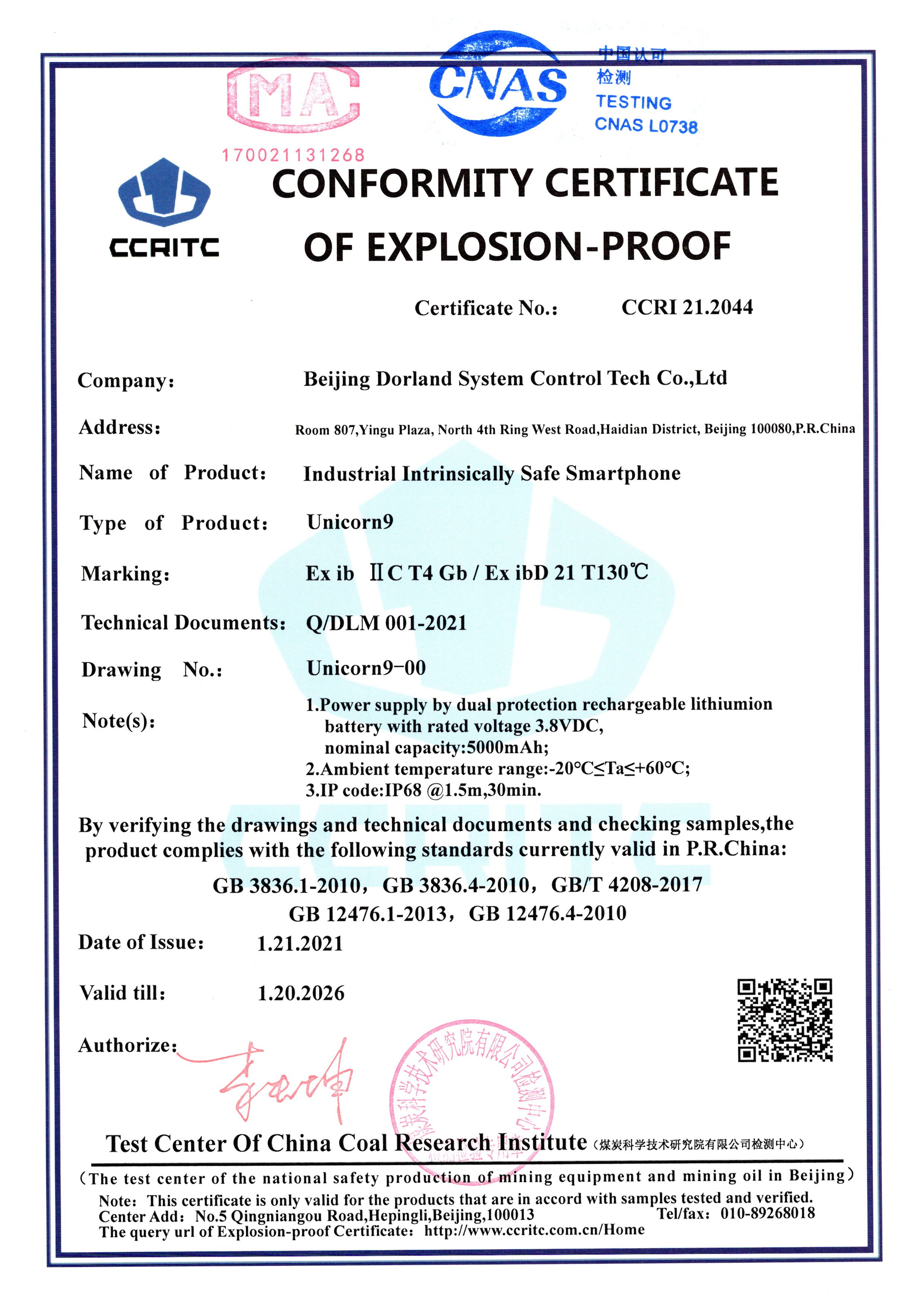

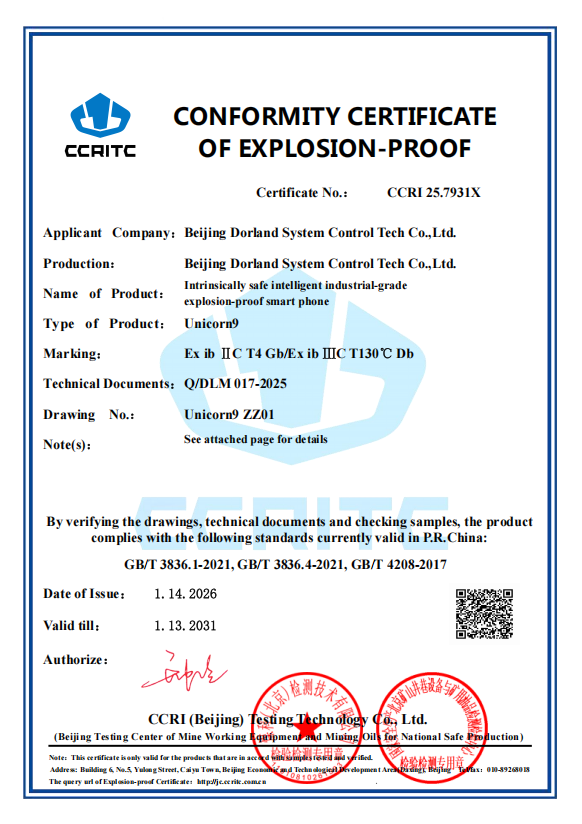

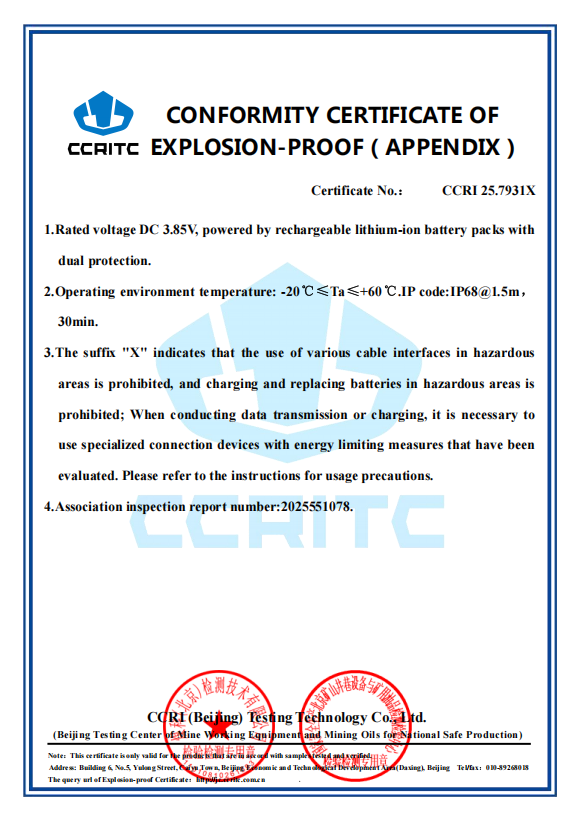

Unicorn9 Explosion proof Certificate EN

Download

Unicorn9 Inspection Report

Check the details Download
