Ex_Glasses01

<
>

Dorland Industrial Intrinsically Safe Smart Glasses Ex_Glasses01

Ex-Marking：Ex ib IIC T5 GB / Ex ibD 21 T100℃

Certification No.：CCRI 19.2280

Protection grade：IP67

CPU：Movidius® Myriad2

DORLAND system control technology co., LTD. Recently launched the industrial intrinsically safe smart glasses Ex_Glasses01, the safety circuit design, the appearance is domineer, the body is solid. Powerless head-mounted smart glasses device, it does not contain batteries and wireless radiation, suitable for long-term wear. With hd shooting, face capture, remote video call and other functions. The structure adopts three-proof design, easy to clean and durable; On the hardware, the special VPU chip with low power consumption is adopted, which makes face detection and recognition fast and accurate. There are multiple SDKS on the software to support the customer's proprietary business.


Ex_Glasses01 can be connected to an android phone or terminal with a USB cable interface, and the corresponding adaptator can receive and process images, sounds and other data for a new type of human-computer interaction that frees the hands from the first perspective. It has a 13 MP high sensitivity sensor, a speaker and a microphone for sound interaction, and a physical button for quick operation. Its waterproof and dustproof performance reached the international IP67 standard, explosion-proof certificate is the Ex ib IIC T5 GB/Ex ibD T100 21 ℃ of double explosion-proof certification, applicable to the dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, such as tank farm for the dangerous sites with combustible and explosive gas, convenient for the user, dispatching timely communication with production.


  • Ex-Marking：

    Ex ib IIC T5 GB / Ex ibD 21 T100℃

  • Certification No.：

    CCRI 19.2280

  • Protection grade：

    IP67

  • Processor：

    Movidius® Myriad2 、2 LEON Cores @600MHz

  • Memory：

    512MB DDR3 、933MHz PoP

  • Take a picture：

    USB 2.0 13 megapixels

  • Video：

    USB 2.0、1280x720(16:9）@15/30fps 、1920x1080(16:9) @ 15fps

  • Camera indicator：

    Yes

  • Microphones：

    Single digital microphone

  • Loudspeakers：

    Single Speaker

  • Resolution：

    640x400 nHD+

  • Automatic Brightness Adjustment：

    Yes

  • Optical structure：

    Catadioptric prism

  • The angle of display module is adjustable：

    Yes

  • accelerometer：

    Yes

  • Geomagnetic sensor：

    No

  • Gyroscopes：

    Yes

  • Light Sensor：

    Yes

  • Batteries ：

    None

  • rated voltage：

    5V

  • Protective Voltage：

    5.83V

  • Minimum Operating Voltage：

    4.5V

  • rated current：

    400mA

  • Rated power：

    2.0W

  • USB type-C：

    USB 2.0 from the device

  • Forward and reverse interpolation：

    Yes

  • USB 2.0：

    Yes

  • Mirror frame：

    Beta titanium frame

  • Lenses：

    Resin Setting Lens and Lens holder

  • Mirror leg：

    TR90 nylon

  • Nose support：

    Resin nose plate

  • Fastening band：

    Yes

  • Weight：

    73g

  • Apparent size：

    18*15.3*1.9cm

  • Working Environment temperature：

    - 20 to 50 degrees Celsius

  • Storage ambient temperature：

    - 30 to 70 degrees Celsius

  • Fall off：

    1.5 meters

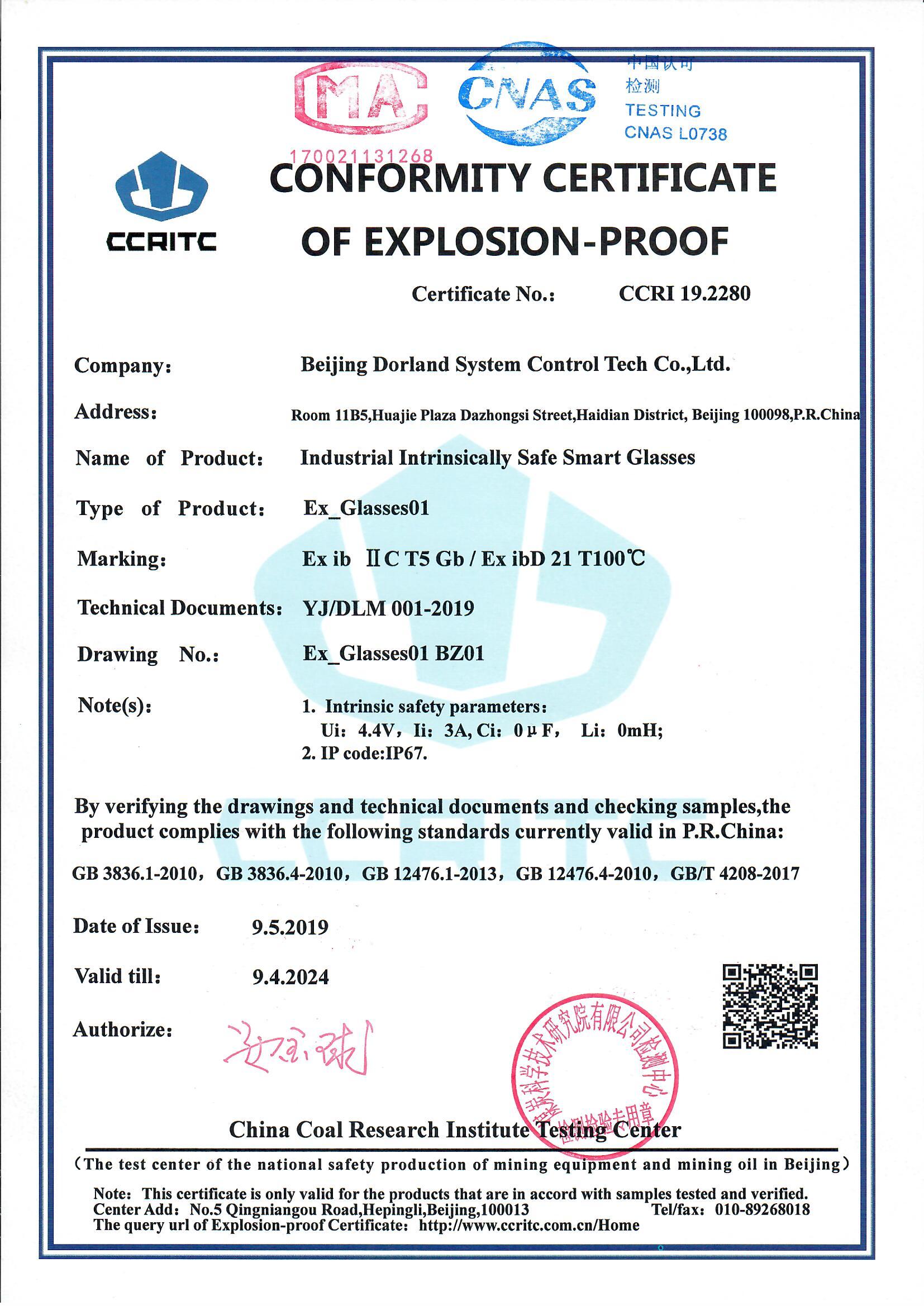

Ex_Glasses01 Explosion proof Certificate EN

Download

Ex_Glasses01 Inspection Report
