Xtreme102

<
>

Ex smart flashlight Xtreme102

Ex-Marking：Ex ib IIC T4 Gb

Certification No.：CCRI 18.2133

Protection grade：IP67

CPU：MT6753V/C Octonucleus 1.3GHZ

Developed by Beijing Dorland System ControlTechnology Co., LTD., the industrial intrinsically safe grad explosion-proof 4G Netcom smart camera flashlight Xtreme102adopted advanced technology of Germany with intrinsically safe circuit, 2.45” color capacitance screen and 13.0 Megapixel (Real Camera with Auto Focus) camera. Its waterproof and dustproof performance can meet the IP67 standards.


In addition, The machine supports 100 meters of light，laser positioning lights，warning lights,infrared lights(night shot).With PTT radio .Xtreme102 can aslo cppperate with OA office system, checking positioning system and data acquisition system etc.. EspeciallyXtreme102 is used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas.


It is convenient for users to dispatch communicate timely.


  • Ex-Marking：

    Ex ib IIC T4 Gb

  • Protection grade：

    IP67

  • Certification No.：

    CCRI 18.2133

  • Software OS：

    Android OS 7.0

  • Processor：

    MT6753V/C Octonucleus 1.3GHZ

  • Operator：

    Telecom, mobile, Unicom

  • Product size：

    199*57.5*73mm

  • Weight：

    440g (including batteries)

  • Screen size：

    2.45 inches, touchscreen, resolution： 240 X 432 pixels

  • Batteries：

    Explosion-proof polymer（8400 mAh ）

  • Frequency band：

    GSM 850/900/1800/1900MHZ 、EVDO Rev.A/CDMA2000 1x Support

  • Frequency band：

    WCDMA B1/B8 、TD-SCDMA B34/B39

  • Frequency band：

    LTE-FDD B1/B3/B5 、 LTE-TDD B38/B39/B40/B41 、 GPRS／WAP／MMS Support

  • Standby type：

    Double Card, double stay

  • Memory：

    2GB+16GB

  • Extended memory：

    SUPPORT MICRO-SD CARD (maximum 32G) , support hot plug

  • Cameras：

    13 megapixels

  • Floodlight lumens：

    180—200 Lux

  • Standby/talk time：

    120 hours/8 hours

  • FM：

    Yes

  • USB OTG：

    Yes

  • Mailbox synchronization：

    Yes

  • Bluetooth：

    BT 4.0

  • Gravity sensor/light sensor/distance sensor：

    Yes

  • Headphone Jack：

    3.5mm

  • WIFI：

    IEEE 802.11 b/g/n

  • JAVA：

    No

  • USB：

    Micro USB，Support OTG

  • AGPS/GPS：

    Yes

  • NFC：

    Yes

  • PTT Intercom：

    Yes

  • Infrared Lamp (night-time)/Laser positioning lamp warning lamp：

    Yes

  • Media Player, audio recording, Stereo headphones：

    Yes

  • Standard Parts：

    USB Cable, charger, manual, etc.

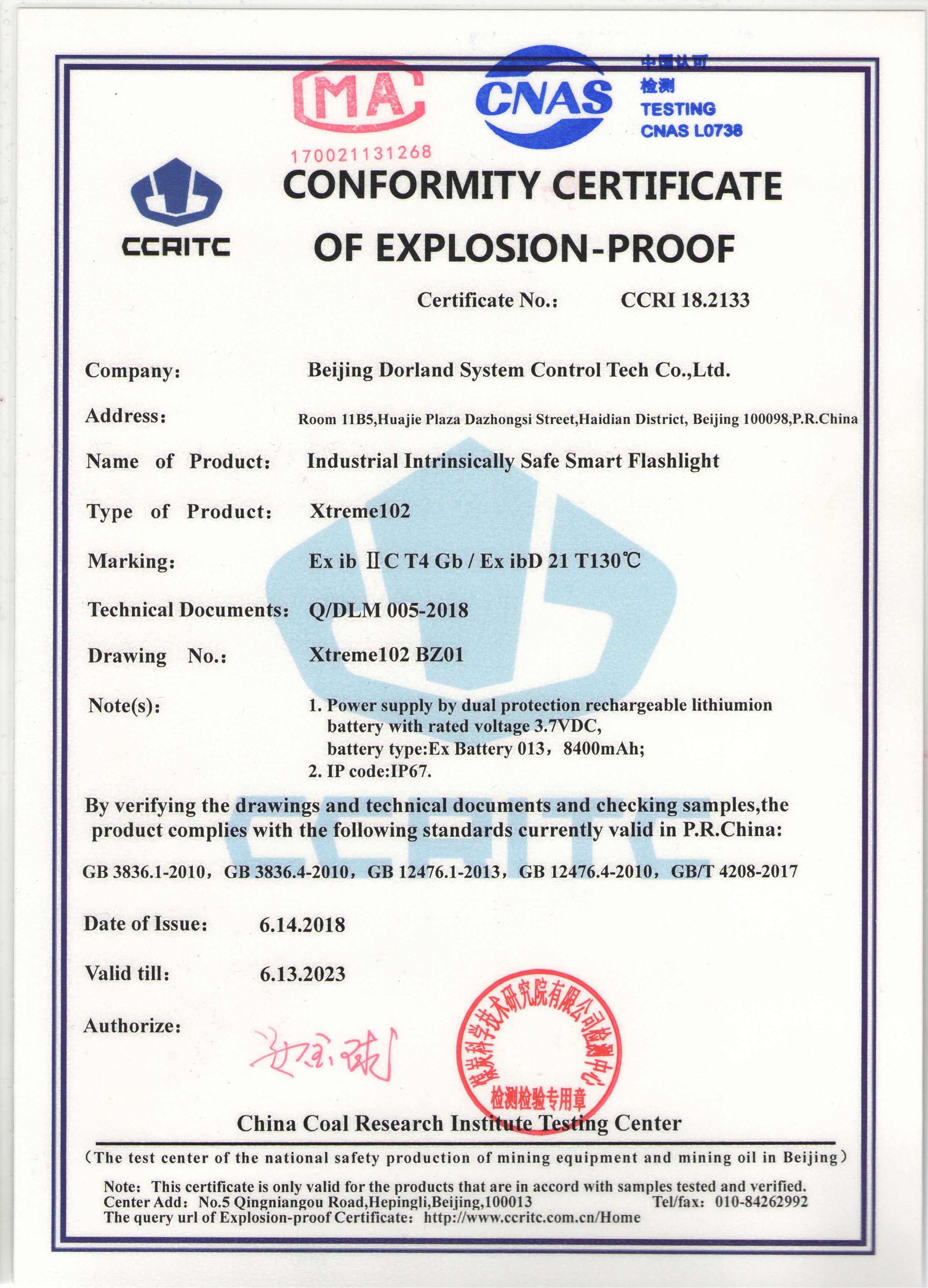

Xtreme 102 Explosion proof Certificate EN

Download

Xtreme102 Inspection Report
