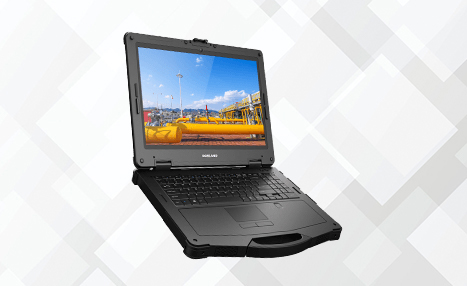

DORLAND Industrial Intrinsically Safe Notebook Ex NB10S

Developed by Beijing Dorland System Control Technology Co., LTD., the industrial intrinsically safe & solid Notebook Ex NB10S adopted advanced technology with intrinsically safe circuit, 15.6” screen and 2.0 Megapixel (Front Camera). Its waterproof and dustproof performance can meet the IP65 standards.

In addition, the Notebook supports fingerprint identification, WIFI and Bluetooth, built-in GPS, altimeter, compass and other functions suitable for outdoor construction and pipeline inspection. It can also cooperate with OA office system, checking positioning system and data acquisition system etc. Especially it is used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas.

It is convenient for users to dispatch communicate timely.

Ex-Marking：

Ex ic IIB T5 Gc
Protection Grade：

IP65
Product form：

15.6 - Inch, full-strength, explosion-proof Laptop
Apparent size：

397*271*37 mm
Weight：

Bare machine 3.3kg
Overall color：

Black
Screen size：

1920(H)×1080(V) FHD
Screen resolution：

15.6“ 16:9
Luminance：

700cd/㎡
Touch screen：

NA
Cameras：

Preposition 2.0MP
Loudspeakers：

Built-in 8Ω/1W x2
Mic：

×2 Internal Numbers MIC
Battery (built-in)：

Duration：0.5 hours (default 50% volume, default 200 LUMENS, 720P HD video)
Battery (built-in)：

Type：built-in Polymer lithium-ion battery (backup battery, supports external hot plug) capacity: 2000mah 7.4 v
Battery (pluggable）：

Duration： 8 hours (default 50% volume, default 200 LUMENS, 720P HD video)
Battery (pluggable）：

Type： External Polymer lithium-ion battery, capacity：6300mAh/7.4V
CPU：

Type：8th Generation KBL-R Intel® Core™ i5-8250U Matching：8th Generation KBL-R Intel® Core™ i7-8550U
CPU：

Speed：Processor 4 Cores 8 threads, Max frequency 3.40 Ghz match：Processor 4 Cores 8 threads, Max frequency 4.0 Ghz
GPU：

Intel® UHD Graphics 620
RAM：

Standard：16GB optional：32GB
SSD：

Standard fitting：256GB Matching：256GB/512GB
Mechanical hard disk：

Support HDD
TPM：

Built-in TPM2.0 SLB9665T
Houle switch：

hall
WIFI：

WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G Dual frequency WIFI /intel 3165 / Max Speed 433 Mbps
Bluetooth ：

BT4.2 (BLE) class1 Transmission Distance：10m
Frequency band：

3G/4G Mini-pcie interface (USB and pcie signal compatibility)
NFC ：

NXP NFC 13.56MHz Yes ISO/IEC 下14443A/14443B/15693/18092/mifare Agreement，Card reading distance：4cm
GPS：

U-blox NEO-7 Yes:GPS;Capture sensitivity:-160 dBm；Cold start time：<50，Hot Start Time：<28，Frequency:0.25 Hz … 10 MHz (configurable) GPS+The Big Dipper，U-blox NE0-M8N-0
Data Acquisition：

Fingerprint Collection × 1spi fingerprint (BOOT login)
USB3.0：

USB3.0*3
USB2.0：

USB2.0*1
Earphones：

∮3.5mm Standard headphone Jack x1 Host terminal
HDMI：

HDMI x1 （type-A）
SD Card：

SD Card x1
SIM Card ：

SIM Cut x1
DC interface：

DC 19V 3.42A Power interface x1
Serial port Interface：

DB9 (RS232 Or RS485) ×1
RJ45 Interface：

x2（10/100/1000M Self adaptation）
Anti-theft lock (right)：

Kensington x1
Cooling vent (right)：

Cooling vent (right) x1
Extension dock on the left：

X 1 custom transfer card PCIE x 4 slot or HDD
POGO PIN：

POGO 5pin(USBInterface definition）
Switch key：

x1
Pinhole button：

Reset x 1
P1：

×1 One Button to kill screen or open
Keyboard ：

US 104 key, core height 3.5 ± 0.2, IP65 waterproof grade
power：

×1Power On for bright blue (not too bright blue) , turn off the lights off
baterry：

X 1(red and green) charging red, full of green, low power red light flashing, discharge is not bright
HDD LED：

×1
Case key locking：

×1
3G/4G：

3G/4G turns on blue, 3G/4G turns off the light
Operating system：

Windows 10home pro (standard)/Iot Enterprise (optional)
Operating temperature：

‘-20 °C to 60 °C
Storage temperature：

’-30 °C to 70 °C
Humidity：

Humidity: 95% Non-Condensing
