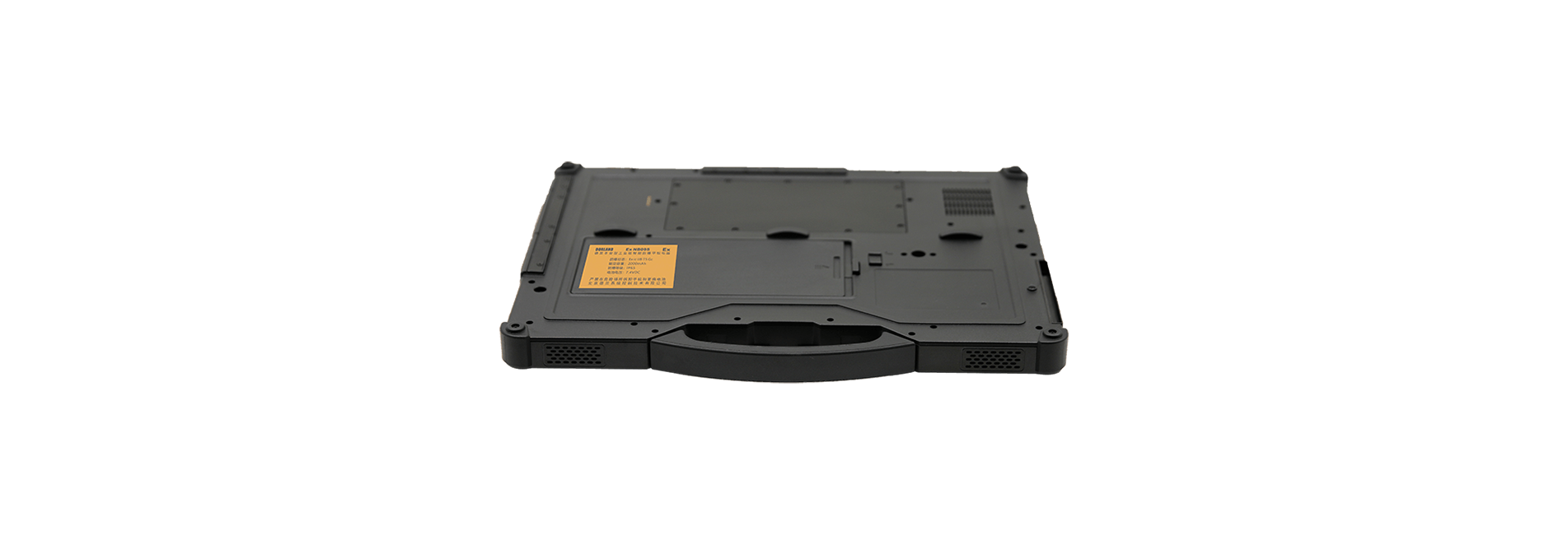

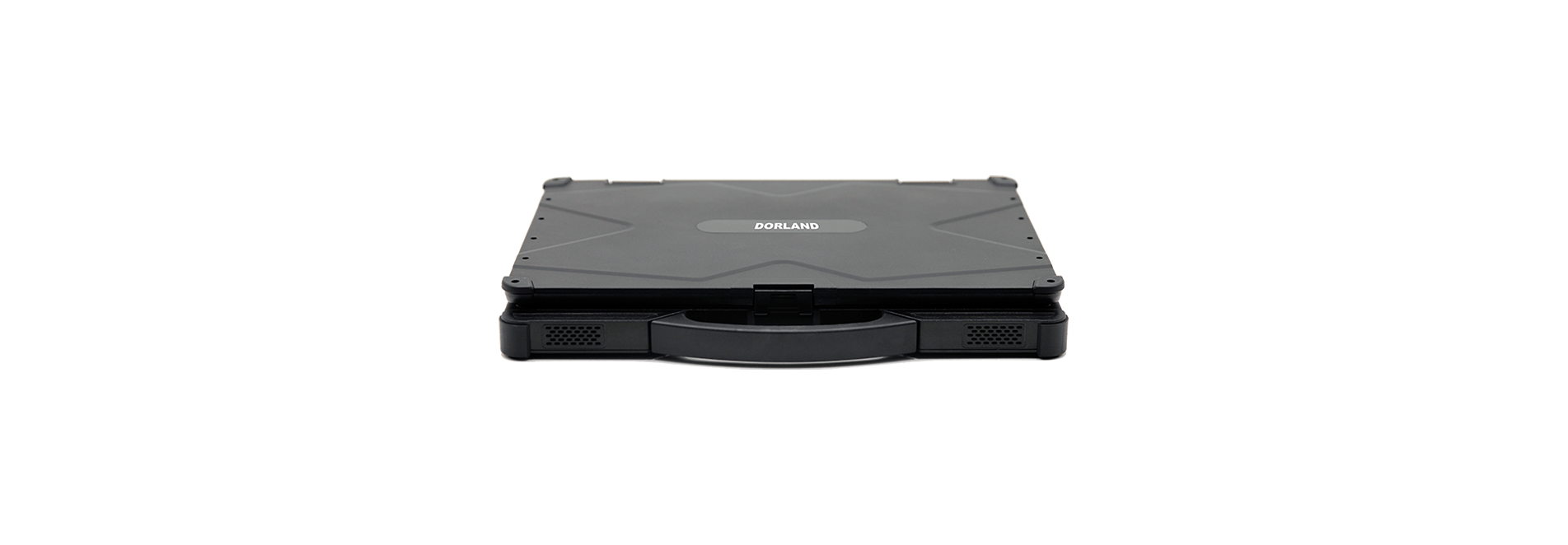

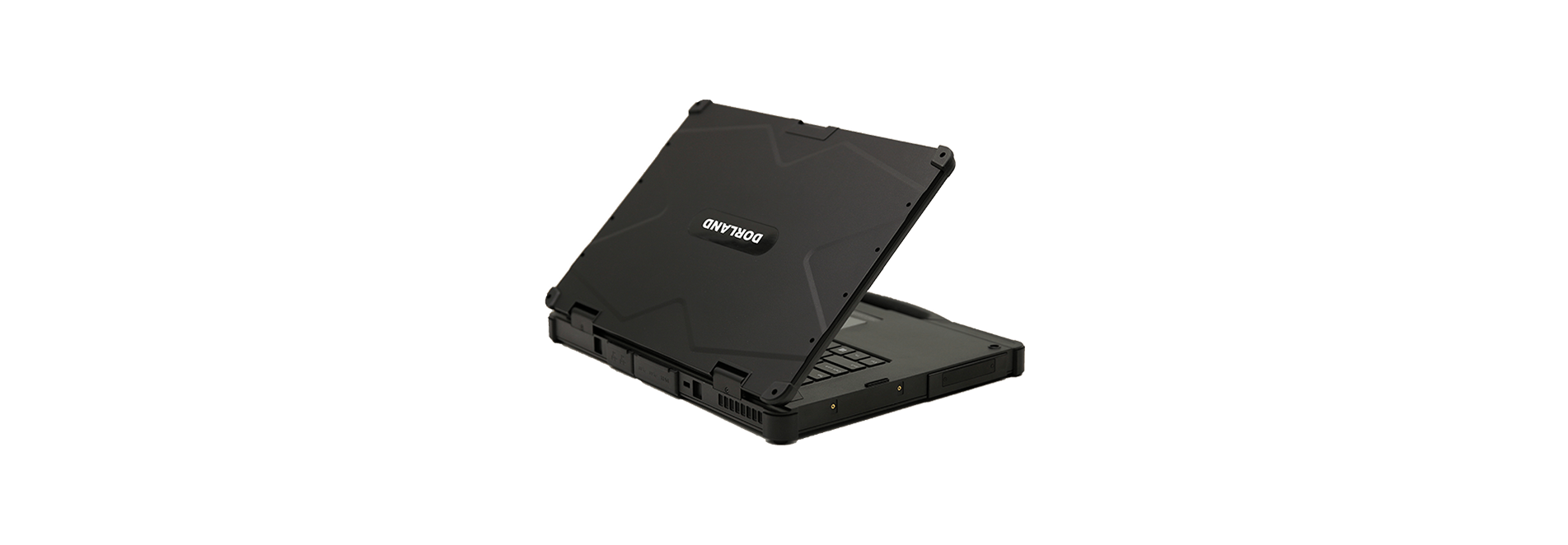

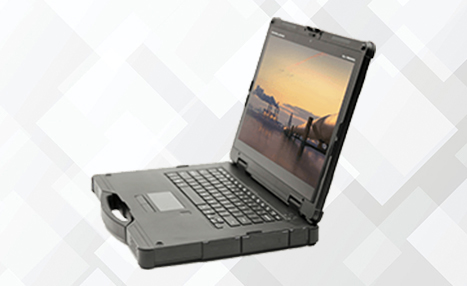

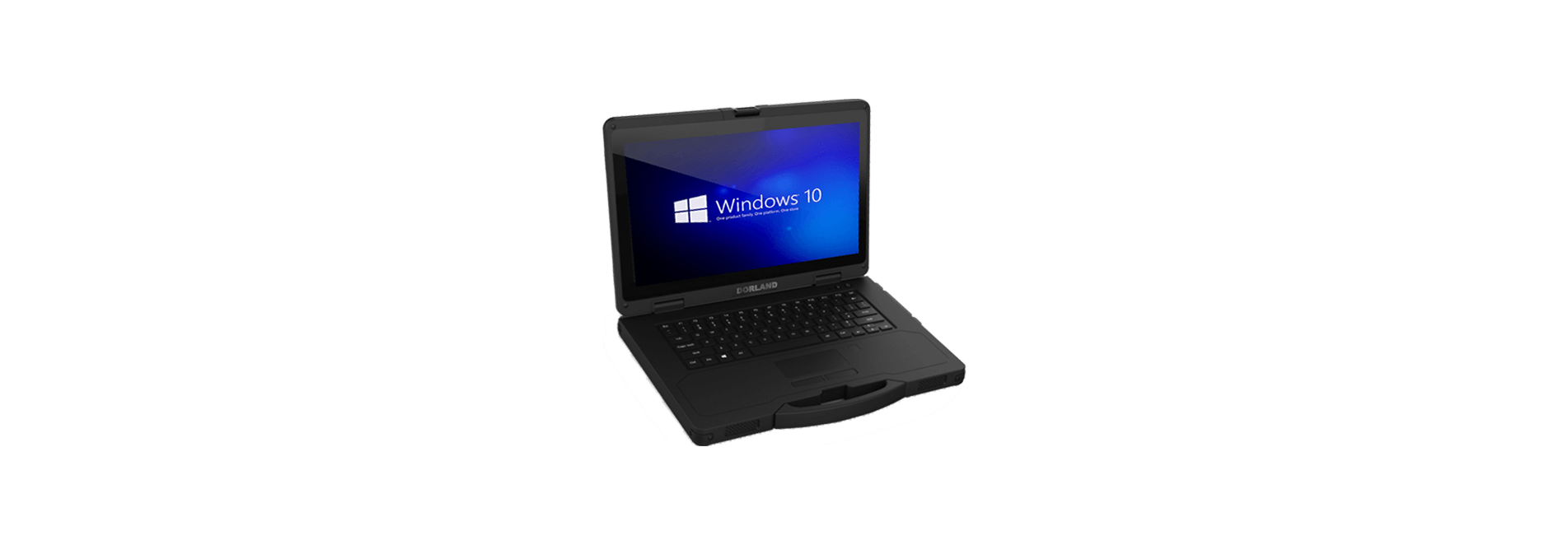

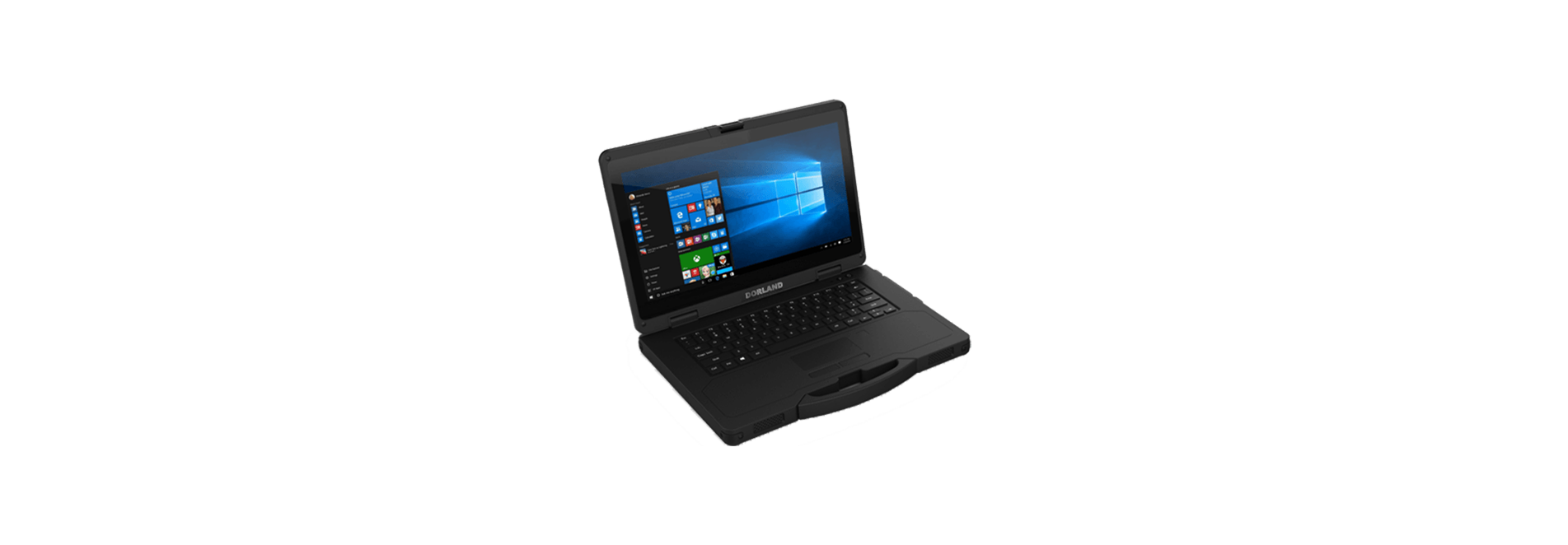

DORLAND Industrial Intrinsically Safe Notebook Ex NB09S

Developed by Beijing Dorland System Control Technology Co., LTD., the industrial intrinsically safe & solid Notebook Ex NB09S adopted advanced technology with intrinsically safe circuit, 14” screen（touch screen is optional） and 2.0 Megapixel (Front Camera). Its waterproof and dustproof performance can meet the IP65 standards.

In addition, the Notebook supports fingerprint identification, WIFI and Bluetooth, built-in GPS, altimeter, compass and other functions suitable for outdoor construction and pipeline inspection. It can also cooperate with OA office system, checking positioning system and data acquisition system etc. Especially it is used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas.

It is convenient for users to dispatch communicate timely.

Ex-Marking：

Ex ic IIB T5 Gc
Certification No.：

CCRI 20.2233X
Protection Grade：

IP65
Related certifications：

CE,RoHS,CCC,MIL-STD-810G
Product form：

14-inch, fully-hardened, explosion-proof Laptop
Apparent size：

356*269*37 mm (host side)
Weight：

2.85kg (naked machine)
Overall color：

Silver+black
Screen size：

14“ 16:9
Screen resolution：

1920(H)×1080(V) FHD
Luminance：

700cd/㎡ OPTION: OPTIONAL SLR SUN-VISIBLE RETINA
Touch screen：

10-point capacitor panel, G + G, Khang Ninh gorilla hardness above 7 H, scratch resistant, TP thickness: 1.1 mm, COF
Cameras：

Preposition 2.0MP
Loudspeakers：

Built-in 8Ω/1W x2
Mic：

×2 Internal Numbers MIC
Battery (built-in)：

Duration：0.5 hours (default 50% volume, default 200 LUMENS, 720P HD video)
Battery (built-in）：

Type：built-in Polymer lithium-ion battery (standby battery, support external hot plug) capacity：2500mAh/7.4V
Battery：

Duration：8.5 hours (default 50% volume, default 200 LUMENS, 720P HD video)
Battery：

Type： External Polymer lithium-ion Battery, Volume：7500mAh/7.4V
CPU：

Types ：8th Generation KBL-R Intel® Core™ i5-8250U
CPU：

Speed：Processor 4 cores, 8 threads, processor base frequency 1.60 Ghz, maximum frequency 3.40 Ghz
GPU：

Intel® UHD Graphics 620
RAM：

Standard：16GB optional：32GB
SSD ：

Standard：128GB optional：256GB/512GB
Mechanical hard disk：

Capacity 500GB
TPM：

Built-in TPM2.0 SLB9665T
Electronic Compass：

Electronic Compass
Gyroscopes：

Gyroscopes
Houle switch：

hall
WIFI：

WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G Dual frequency WIFI /intel 3165 / Max Speed 433 Mbps
Bluetooth ：

BT4.2 (BLE) class1 Transmission Distance：10m
Frequency band：

3G/4G(optional) Mini-pcie Interface (USB and pcie signal compatibility)
NFC ：

Matching, supporting
GPS：

U-blox NEO-7,Support：GLONASS,QZSS,GPS(USB Interface）With the big dipper
USB3.0：

USB3.0*3
USB2.0：

USB2.0*1
Earphone Jack：

∮3.5mm Standard headphone Jack x1 Host terminal
HDMI：

HDMI x1 （type-A）
SD Card：

SD Card x1
SIM Card ：

SIM Cut x1
DC Interface：

DC 19V 3.42A Power interface x1
Serial port Interface：

DB9 (RS232 Or RS485) ×1
RJ45 Interface：

x2（10/100/1000M Self adaptation） I219+I210
Anti-theft lock (right)：

Kensington x1
Cooling vent (right)：

Cooling vent (right) x1
Extension dock on the left：

X 1 custom transfer card PCIE x 4 slot or HDD
POGO PIN：

POGO 5pin(USB Interface definition)
Switch key：

x1
Pinhole button：

Reset x 1
P1：

×1 One Button to kill screen or open
power：

×1(red and green) charging red, full of green, low power red light flashing, discharge is not bright
baterry：

×1(red and green) charging red, full of green, low power red light flashing, discharge is not bright
HDD LED

×1
Case key locking：

×1
3G/4G：

3G/4GTurn on the blue, turn off the 3G/4G lights
Operating System version：

Windows 10 home pro (Standard fitting) / IoT enterprise (optional)
Operating temperature：

’-10 °C to 50 °C
Storage temperature：

’-30 °C to 70 °C
Humidity：

Humidity: 95% Non-Condensing
