Ex-Marking:
EX ic IIB T5 Gc
-

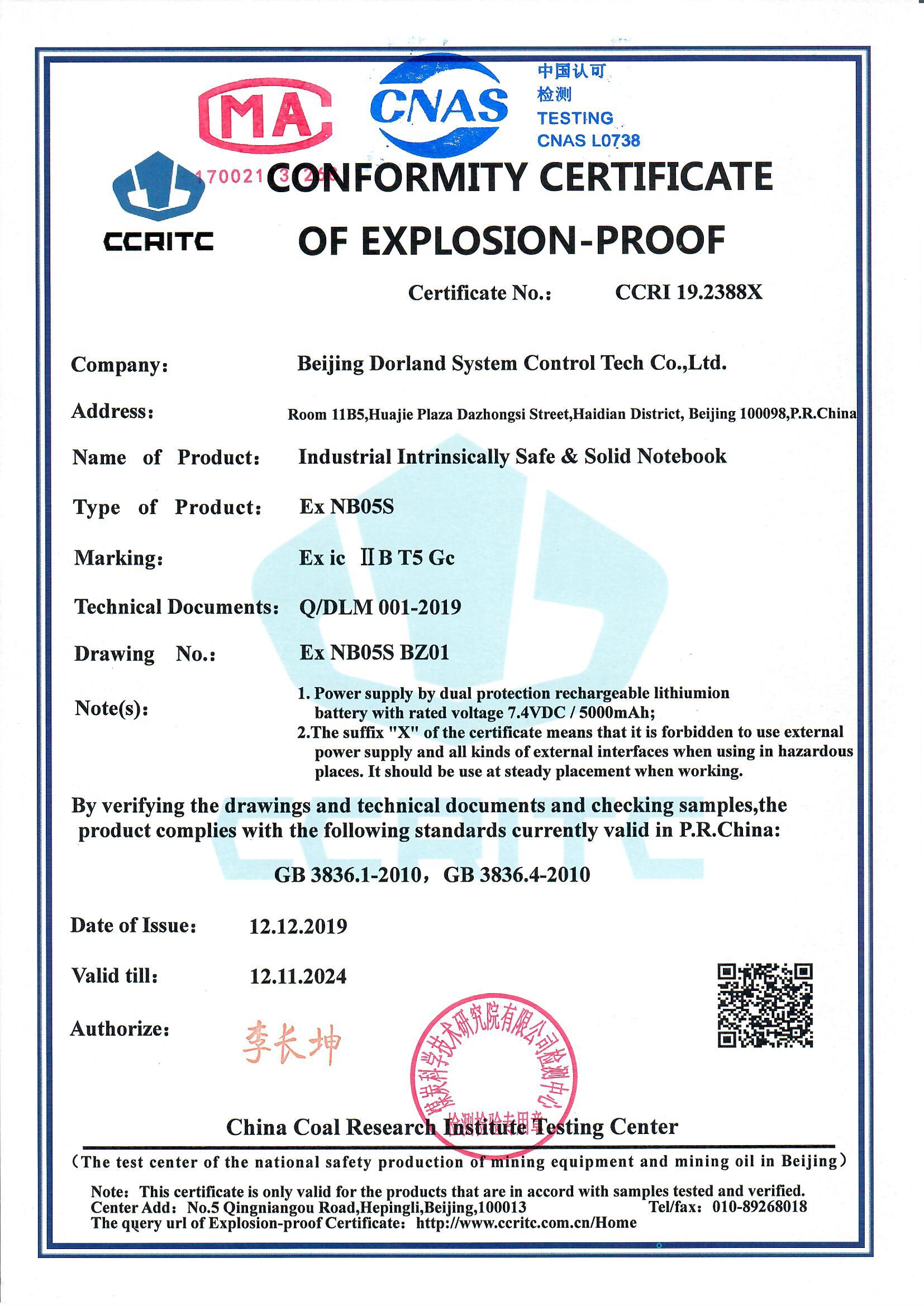

Certification No.:
CCRI 19.2388X
-
Protection Grade:
IP65
-
Product form:

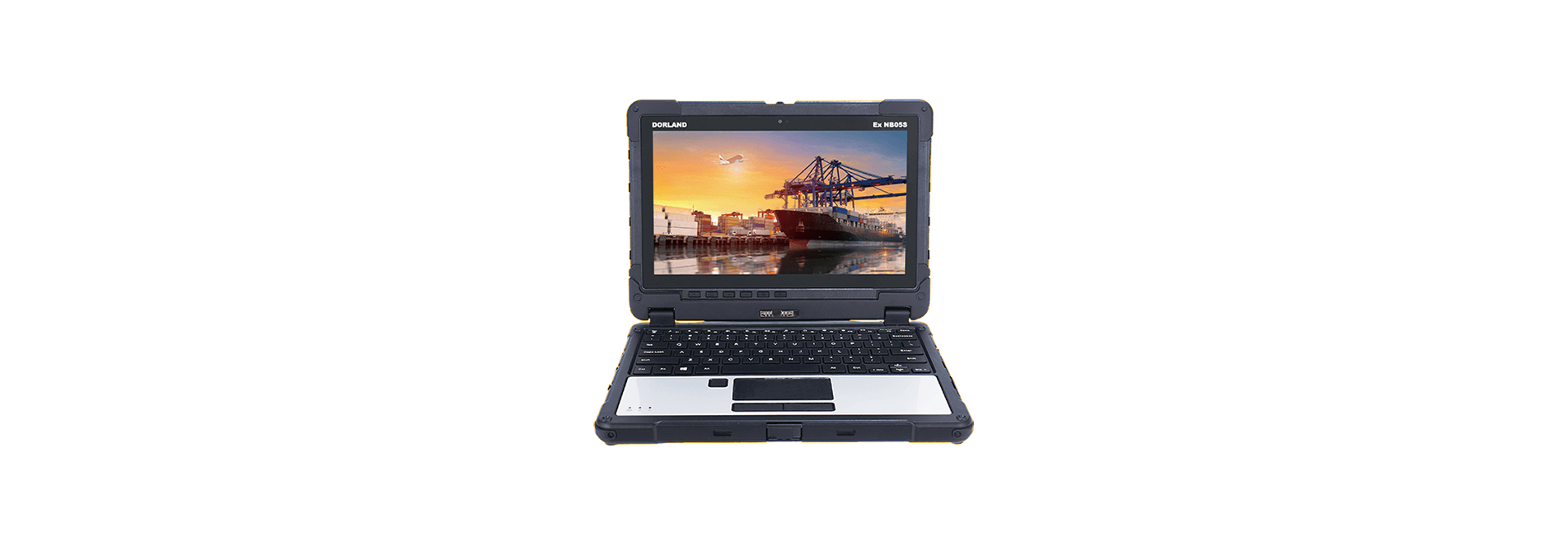

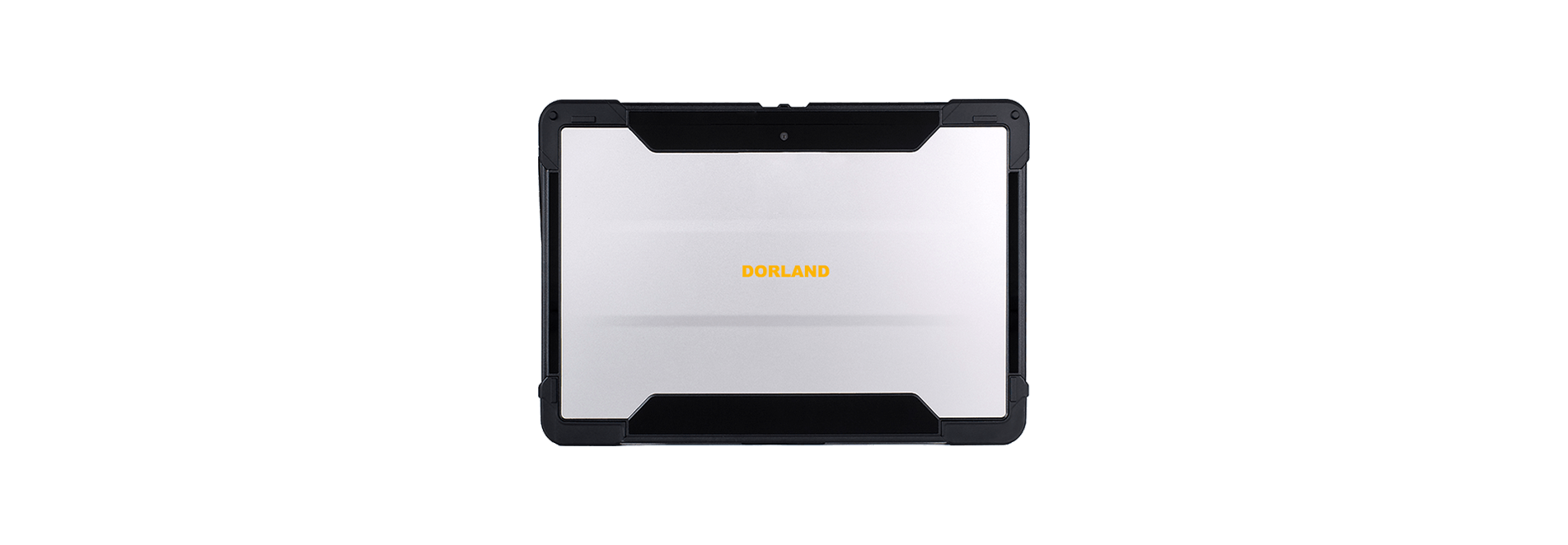

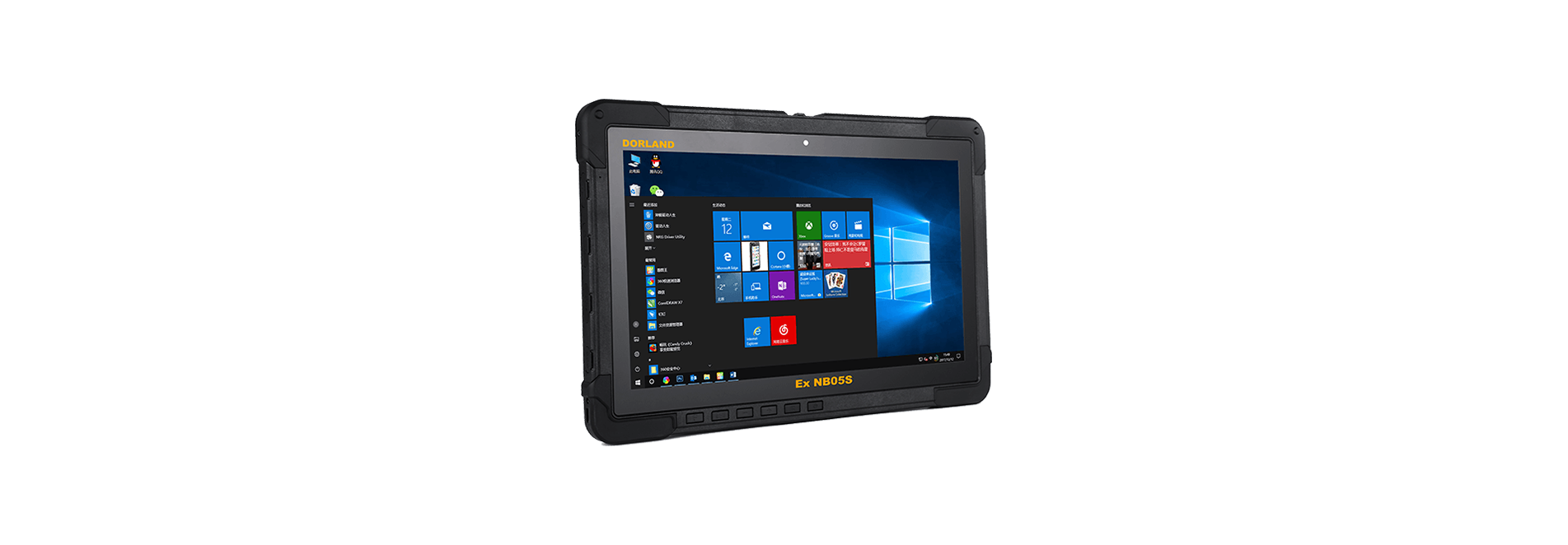

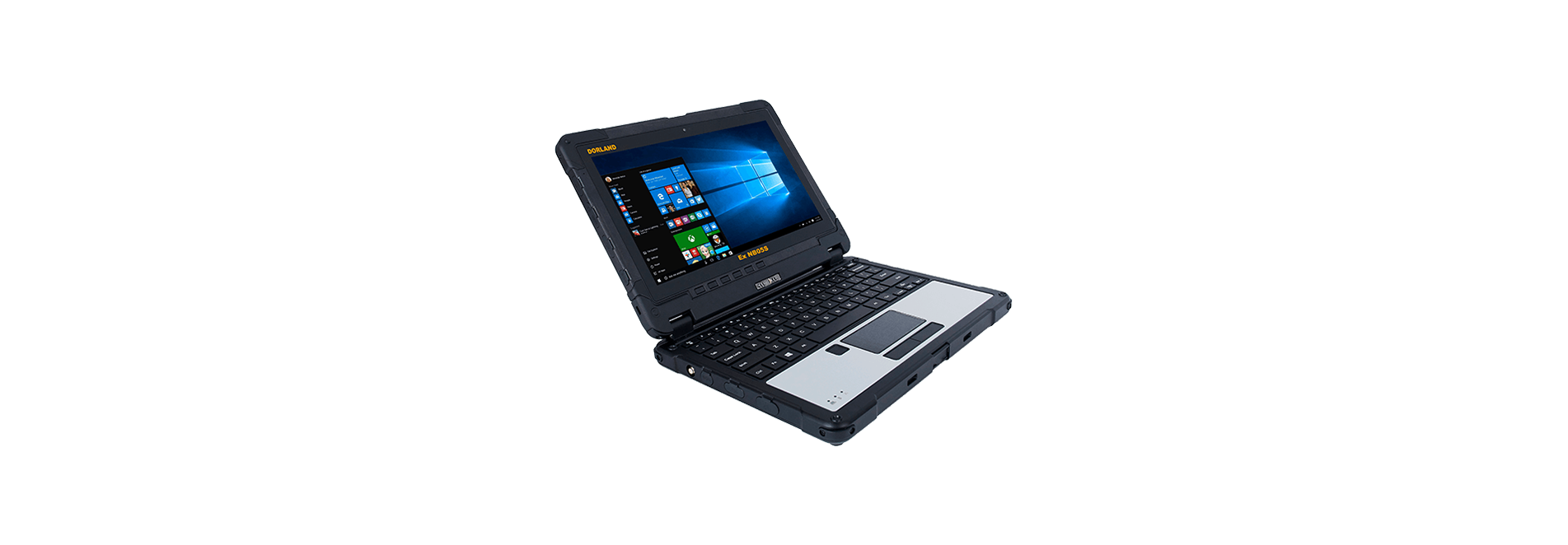

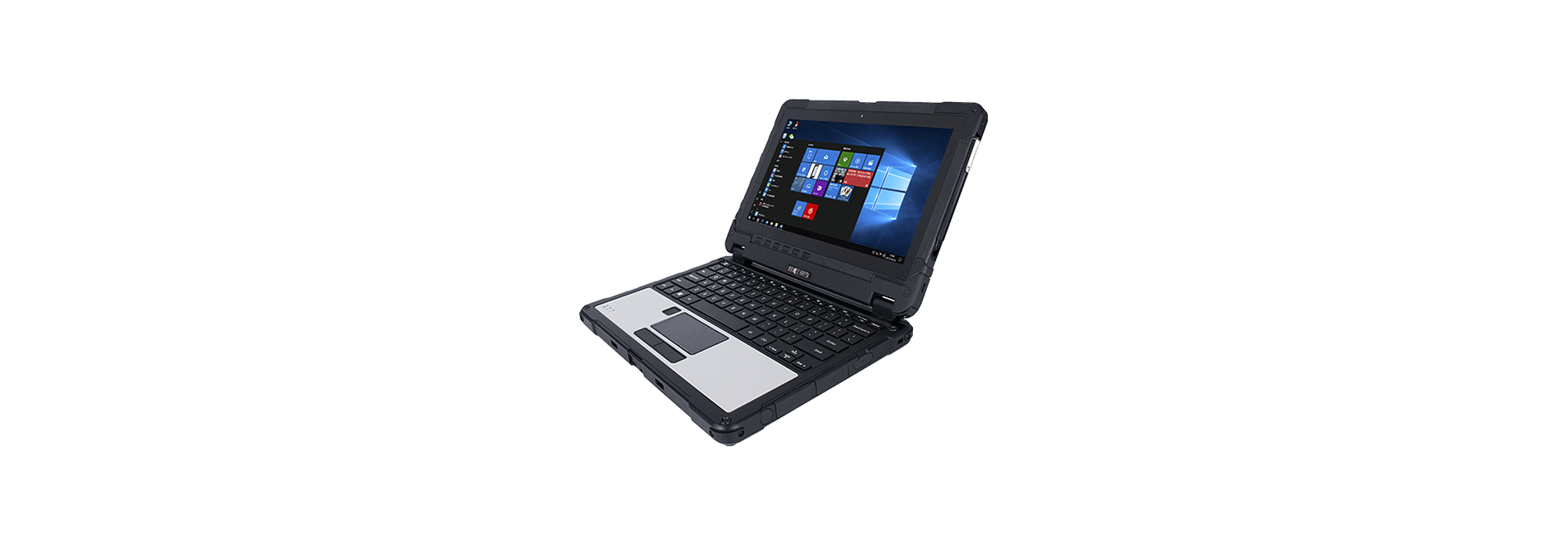

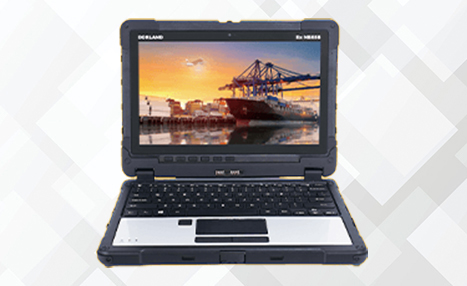

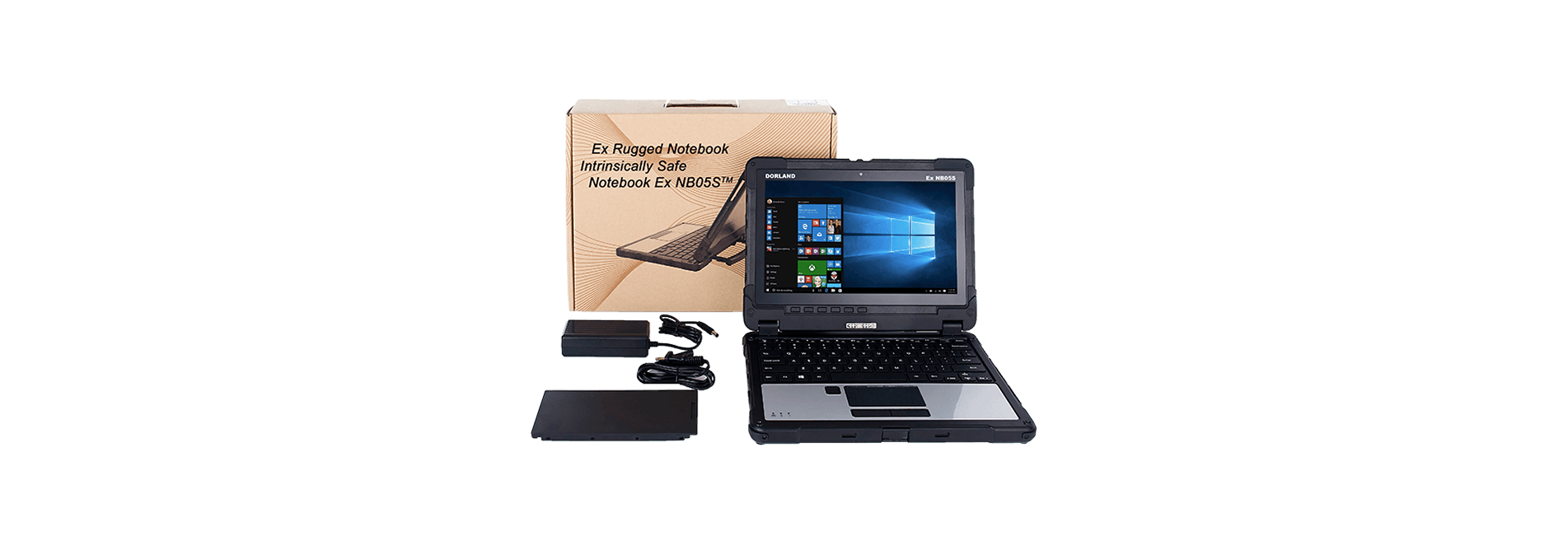

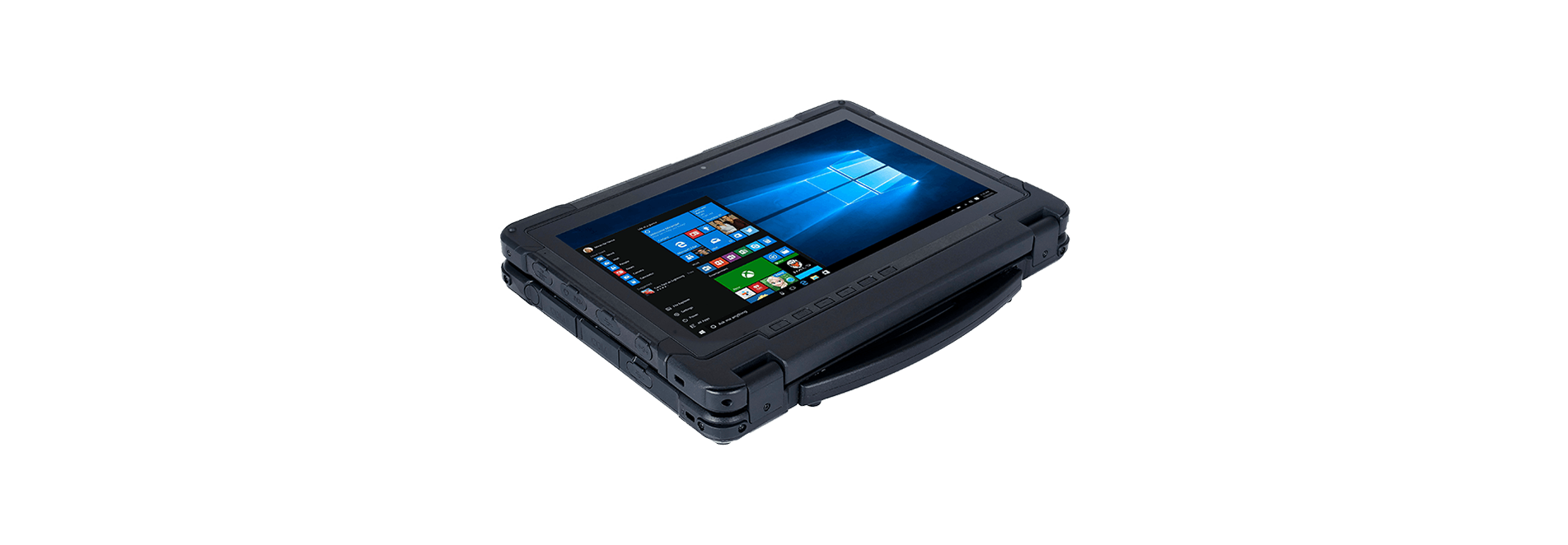

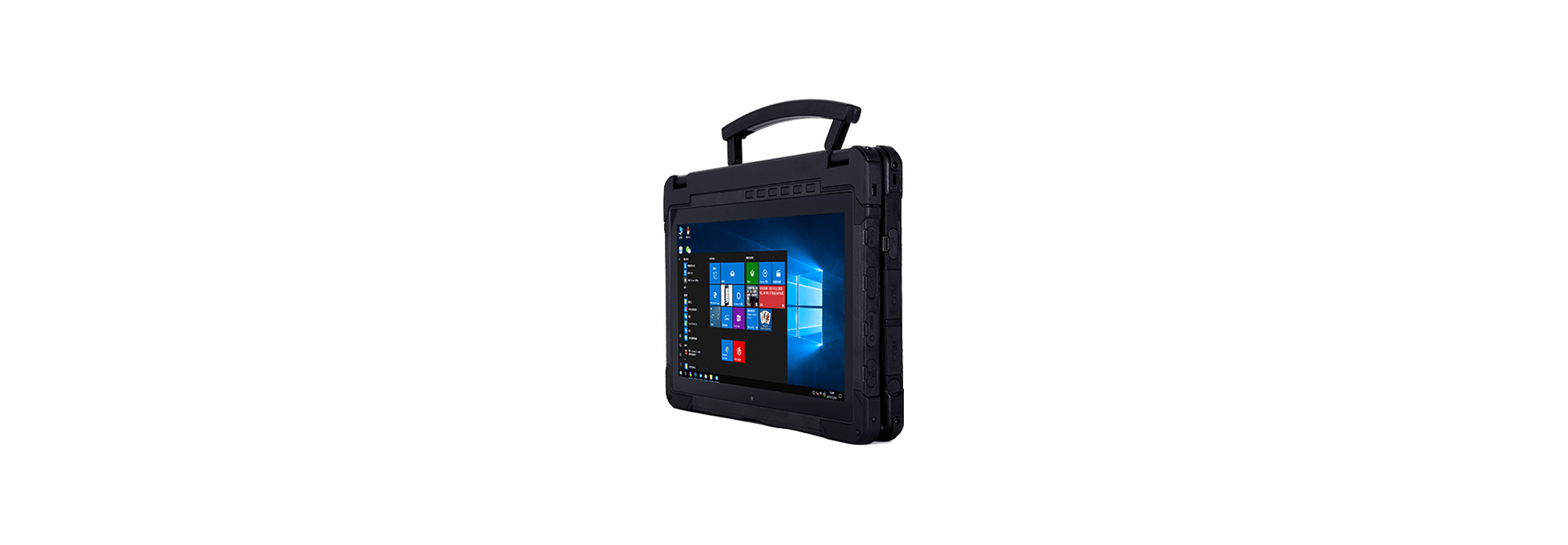

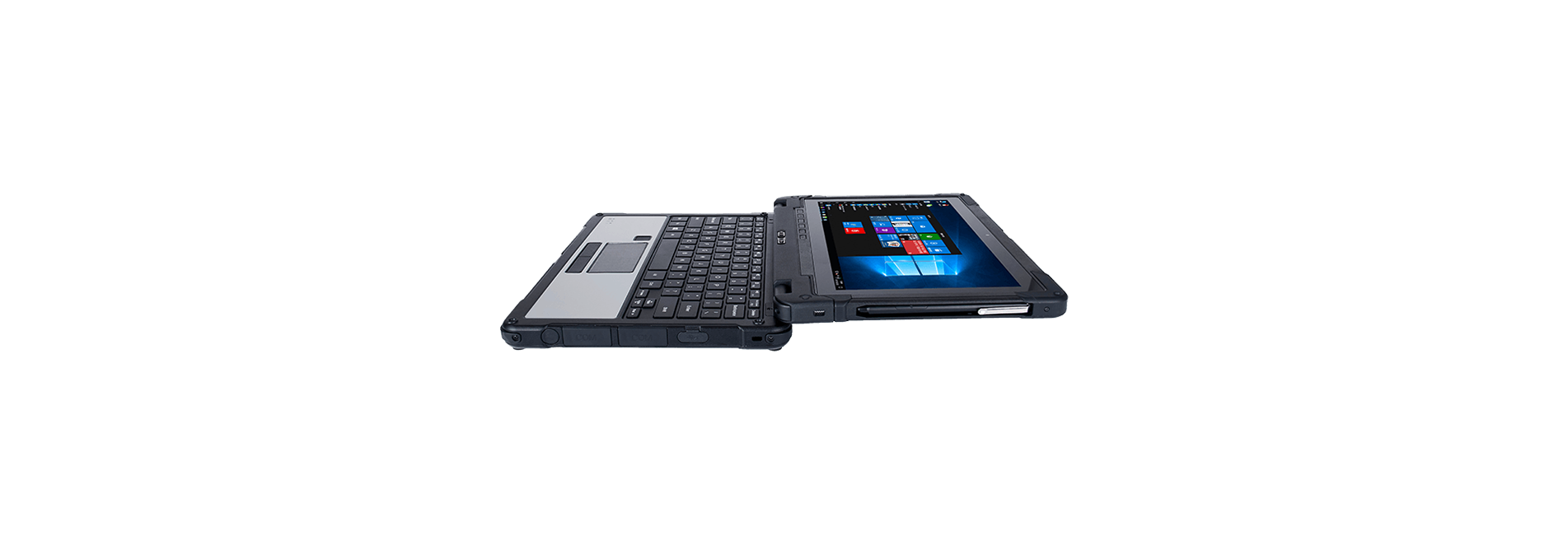

11.6寸 2in1 Ruggedized laptop
-
Apparent size:
305*205*16.5 mm (host side)
-
Weight:
Bare machine 3140g
-
Overall color:
Black
-
Screen size:
11.6“ 16:9
-
Screen resolution:
1920(H)×1080(V) FHD
-
Luminance:
350cd/㎡
-
Touch screen:
10 point capacitive screen, G+G, Corning Gorilla hardness above 7H, scratch proof, support Windows INK
-
Cameras:
Front:Front 2.0 MP BACK:Rear 8.0 MP (USB)
-
Loudspeakers:
Built-in 8Ω/0.8W Water proof BOX Trumpets x1
-
Nipple:
Sensitivity:-42db, Output impedance2.2kΩ
-
Microsoft pen:
Microsoft pen ,windows ink
-

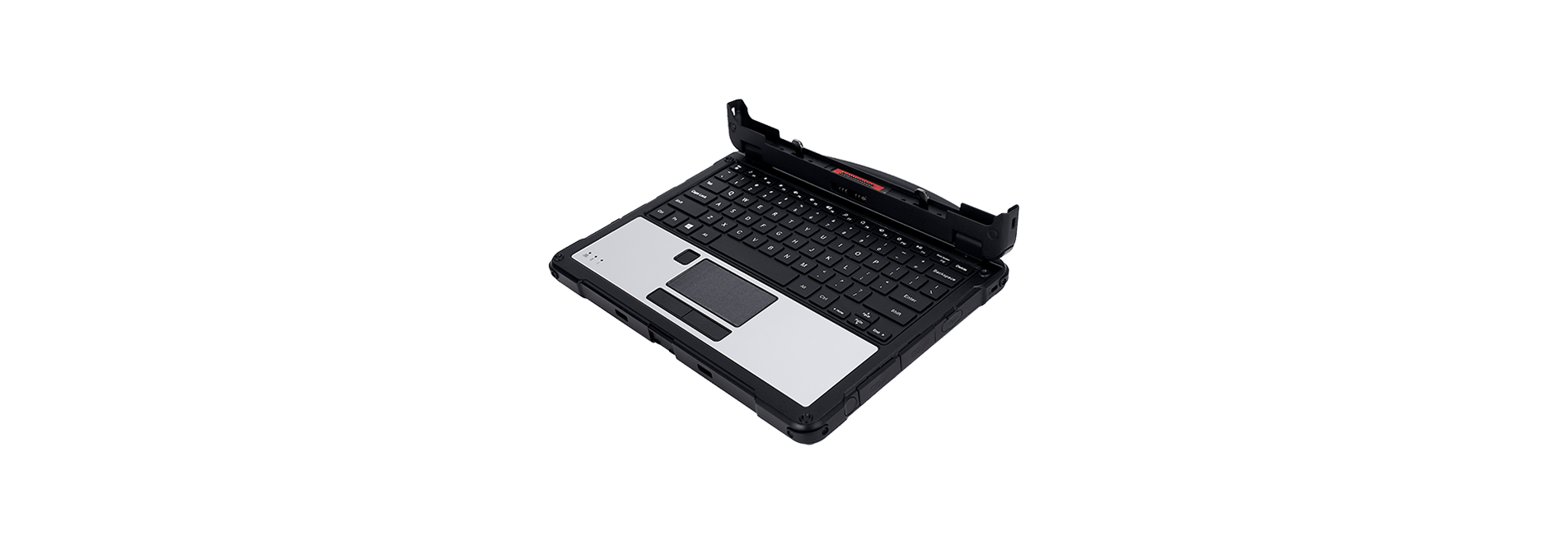

Keyboard :
78-key IP65 waterproof keyboard, key core easy to replace
-
Battery (host Terminal):
Duration: 6 hours (default 50% volume, default 200 lumens, 1080P HD video)
-
Battery (host Terminal):
Type: built in Polymer lithium-ion battery, capacity: 5000mah 7.4 v
-
Battery (keyboard side):
Duration: 5 hours (default 50% volume, default 200 lumens, 1080P HD video)
-
Battery (keyboard side):
Type: Detachable Polymer lithium-ion battery, capacity:6300mah 7.4 v
-
CPU:
Types:Intel®kabylake Core™ m3-7Y30/ Skylake M3-6Y30(Premium edition) Speed:4M Cache, 2.60 GHz(Premium edition)
-
CPU:
Types:Intel® GeminiLake N4100 Processor (4M Cache)(Low-cost version) Speed:1.10 GHz-2.4GHz(Low-cost version)
-
GPU:
Intel® HD Graphics 515(Premium edition),Intel® UHD Graphics 605(Low-cost version)
-
RAM:
8GB(Premium edition),4GB(Low-cost version)
-
SSD :
128GB M.2
-
Houle switch:
hall
-
G_sensor:
Gravity accelerometer
-
WIFI:
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual-band WIFI
-
Bluetooth:
BT4.2 (BLE) class1 Transmission Distance:10m
-
Frequency band:
1900&2100MHz),HSDPA 21Mbps,HSUP3G:FIBOCOM_H380-GL Frequency band:GSM/GPRS/EDGE Band(850&900&1800&1900 MHZ), WCDMA Band(850&900&A 5.76 Mbps
-
Frequency band:
Matching4G:GSM: B2/B3/B5/B8 EC25-A: LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5
-
Frequency band:
Matching4G: WCDMA: B1/B2/B5/B8
-
Frequency band:
Matching4G: EC25-AU: LTE FDD: B1/B2①/B3/B4/B5/B7/B8/B28 LTE TDD: B40
-
Frequency band:
Matching4G: WCDMA: B1/B5/B8 GSM: B3/B8
-
Frequency band:
Matching4G: LTE TDD: B38/B40/B41
-
Frequency band:
Matching4G:GPRS/EDGE:850MHZ/900MHZ/1800MHZ/1900MHZ
-
Frequency band:
Matching4G: WCDMA/HSDPA/HSUPA/HSPA+ :850MHZ/900MHZ/1700 MHZ(AWS)/1900MHZ/2100MHZ
-
Frequency band:
Matching4G:ME936 LTE M.2 LTE: B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
-
GPS:
Matching: 1. Matching the big dipper 2. The keyboard can be equipped with GPS module, which is used for external GPS antenna
-
GPS:
Standard:U-blox NEO-7,Yes:GLONASS,QZSS,GPS;sensitivity:-160 dBm;Standard:<30 Seconds,HOT START TIME:<28 Seconds,Frequency:0.25 Hz … 10 MHz (configurable)
-
Optional Module:
Two-dimensional Code Capture,fingerprint capture
-
USB3.0:
USB3.0*1 Host terminal
-
Earphone Jack:
∮3.5mm Standard headphone Jack x1 Host terminal
-
HDMI C:
HDMI C x1 Host terminal
-
TF Card:
Support TF X 1MAX: 128G host (advanced version)
-
TF Card:
SDHC/SDXC X 1MAX:64G host side (low-cost version) is supported
-
SIM Card:
SIM卡 x1 Host terminal
-
DC Interface (host):
DC 12V 4A Power interface X1 host
-
GPS Antenna interface SMA:
GPS_SMA x1 Keyboard end
-
Serial port Interface:
DB9 (RS232,RS485) ×2 Keyboard end
-
RJ45 Interface:
10/100Mbps Self adaptation ×1 Keyboard end
-
USB2.0:
USB2.0*2 Keyboard end
-
DC interface:
DC 12V 4A Power interface x1
-
Aviation socket selection:
Aviation socket x 1(premium version)
-
Switch key:
x1
-
Volume up, volume down:
Volume up, volume down x2
-
Windows home:
Windows home x1
-
System soft keyboard:
System soft keyboard x1
-
Bar Code Scan Button:
Bar Code scanning (back of machine)x1
-
Operating system:
windows 10 HOME (Standard fitting)Pro / IoT enterprise(Matching)
-
Battery:
UN38.3,MSDS,IEC62133
-
Operating temperature:
‘-10 °C to 50 °C
-
Storage temperature:
‘-30 °C to 70 °C
-
Humidity:
Humidity: 95% Non-Condensing
