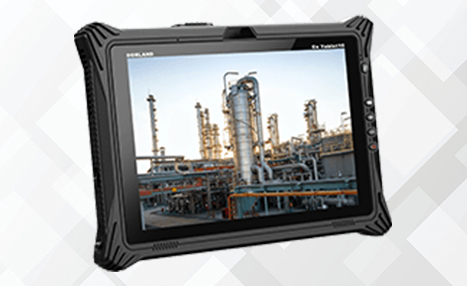

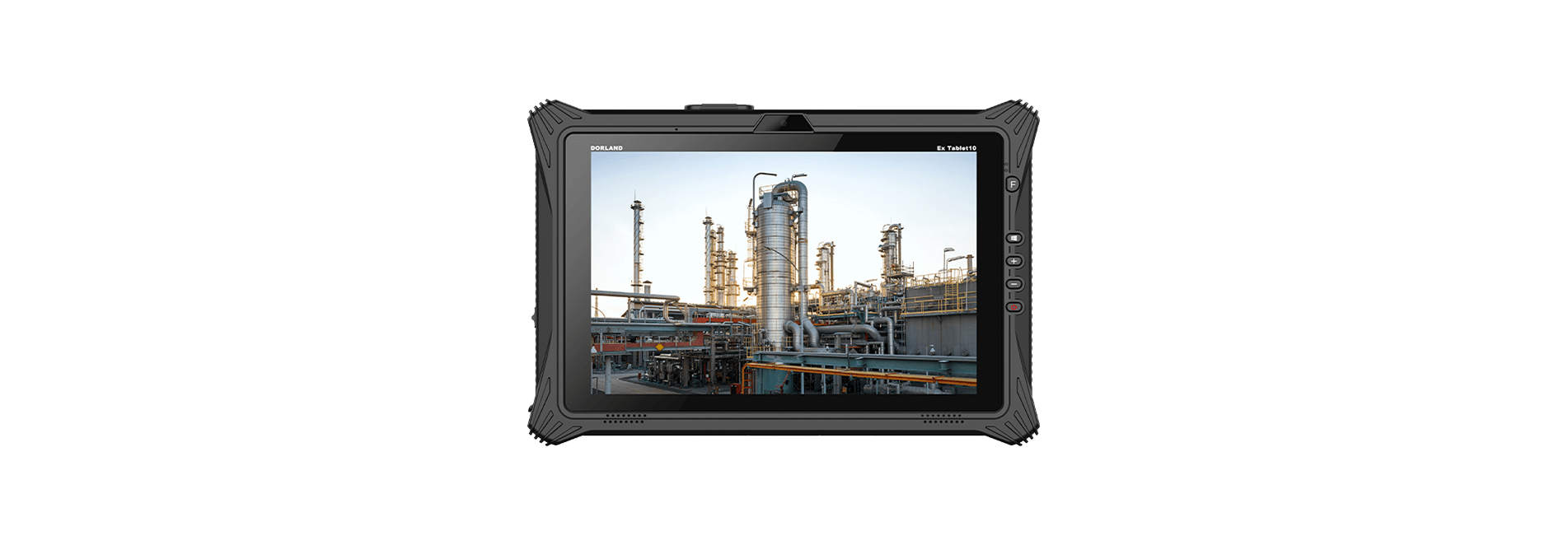

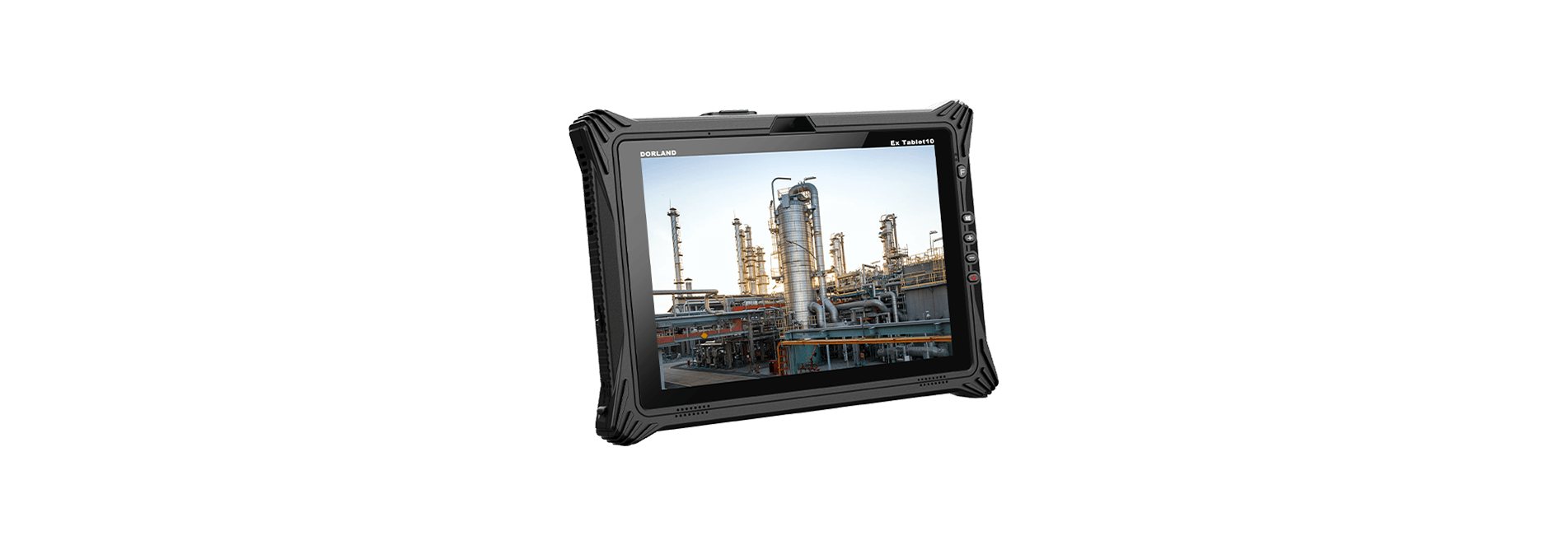

DORLAND Industrial Intrinsically Safe Tablet PC/Pad Ex Tablet10

Beijing DORLAND System Control Technology Co., Ltd. recently launched Ex Tablet 10, intrinsically safe intelligent industrial-grade explosion-proof tablet computer. It adopts advanced technology and intrinsically safe circuit design, with a strong appearance and strong body. This product adopts windows 10 operating system and 10.1 inch touch screen design, equipped with front 2 MP + rear 8 MP cameras, its waterproof and dust-proof performance reaches the international IP65 standard.

In addition, we also configured GPS / Beidou / GLONASS, altitude measurement, compass and other functions suitable for outdoor construction and pipeline inspection, which can cooperate with OA office system, patrol positioning system and data acquisition system And other applications.

It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Ex-Marking：

Ex ic IIB T5 Gc
Protection grade：

IP65
Overall color：

Black black (bottom shell face shell black, panel black)
Screen：

10.1Inches 16:10，1200×1920 ，330 cd/m2
Touch screen：

10 point capacitance screen, G G, hardness of more than 7H, scratch proof
Cameras：

Front： Front 2.0 MP BACK：Rear 8.0 MP (USB) with flashlight
Loudspeakers：

Built-in 8Ω/0.8W waterproof horn x 1
Nipple：

Sensitivity：-42db, Output impedance 2.2kΩ
Battery Life：

8 hours (default 50% volume, default 200 lumens, 1080P HD video)
Battery type：

Polymer lithium-ion battery， removable hot swap with Battery Support
Battery capacity：

7.4V/860mAh + 5000mAh
CPU：

Types：8th Generation KBL-R Intel® Core™ i5-8250U
CPU：

Speed：Processor 4 cores, 8 threads, Max frequency 3.40 Ghz
GPU：

Intel® UHD Graphics 620
RAM：

16GB
SSD ：

128GB Detachable
TPM：

Built-in TPM2.0 SLB9665T
G_sensor：

Gravity accelerometer
Fingerprints：

×1 SPI Fingerprints(windows hellow Log On)
Fan ：

×1 IPX5 Fan
NFC ：

NA
WIFI：

WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G Dual frequency WIFI intel 3165D2WG(3.3v)
Bluetooth：

BT4.2 (BLE) class1Transmission Distance：10m
Frequency band：

4G：Remote EC25-EC (European version) LTE FDD: B1/B/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
GPS：

U-BLOX M8Q Module，Support GPS, The Big Dipper,glonass
type A usb Interface：

x1 USB 3.0
Type C Interface：

*1 Type C (USB3.0/HDMI/Charging)
Headphone Jack：

∮3.5mm Standard headphone Jack x1
HDMI Interface：

HDMI 1.4a mini x1
TF Memory stand：

Supportable TF x1 max：128G
SIMBooth：

SIM x1
DC interface：

DC 19V 3.42A 4.0 mm power interface x 1
pogo pin Interface：

x1 12pin（USB&Dock charging）
F KEY key：

X 1 scan key, no barcode can be customized (GPIO)
Volume Button -：

X 1 volume -
Volume key+：

x1 Volume+
Windows key：

X 1 windows page
Switch key：

x1
Power indicator：

X 1 power on for Bright Blue, turn off lights out
Baterry light：

X 1(red and green) charging red, full of green, low power red light flashing, discharge is not bright
Extended module selection：

USB 2.0, one-dimensional Code Module, two-dimensional Code Module (optional)
Power adapter：

100 ~ 240V input 19V3.42A/65W output, CE certification
Operating system：

Windows 10home (standard) PRO/IOT (optional)
Apparent size：

290*196*22mm
Weight：

Bare machine1140g，5000mAhBatteries：250g
Operating temperature：

’-20 °C to 60 °C
Storage temperature：

’-30 °C to 70 °C
Humidity：

Humidity: 95% Non-Condensing

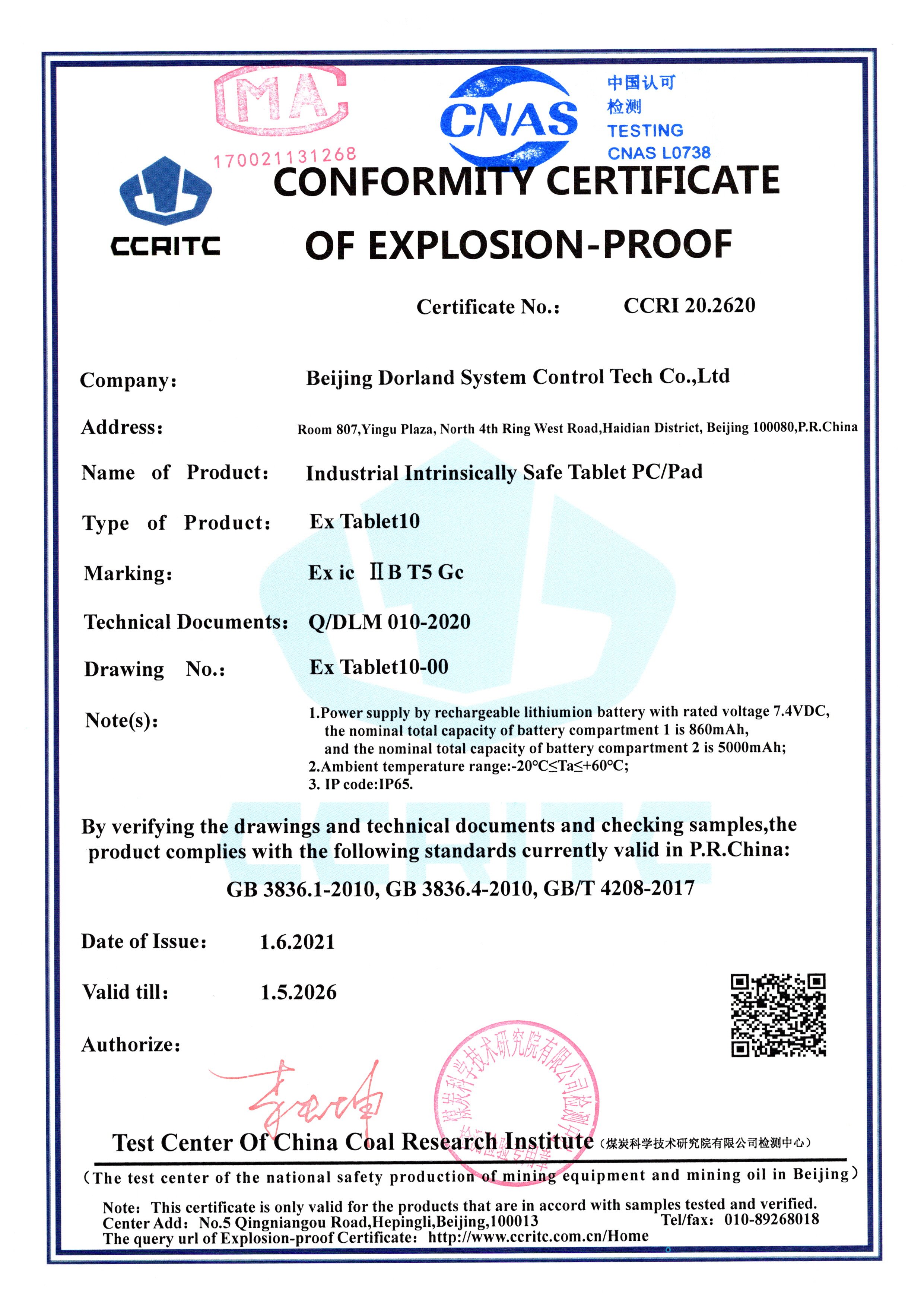

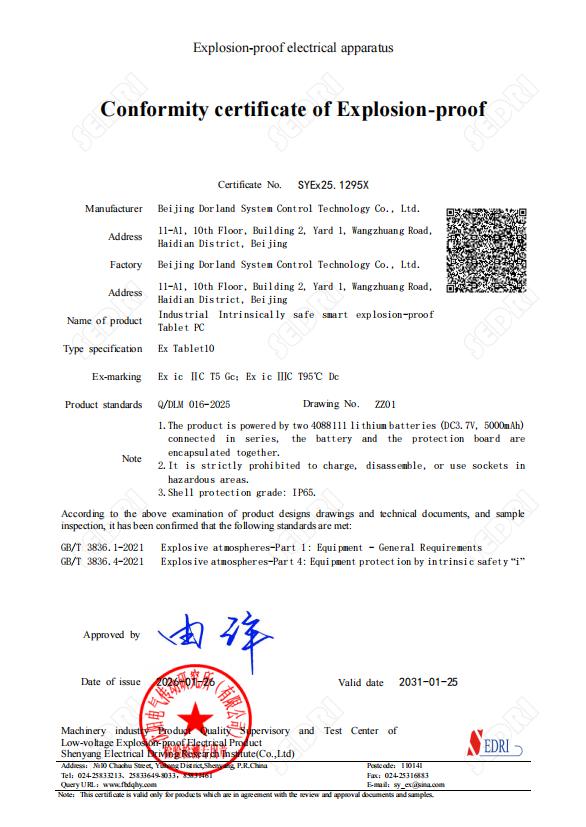

Ex Tablet10 Explosion proof Certificate EN

Download

Ex Tablet10 Inspection Report

Check the details Download
