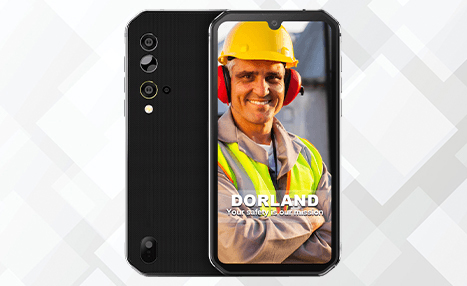

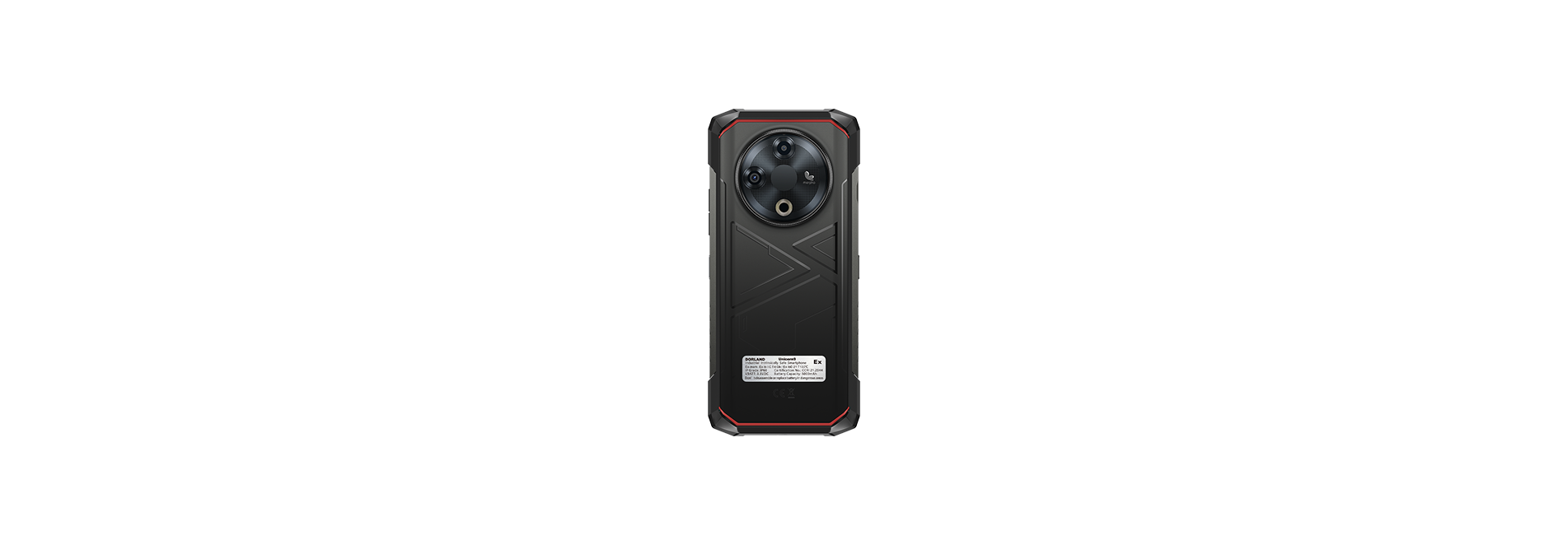

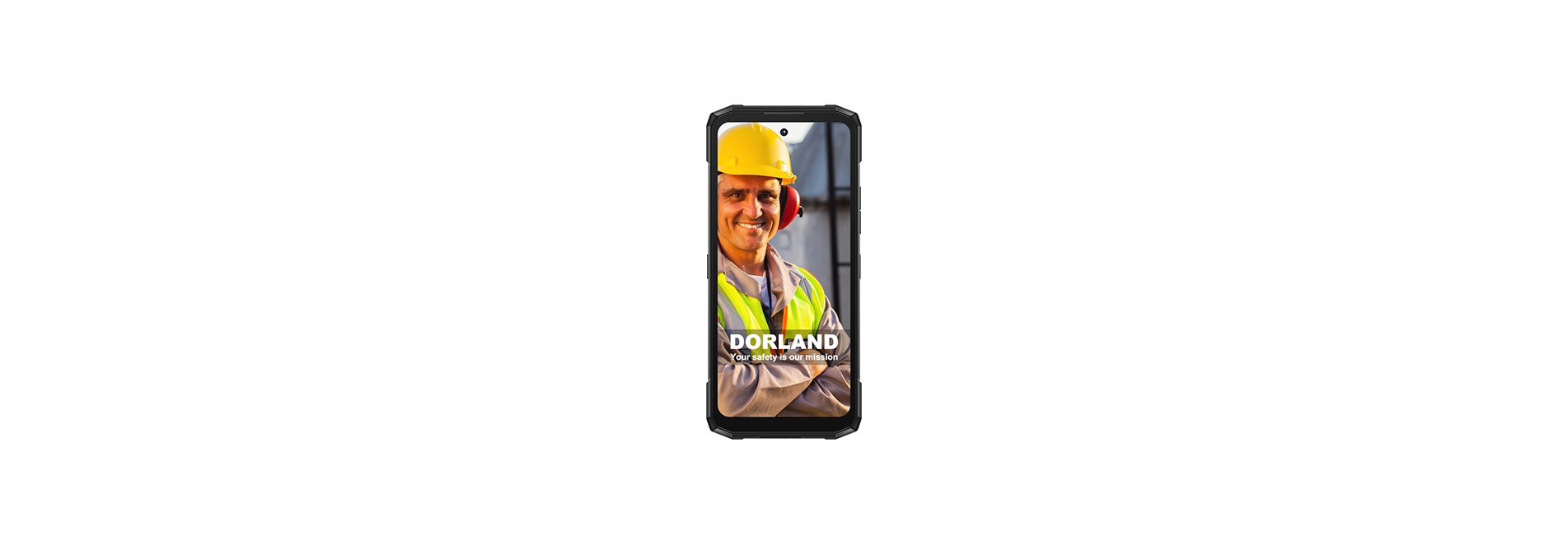

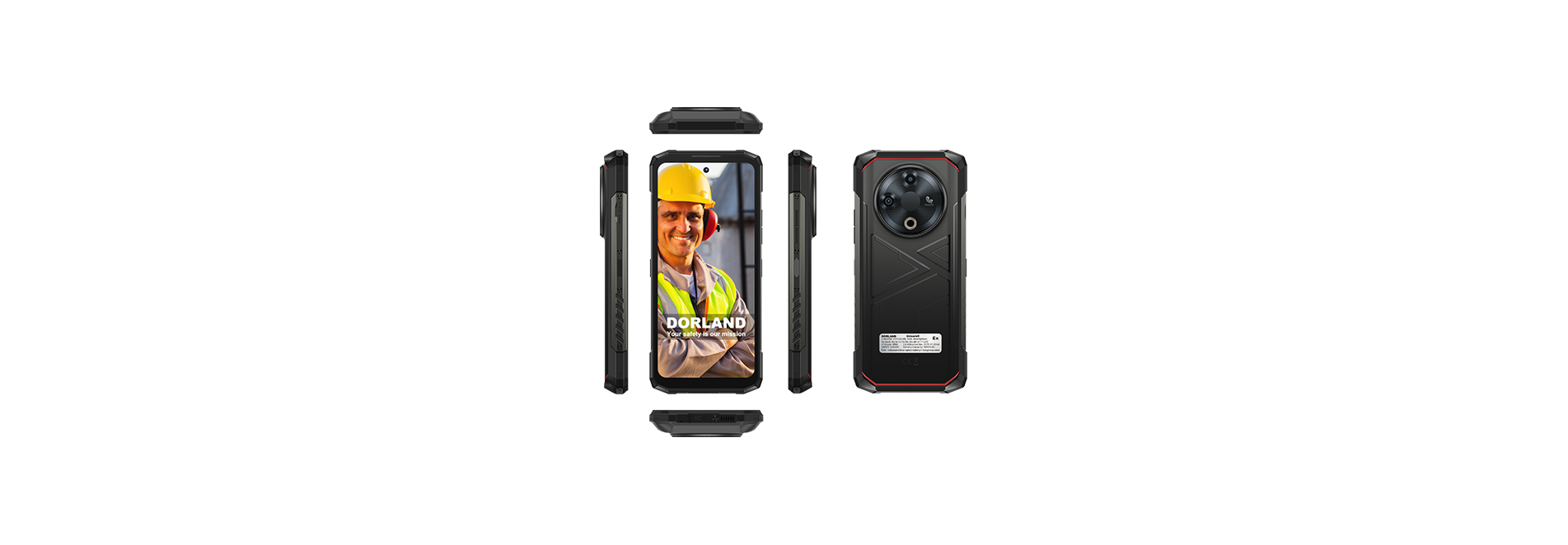

DORLAND Industrial Intrinsically Safe Smartphone Unicorn9

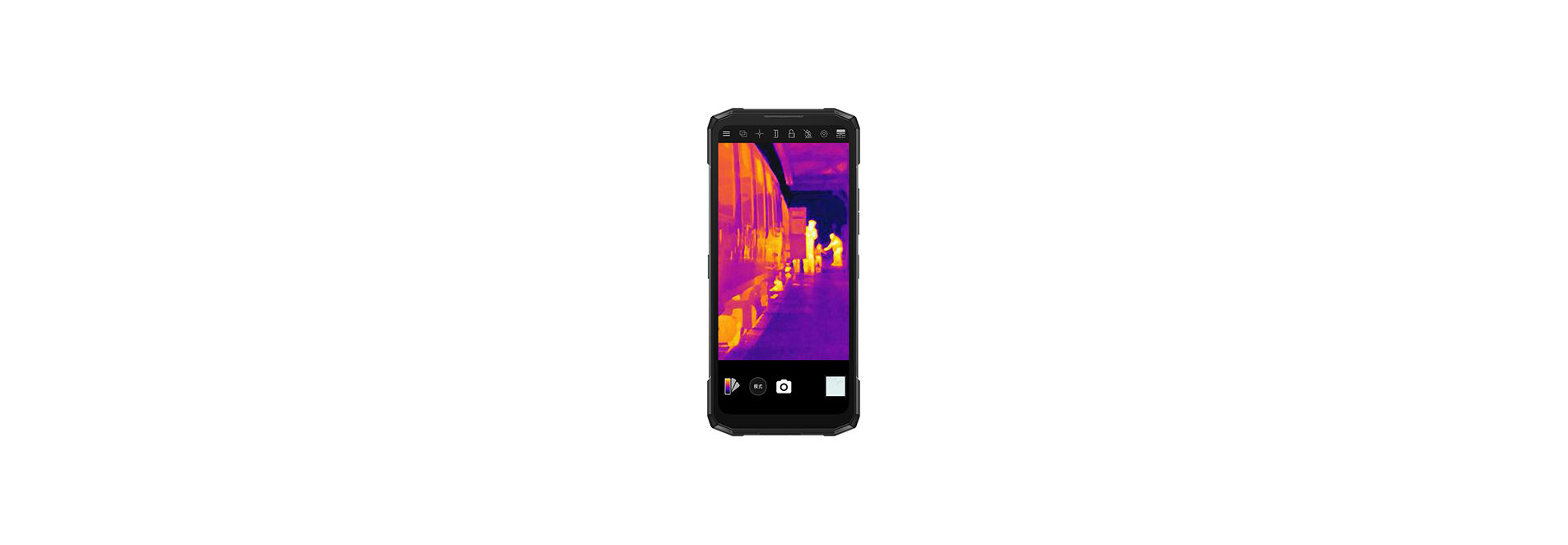

Beijing Dorland System Control Technology Co., Ltd. recently launched the industrial intrinsically Safe Smartphone Unicorn9, which adopts advanced technology and intrinsically safe circuit design, with a strong appearance and strong body. The mobile phone adopts a 5.84 inch (19:9) water drop screen design, equipped with a front 16mp, a rear 48mp + 5MP + 2MP + thermal imaging module, its waterproof and dustproof performance meets the international IP68 standard.

In addition, the mobile phone supports OTG, fingerprint unlocking and other functions. The mobile phone is equipped with GPS + GLONASS + Beidou + Galileo positioning system, which is suitable for outdoor construction, pipeline inspection and other functions, and can cooperate with OA office system, patrol positioning system, data acquisition system and other applications.

It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Ex-Marking：

Ex ib IIC T4 Gb / Ex ibD 21 T130℃
Certification No.：

CCRI 21.2044
Protection Grade：

IP68
OS：

Android 9.0
Screen:

5.84” FHD+ IPS (19:9) 2280*1080
Dimensions：

156.5X78.3X14.2 MM
Weight ：

273g
Size：

5.84inch
Resolution：

1080*2280 19:9
Glass ：

Corning 5th gorilla glass
Display resolution：

FHD+ IPS
Multi-touch：

Five points(Multi point + gesture)
Wi-Fi

802.11a/b/g/n/ac
Bluetooth：

BT5.0
Connectivity ：

GSM:850/900/1800/1900 3G:WCDMA B1/2/4/5/6/8/19 TDS34/39 CDMA BC0/BC1/BC10
LTE-FDD：

B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66 TDD:B34/38/39/40/41
GPS：

YES，GPS+GLONASS+beidou+Galileo
CPU：

MT6779V/CE
CPU clock ：

wo ARM® Cortex-A75 cores operating at 2.2GHz Six ARM® Cortex-A55 cores operating at 2.0GHz
Memory：

128G ROM+8GB RAM
Storage Card：

max up to 128GB
USB connector type：

24pin TYPE-C
Camera Front：

16MP
Camera Rear：

48MP+5MP+2MP+Thermal imaging module
ARRAY SIZE：

8000*6000+2592*1944+1600*1200
Speaker qty：

1
Camera BSI：

Yes
Front Flash：

No
Battety type：

4.35v 3.85V
Battery working：

3.4V~4.4V
Battery：

4380mAh
Max charging current for the battery ：

9v 1.67A
Video：

mp4,3gp,3gpp,avi,x-flv ,etc.
Audio：

ogg ,aac,imy,amr,x-flac,mp3,etc.
Image：

jpeg\png\gif\bmp
Navigation support ：

GPS+GLONASS+beidou+Galileo
Sensors：

Yes
Gesture：

Yes
Gyroscope：

Yes
Magnetic：

Yes
Air pressure sensor：

Yes
Compass：

Yes
Fingerprint：

Yes
Coulomb Counter：

Yes
RGB：

Yes
NFC：

Yes
Wireless charging：

Yes
Hardware intercom：

No
Heart rate test：

Yes
UV：

No
Sim-card quantity：

2
Sim-card type：

Two nano card, two cards are in it at the same time, one 4G traffic, one 2 / 3 / 4G standby, (dual 4G standby, choose any one to use traffic) one card is receiving and making calls, and the other card cannot answer and make calls
FM：

Yes
OTG：

Yes
Earphones 3,5mm jack type ：

No
Total standby time：

528H
Total talk time：

26H
Protective film separate：

Yes
USB charging：

Yes
OTG cable：

Yes
Power adaptor ：

9V 1.67A, white
USB connector type ：

24pin TYPE-C
Earphones：

TYPE-C
USB cable：

White

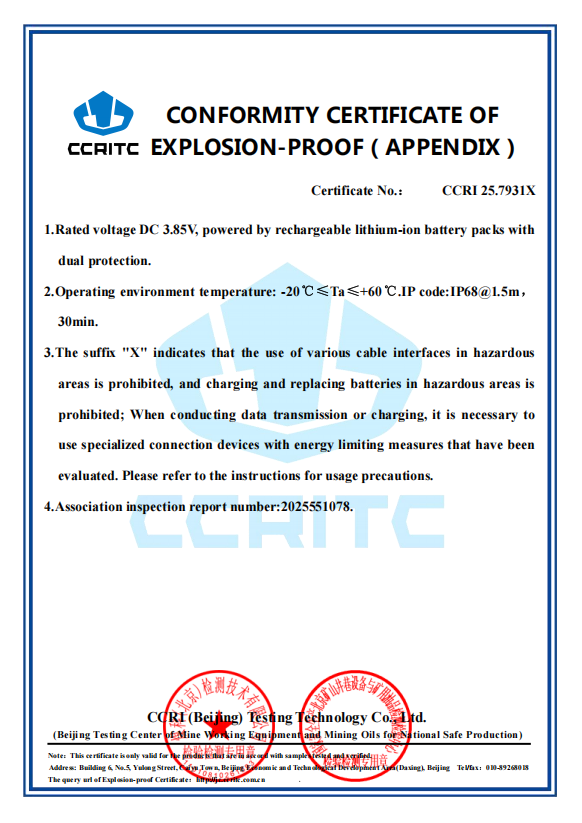

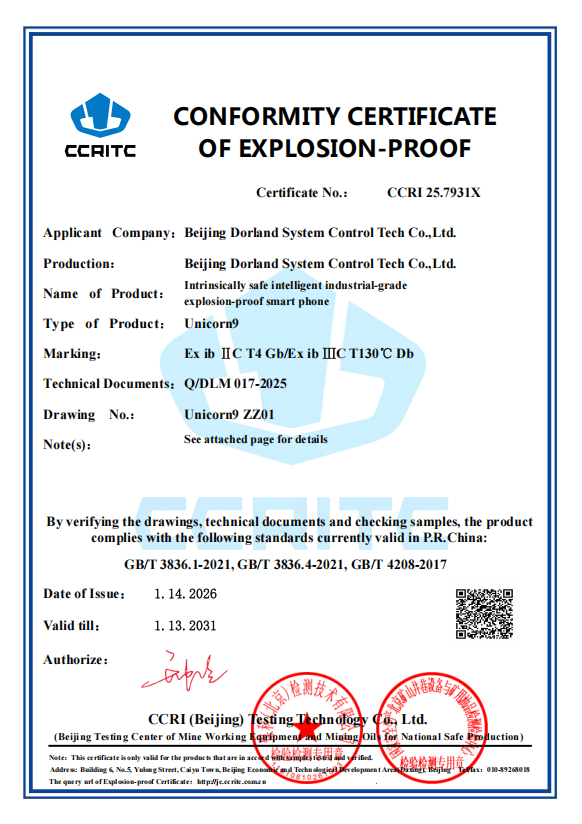

Unicorn9 Explosion proof Certificate EN

Download

Unicorn9 Inspection Report

Check the details Download
