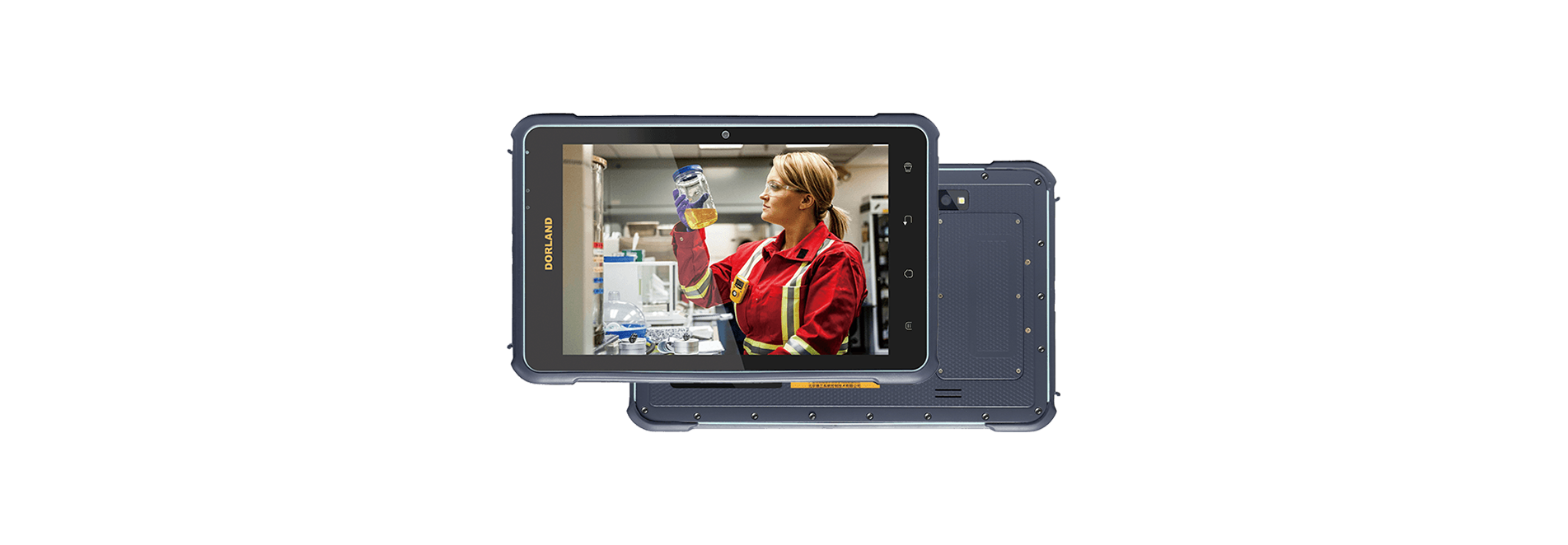

Intrinsically Safe Industrial Explosion-proof Pad Ex Tablet 06

Developed by Beijing Dorland System Control Technology Co., LTD., the industrial explosion-proof Pad Ex Tablet 06 adopted advanced technology with intrinsically safe circuit, 8.0” touch screen and 5.0 Megapixel (Front Camera) 13 Megapixel (Rear Camera with Auto Focus) camera. Its waterproof and dustproof performance can meet the IP67 standards.

In addition, the machine is an Android industrial tablet integrating data acquisition, data processing, wireless transmission and other functions. It can be flexibly equipped with 1D/2D barcode scanning, RFID, ID card reading, etc. Suitable for outdoor construction, pipeline inspection, etc. Features. Ex Tablet 06 can also cooperate with OA office system, checking positioning system and data acquisition system etc.. Especially Ex Tablet 06 is used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas.

It is convenient for users to dispatch communicate timely.

Ex-Marking：

Ex ib IIC T4 Gb
Certificate NO.：

CCRI 19.2018
Protection grade：

IP67
CPU processor：

High-speed 8-core 64-bit processor 2.0 Ghz
Software platform：

Android 10.0
Storage：

Standard fitting：4GB RAM 64GB ROM
Storage：

Standard fitting：2GB RAM 16GB ROM
Display screen：

OPTIONAL：8.0′′(resolution 1920 × 1200) capacitive touch screen
Display screen：

Standard: 8.0′′(1280 × 800 resolution) capacitive touch screen
Keyboard：

Three custom entity buttons on the side, F1 ~ F3
Indicating sensor：

VIBRATORS, charging lights
Batteries：

3.7 V, 5000mAh polymer lithium battery, battery can not be disassembled and replaced by itself
Cameras：

Front: 5 megapixel, Rear: 13 megapixel, Flash, autofocus
Navigation and positioning：

GPS (AGPS) , Beidou, GLONASS, error range ± 5m
Extend：

Support for 256 GB MICRO T card
Interface：

1 TYPE-C interface, 1 DC port, 1 Type-A interface
Expansion slot：

Two SIM card slots, support dual cards, 1 TF Card Slot; 2 Psam Card slots (optional)
Dimensions（mm）：

230(W)×146(D)×20±2mm(H)
Weight：

About 670 grams (including battery)
Operating temperature：

-20℃~+55℃
Storage temperature：

-40℃~+70℃
Relative humidity：

5%~95%(no condensation)
WIFI：

2.4G/5Gdual frequency, check IEEE802.11a/b/g/n/ac
Frequency band：

2G： GSM/GPRS/Edge(850/900/1800/1900MHz)
Frequency band：

3G： WCDMA(850/1900/2100MHz)
Frequency band：

4G： TDD-LTE(B38/B39/B40/B41) FDD-LTE(B1/B2/B3/B4/B7/B17/B20)
VoLTE / ViLTE：

Yes
Bluetooth：

Bluetooth specification V2.1+ EDR,3.0+ HS and V4.1+ HS compliant
Optional Module：

Face recognition, fingerprint capture, RFID high frequency, ultra high frequency, low frequency, 2D Barcode capture
Extension Module：

433 Mhz, infrared temperature measurement, vibration measurement, accurate positioning and other modules
Optional accessories：

Power Adapter, data cable, charging cable, hand strap

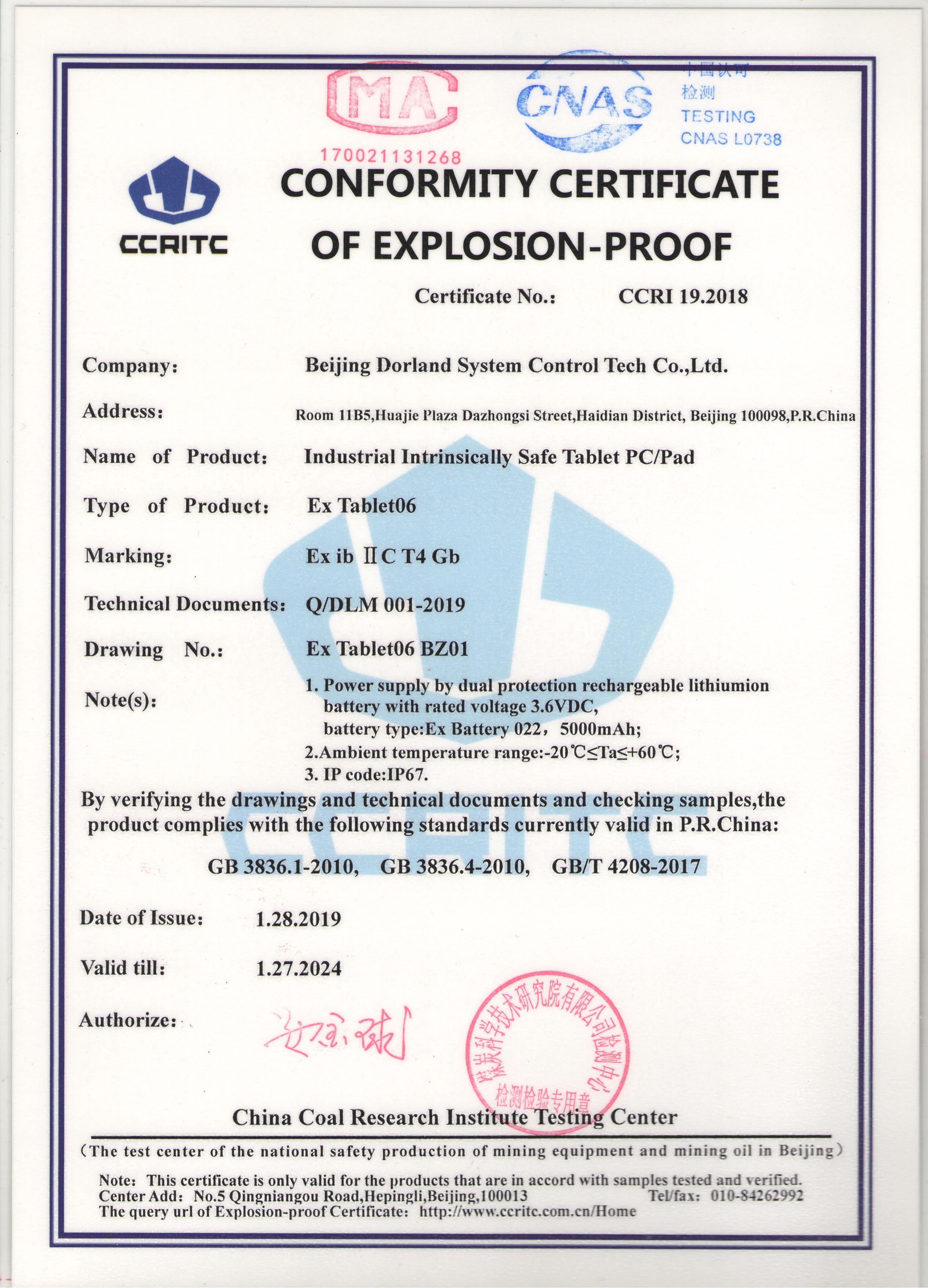

Ex Tablet06 Explosion proof Certificate EN

Download

Ex Tablet06 Inspection Report

Check the details Download
