DL_02

<
>

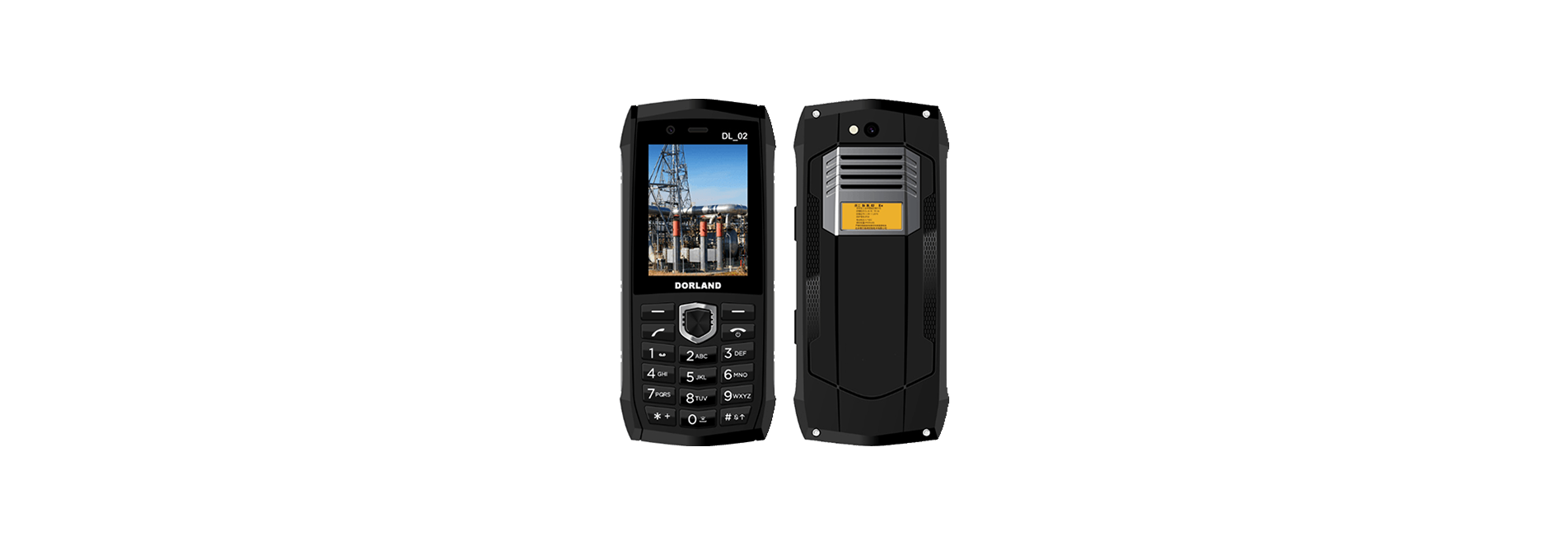

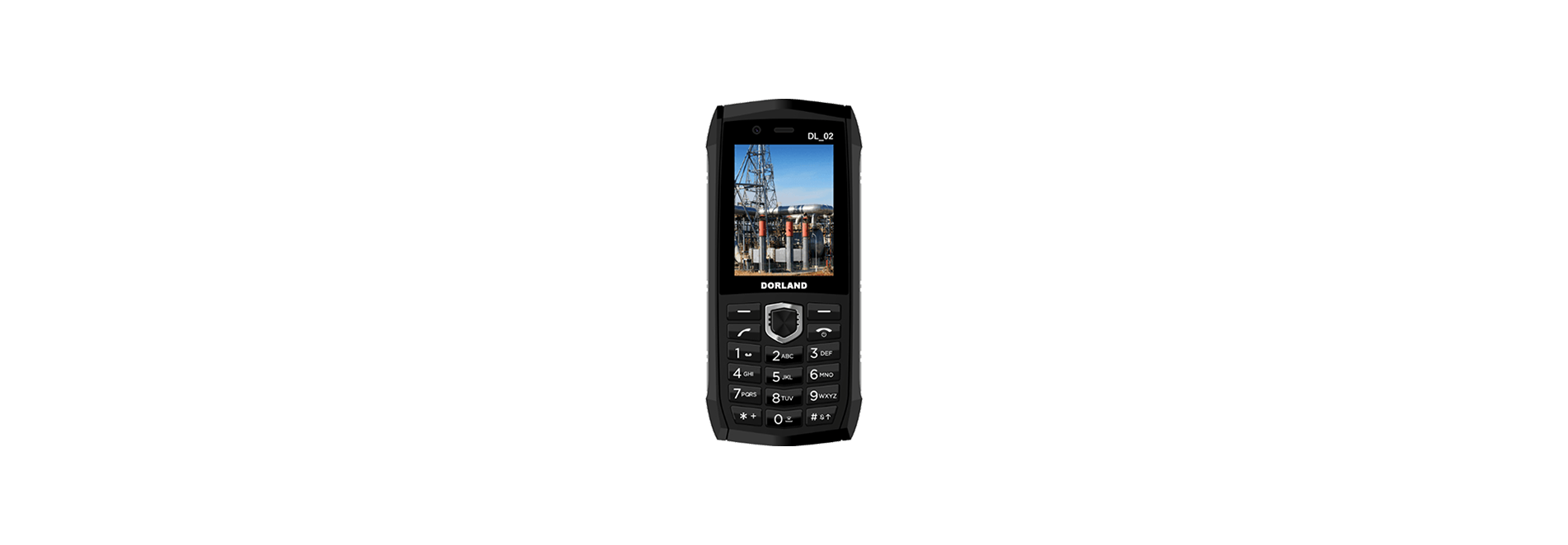

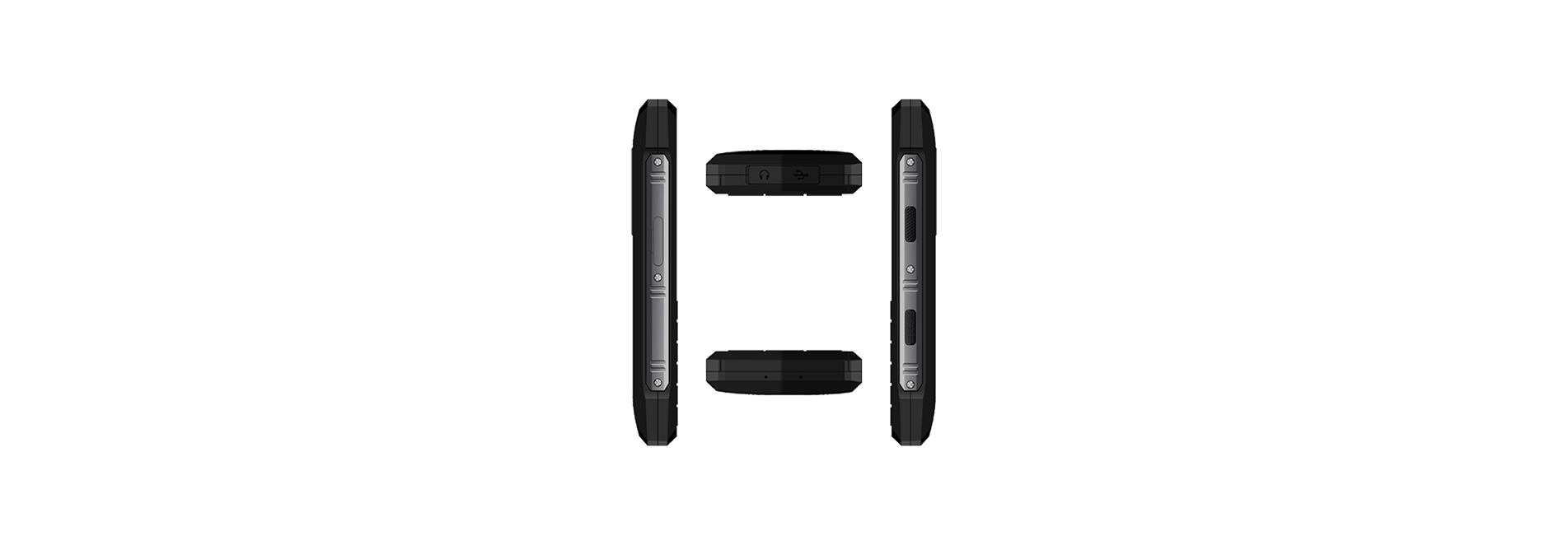

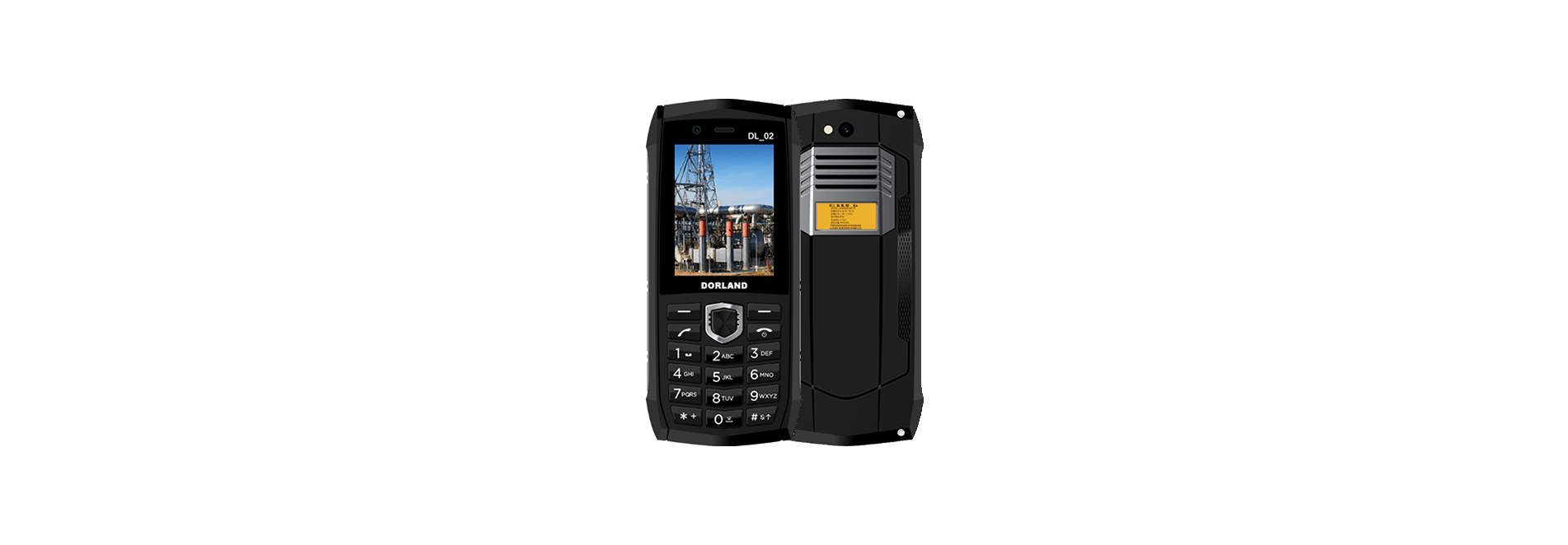

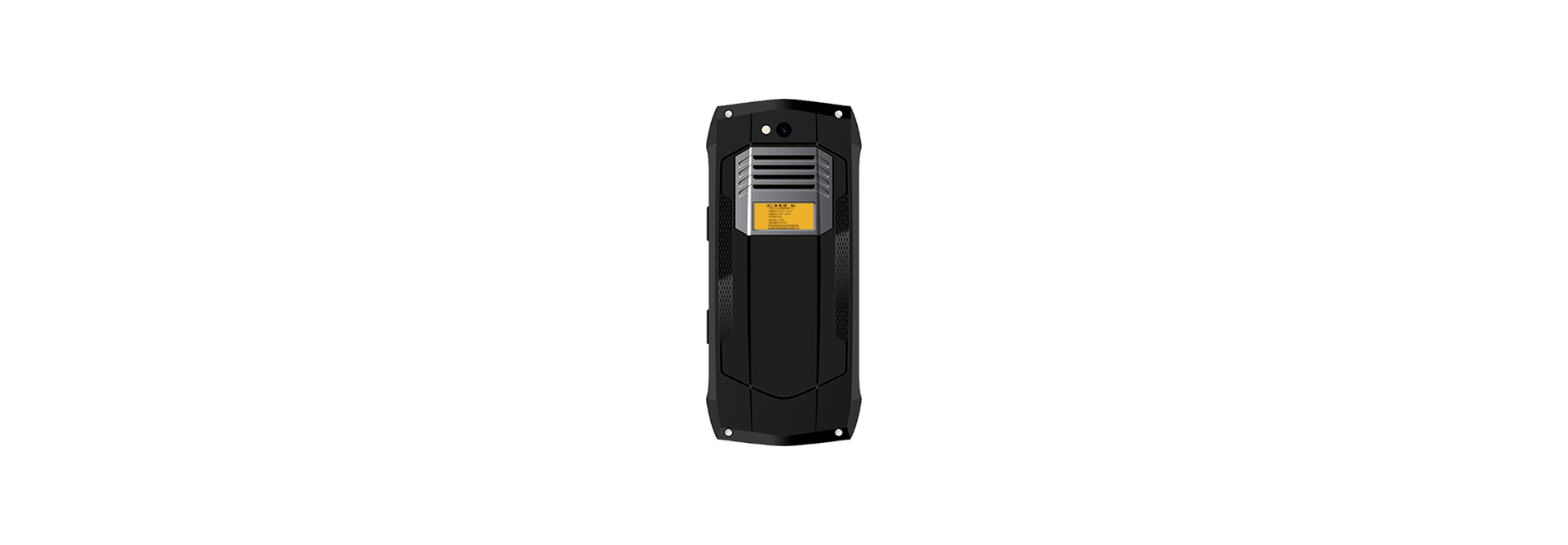

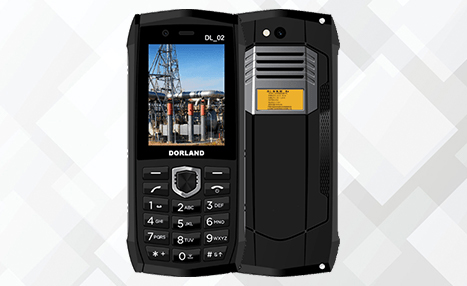

Intrinsically Safe Industrial Mobile Phone DL_02

Ex-Marking:Ex ib IIC T4 Gb

Certification No.:CCRI 18.2129

Protection grade:IP68

Developed by Beijing Dorland System Control Technology Co., LTD., the industrial intrinsically safe mobile phone  DL_02 adopted advanced technology of Germany. As a safety explosion-proof communication terminal for hazardous area, DL_02 combined business, outdoor, industrial, and explosion-proof into itself. DL_02 is a super safe explosion-proof mobile phone which is suitable for explosive dangerous zone 1 and zone 2, such as petroleum, chemical, pharmaceutical, oil depot and tank farm etc.


  • Ex-Marking:

    Ex ib IIC T4 Gb

  • Certification No:

    CCRI 18.2129

  • Protection grade:

    IP68

  • LCD Parameter:

    2.4”

  • Resolution:

    QVGA(240*320)

  • Network :

    Full frequency

  • Network type:

    GSM/WCDMA/LTE/TDD/CDMA

  • Frequency:

    G4+W(B1/2/5/8)+FDD(B1/2/3/5 /7/8/17/20/34/38/39/40/41)+BC0+TD34/39

  • Memory:

    RAM:1GB ROM:8GB

  • Camera:

    5M

  • Battery Capacity:

    3350mAh

  • Voice Call time:

    16H(GSM)/10H(WCDMA)/8H(4G)

  • Standby time:

    400H

  • Size:

    129.6x58.5x15.7mm

  • SIM:

    Dual card dual standby

  • T Flash Card:

    Micro-SD(Up to 64G)

  • Headphone connector:

    3.5mm

  • Data connection port:

    Micro5pin

  • WIFI:

    support IEEE 802.11b/g/n

  • Blutooth:

    support BT3.0、BT4.0、BT4.2

  • GPS:

    support

  • FM:

    support

  • OTG:

    support

  • NFC:

    support

  • Senor:

    G-Sensor/Geomagnetic sensor

  • Standard accessories:

    USB data,charger,manual

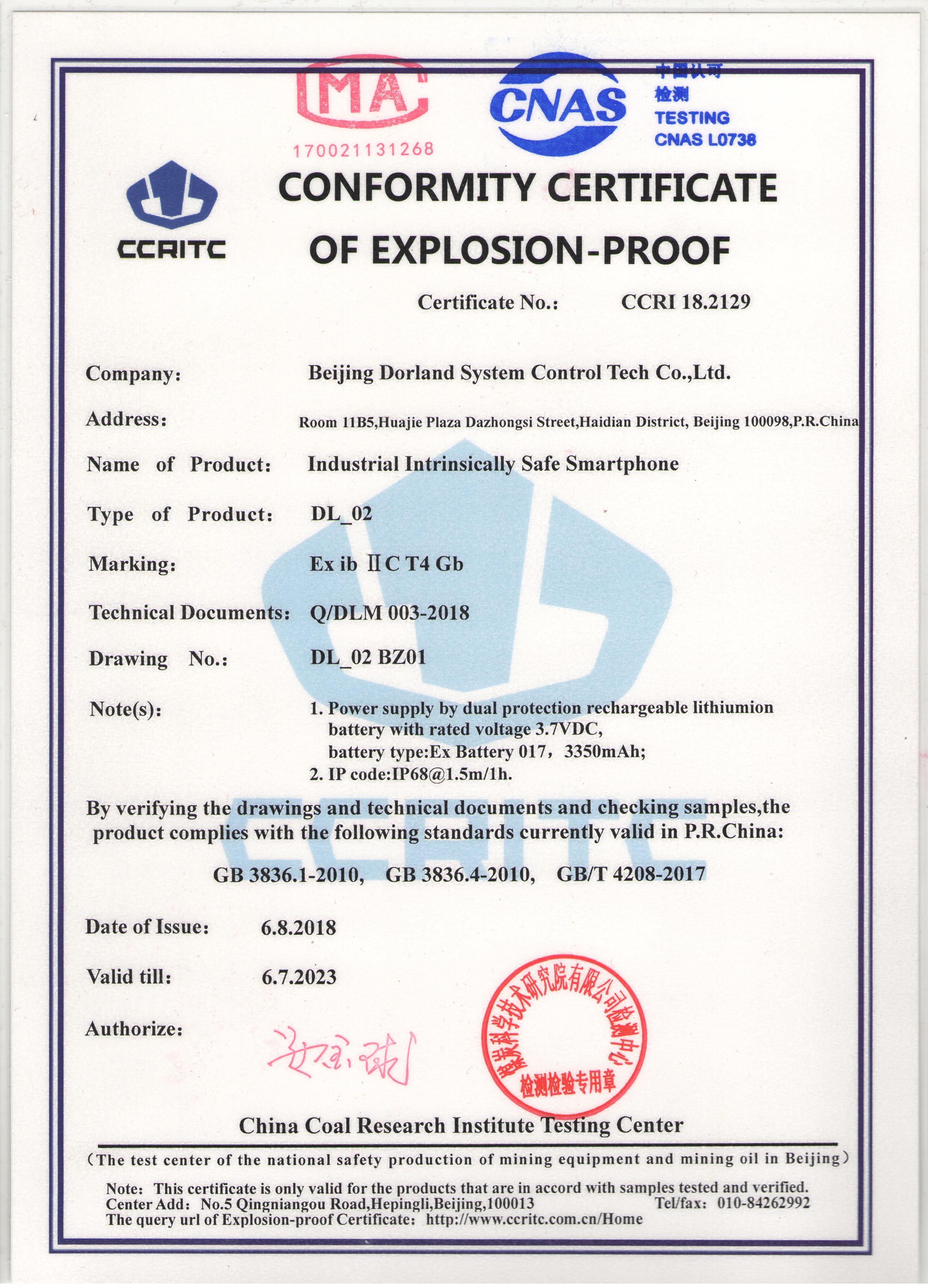

DL_02 Explosion proof certificate EN

Download

DL_02 Inspection Report

+ Download
+
