Unicorn10 PRO

DORLAND Industrial Intrinsically Safe Smartphone Unicorn10 PRO

Ex-Marking：Ex ib IIC T4 Gb / Ex ibD 21 T130℃

Certificate No.：CCRI 20.2303

Protection Grade：IP68

CPU：8cores T606 2 x A75@1.6GHz + 6xA55 1.6GHz

Product Introduction
Technical Parameters

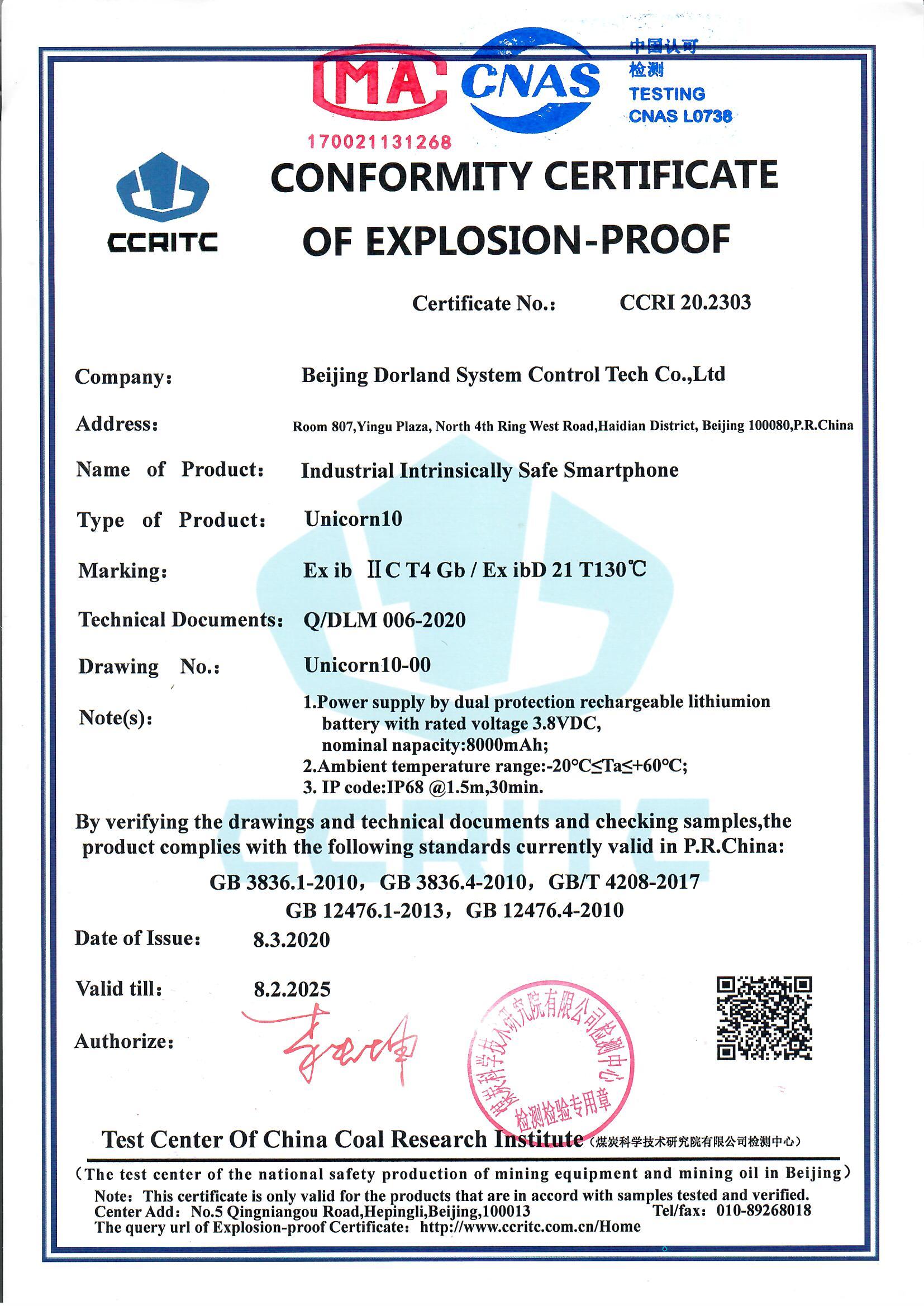

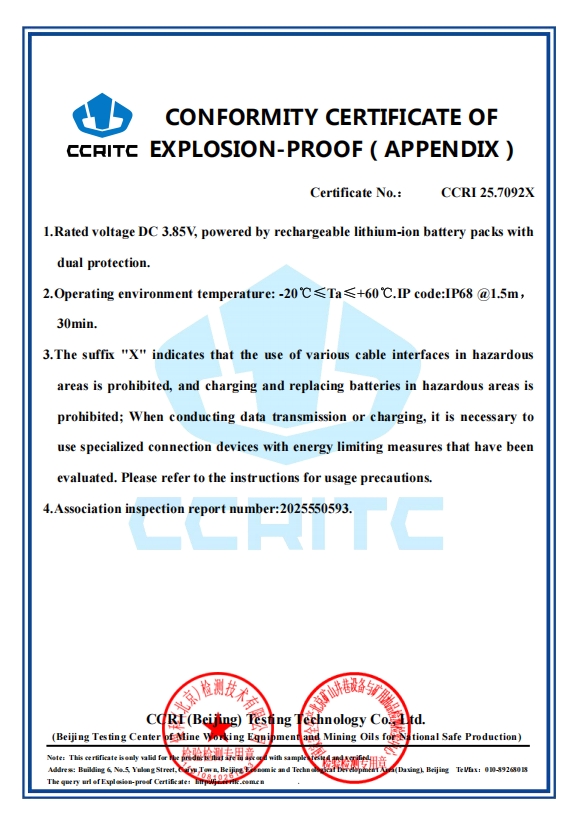

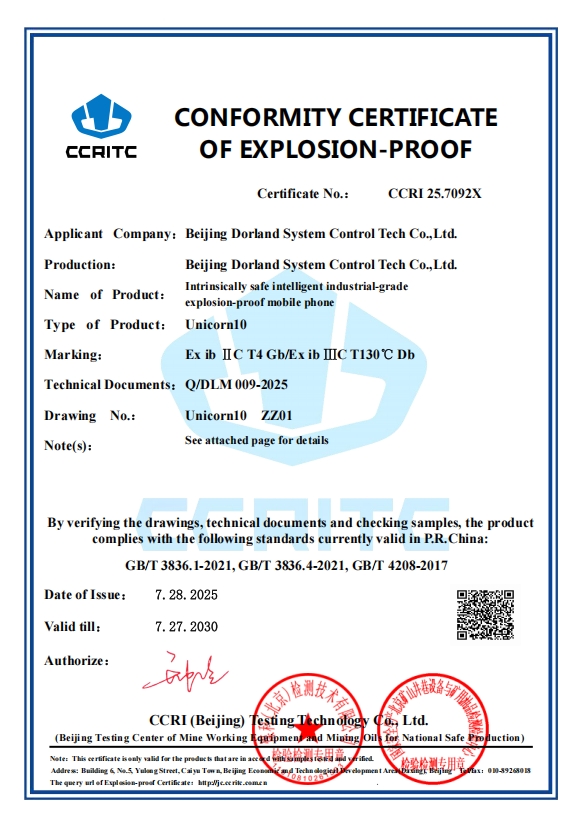

Product Certificate
Product Report
Product Video

DORLAND System Control Technology Co., Ltd. recently introduced the intrinsically safe smartphone Unicorn10 PRO. It adopts advanced technology, intrinsically safe circuit design, domineering appearance and solid body. The mobile phone adopts 6.56 inch full screen (20:9) design, equipped with 8MP front and 50MP + 0.3MP pixel high-definition camera at the rear. Its waterproof and dustproof performance meets the international IP68 standard.

In addition, the phone supports NFC, fingerprint unlocking and other functions. This is equipped with GPS positioning, compass and other functions suitable for outdoor construction and pipeline inspection. It can cooperate with OA office system, patrol positioning system, data acquisition system and other applications. Especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Ex-Marking：

Ex ib IIC T4 Gb / Ex ibD 21 T130℃
Certificate No.：

CCRI 20.2303
Protection Grade：

IP68
OS：

Android 14.0
Overall size：

174*81.2*15.8mm
Weight：

326g
Screen:

6.56 inches (20:9) 720*1612 HD+
Secondary screen:

1.54” IPS TFT
Memory:

8GB RAM+256GB ROM （RAM expansion 4GB/8GB/12GB）
Storage Card:

support Up to 2TB
CPU:

8cores T606 2 x A75@1.6GHz + 6xA55 1.6GHz
Camera:

Rear camera 50MP + 0.3MP Front camera 8MP
Battery:

8000mAh
Battery voltage:

3.8V
Frequency:

GSM:B2/3/5/8 WCDMA：B1/2/4/5/8 TDD:B34/38/39/40/41 FDD:1/2/3/4/5/7/8/18/19/20/25/26/28AB/66 EDGE/GPRS：Yes
GPS:

GPS+GLONASS+Beidou+Galileo
WIFI:

2.4G/5.0G
Bluetooth:

BT5.0
Unlock Method：

Fingerprint recognition Facial recognition
