XPad_07

Intrinsically Safe Industrial Explosion-proof Pad XPad_07

Ex-Marking：Ex ib IIC T4 Gb / Ex ibD 21T 130°C

Certification No.：CCRI 18.2218

Protection grade：IP67

cpu: Qualcomm SDM 632

Product Introduction
Technical Parameters

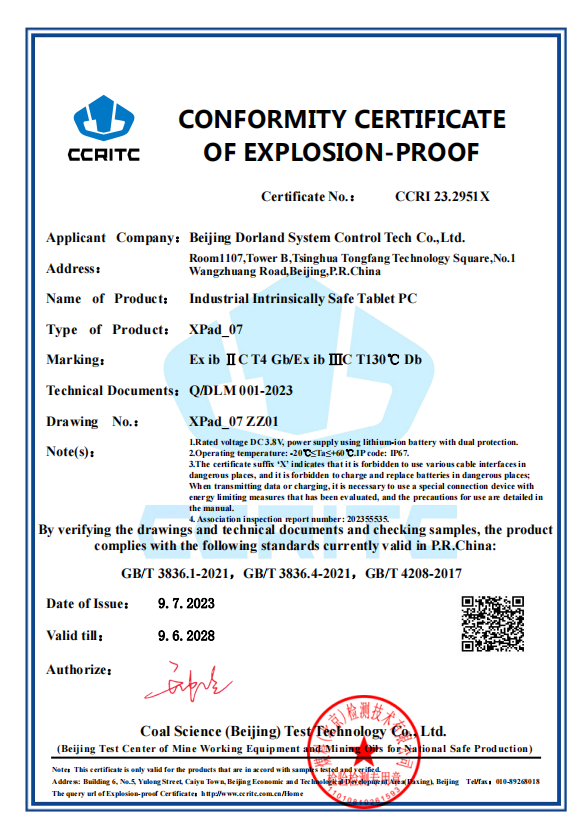

Product Certificate
Product Report
Product Video

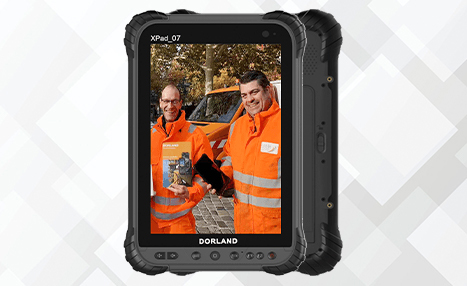

Developed by Beijing Dorland System Control Technology Co., LTD., the industrial explosion-proof Pad XPad_07 adopted advanced technology of Germany with intrinsically safe circuit, 8.0” touch screen and 5.0 Megapixel (Front Camera) 16 Megapixel (Rear Camera with Auto Focus) camera. Its waterproof and dustproof performance can meet the IP67 standards.

In addition, built-in GPS / Beidou Double Star satellite system, elevation measurement, compass, and other functions suitable for outdoor construction and pipeline inspection. XPad_07 can also cooperate with OA office system, checking positioning system and data acquisition system etc.. Especially XPad_07 is used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas.

It is convenient for users to dispatch communicate timely.

Ex-Marking：

Ex ib IIC T4 Gb / Ex ibD 21T 130°C
Protection grade：

IP67
Certification No.：

CCRI 18.2218
Software platform：

Android 9.0
LCD Parameter：

TFT,8inch,800*1280 resolution Touchable hd large screen, visible with strong light
Memory：

64G ROM +4GB RAM
Processor：

Qualcomm SDM 632
Camera Pixel：

Back door1300万+Forward500万
Battery Capacity：

8000mAh
Frequency band：

FDDLTE:Band1/Band2/Band3/band4/band5/Band7/band8/band17/band20/band28
Frequency band：

TDDLTE:Band38/Band39/Band40/Band41
Frequency band：

WCDMA: B1/B2/B5/B8TD-SCDMA: B34/B39
Frequency band：

GSM:850/900/1800/1900 EVDO：BC0
Dimensions：

235*146*13mm
Weight：

598g
Bluetooth：

BT4.2
WiFi：

802.11 a/b/g/n/ac, 2.4GHz/5GHz
NFC：

Yes
Flashlights：

Yes
Radio：

Yes
Memory Card：

Yes
OTG：

Yes
Approach Communication：

Yes
Inductor：

accelerometer/Light Sensor Gyroscopes/ Compasses：Yes
GPS：

Support QualcommGPS
Headphone Jack：

3.5MM
Standard Parts：

USBData line、Chargers、Instruction manual
Other optional accessories：

2DScanning head，Ultra high frequencyRFID，Hand Strap，LANJack，Battery Charger， Metal bracket clamp，TypeCEarphones
