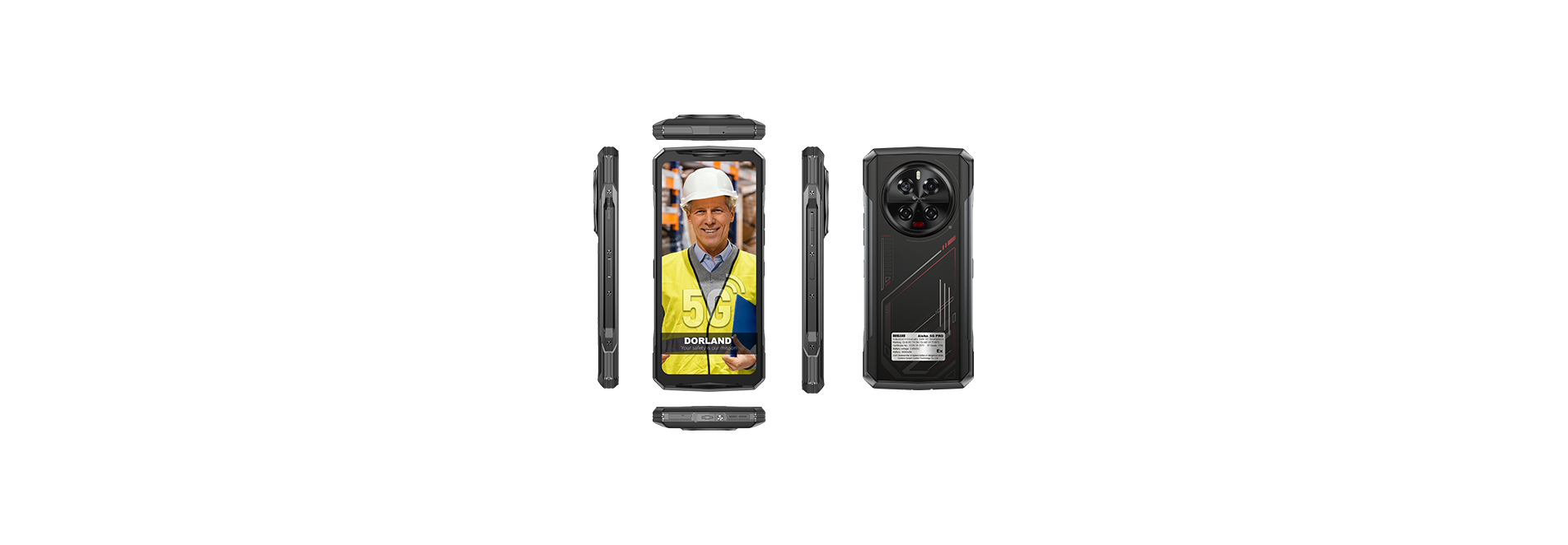

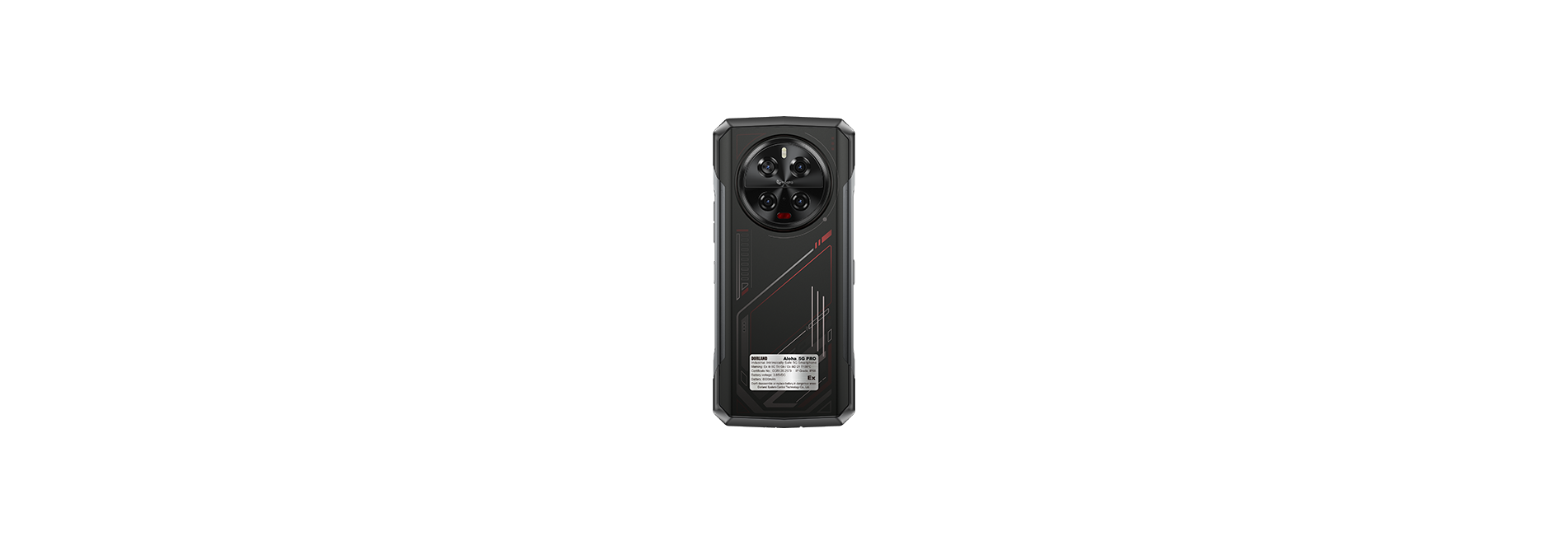

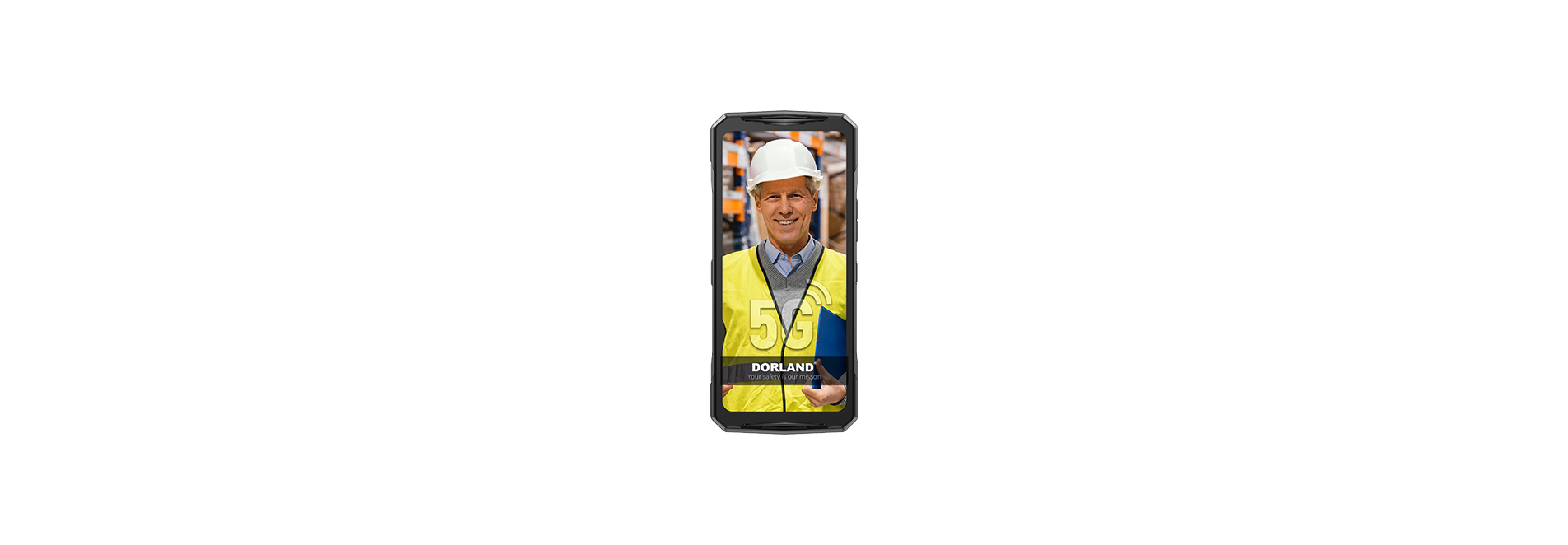

Aloha_5G PRO

<
>

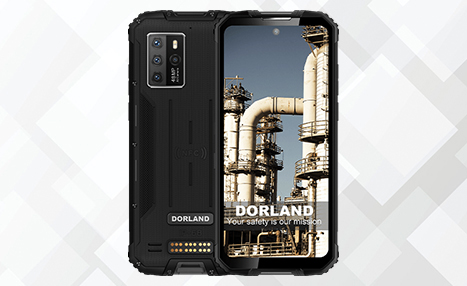

DORLAND Industrial Intrinsically Safe 5G Smartphone Aloha_5G PRO

Ex-Marking:Ex ib IIC T4 Gb / Ex ibD 21 T130°C

Certificate No:CCRI 20.2573

Protection Grade:IP68

CPU:MTK Dimensity 1080 Octa Core 2.6GHz

Beijing DORLAND System Control Technology Co., Ltd. recently industrial intrinsically safe 5G smartphone Aloha_5G PRO, using 5g advanced technology, intrinsically safe circuit design, aggressive appearance, strong body. The mobile phone adopts a 6.583 "high-definition screen, with a rear four shot 108 + 20+ 16MP, and supports face recognition and standard NFC. Its waterproof and dust-proof performance reaches the international IP68 standard.

In addition, it supports fingerprint one key unlocking, Bluetooth, WiFi and other functions to meet the reading and writing requirements of various scenes. We have also configured GPS+ GLONASS+ Beidou+Galileo positioning and other functions suitable for outdoor construction and pipeline inspection, which can cooperate with OA office system, patrol positioning system, data acquisition system and other applications. It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.


  • Ex-Marking:

    Ex ib IIC T4 Gb / Ex ibD 21 T130°C

  • Certificate No.:

    CCRI 20.2573

  • Protection Grade:

    IP68

  • OS:

    Android 12.0

  • Screen:

    6.583inch, FHD+, 1080×2408 FHD+

  • Memory:

    12GB RAM(12GB+Up to 8GB Extended RAM) +256GB ROM uMCP

  • Expanded memory:

    Up to 2TB

  • CPU:

    MTK Dimensity 1080 Octa Core 2.6GHz 2 x Cortex A78 2.6GHz + 6 x Cortex A55 2.0GH

  • Camera:

    108M(rear)+20M(night vision)+16M(Wide Angle) 32MP(Front)

  • Battery:

    8000mAh/10000mAh Battery voltage: 4.45V

  • Frequency:

    GSM(B2/3/5/8) WCDMA(B1/2/4/5/6/8/19) CDMA:BC0/BC1/BC10 FDD:B1/2/3/4/5/7/8/12/17/18/19/20/25/26/28A/28B/66 TDD:B34/38/39/40/41 NR: N1/N3/N7/N28/N38/N41/N77/N78/N79

  • NFC:

    Support

  • Dimensions :

    178.46*83.1*17.89mm

  • Weight:

    376g(including battery)

  • WIFI:

    Support Wi-Fi6(ax/ac/a/b/g/n)

  • Bluetooth:

    Support BT5.2

  • OTG:

    Support

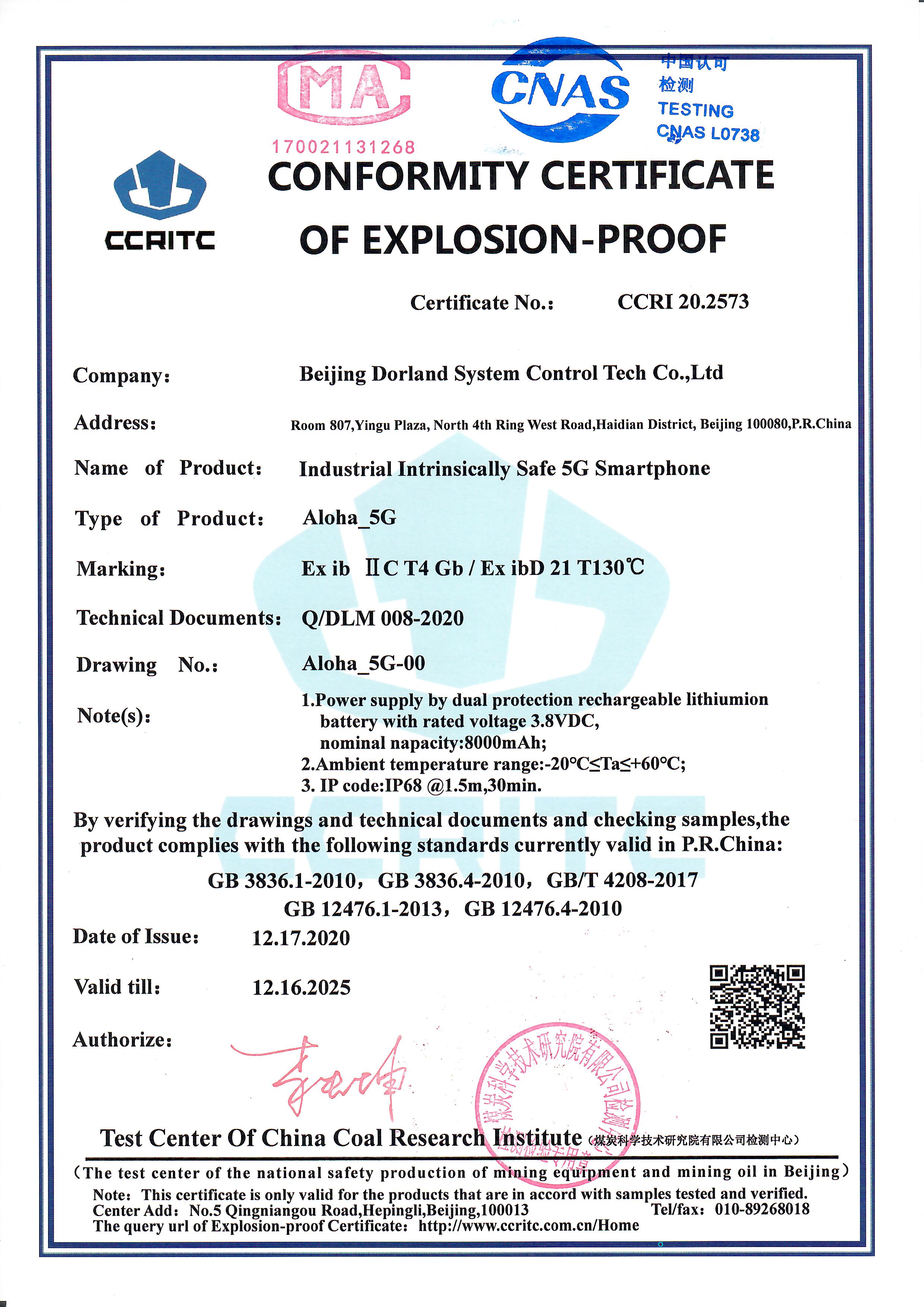

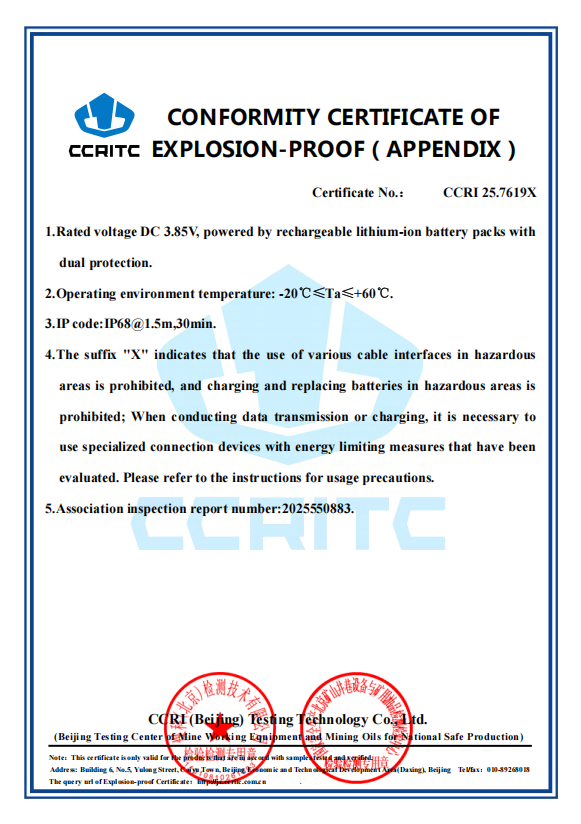

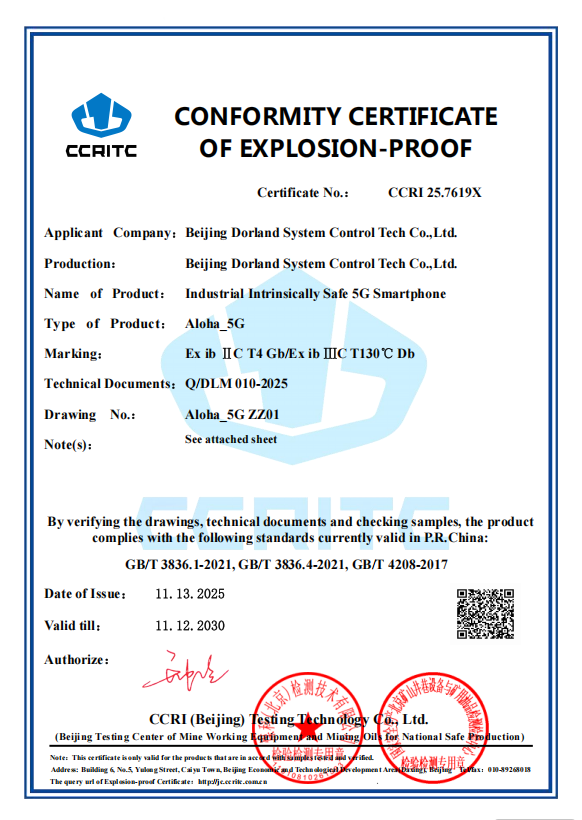

Aloha_5G Explosion proof Certificate EN

Download

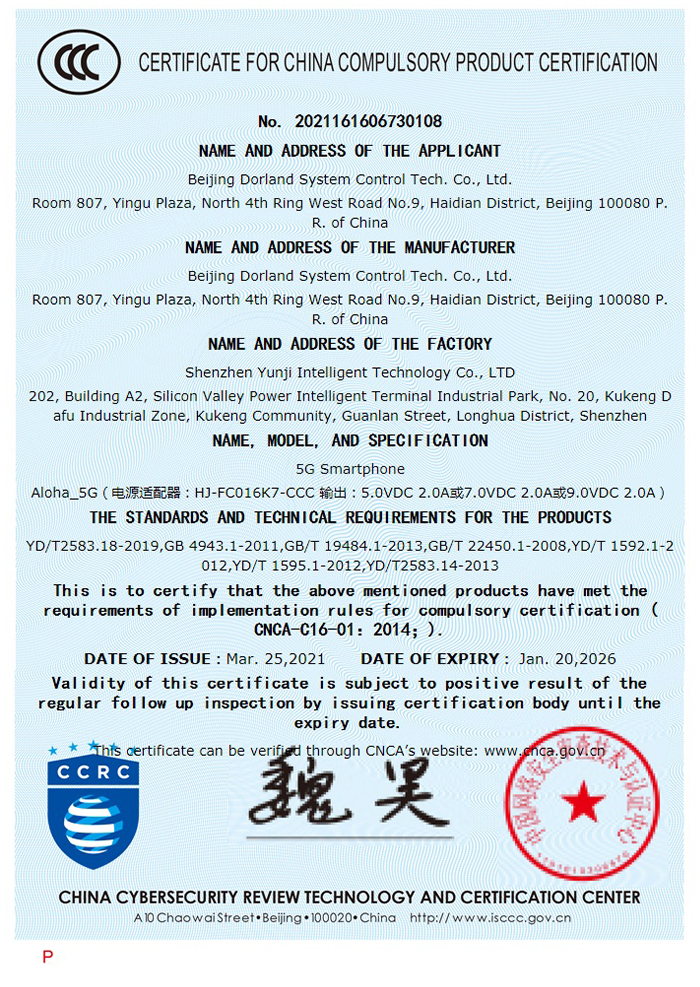

Aloha_5G CCC Certificte EN

Download

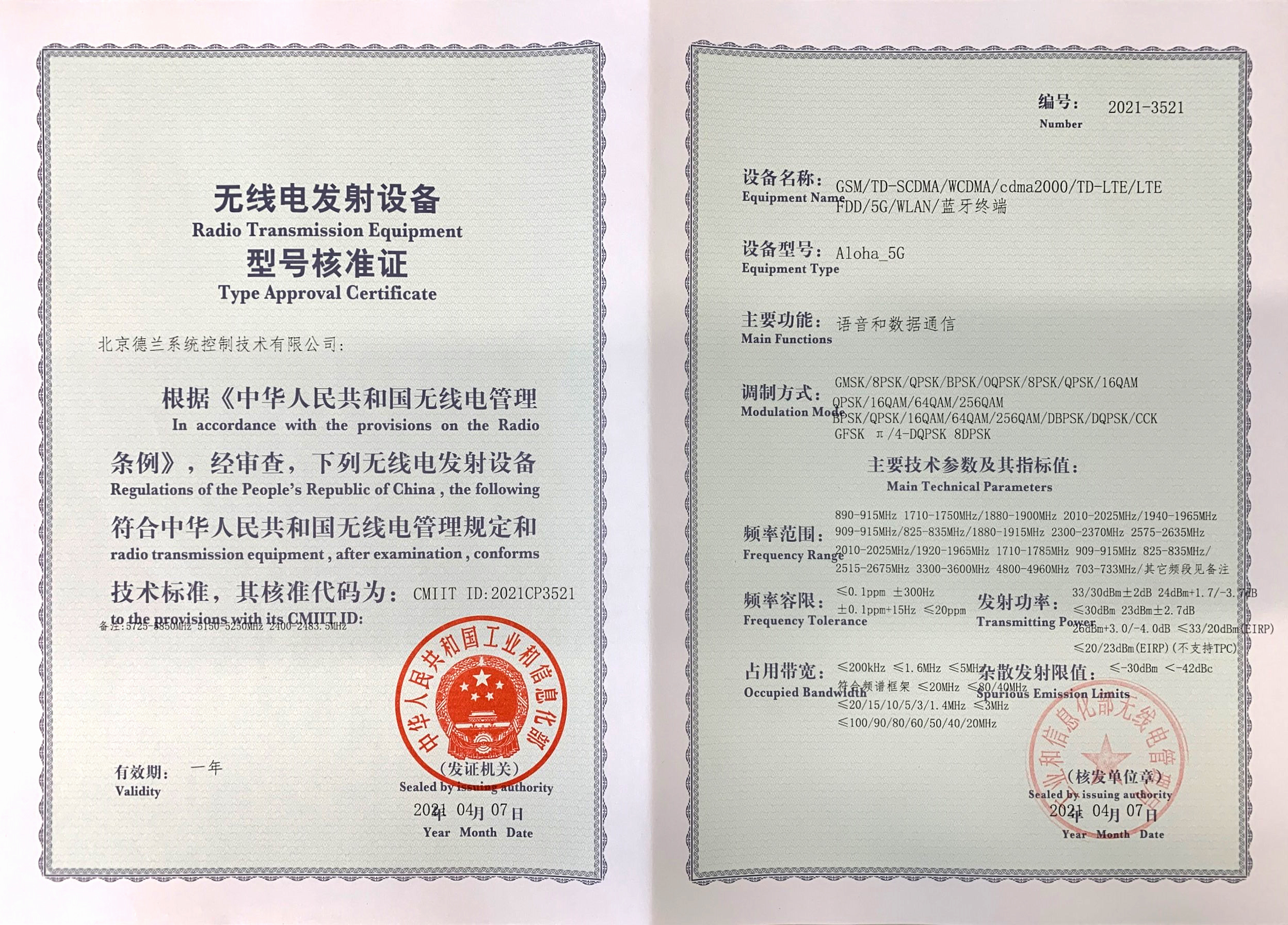

Aloha_5G Approval certificate-SRRC

Download

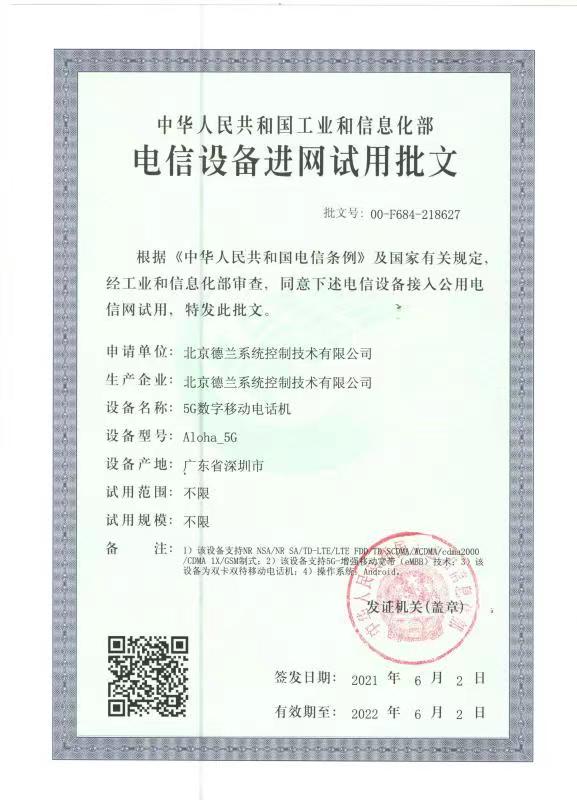

Aloha_5G Network access certificate:

Download

Aloha_5G Inspection Report

+ Download
+
