EX_08 PRO

Dorland Industrial Intrinsically Safe Smartphone EX_08 PRO

Explosion proof rating:Ex ib IIC T4 Gb/Ex ibD 21 T130 ℃

Operating System:Android 16.0

Battery capacity:8500mAh

Memory:6+128GB

Product Introduction
Technical Parameters
Product Certificate
Product Report

Dorland System Control Tech Co. Ltd. has recently launched the intrinsically safe intelligent industrial grade explosion-proof mobile phone EX_08 PRO, which features an intrinsically safe circuit design, a powerful appearance, and a sturdy body. This phone features a 6.56-inch waterdrop screen and is equipped with 8MP (Front Camera) & 64MP(Rear Camera)+0.3MP*2 cameras. Its waterproof and dustproof performance meets the international IP68 standard.

In addition, this phone features fingerprint unlocking on the side and comes standard with NFC, meeting the reading and writing needs of various scenarios. We have also configured various functions such as Beidou+Galileo+Glonass+GPS positioning inside the phone, which are suitable for outdoor construction, pipeline inspection, etc. It can be used in conjunction with OA office systems, inspection positioning systems, data acquisition systems, and other applications. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.

Explosion proof mark:

Ex ib IIC T4 Gb/Ex ibD 21 T130 ℃

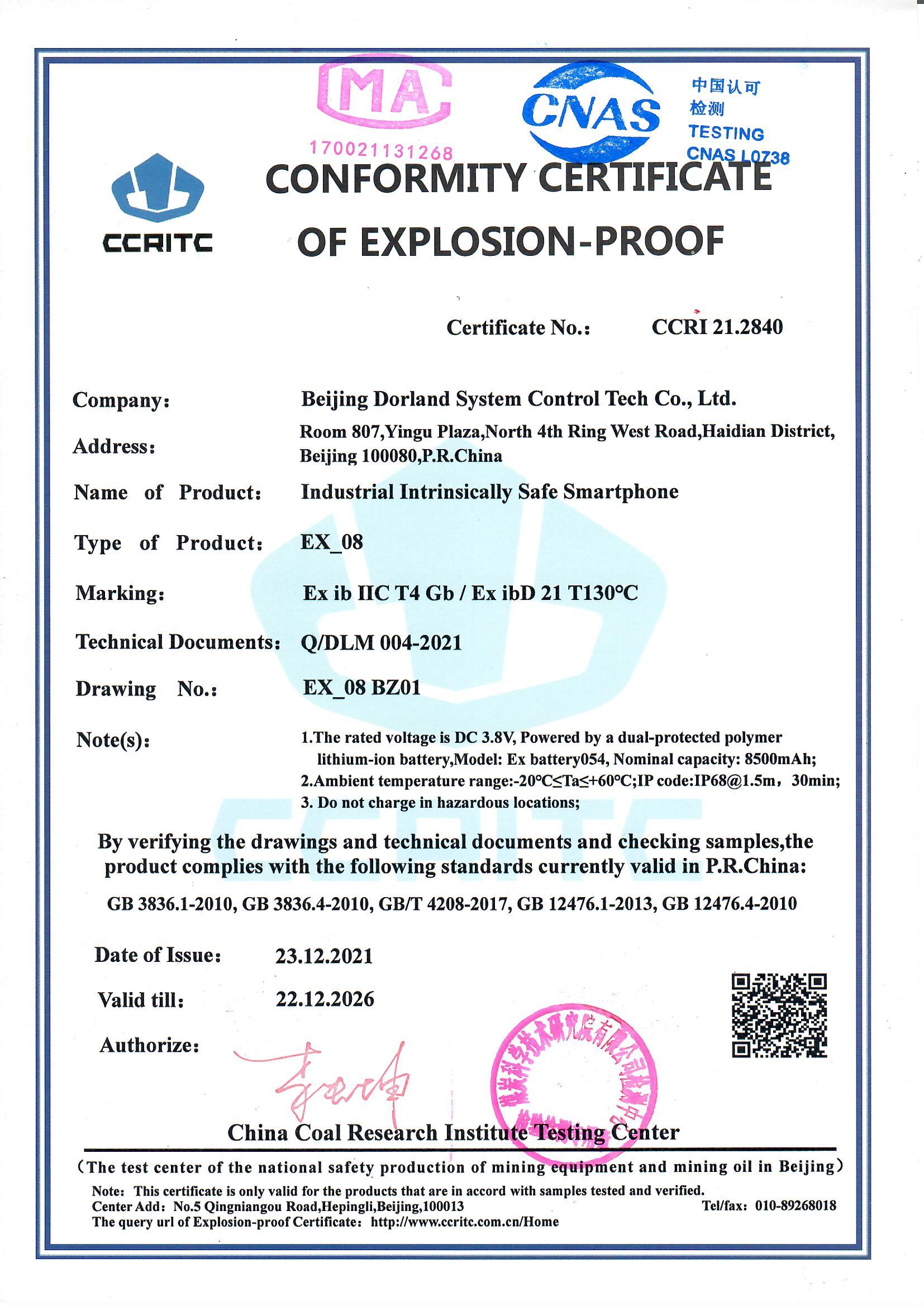

Certificate No.:

CCRI 21.2840
Protection level:

IP68
Operating System:

Android 16.0
Screen:

6.56-inch waterdrop screen 720 * 1612 HD+
Memory:

6GB RAM (+RAM can be expanded by an additional 30GB)+128GB ROM
Processor:

UNISOC T7250 (T615) 8-core 2* Arm Cortex-A75 up to 1.8GHz + 6* Arm Cortex-A55 up to 1.6GHz
Front camera:

8MP
Rear camera:

64MP+0.3MP * 2 (Rear)
Battery capacity:

8500mAh, non removable
Supported frequency band:

All network frequency band Simplified configuration of all network frequency bands GSM:B2/3/5/8 WCDMA：B1/2/4/5/8 TDD:B34/38/39/40/41 FDD:B1/2/3/4/5/7/8/18/19/20/25/26/28AB/66 EDGE/GPRS: Supports
Bluetooth:

Bluetooth 5.0
WIFI:

Supports 2.4G/5G (802.11ac/a/b/g/n)
NFC:

Supports
GPS:

Supports, Beidou，Galileo，Glonass，GPS
