Multi_Pad 10

DORLAND Industrial Intrinsically Safe 5G PAD Multi_Pad 10

Ex-marking:Ex ib IIC T4 Gb/ Ex ib IIIC T130℃ Db

Screen:10.1-inch 1920 * 1200 resolution

Memory:6/8GB RAM+128GB/256GB ROM

Battery capacity:3.8V/8500mAh

Product Introduction
Technical Parameters
Product Certificate
Product Report

DORLAND System Control Tech Co., Ltd. recently launched Multi_Pad 10, industrial intrinsically safe 5G PAD. It adopts advanced technology and intrinsically safe circuit design, with a strong appearance and strong body. This product adopts Android 12.0 operating system and 10.1 inches touch screen design, equipped with front 8 MP + rear 20 MP cameras, its waterproof and dust-proof performance reaches the international IP67 standard.

In addition, we also configured GPS / A-GPS / Beidou / GLONASS, altitude measurement, compass and other functions suitable for outdoor construction and pipeline inspection, which can cooperate with OA office system, patrol positioning system and data acquisition system And other applications. It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Ex-marking:

Ex ib IIC T4 Gb/ Ex ib IIIC T130℃ Db

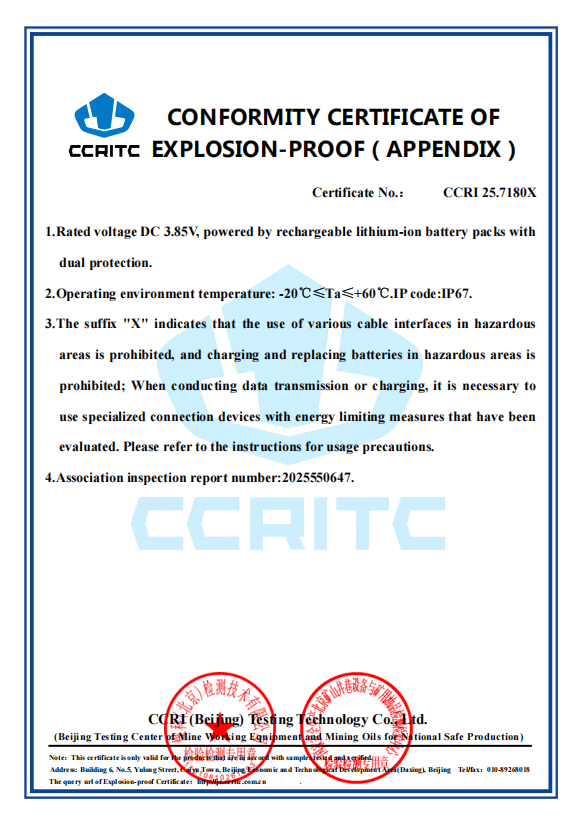

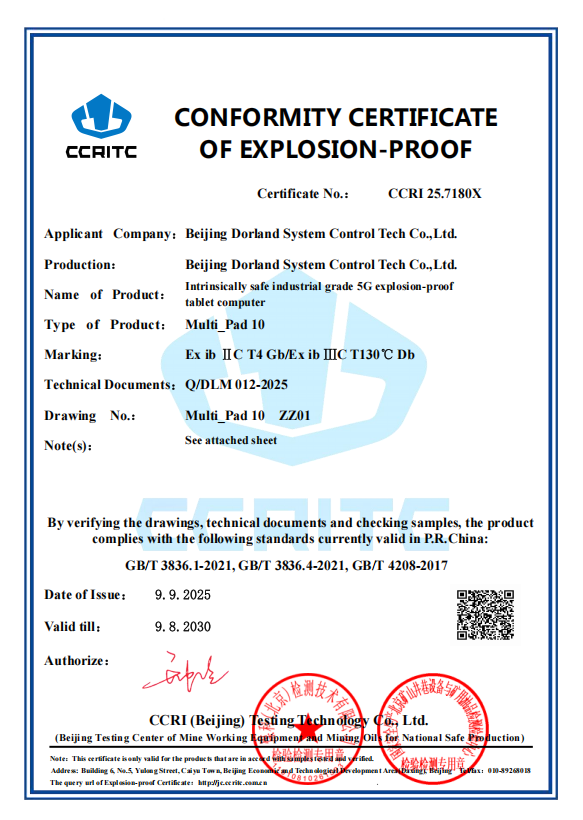

Certificate No.:

CCRI 25.7180X
IP Grade:

IP67
Operating System:

Android 12.0
Screen:

10.1-inch 1920 * 1200 resolution, 10 touch large screen
Memory:

6/8GB RAM+128GB/256GB ROM
CPU:

MT6891Z/CZA, 6nm, 4*A78+4*A55, the main frequency is 2.6+2.0GHz, the GPU is MALI-G77 MC9
Camera Pixel:

Rear 20MP+Front 8MP
Battery capacity:

3.8V/8500mAh
Frequency band:

GSM: B2/3/5/8 TD-SCDMA: B38/39/40/41 WCDMA: B1/2/5/8 CDMA: BC0/BC1 TDD-LTE: B34/38/39/40/41 FDD-LTE: 1/3/5/7/8/20/26/28A/28B 5G: N1/3/5/7/8/20/28/38/40/41/77/78/79 Standard Eurasian PCB compatible with American frequency bands
Size:

252.7 * 171.9 * 13.2 (15.6) mm
Weight:

830g
Bluetooth:

BT5.1
Scanner:

Newland CM60
