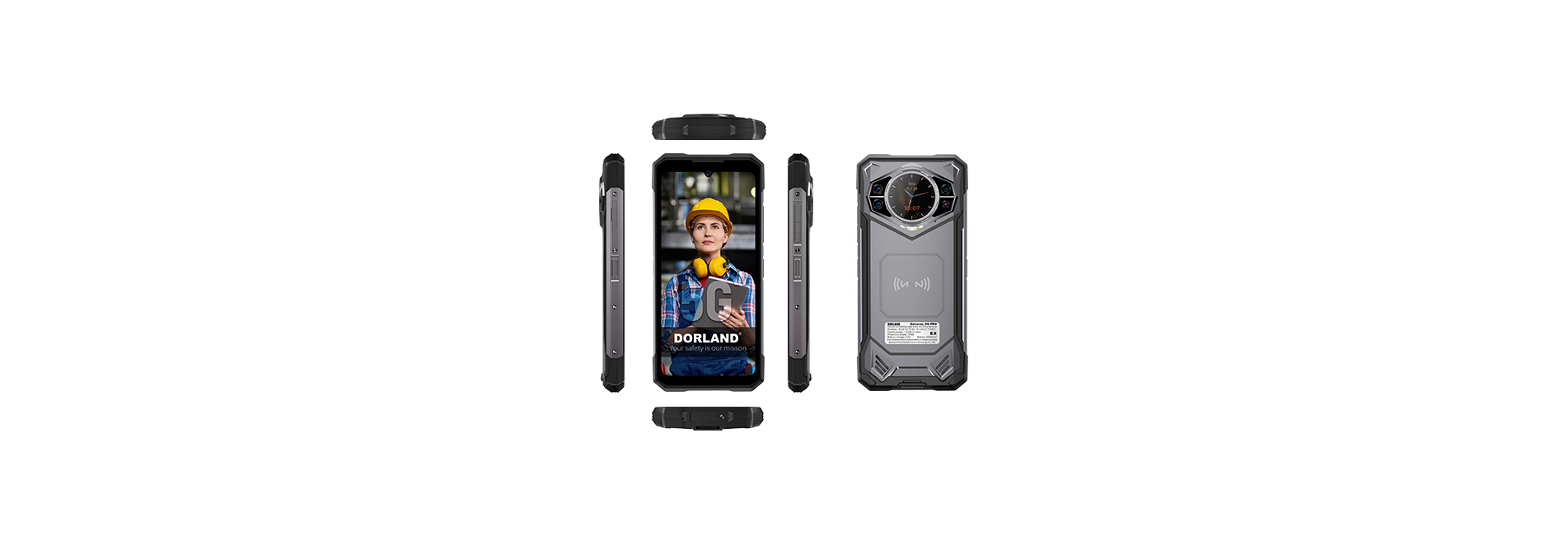

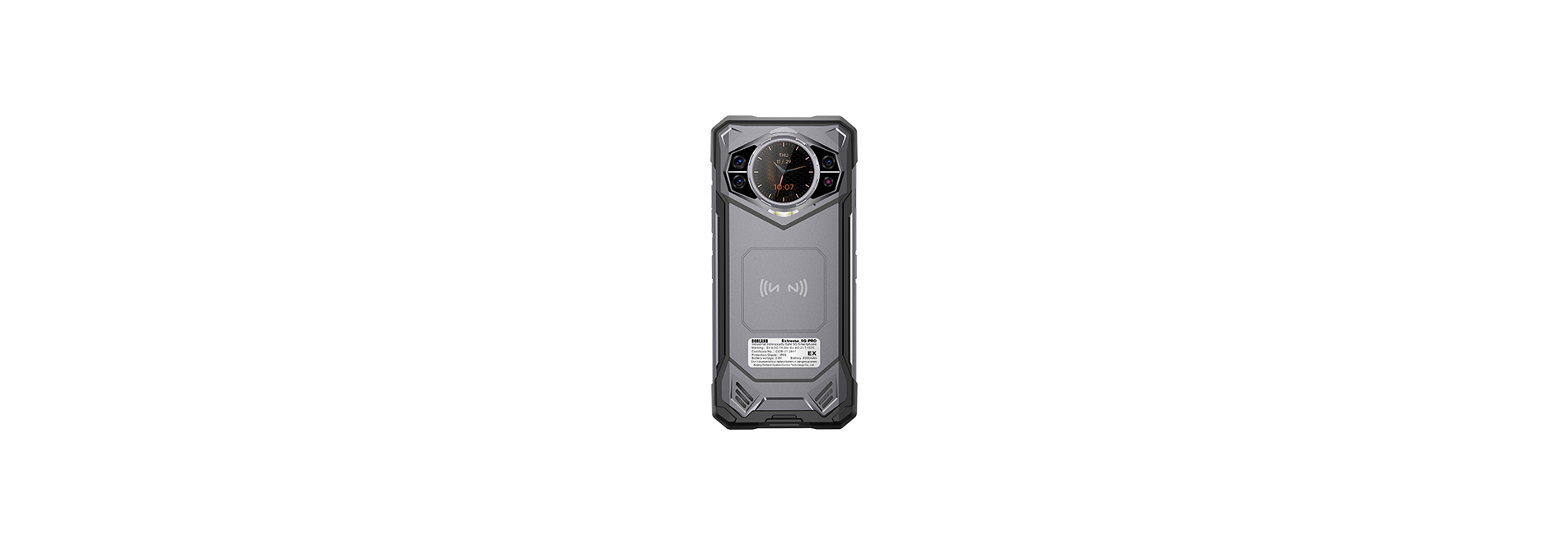

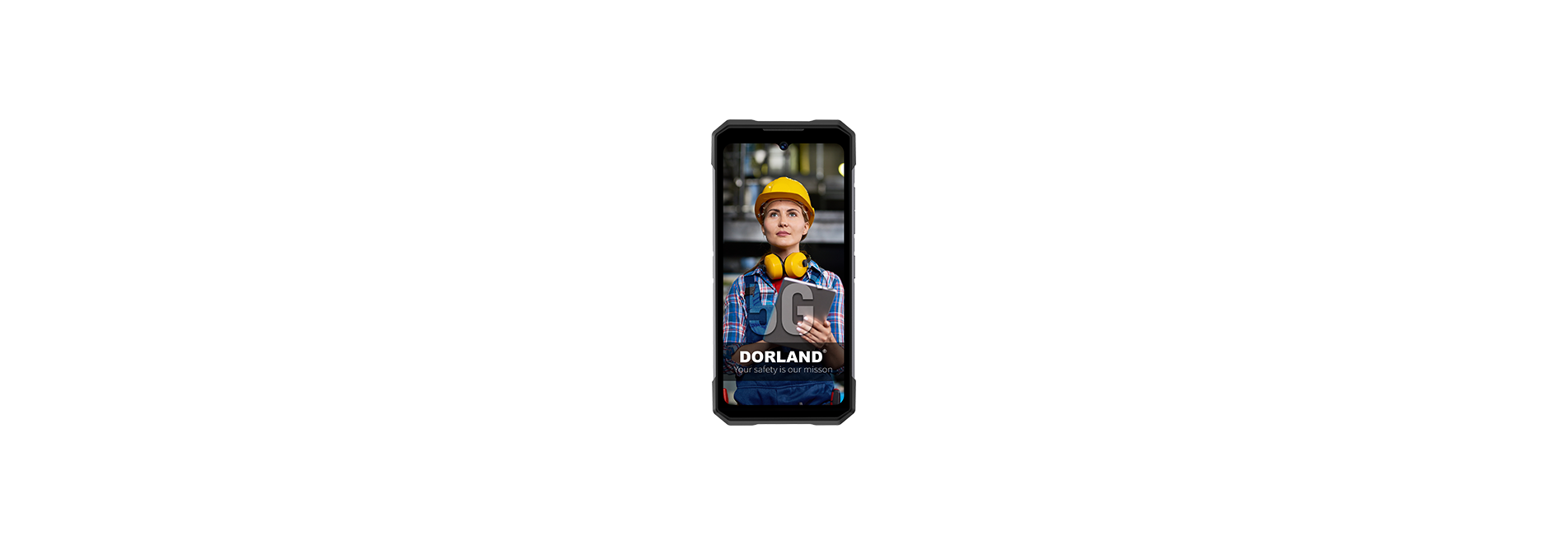

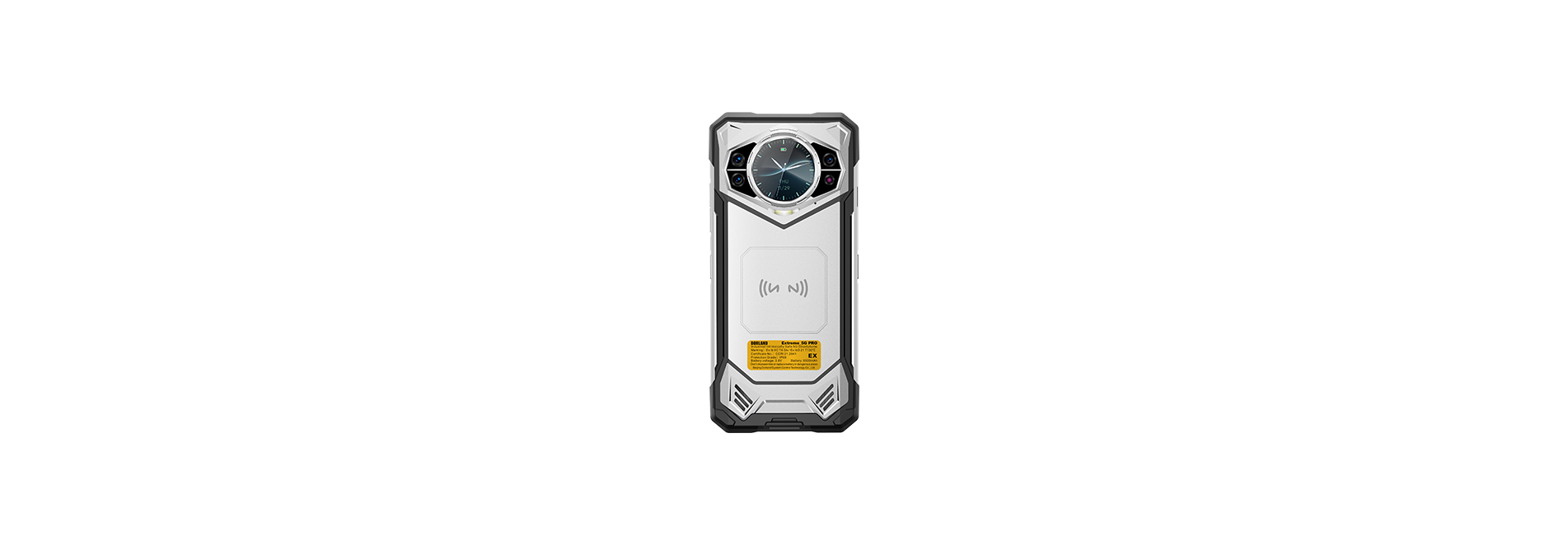

Extreme_5G PRO

DORLAND Industrial Intrinsically Safe 5G Smartphone Extreme_5G PRO

Ex-Marking:Ex ib IIC T4 Gb / Ex ibD 21 T130°C

OS:Android 16.0

CPU:MediaTek Dimensity 6300 (24E), 8-core, 2 * 2.4GHz+6 * 2.0GHz

Memory:6/8GB RAM+256GB ROM

Product Introduction
Technical Parameters

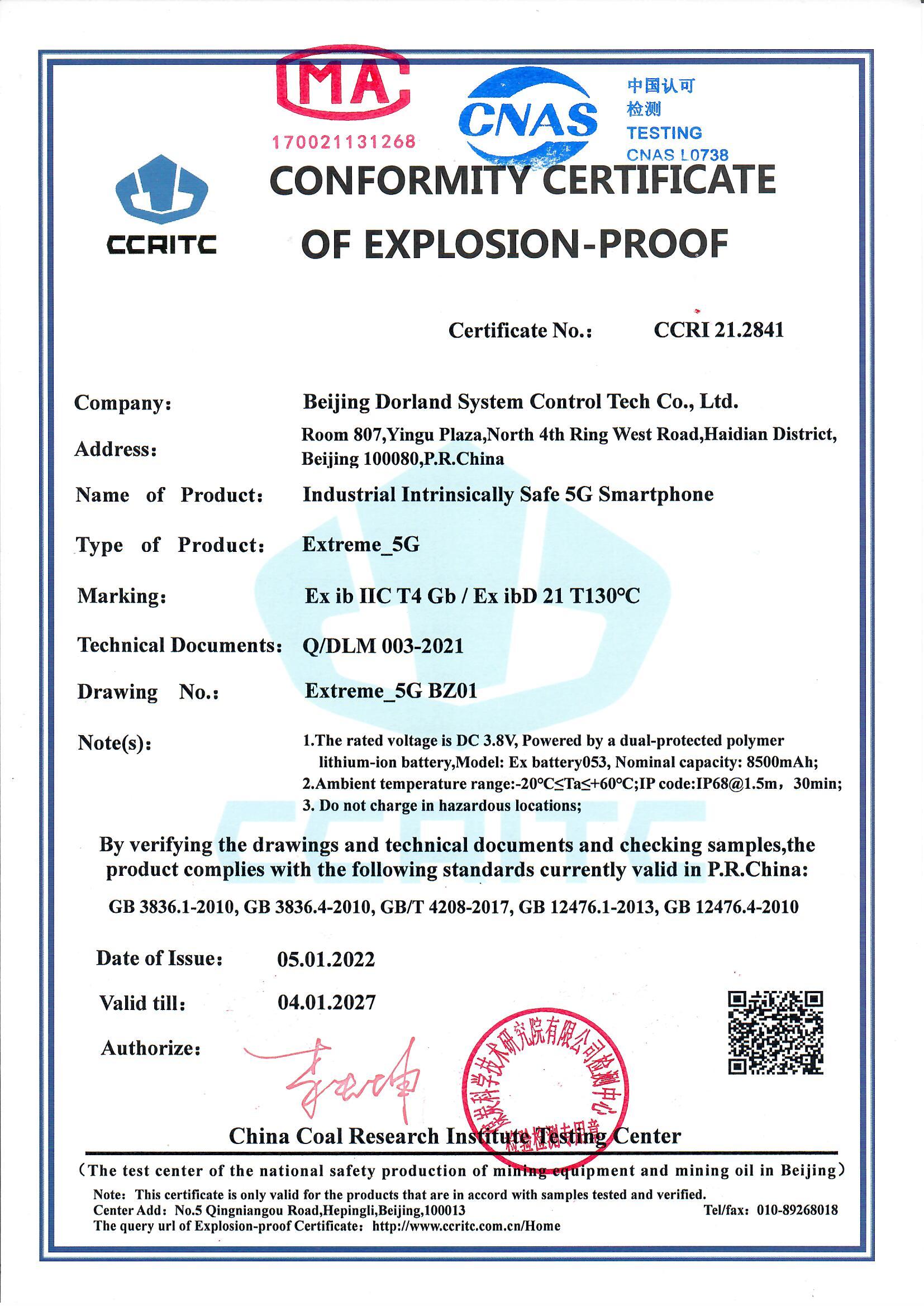

Product Certificate
Product Report

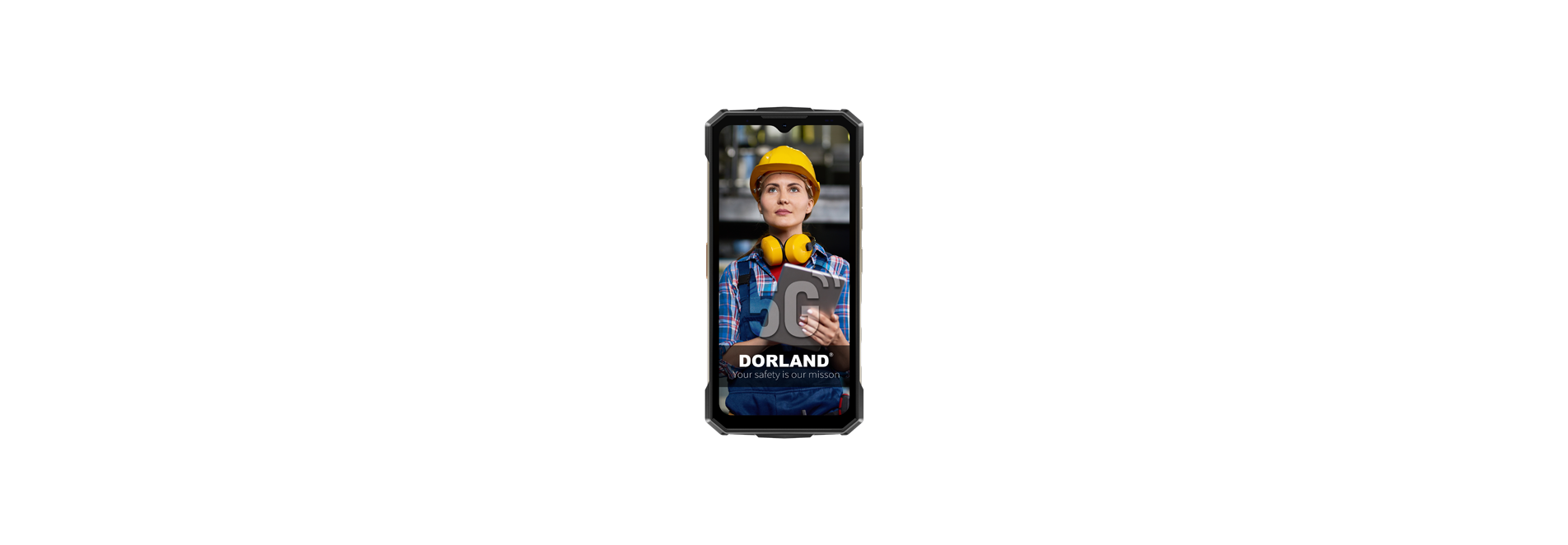

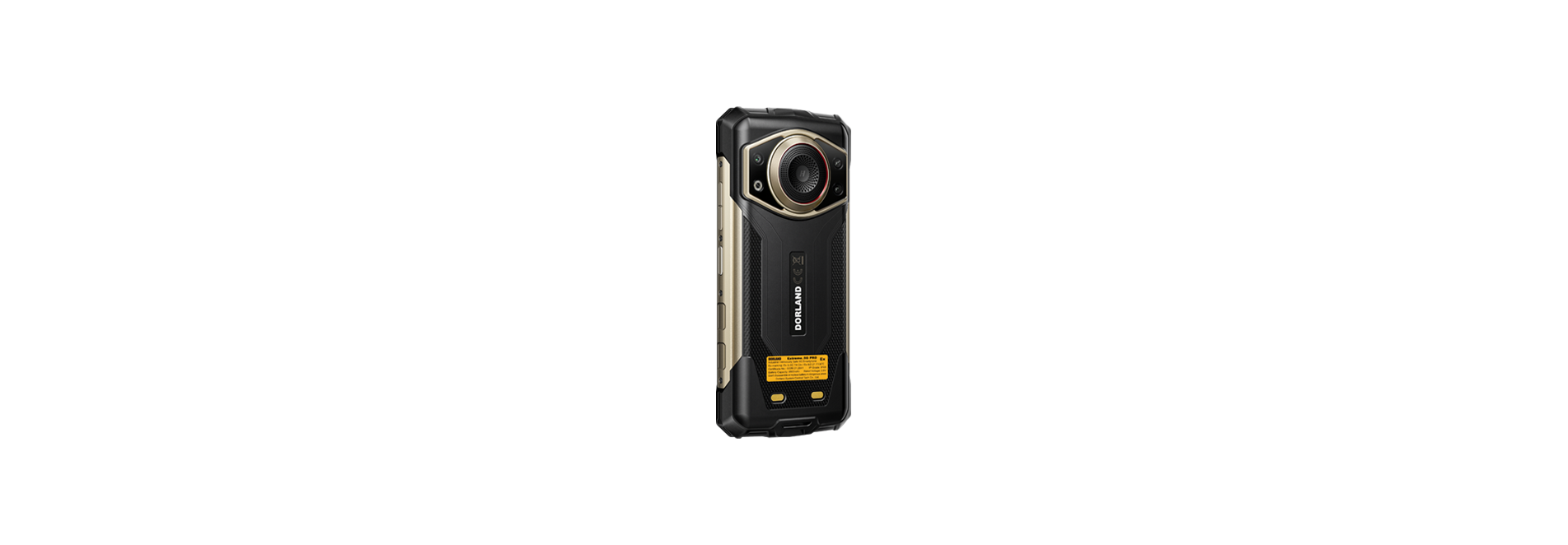

Dorland System Control Tech Co., Ltd. has recently launched the Extreme5G PRO, an intrinsically safe industrial intelligent 5G explosion-proof mobile phone with a powerful appearance and sturdy body, featuring an intrinsically safe circuit design. This phone adopts a 6.6-inch design and is equipped with a rear dual camera 64MP+2MP and a front 16MP camera. Its waterproof and dustproof performance meets the international IP68 standard.

In addition, this phone features fingerprint unlocking on the side and comes standard with NFC, meeting the reading and writing needs of various scenarios. We have also configured various functions such as Beidou+Galileo+Glonass+GPS positioning inside the phone, which are suitable for outdoor construction, pipeline inspection, etc. It can be used in conjunction with OA office systems, inspection positioning systems, data acquisition systems, and other applications. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.

Ex-Marking:

Ex ib IIC T4 Gb / Ex ibD 21 T130°C
Certificate No.:

CCRI 21.2841
IP Grade:

IP68
OS:

Android 16.0
Screen:

6.6-inch 20:9 HD+720 * 1612 screen
Memory:

6/8GB RAM+256GB ROM
CPU:

MediaTek Dimensity 6300 (24E), 8-core, 2 * 2.4GHz+6 * 2.0GHz
Camera:

Front camera 16MP, rear camera 64MP+2MP macro
Battery:

8500mAh/3.8V, non removable
Frequency bands:

GSM: B2/3/5/8 WCDMA：B1/2/4/5/8/ TDD：B34/38/39/40/41 FDD：1/2/3/4/5/7/8/18/19/20/25/26/28AB/66 NR：N1/N3/N7/N8/N28/N38/N41/N77/N78 EDGE/GPRS：SUPPORT
Bluetooth:

Bluetooth 5.2
WIFI：

Support, Wi-Fi 2.4/5GHz (IEEE 802.11ac/a/b/g/n)
NFC:

Supports
GPS：

Support, Beidou,Galileo,Glonass,GPS
Interface：

Headphone jack, charging port, desktop charger, M6 interface
