Aloha_5G Max

DORLAND Industrial Intrinsically Safe 5G Smartphone Aloha_5G Max

Ex-marking：Ex ib IIC T4 Gb / Ex ibD 21 T130°C

IP Grade：IP68

Memory:16GB RAM + 512GB ROM

CPU:MT6877TT, 8-core,2.6GHz

Product Introduction
Technical Parameters

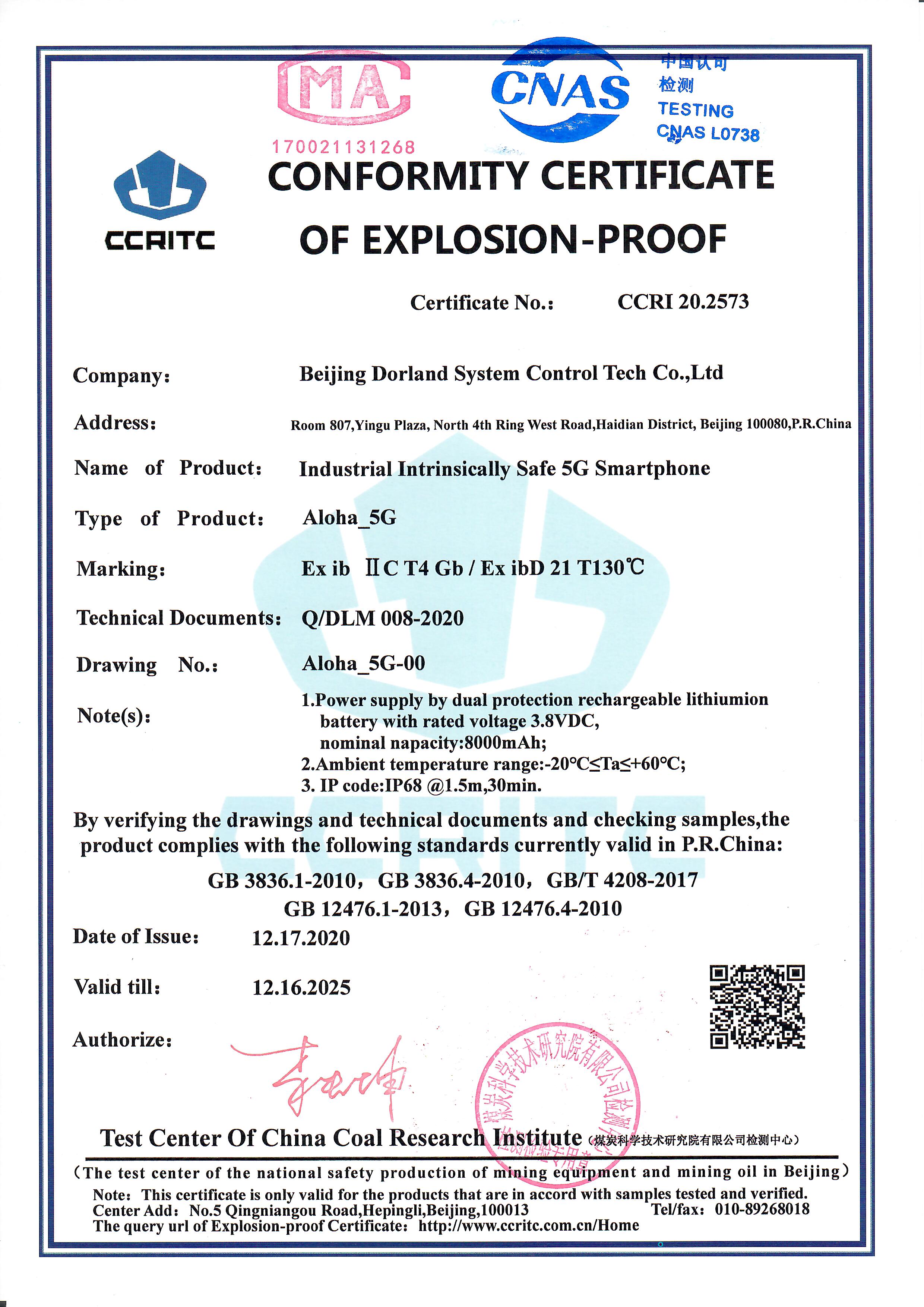

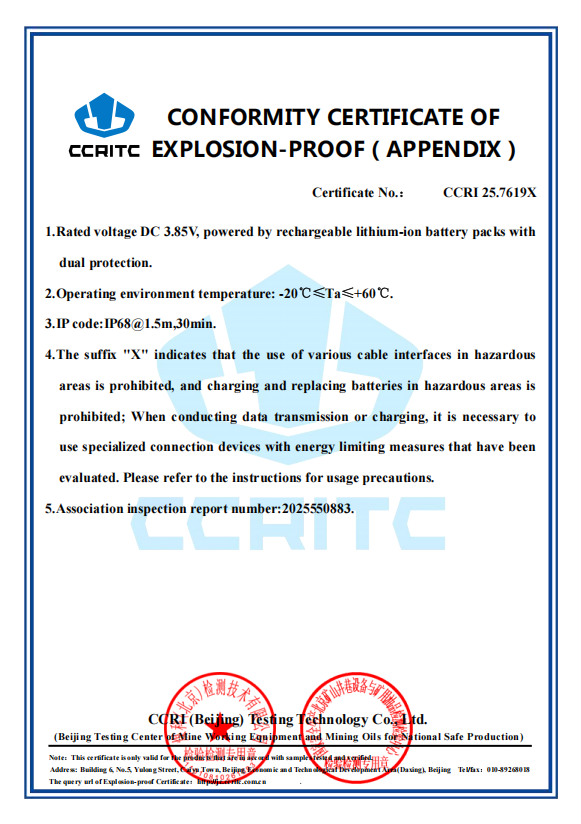

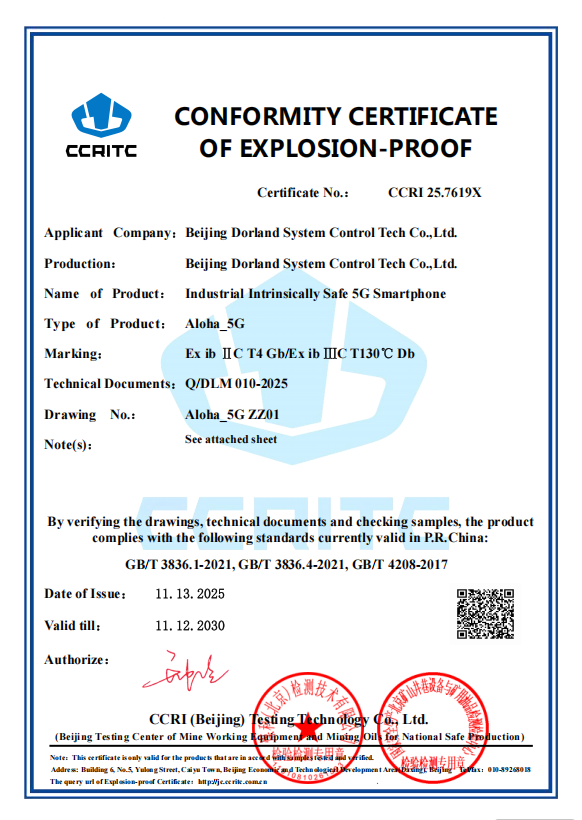

Product Certificate
Product Report

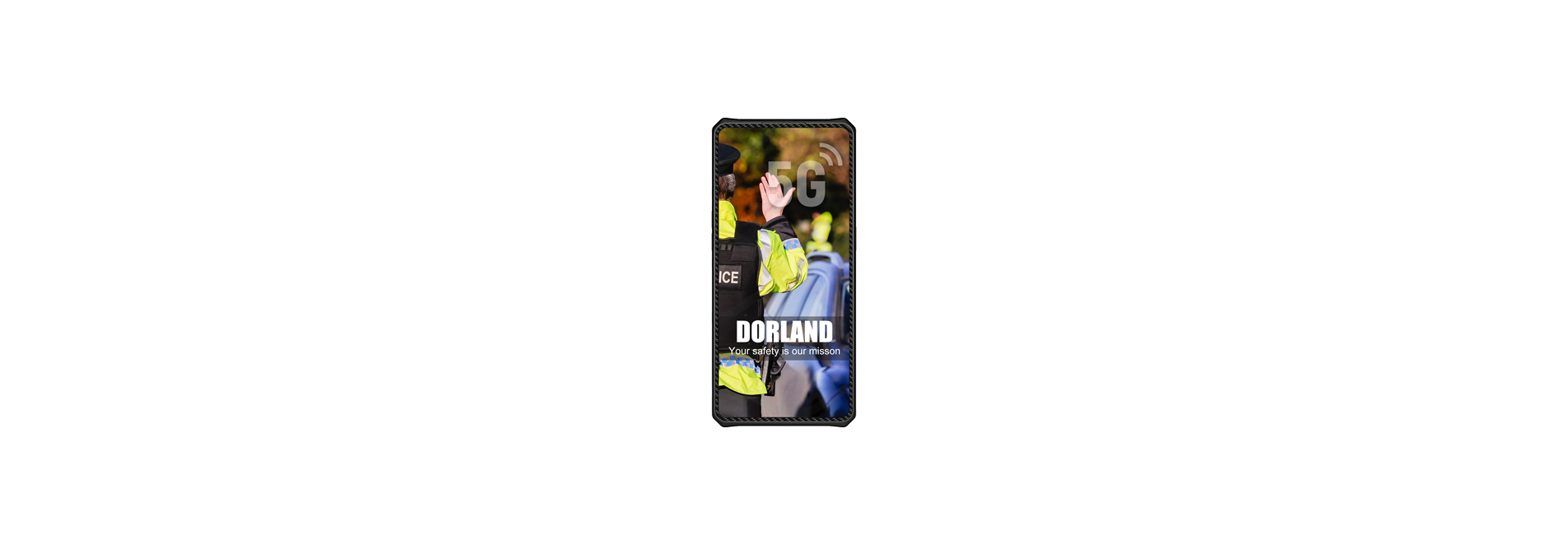

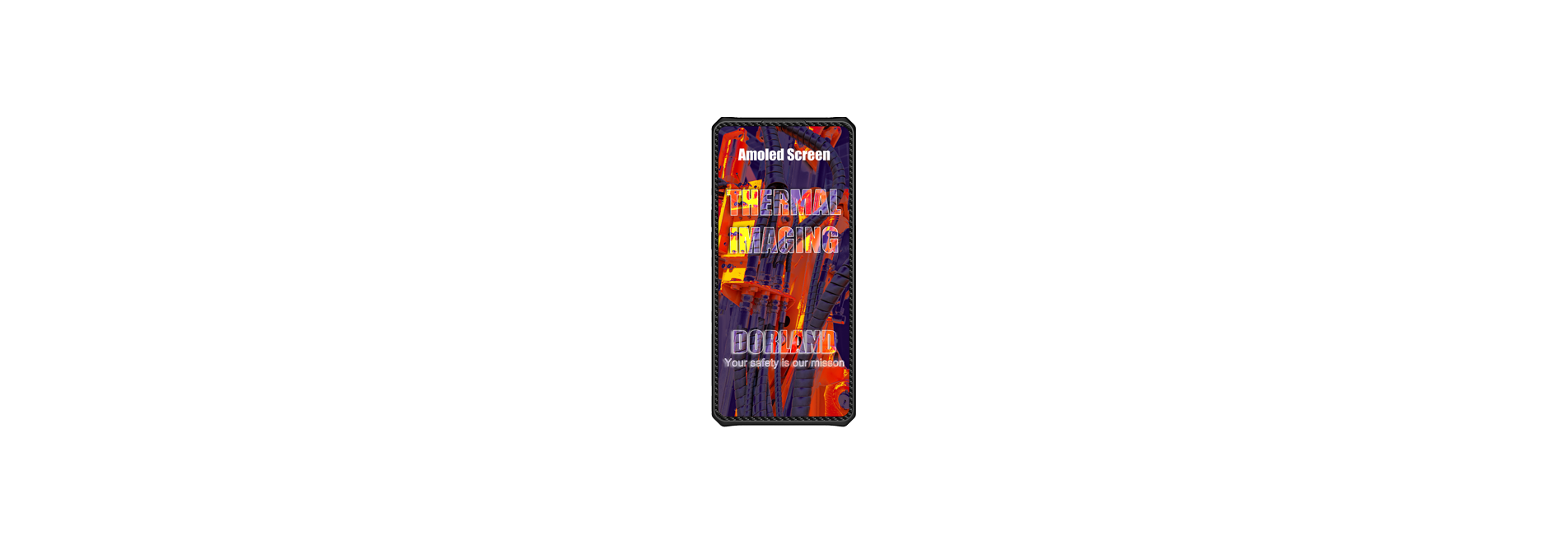

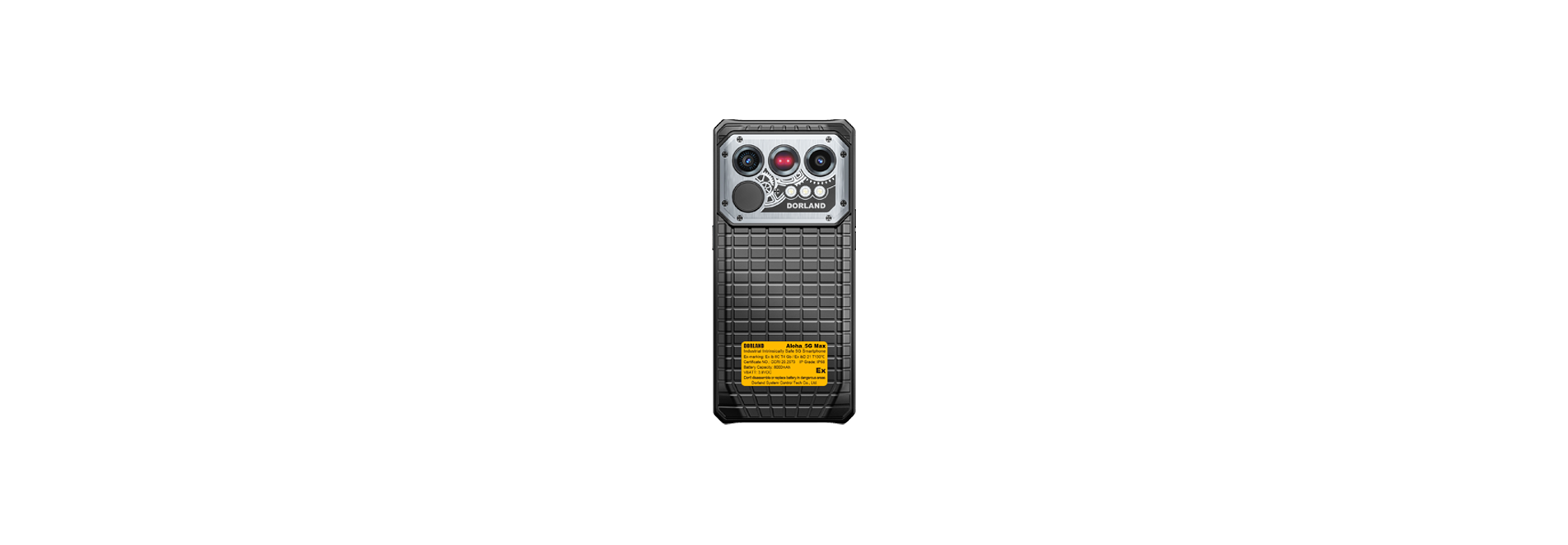

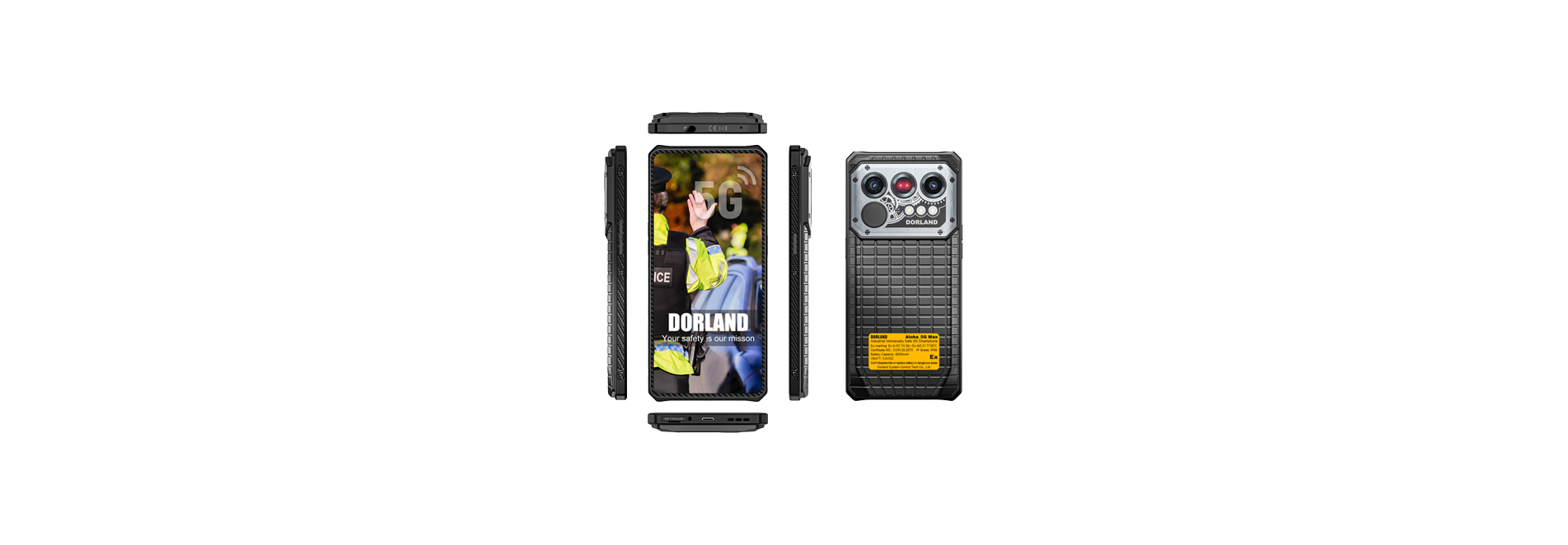

DORLAND System Control Tech Co., Ltd. recently industrial intrinsically safe 5G smartphone ALoha_5G Max, using 5g advanced technology, intrinsically safe circuit design, aggressive appearance, strong body. The mobile phone adopts a 6.78" FHD+ screen, with a rear dual shot 50MP + 40MP, and supports infrared thermal imaging module, face recognition and standard NFC. Its waterproof and dust-proof performance reaches the international IP68 standard.

In addition, it supports fingerprint one key unlocking, Bluetooth, Wi-Fi and other functions to meet the reading and writing requirements of various scenes. We have also configured GPS positioning and other functions suitable for outdoor construction and pipeline inspection, which can cooperate with OA office system, patrol positioning system, data acquisition system and other applications. It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Ex-marking：

Ex ib IIC T4 Gb / Ex ibD 21 T130°C
Certificate No.：

CCRI 20.2573
IP Grade：

IP68
OS:

Android 14.0
Screen:

6.78 inch, 2436*1080 FHD+, Amoled screen
Memory:

16GB RAM + 512GB ROM, extend memory: 1TB
CPU:

MT6877TT, 8-core,2.6GHz
Cameras:

50MP (rear)+40MP (night vision), 32MP(Front), support infrared thermal imaging module
Battery:

8000mAh, rated voltage: 3.8V
Frequency:

2G: B2/B3/B5/B8 3G: B1/B2/B4/B5/B8 3G: BCO 4GTDD: B38/B40/B41 4GFDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28(A+B)/B66 5G: N1,2,3,5,7,8,20,25,38,28,40,41,66,77.78
Bluetooth:

Ver5.0
NFC:

yes
Unlocking method:

under-display fingerprint recognition + Face recognition
GPS:

GPS + GLONASS + Beidou + AGPS / E-Compass
Measuring range:

-10℃～150℃ / 100℃～550℃
Temperature measurement error:

± 2 ℃/± 2% (typical value)
Thermal imaging resolution:

256*196
