Unicorn10 PRO(High Version)

DORLAND Industrial Intrinsically Safe Smartphone Unicorn10 PRO(High Version)

Marking: Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

Protection Grade:IP68

OS:Android 16.0

Memory:8+256GB

Product Introduction
Technical Parameters

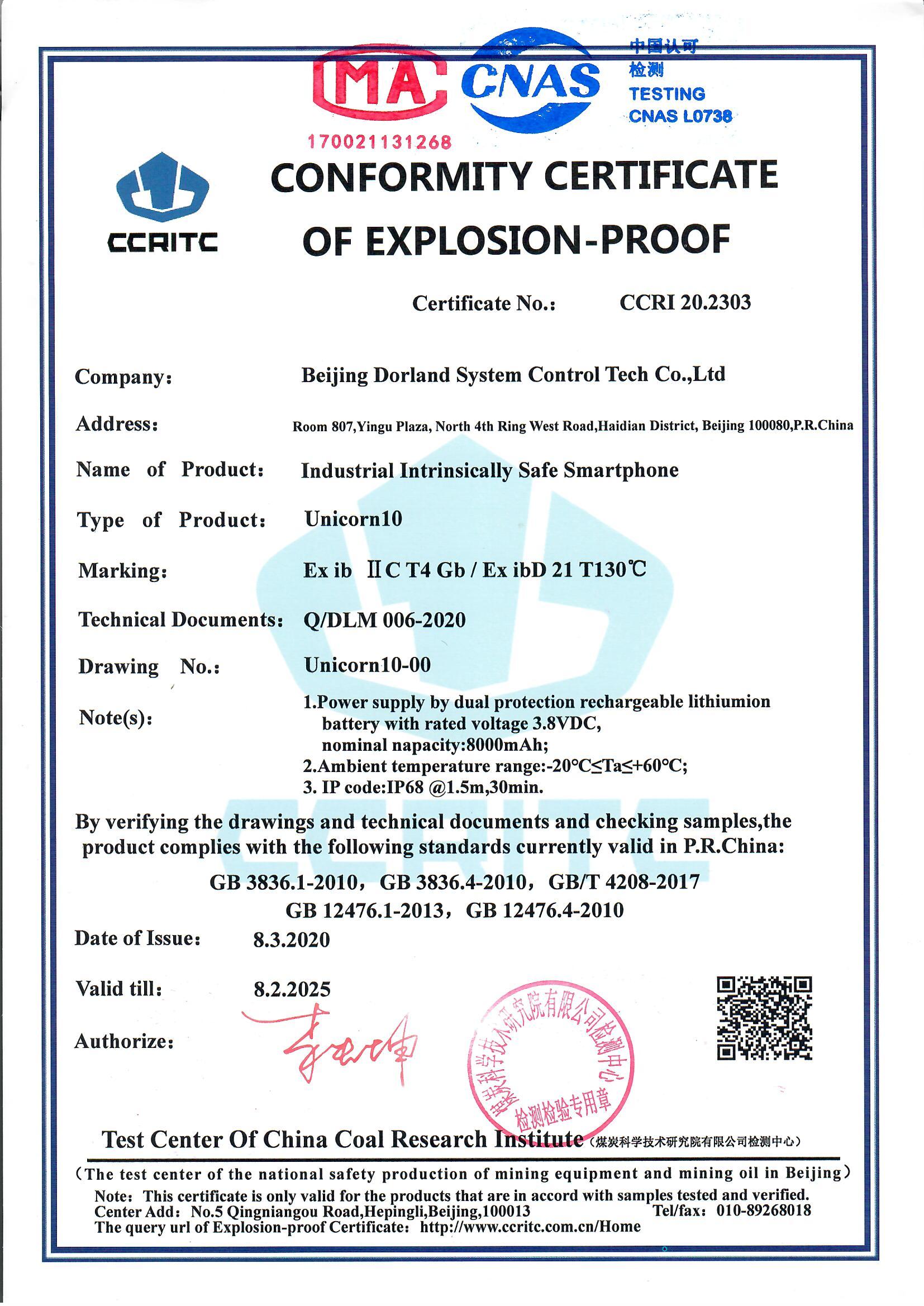

Product Certificate
Product Report

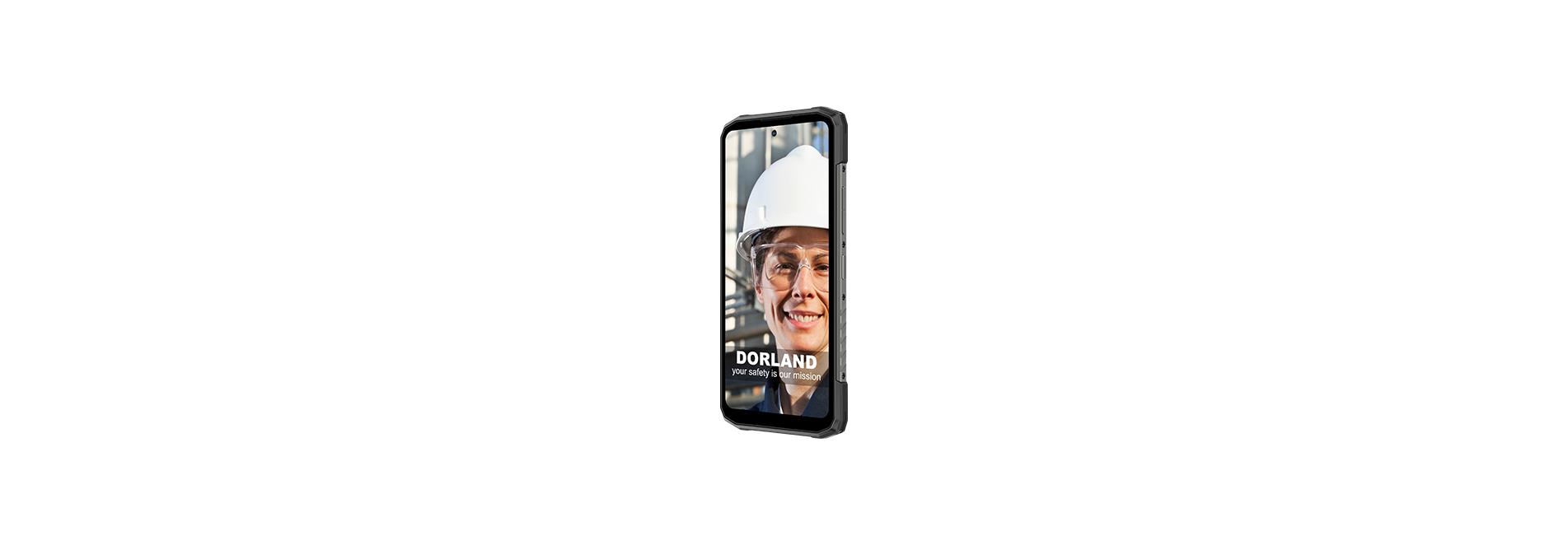

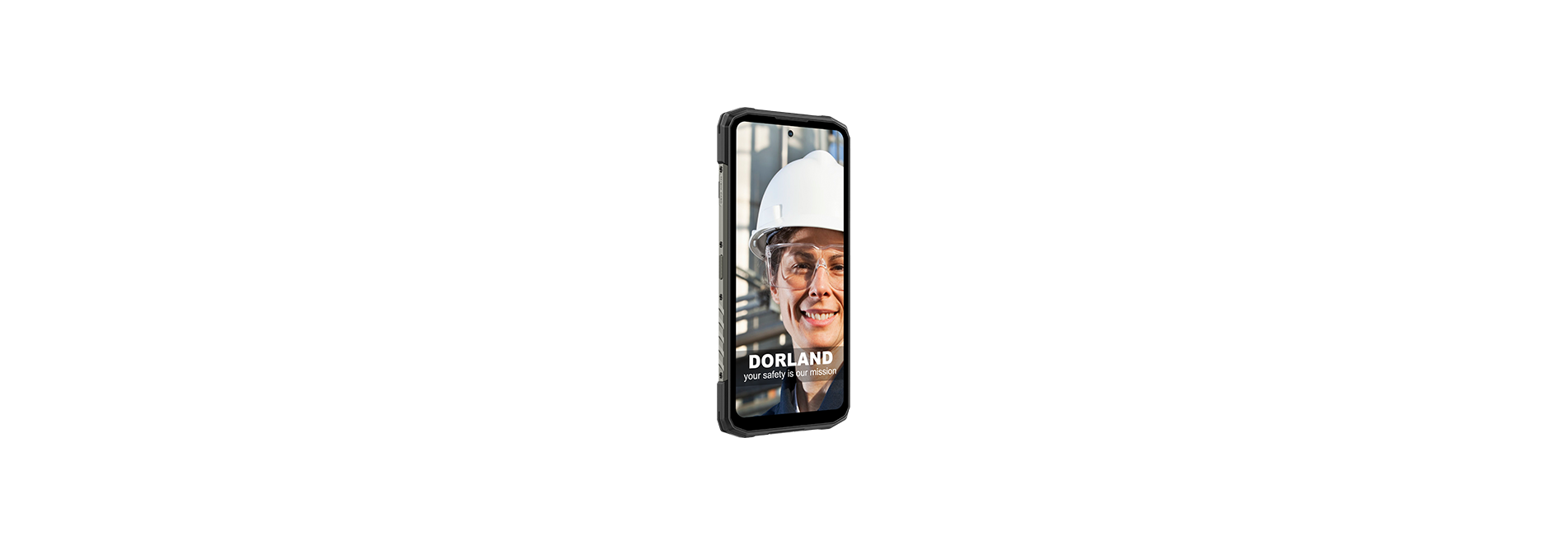

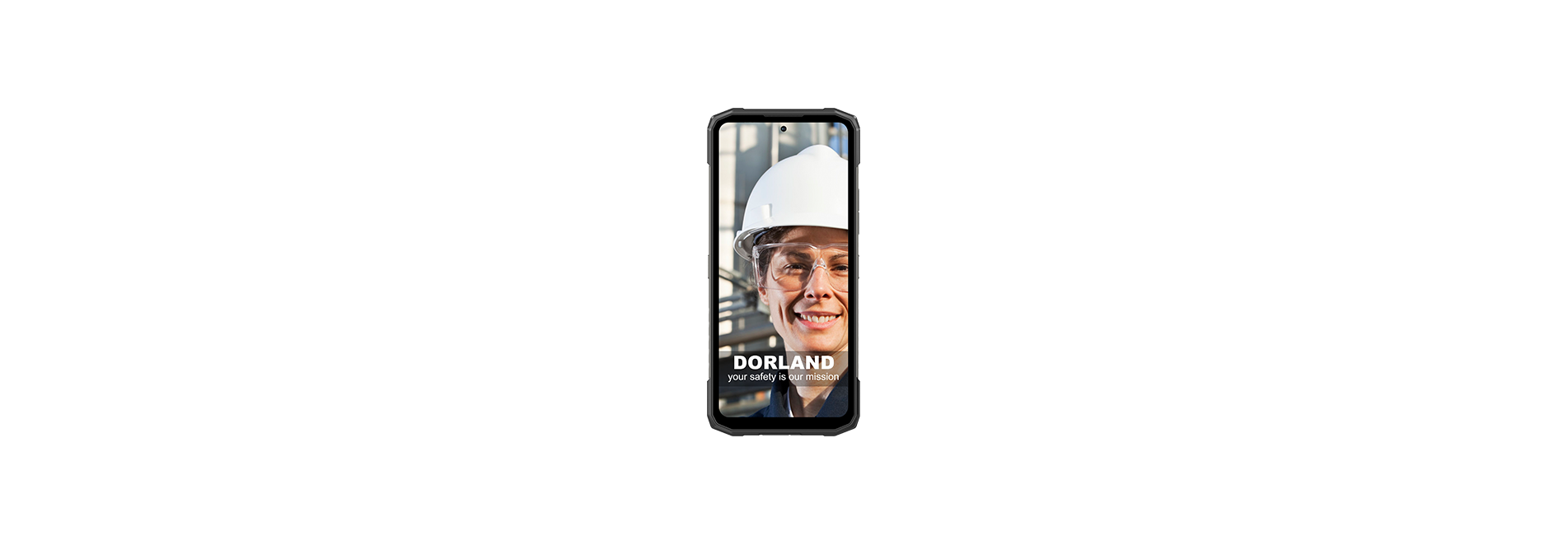

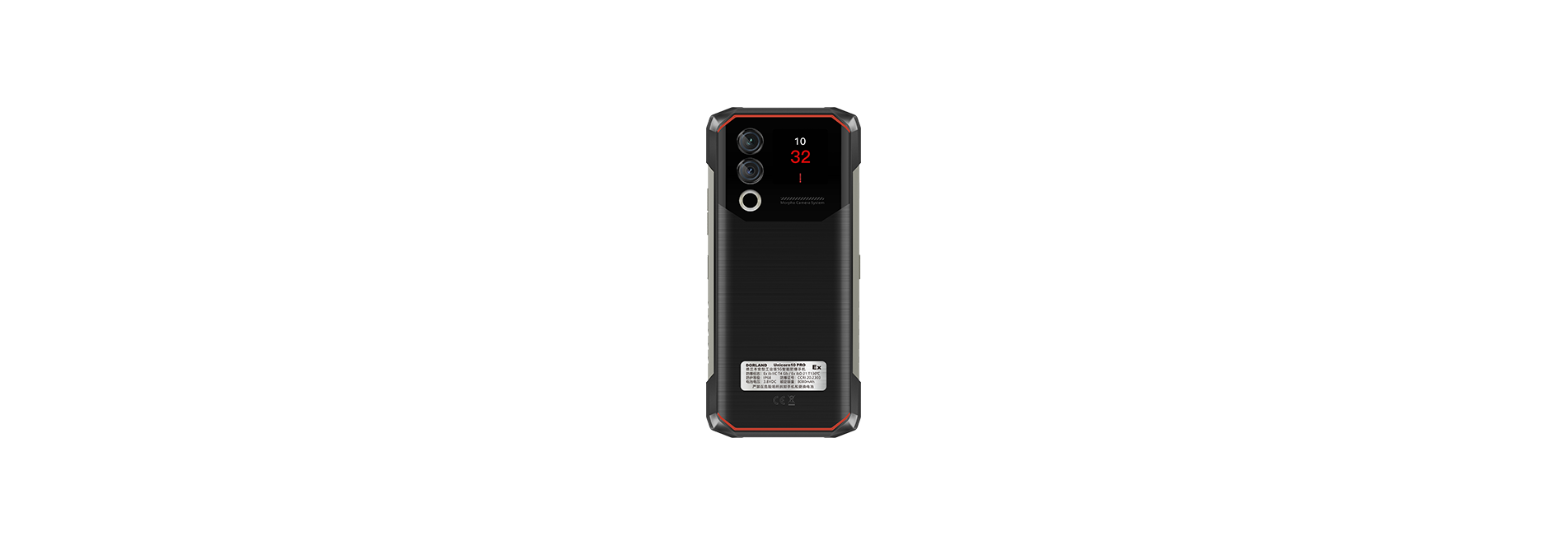

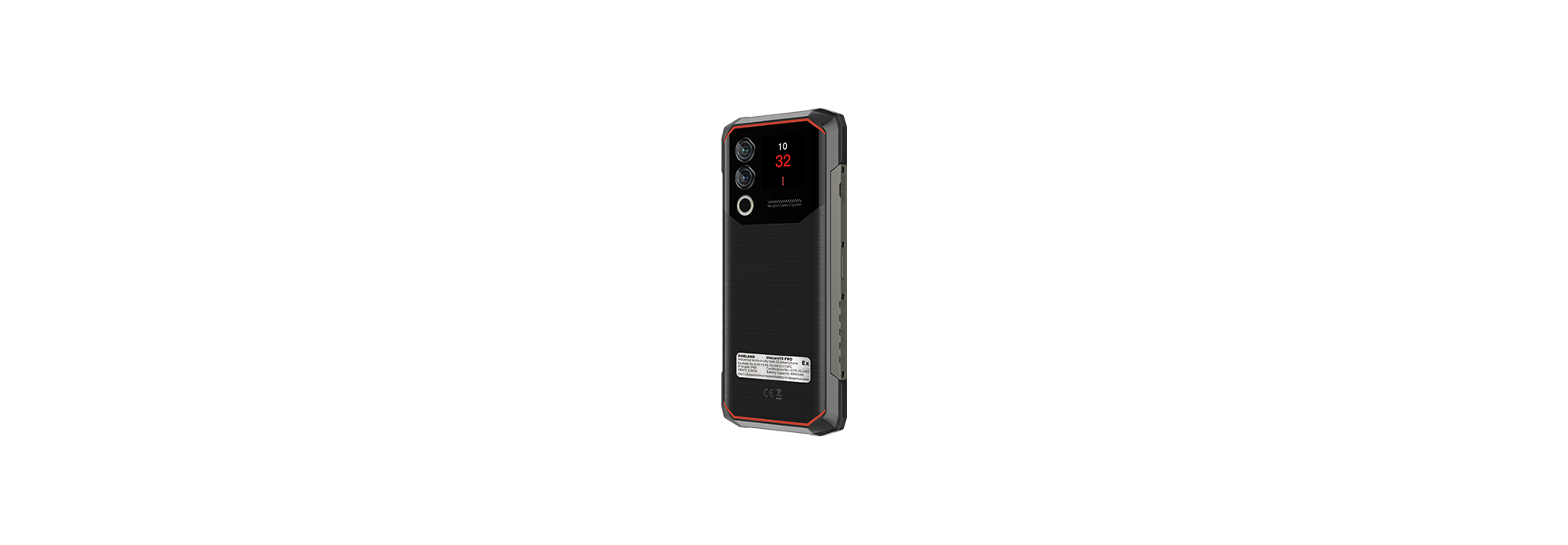

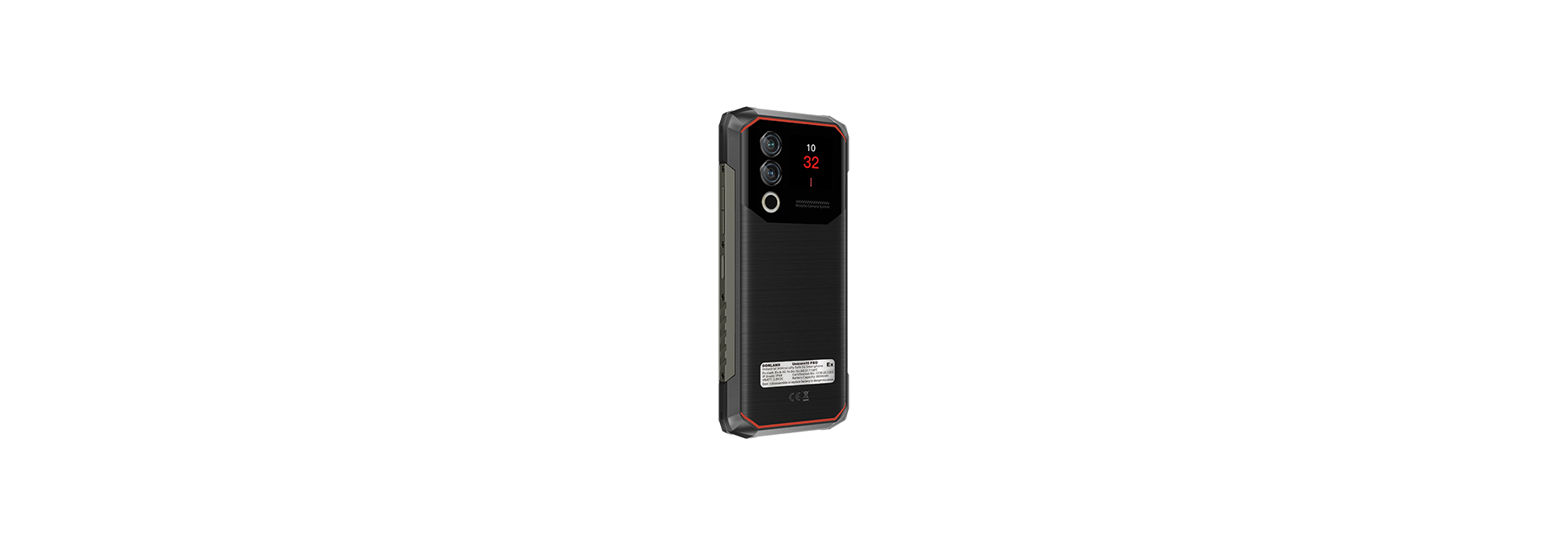

DORLAND System Control Technology Co., Ltd. recently introduced the intrinsically safe intelligent industrial-grade explosion-proof mobile phone Unicorn10 PRO. It adopts advanced technology, intrinsically safe circuit design, domineering appearance and solid body. The mobile phone adopts 6.517 inch screen (20:9) design, equipped with 8MP front and 64MP pixel high-definition camera at the rear. Its waterproof and dustproof performance meets the international IP68 standard.

In addition, the phone supports NFC, fingerprint unlocking and other functions. This is equipped with GPS positioning, compass and other functions suitable for outdoor construction and pipeline inspection. It can cooperate with OA office system, patrol positioning system, data acquisition system and other applications. Especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Ex-marking:

Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

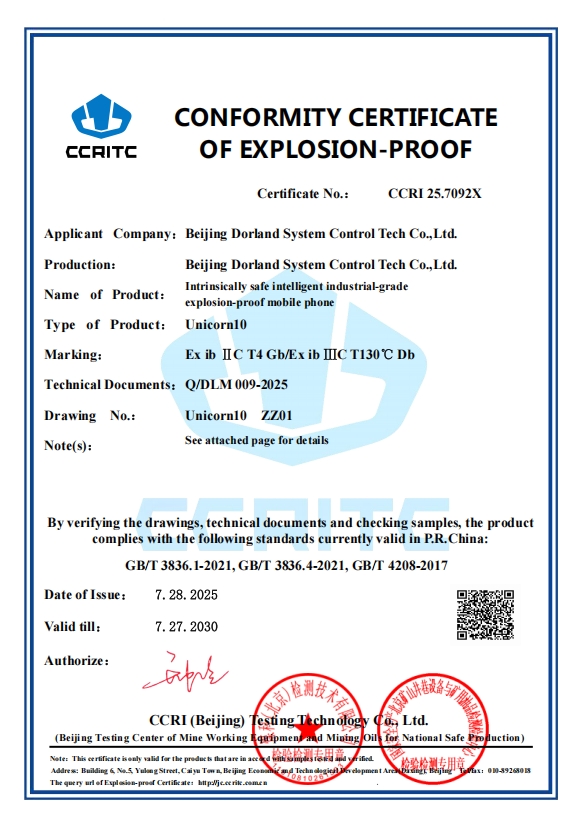

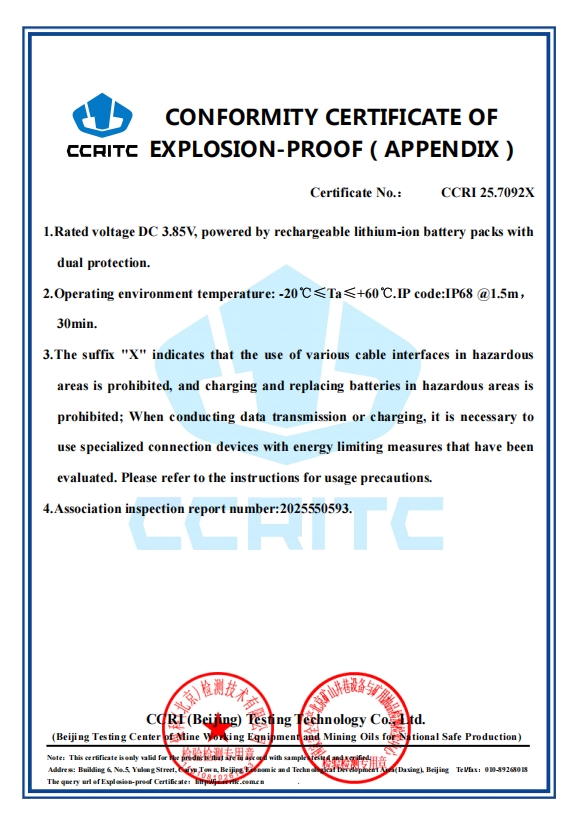

Certificate NO.:

CCRI 25.7092X
IP Grade:

IP68
OS:

Android 16.0
CPU:

T615, 8 cores, 2*1.8 GHz – Cortex-A75 + 6*1.6 GHz – Cortex-A55
Screen:

6.517inches (20:9), 576*1280 HD-
Memory:

RAM: 8GB (+Extended RAM 16GB) ROM: 256GB
Storage Card:

Support T-flash card, Up to 1TB
Cameras:

Rear Camera 64MP, Front camera 8MP
Battery capacity:

10300mAh, 3.85V
Frequency:

GSM：B2/3/5/8 WCDMA：B1/B2/B4/B5/B8 FDD：B1/B2/B3/B4/B5/B7/B8/B12/B17/B18/B19/B20/B25/B26/B28A/B28B/B66 TDD：B38/B40/B41
GPS:

Support, (GPS+GLONASS+Beidou+Galileo)
Bluetooth:

BT5.0
NFC:

Support
