EX Card Camera 02

<
>

Dorland Industrial Intrinsically Safe 5k Digital Card Camera EX Card Camera 02

Ex Marking:Ex ic IlC T4 Gc / Ex ic lIIC T130℃ Dc

Video resolution (maximum):5K 5120*2880(30FPS)

Image resolution (maximum):48M (8000 × 6000)

LCD screen:3.5-inch IPS screen, 16:9 screen

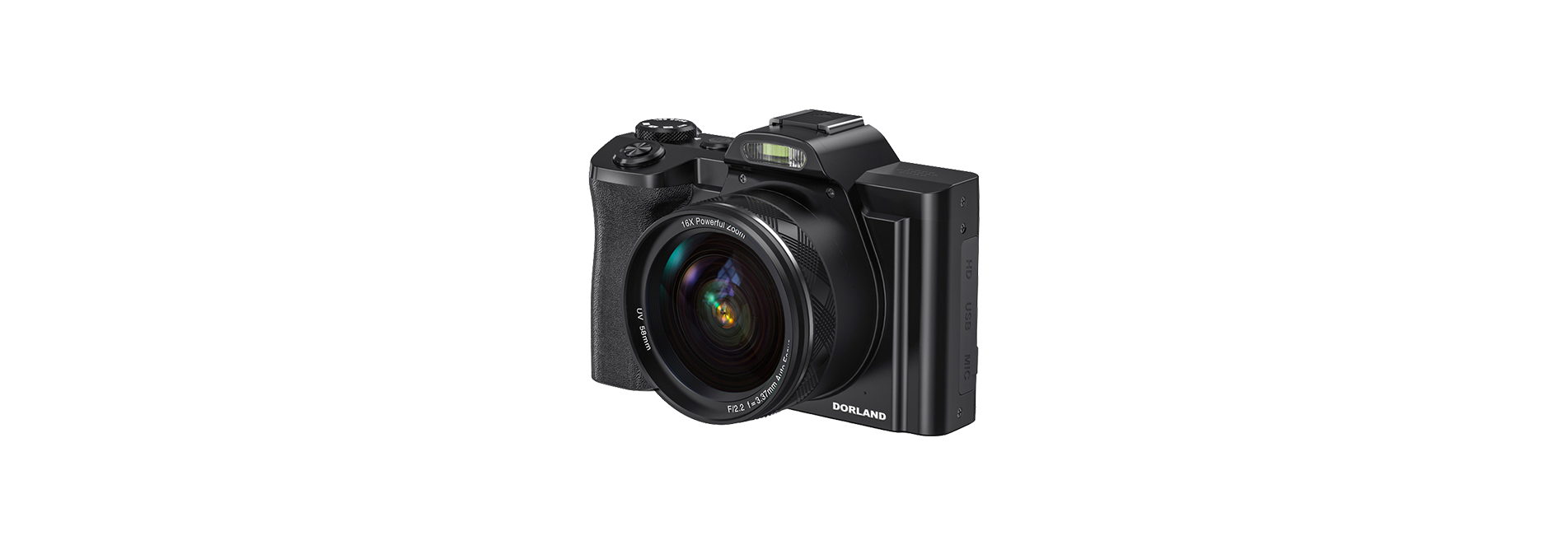

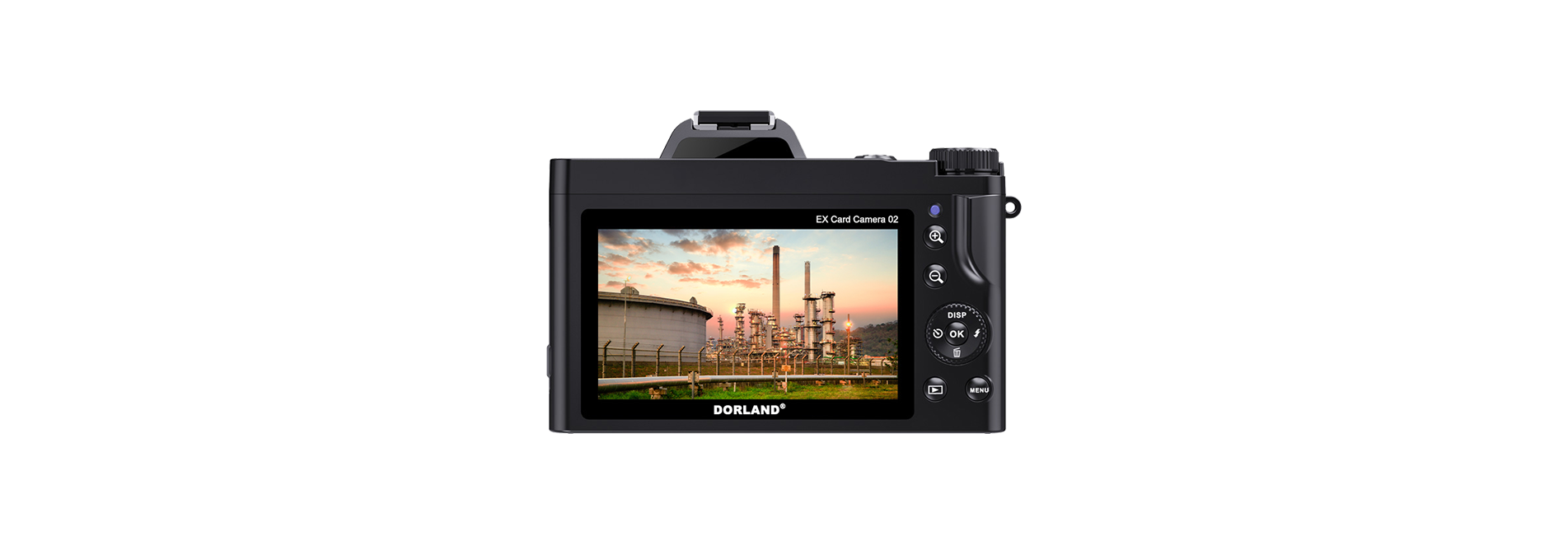

DORLAND System Control Technology Co., Ltd. recently launched Dorland Industrial Intrinsically Safe 5k Digital Card Camera  EX Card Camera 02, adopting 5K image quality, easy selfie, supporting electronic stabilization, built-in 6-axis gyroscope, supporting autofocus, and presenting distant and close scenes clearly.

In addition, we also suitable for outdoor construction and pipeline inspection, which can cooperate with OA office system, patrol positioning system and data acquisition system And other applications. It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.


  • Explosion proof grade:

    Ex ic IlC T4 Gc / Ex ic lIIC T130℃ Dc

  • Explosion proof certificate number:

    SYEx24.01168X

  • Protection level:

    IP20

  • Image resolution:

    48M (8000 × 6000); 36M (6880 × 5160); 24M (5600 × 4200); 20M (5120 × 3840); 16M (4640 × 3480); 12M (4032 × 3024); 8M (3264 × 2448); 5M (2592 × 1944)

  • Video resolution:

    5K 30FPS; 4K 30FPS; 2.7K 30FPS; 1080P 120FPS; 1080P 60FPS; 1080P 30FPS; 720P 240FPS; 720P 120FPS; 720P 60FPS; 720P 30FPS

  • LCD screen:

    3.5-inch IPS screen, 16:9 screen

  • USB:

    Mini USB 2.0

  • Power Supply:

    800mAh

  • Camera lens:

    AF (F/2.2 f=3.37mm)

  • Expand memory:

    SD card slot (up to 256GB), supporting SDCC C10 U1

  • LED fill light:

    Support

  • Net weight:

    370g

  • Size:

    125*85*62mm

  • Auto focus:

    Support

  • Wifi control:

    Support

  • HDMI:

    Support

  • External microphone:

    Support

  • Electronic anti shake:

    Support, built-in 6-axis gyroscope

  • Hot shoe function:

    fill-in light

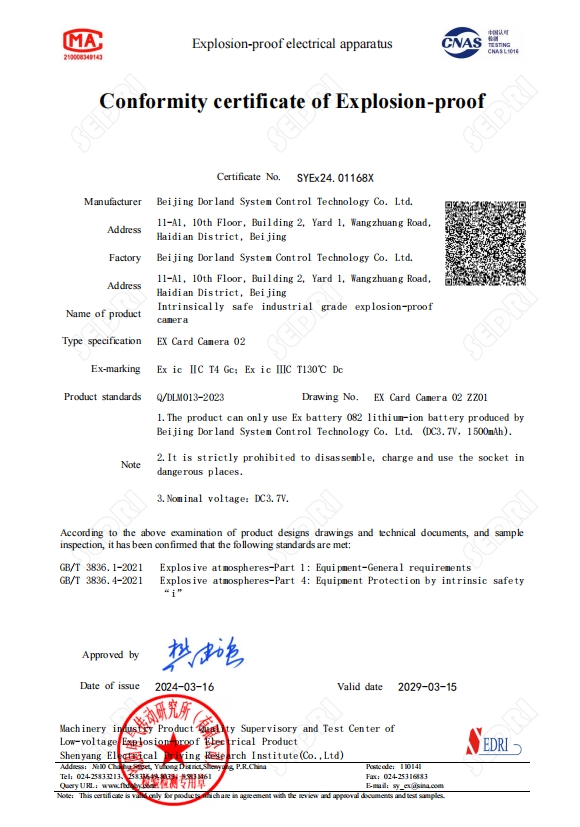

EX Card Camera 02 Certificate

Download

EX Card Camera 02 Inspection Report

+ Download
+
