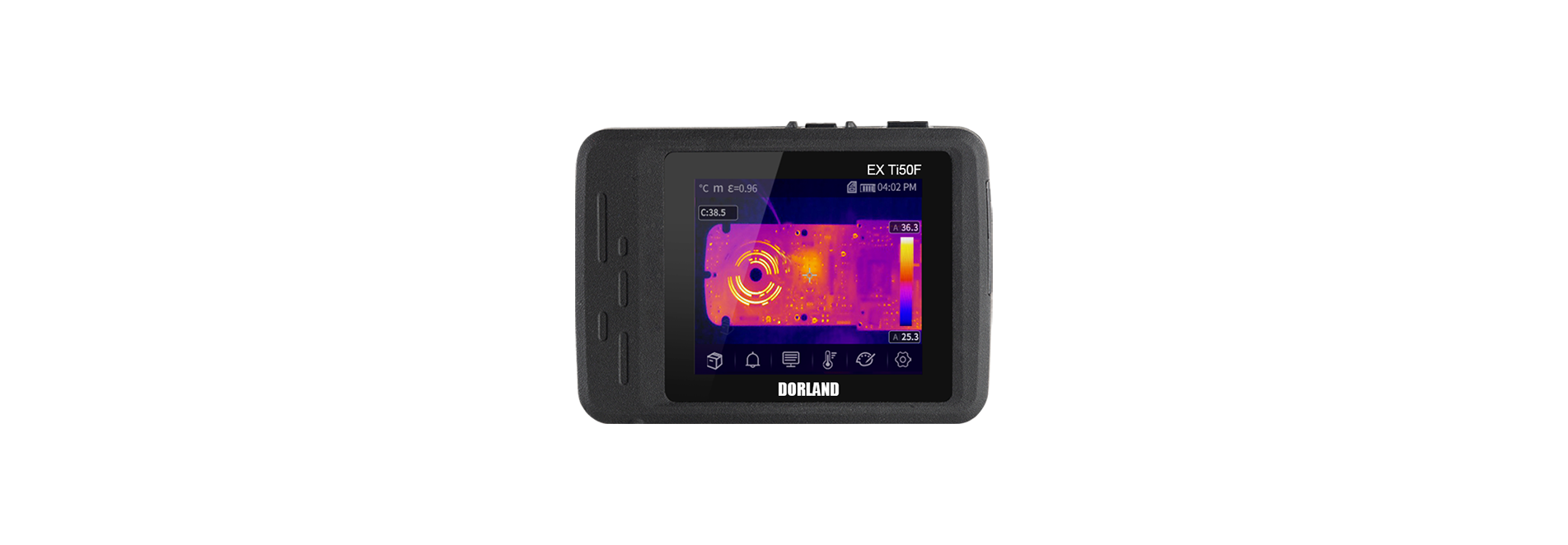

EX Ti50F

Dorland Industrial Intrinsically Safe Smart Pocket Infra Imager EX Ti50F

Ex-mark:Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

Range:-20 ℃ to 150 ℃/0 ℃ to 550 ℃

Display screen:3.5” 640 * 480 pixels, touch screen

Resolving power:120*90

Product Introduction
Technical Parameters

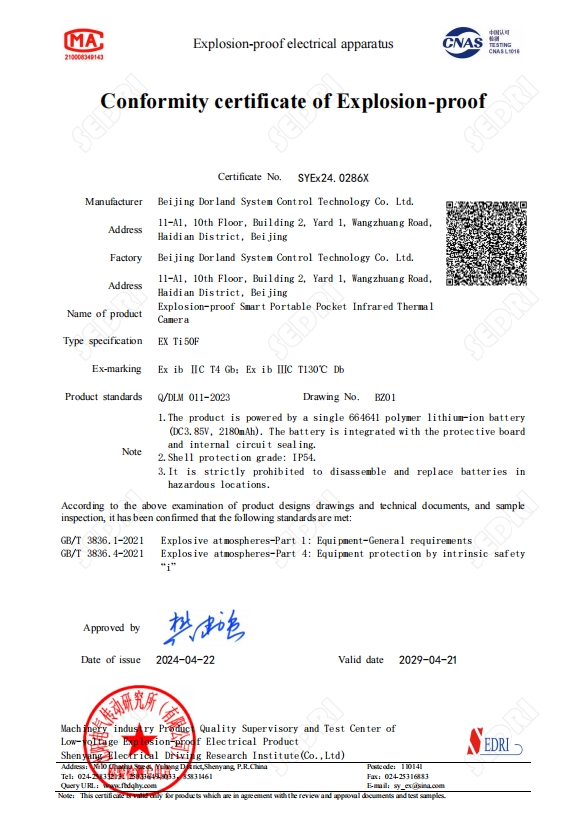

Product Certificate
Product Report

Dorland System Control Technology Co., Ltd. has recently launched the industrial intrinsically safe smart pocket infra imager EX Ti50F, which has a 120 * 90 high infrared resolution, a 640 * 480 high-definition 3.5-inch screen IPS display, and is clearly visible under strong light.

In addition, it is also suitable for outdoor construction, pipeline inspection, etc., and can be used in conjunction with various applications such as OA office systems, inspection positioning systems, data collection systems, etc. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank areas, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users and production and scheduling.

Ex-mark:

Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db
Certificate No.:

SYEx24.0286X
IP Grade:

IP54
Resolving power:

120*90
Field of view angle:

50°*37°/0.5m
Like element size:

17μm
Range:

-20 ℃ to 150 ℃/0 ℃ to 550 ℃
Thermal sensitivity:

＜ 0.05 ℃ @+30 ℃/50mk
Visible light pixels:

2 million pixels
Display screen:

3.5” 640 * 480 pixels, touch screen
Image display mode:

Infrared image, visible light image, picture in picture function, AUF automatic fusion
Palette:

Iron Red, Rainbow, Grey White, White Grey, Blue Red, Hot Cold, Feather Red, Brown
Image frame rate

50 Hz
Focusing method:

No focusing
