Versatile_5G PRO

Dorland Industrial Intrinsically Safe 5G Smartphone Versatile_5G PRO

Ex-mark:Ex ib IIC T4 Gb/ Ex ib IIIC T130℃ Db

IP Grade:IP68

OS:Android 13.0

Battery:10800mAh

Product Introduction
Technical Parameters
Product Certificate
Product Report

Beijing DORLAND System Control Technology Co., Ltd. recently industrial intrinsically safe 5G smartphone Versatile_5G PRO, using 5g advanced technology, intrinsically safe circuit design, domineering appearance and solid body. The mobile phone adopts 6.583 "high-definition screen, rear three camera 64 + 24 + 8MP, and supports thermal imaging and standard NFC. Its waterproof and dustproof performance meets the international IP68 standard. In addition, it supports fingerprint one click unlocking, Bluetooth, WiFi and other functions to meet the reading and writing needs of various scenes. We also configure GPS positioning and other functions suitable for outdoor construction and pipeline inspection in the mobile phone, which can cooperate with OA office system, inspection and positioning system, data acquisition system and other applications. It is especially suitable for the harsh environment of dangerous explosion, such as petroleum, chemical industry, pharmacy, military industry, oil depot, tank farm and other dangerous places with combustible and explosive gases, so as to facilitate the timely communication between users and production and dispatching.

Ex-mark:

Ex ib IIC T4 Gb/ Ex ib IIIC T130℃ Db

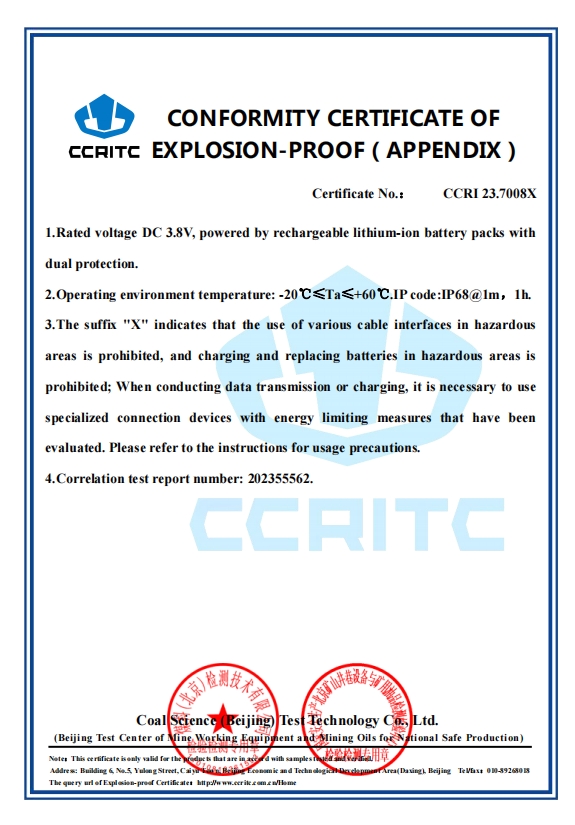

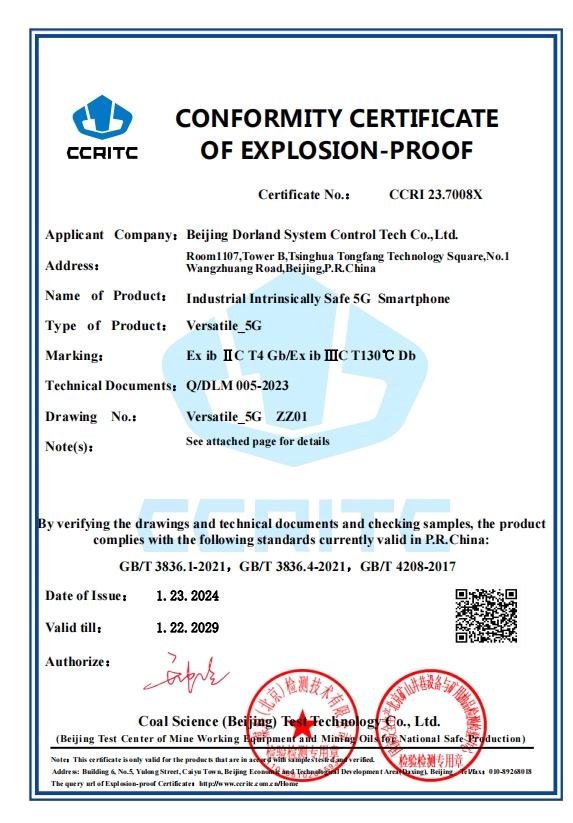

Certificate No.:

CCRI 23.7008X
IP Grade:

IP68
OS:

Android 15.0
Screen:

6.58 inches, 20:9, 1080*2408 FHD+ screen
Memory:

RAM: 12GB(+additional expansion 24GB), ROM: 512GB
Expanded memory:

Up to 2TB
CPU:

MTK Dimensity 7025, Octa Core, 2* 2.5 GHz – Cortex-A78 + 6* 2.0 GHz – Cortex-A55, 6nm
Camera:

Rear Camera 108MP (main camera) + 8MP(night vision camera) Front Camera 32 MP
Battery:

10800mAh
Frequency:

GSM: 2/3/5/8 CDMA: BC0/BC1/BC10 WCDMA: 1/2/4/5/6/8/19 LTE-TDD: 34/38/39/40/41 LTE-FDD: 1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28AB/66/71 NR: N1/2/3/5/7/8/12/20/25/28/34/38/39/40/41/48/66/71/77/78
Unit weight (including battery):

367.6g
Dimensions (mm):

172.2*81*15.8mm
NFC:

support
GPS:

support, Beidou, Galileo, Glonass, GPS
Bluetooth:

Ver 5.2
Unlock method:

Side fingerprint identification, face recognition
Measuring range:

-50℃~+550℃
Pixel size:

256*192
