EX Ti50F PRO

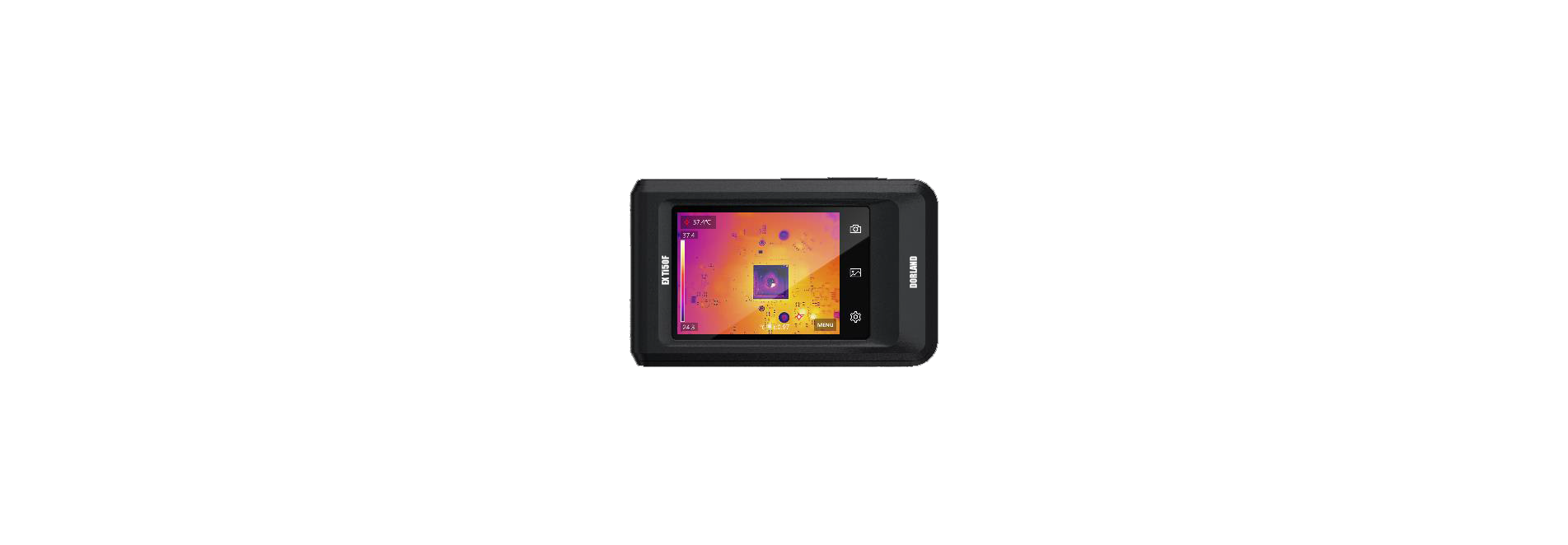

DORLAND Industrial Intrinsically Safe Industrial Handheld Temperature and Thermal Imager EX Ti50F PRO

Temperature measurement range:-20 ℃ ~ 400 ℃

Temperature measurement accuracy:± 2 ℃ or ± 2% (whichever is the maximum)

Thermal imaging resolution:256 × 192

Visible light lens pixels:8MP

Product Introduction
Technical Parameters

Beijing Dorland System Control Technology Co., Ltd. has recently launched the intrinsically safe industrial grade handheld temperature measurement thermal imager EX Ti50F. The thermal imager has a resolution of 256 * 192 and supports a refresh rate of 25Hz to maintain smooth images. It also supports 8 million pixel visible light images and dual light fusion, picture in picture, and other modes. Supports WIFI, lighting, text annotation, etc. In addition, it is also suitable for outdoor construction, pipeline inspection, etc., and can be used in conjunction with various applications such as OA office systems, inspection positioning systems, data collection systems, etc. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank areas, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users and production and scheduling.

IP Grade:

IP65
Sensor type:

Non cooled detectors
Response band:

8-14 μ M
NETD (Noise Equivalent Temperature Difference):

<50 mk (@ 25 ℃, F #=1.0)
Maximum image size:

256 x 192
Thermal imaging lens focal length:

3.5 mm
Minimum imaging distance:

0.3 m
Field of view angle:

50 ° x 37.5 °
Number doubling:

1. x~4. x, with a minimum change of 0.1. x
Frame rate:

25 Hz
Pixel size:

12 μm
F-value:

F1.1
Temperature measurement range:

-20 ℃~400 ℃
Precision:

± 2 ℃ or ± 2%, take the maximum value
Spatial resolution (IFOV):

3.43 mrad
Maximum image size for visible light:

3264 x 2448
Image resolution:

Configurable: 2 MP, 5 MP, 8 MP
Video resolution:

640 × 480
Display:

3.5 "LCD capacitive touch screen 640 × 480
Image mode:

Supports 7 pseudo color modes such as rainbow and iron red
Screen display mode:

Visible light, thermal imaging, dual light fusion, picture in picture
Temperature measurement rules:

Supports hotspots, cold spots, and center points
UVC screen projection:

support
Battery capacity:

2100mAh
Bluetooth/WIFI:

support
Photo/Video:

Thermal imaging, visible light, dual light fusion, picture in picture
Lighting:

support
Text comments:

support
Interface language:

Chinese
Storage:

16GB
Hardware interface:

Type-C
