DL_04_2G

<

>

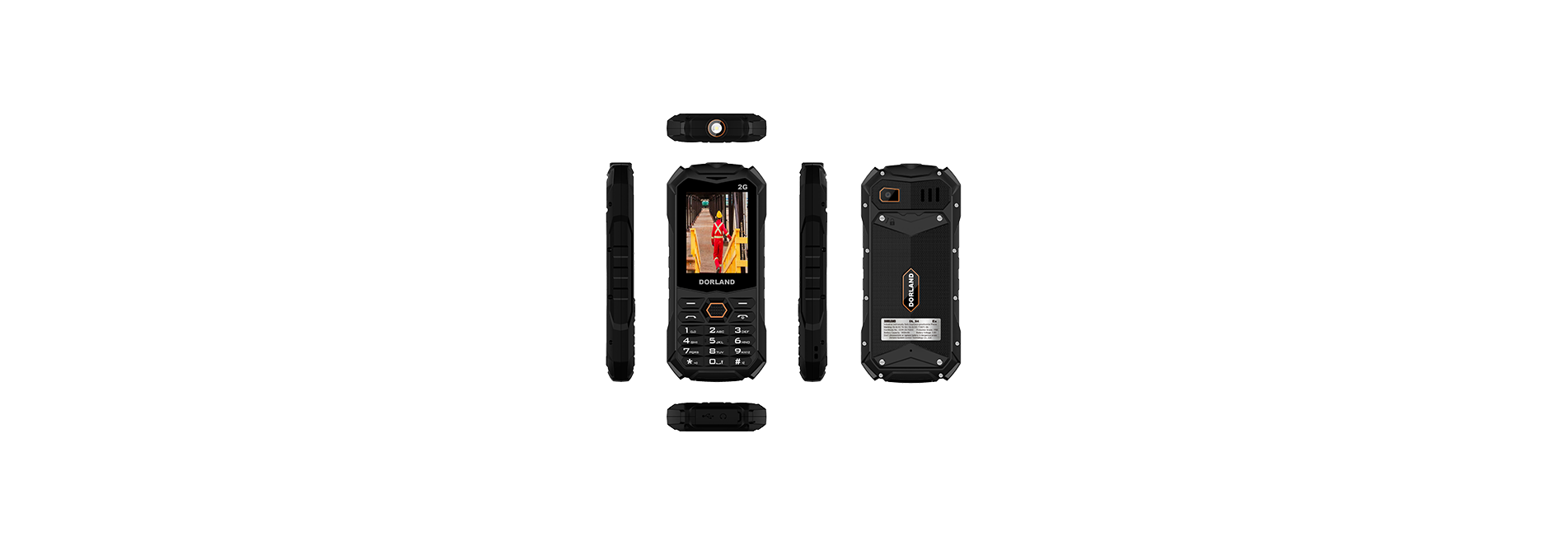

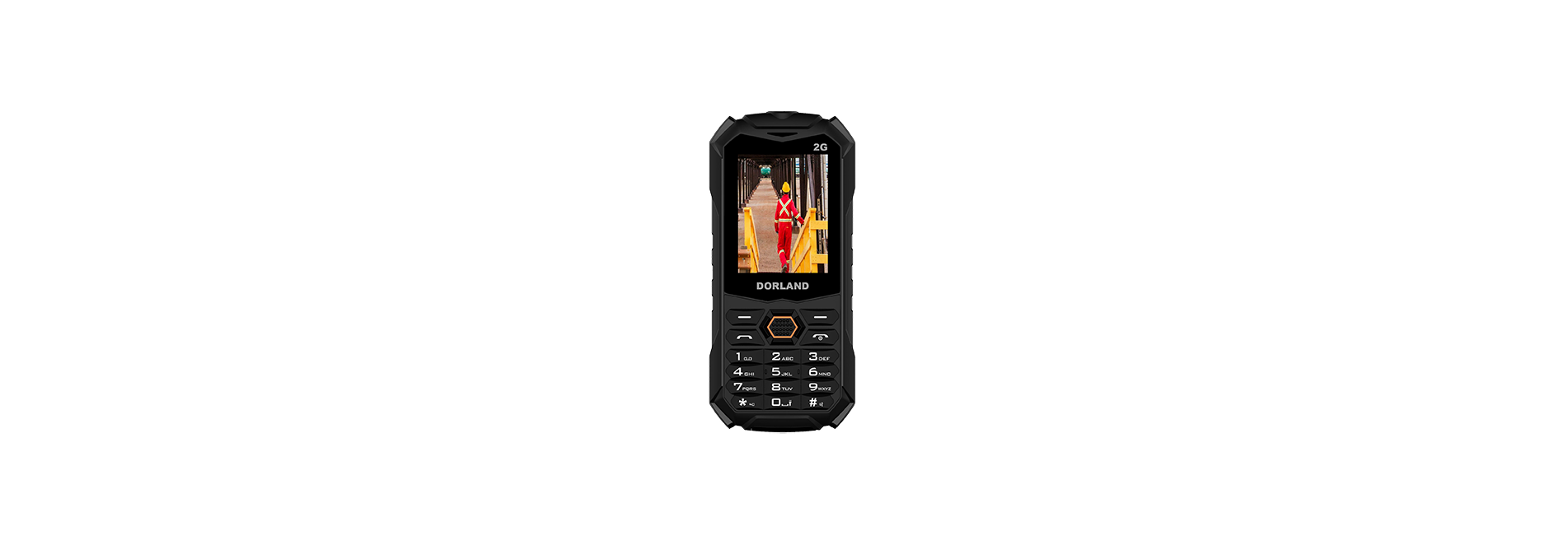

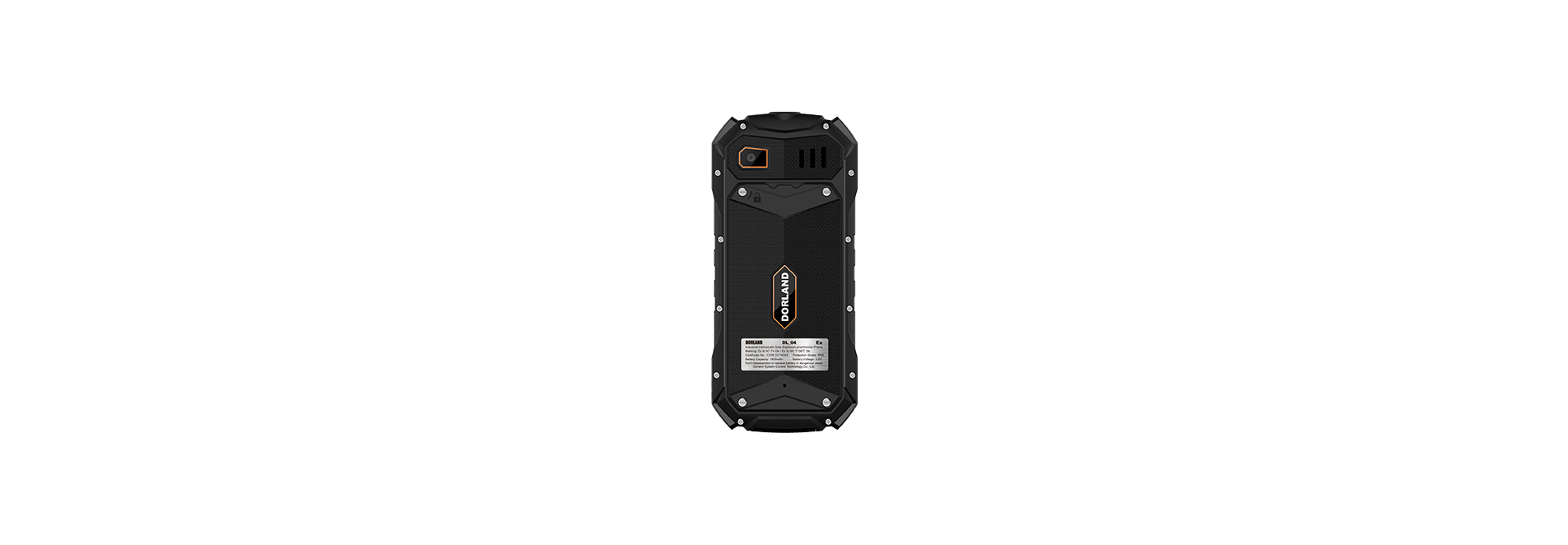

DORLAND Industrial Intrinsically Safe Mobile Phone DL_04_2G

Marking:Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

Certificate No.:CCRI 23.7424X

Protection Grade:IP68

Battery capacity:1800mAh

Product Introduction
Technical Parameters
Product Certificate
Product Report

DORLAND System Control Technology Co., Ltd. recently introduced the intrinsically safe smartphone DL_04_2G. It adopts advanced technology, intrinsically safe circuit design, domineering appearance and solid body. The mobile phone adopts 2.4 inch screen, equipped with 0.08m pixel camera at the rear. Its waterproof and dustproof performance meets the international IP68 standard.

In addition, the phone supports Bluetooth，suitable for outdoor construction and pipeline inspection. It can cooperate with office, data acquisition and other applications. Especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, military, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Marking:

Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db
Certificate No.:

CCRI 23.7424X
Protection Grade:

IP68
CPU:

Spreadtrum SC6531E
Screen:

2.4 inches, QVGA, TFT, 240*320 pixels
Frequency:

GSM850/ 900/1800/1900 MHz(global version)
Memory:

32MB RAM + 32MB ROM
Storage Card:

micro SD, max 32GB, generally suggest with 16GB
Cameras:

0.08MP
Battery capacity:

1800mAh
Battery voltage:

3.7V
Battery voltage:

Up to 340H
Battery voltage:

Up to 6H
Size:

137.8*62.8*17.5mm
Weight:

268g
SIM card:

2* Nano SIM card
Headphone jack:

3.5mm
Data connection port:

Type C
Bluetooth:

supports BT2.1

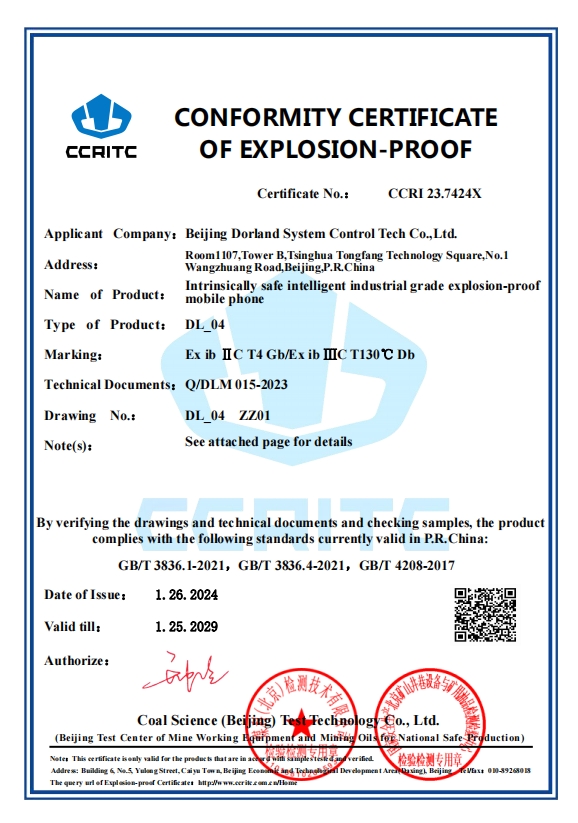

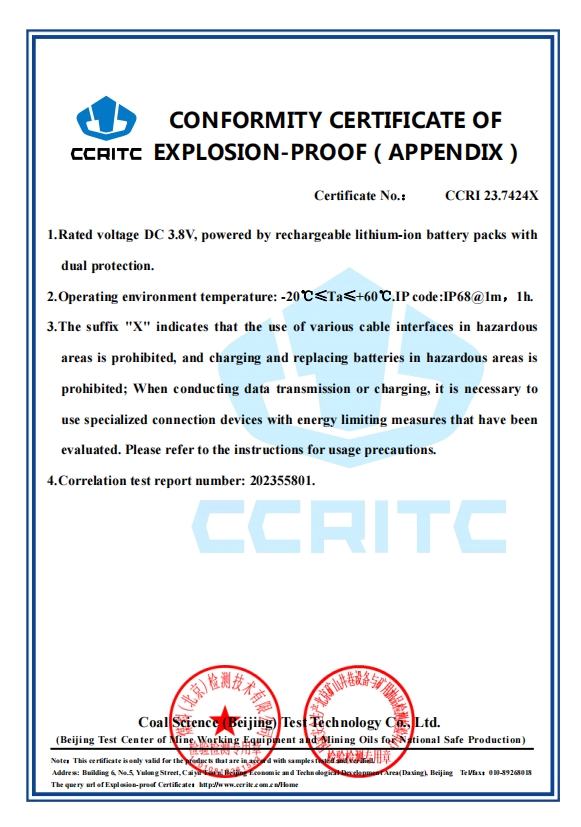

DL_04 Certificate EN
