DL_04 4G

DORLAND Industrial Intrinsically Safe Mobile Phone DL_04 4G

Marking:Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

Certificate No.:CCRI 23.7424X

Protection Grade: IP68

Battery capacity: 1800mAh

Product Introduction
Technical Parameters

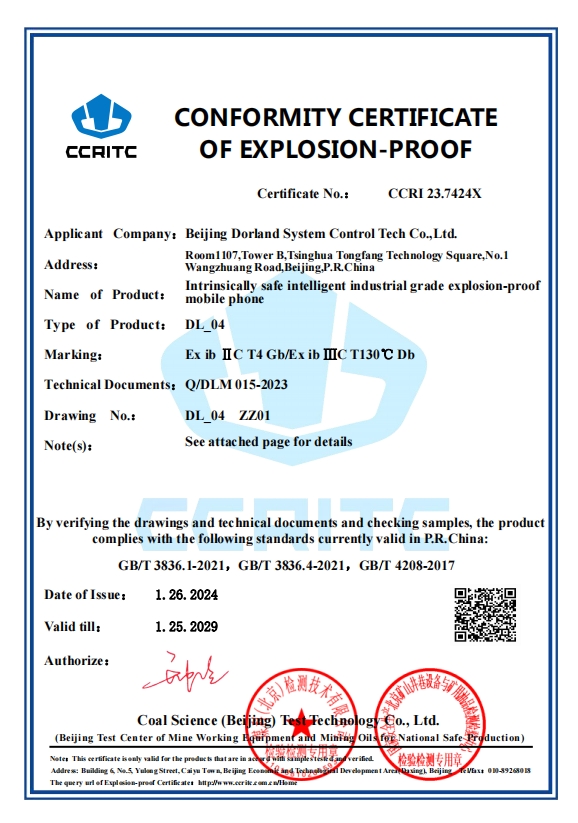

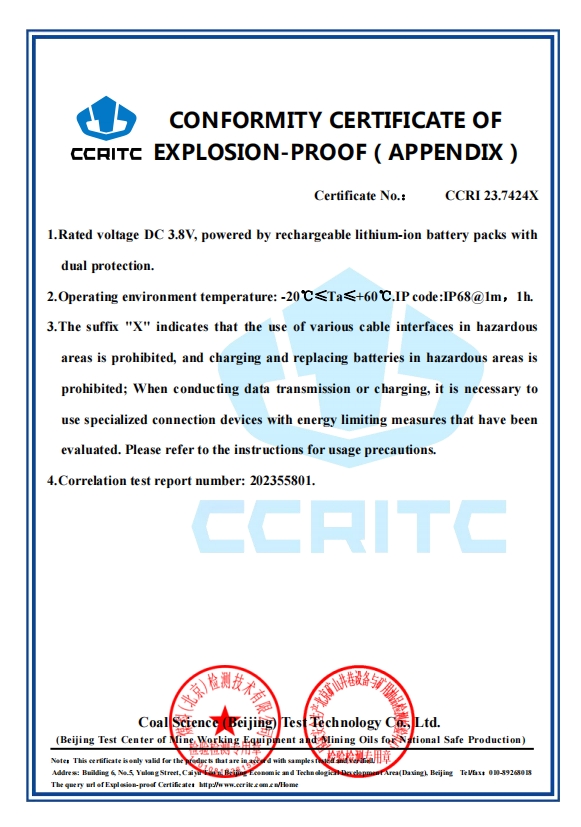

Product Certificate
Product Report

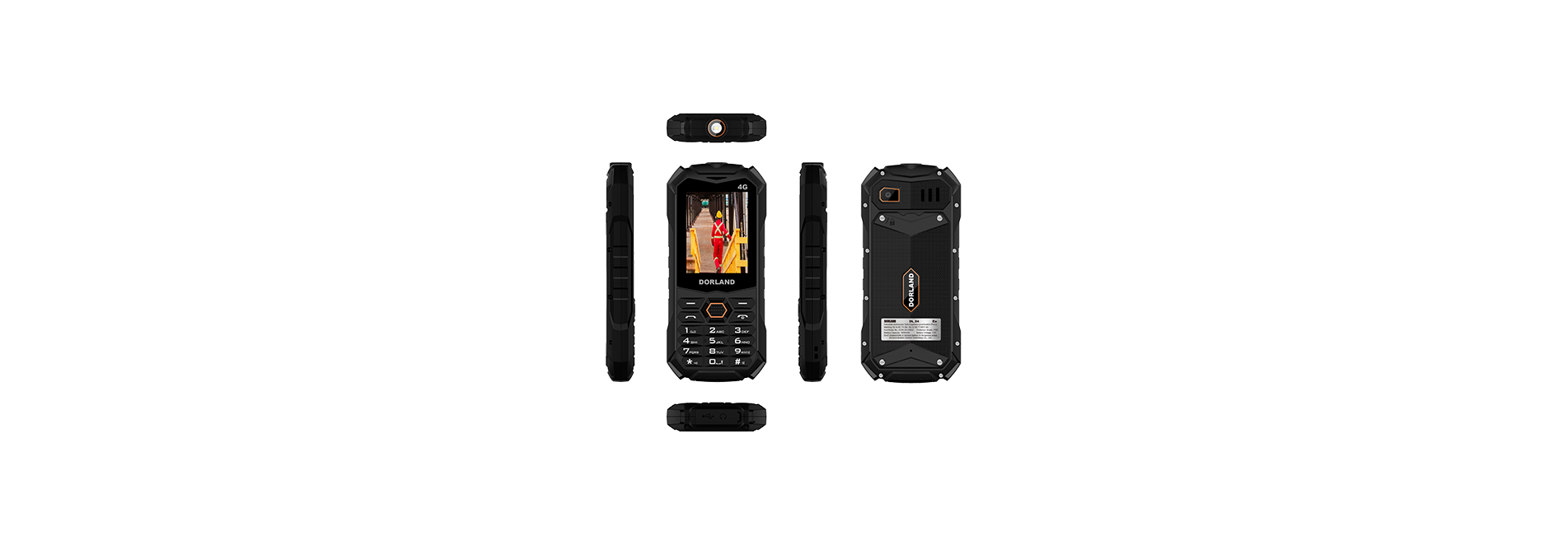

DORLAND System Control Technology Co., Ltd. recently introduced the intrinsically safe smartphone DL_04_4G. It adopts advanced technology, intrinsically safe circuit design, domineering appearance and solid body. The mobile phone adopts 2.4 inch screen, equipped with 0.08m pixel camera at the rear. Its waterproof and dustproof performance meets the international IP68 standard.

In addition, the phone supports Bluetooth，suitable for outdoor construction and pipeline inspection. It can cooperate with office, data acquisition and other applications. Especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, military, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Marking:

Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db
Certificate No.:

CCRI 23.7424X
Protection Grade:

IP68
CPU:

Spreadtrum Unisoc T107
Screen:

2.4 inches, QVGA, TFT, 240*320 pixels
Frequency:

GSM850/ 900/1800/1900 MHz, WCDMA 850/1700/1900/2100, FDD B2/4/5/7/8/12/17/28AB Or WCDMA 850/900/1900/2100, FDD B1/3/5/7/8/20 TDD38/40/41
Memory:

48Mb+128Mb
Storage Card:

micro SD, up to 32GB
Cameras:

0.08MP
Battery capacity:

1800mAh
Battery voltage:

3.7V
Battery voltage:

Up to 340H
Battery voltage:

Up to 6H
Size:

137.8*62.8*17.5mm
Weight:

268g
SIM card:

2* Nano SIM card
Headphone jack:

3.5mm
Bluetooth:

supports BT2.1
