EX-DT60

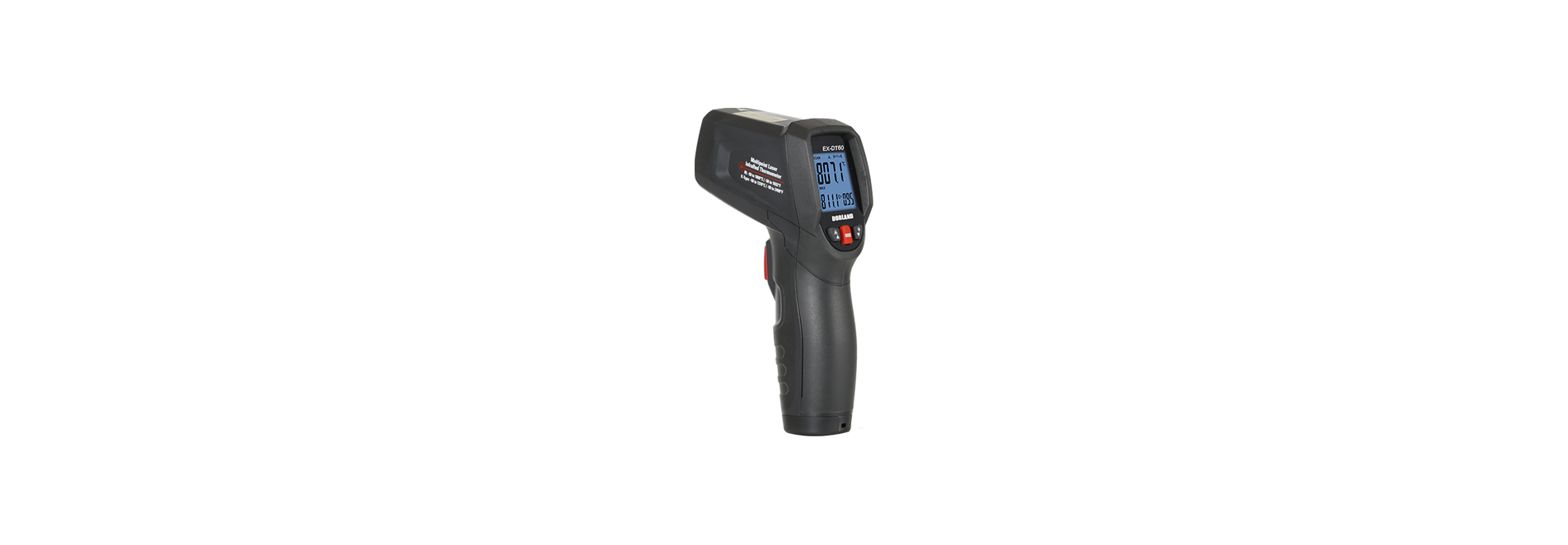

Dorland intrinsically safe industrial class two-in-one ring laser infrared thermometer EX-DT60

IP Grade：IP54

Ex-Marking：Ex ib ⅡC T4 Gb/Ex ib ⅢC T130 ℃ Db

Certification No.：CCRI 23.7627

Infrared temperature range：-50.0℃~1000.0℃/(-58.0~1832.0)℉

Product Introduction
Technical Parameters

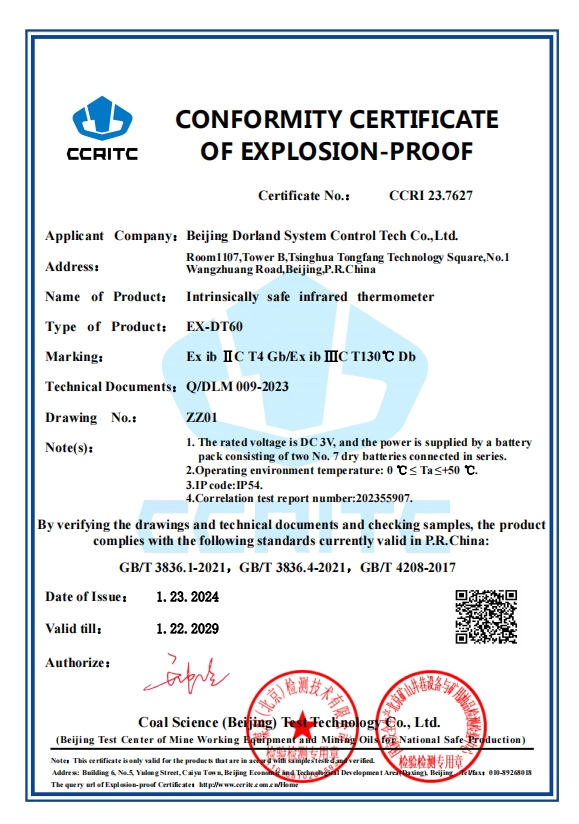

Product Certificate
Product Report

Beijing Dorland System Control Technology Co., Ltd. launched the latest intrinsically safe industrial class two-in-one ring laser infrared thermometer EX-DT60, double injection molding case, IP54 waterproof and dustproof, can adapt to the harsh industrial infrared temperature measurement environment. In addition, it can also cooperate with OA office system, inspection and positioning system, data acquisition system and other applications. Especially suitable for the harsh environment of dangerous explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank area and other dangerous places with flammable and explosive gas, to facilitate users to communicate with production and scheduling.

Ex-Marking：

Ex ib IIC T4 Gb/Ex ib IIIC T130℃ Db
Certification No.：

CCRI 23.7627
IP Grade：

IP54
Response time:

Response time less than 150 milliseconds
Temperature measurement method:

Non contact precise temperature measurement
Drop test:

2 meter drop test
Reading Record:

Automatically record readings
Emissivity:

0.1~1.0, different emissivity can be selected based on different targets
Display method:

Maximum/minimum/difference/mean temperature display
Resolution:

0.1℃(0.1℉） <1000，1℃（1℉） >1000
Size：

170*50*95mm
Weight：

248g
Infrared temperature range:

-50.0℃~1000.0℃/(-58.0~1832.0)℉
Data retention:

Support
Automatic shutdown:

Support
Automatic shutdown:

Support
Excessive backlight and sound and light alarm:

Support
Over range indication:

Support
MAX，MIN，DIF，AVG display

Support
