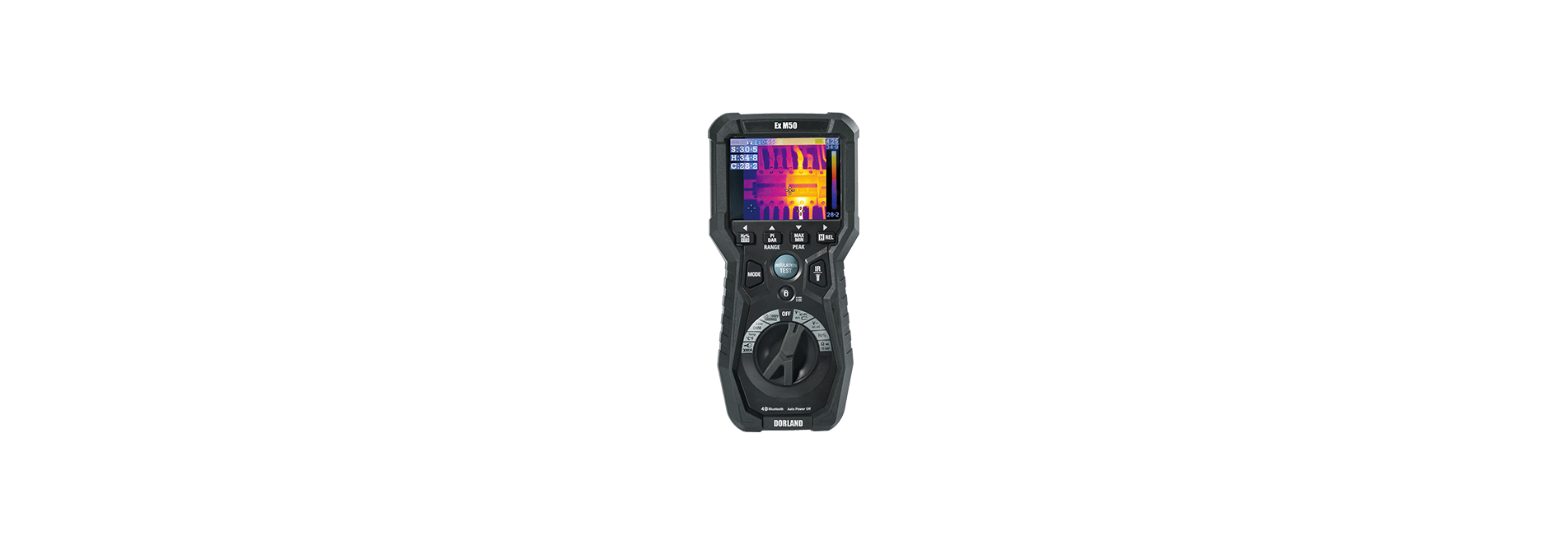

Industrial Intrinsically Safe Three in One Thermal Imager Universal Insulation Meter Ex M50

Application scenario:Integrating thermal imaging functions to quickly detect the temperature of power equipment and diagnose anomalies

IP Grade:IP67

Screen:320 * 240 3.5-inch TFT color display screen, easy to observe test data and images

Trend capture function:The trend capture function is easy to timely review historical test data

Beijing Dorland System Control Technology Co., Ltd, has recently launched an intrinsically safe industrial grade three in one thermal imager multimeter, which has three major functions: thermal imager temperature measurement, multimeter function, and insulation testing.Industrial grade 6000 bit display digital, 3.5-inch color TFT LCD display screen, fast A/D sampling, precise measurement, dual injection molded shell design, safe and durable, Bluetooth communication convenient for on-site timely recording and transmission of measurement scenarios and data, high-precision measurement, and the three in one function also liberates users from the toolkit.In addition, it is also suitable for outdoor construction, pipeline inspection, etc., and can be used in conjunction with various applications such as OA office systems, inspection positioning systems, data collection systems, etc, Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank areas, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users and production and scheduling.

IP Grade：

IP67
Usage scenario:

Integrating thermal imaging functions to quickly detect the temperature of power equipment and diagnose anomalies
Screen:

320 * 240 3.5-inch TFT color display screen, easy to observe test data and images
Display:

6000 display digits
Insulation resistance test range:

125KQ-5000MQ
Insulation voltage test range:

125V,250V,500V,1000V
Measurement method:

TRMS measurement of AC/DC true RMS, making measurement more accurate
Recording method:

Measurement and recording of maximum, minimum, and mean with time labels
Bluetoorh:

With Bluetooth communication, it can connect to professional apps
Resolution of thermal imager:

80x80 pixels
Infrared imaging temperature range:

-20 to 260°C
Color palette:

Iron Red/Rainbow/Grey White/White Grey
Measurement accuracy:

±3℃ or ±3%
Voltage range (DC):

Maximum range 1000V, resolution 100mV, basic accuracy ± (0.09%+5)
Voltage range (AC 45Hz~1KHz):

Maximum range 1000V, resolution 100mV, basic accuracy ± (0.8%+5)
Current range (DC):

Maximum range 10A, resolution 0.1 μ A. Basic accuracy ± (0.9%+5)
Current range (AC):

Maximum range 10A, resolution 0.1 μ A. Basic accuracy ± (1.2%+5)
Resistance range:

Maximum range 60M Ω, resolution 0.1 Ω, basic accuracy ± (0.5%+5)
Capacitance range:

Maximum range 6000uF, resolution 0.01nF, basic accuracy ± (1.2%+8)
频率量程：

Maximum range 10kHz, resolution 0.01Hz, basic accuracy ± (0.09%+5)
3000A flexible clamp probe:

Optional
Diode and continuity measurement:

Support
Insulation testing function:

Terminal voltage 125V (0%~10%), range 0.250~60.00G Ω, resolution 0.001 M Ω, accuracy ± (2%+10)/terminal voltage 250V (0%~10%), range 0.250~60.00G Ω, resolution 0.001 M Ω, accuracy ± (2%+10)/terminal voltage 125V (0%~10%), range 0.500~60.00G Ω, resolution 0.001 M Ω, accuracy ± (2%+10)/terminal voltage 125V (0%~10%), range 1.000~60.00G Ω, resolution 0.001 M Ω, accuracy ± (3%+10)
Low resistance test:

Range 60m Ω, resolution 1 μ Ω, error ± (0.25%+25) μ Ω)/measuring range 600m Ω, resolution 10 μ Ω, error ± (0.25%+250) μ Ω)/Range 6 Ω, Resolution 100 μ Ω, error ± (0.25%+2.5m Ω)/range 60 Ω, resolution 1m Ω, error ± (0.25%+25m Ω)
Low resistance test:

Range 60m Ω, resolution 1 μ Ω, error ± (0.25%+25) μ Ω)/measuring range 600m Ω, resolution 10 μ Ω, error ± (0.25%+250) μ Ω)/Range 6 Ω, Resolution 100 μ Ω, error ± (0.25%+250) μ Ω)
Product size:

210*97*68mm
Weight:

634g
