XPad_08 5G

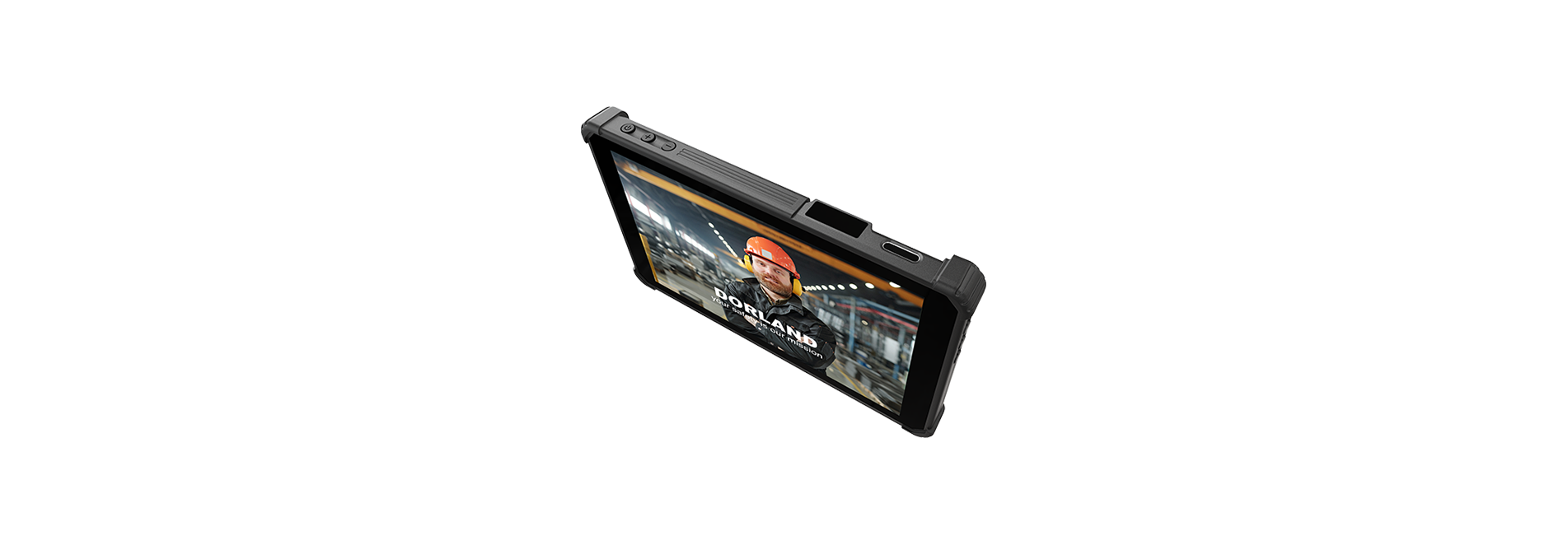

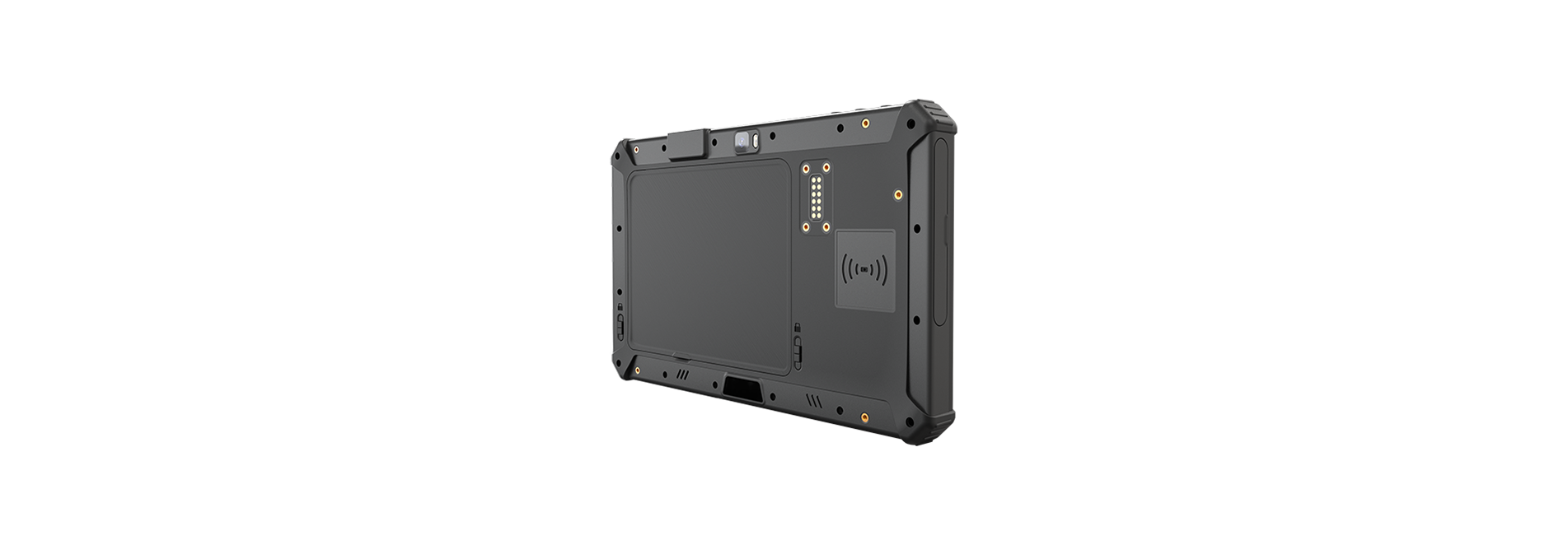

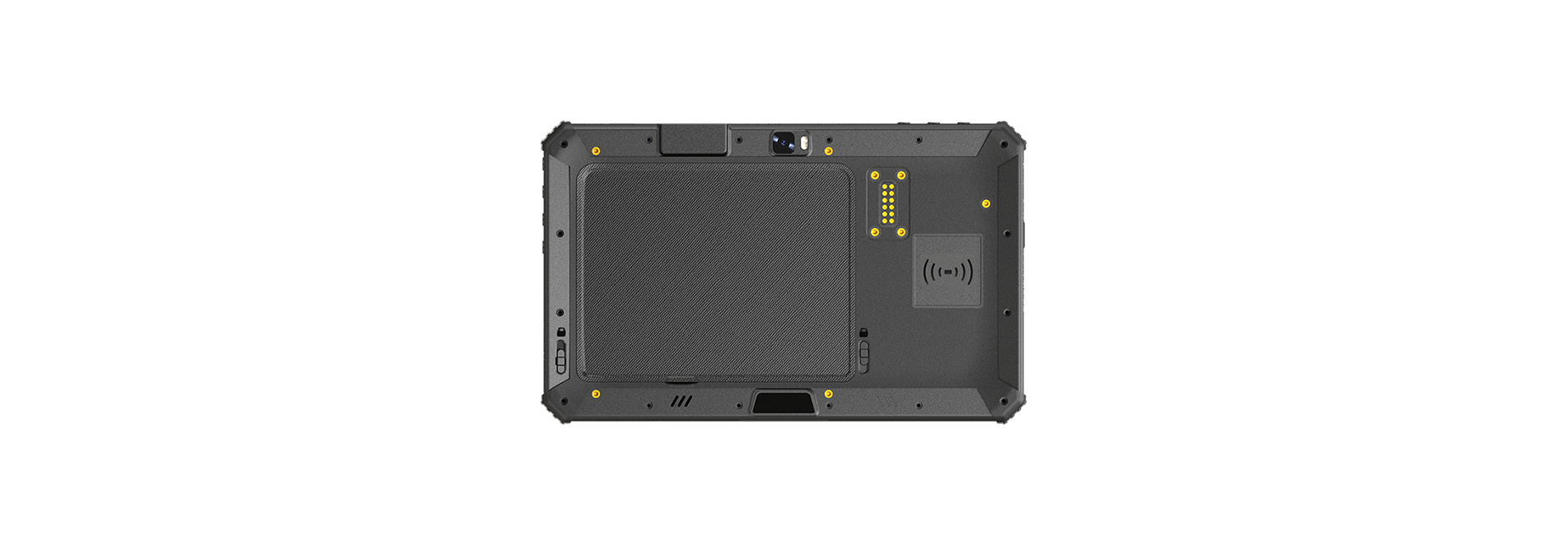

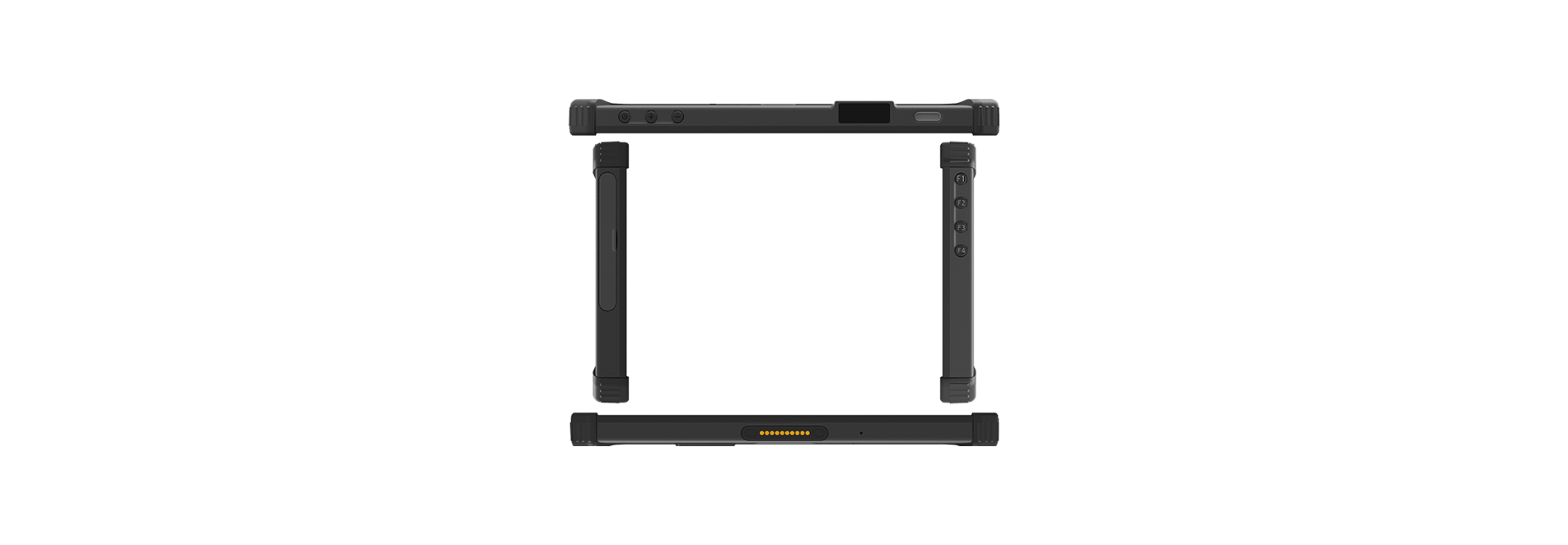

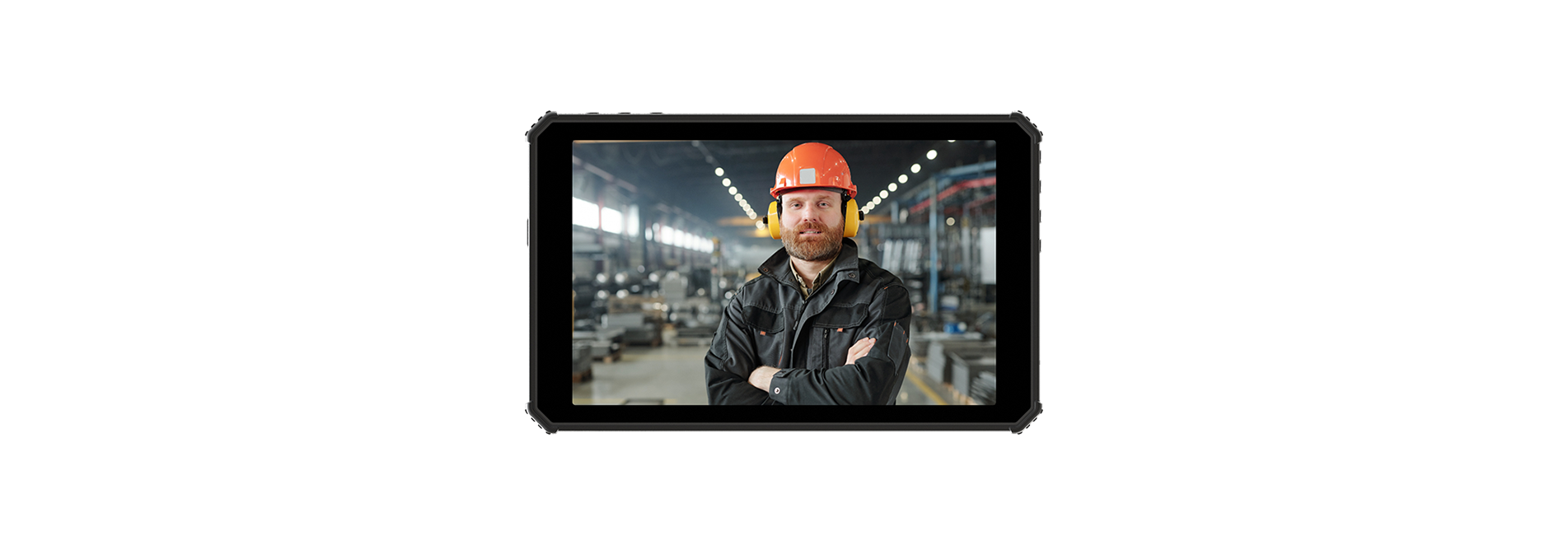

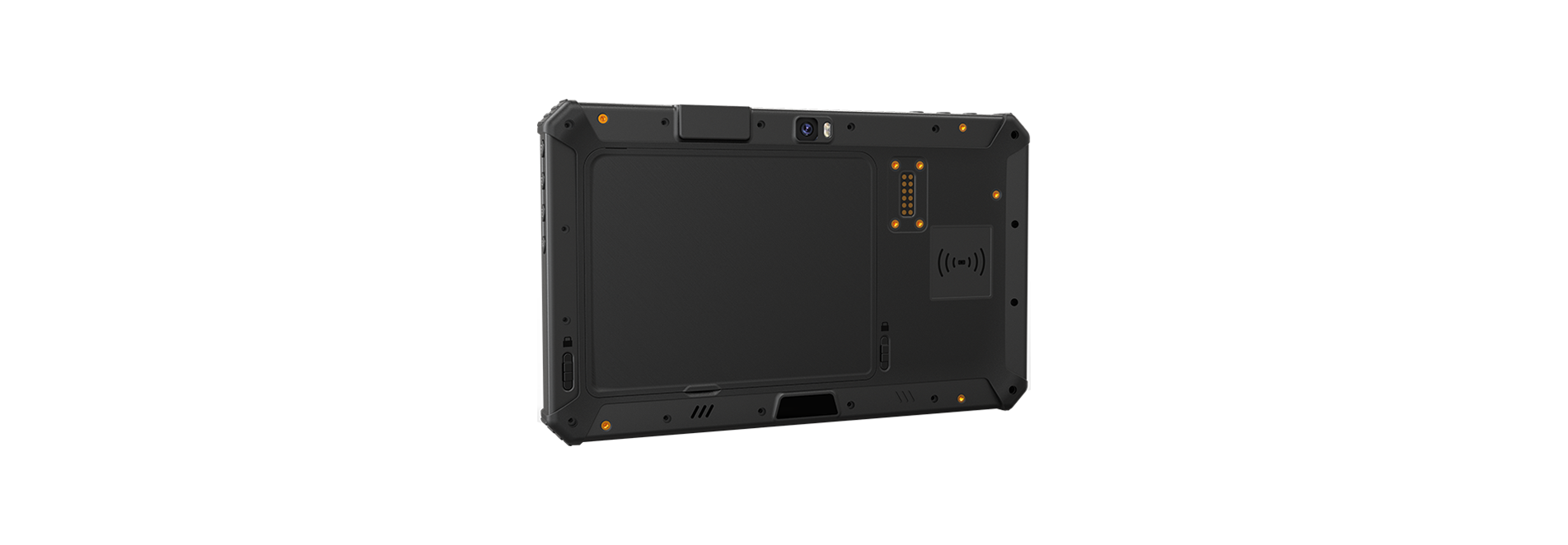

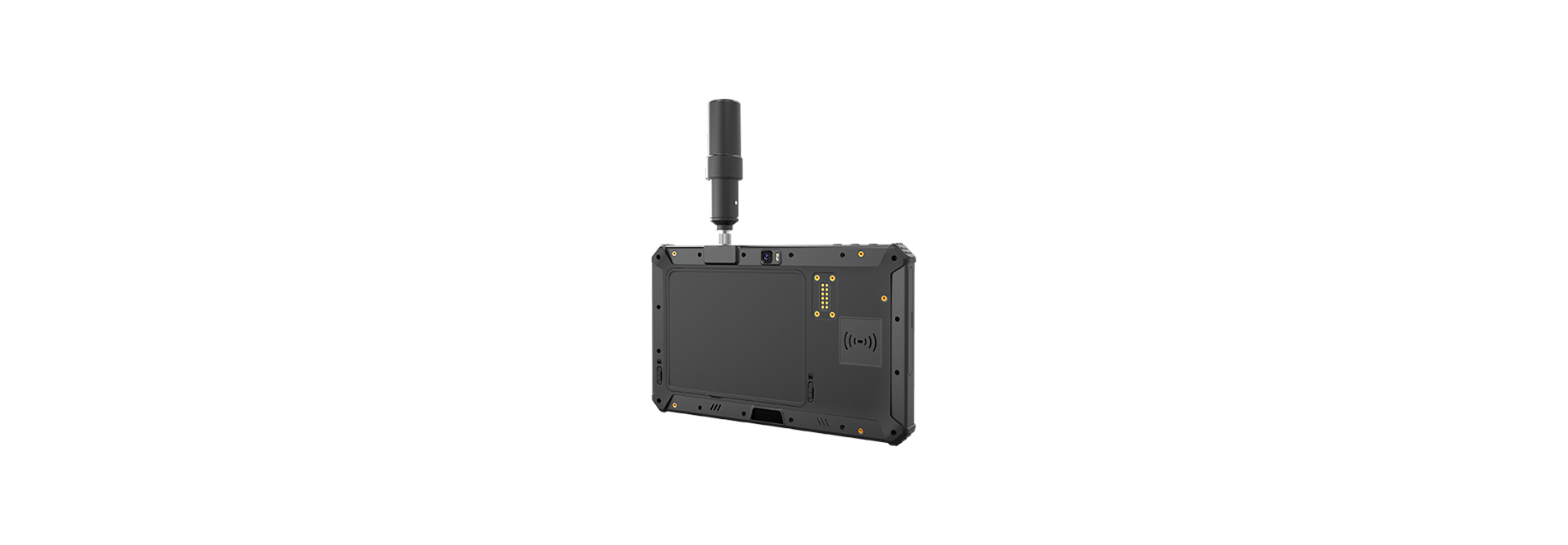

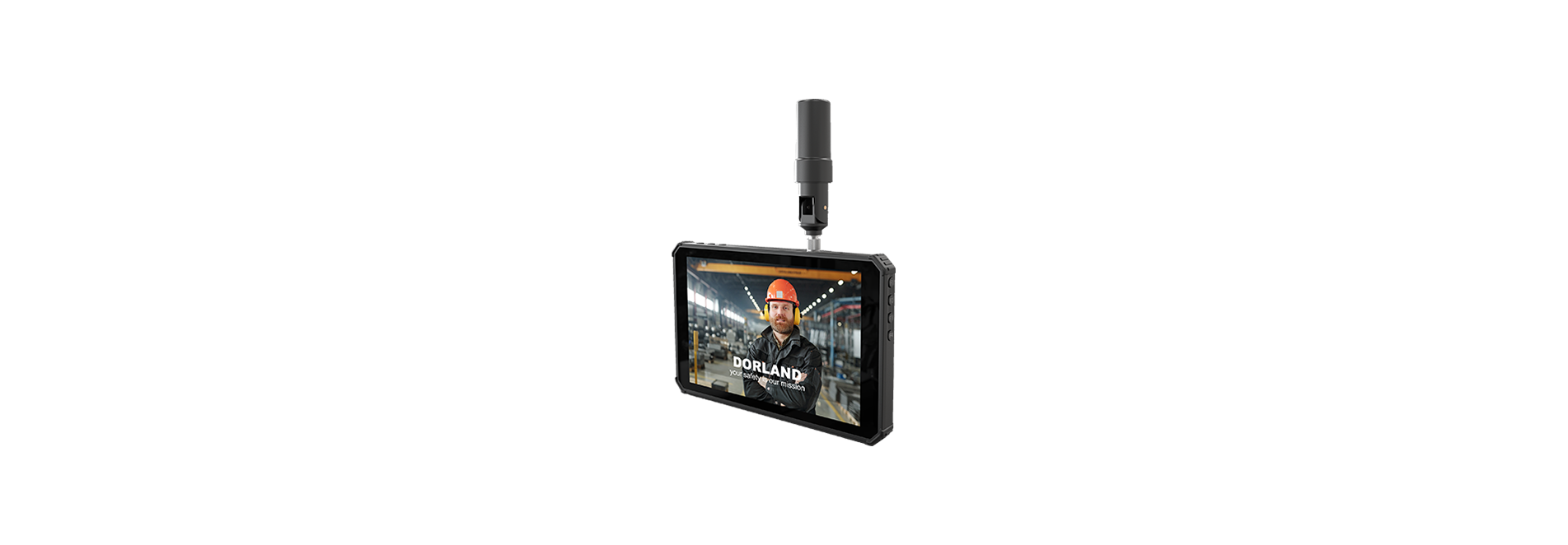

DORLAND Industrial Intrinsically Safe 5G Tablet PC/Pad XPad_08 5G

Marking: Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

IP Grade: IP67

OS: Android 13.0

CPU:Qualcomm QCM6490 1*A78 2.7GHz+3*A78 2.4GHz+4*A55 1.9GHz

Product Introduction
Technical Parameters
Product Certificate
Product Report

Developed by Beijing Dorland System Control Technology Co., LTD., the industrial explosion-proof Pad XPad_08 adopted advanced technology of Germany with intrinsically safe circuit, 8.0” touch screen and 8.0 Megapixel (Front Camera) 13 Megapixel (Rear Camera with Auto Focus) camera. Its waterproof and dustproof performance can meet the IP67 standards.

In addition, built-in GPS satellite system, elevation measurement, compass, and other functions suitable for outdoor construction and pipeline inspection. It can also cooperate with OA office system, checking positioning system and data acquisition system etc.. Especially it is used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas. It is convenient for users to dispatch communicate timely.

Marking:

Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

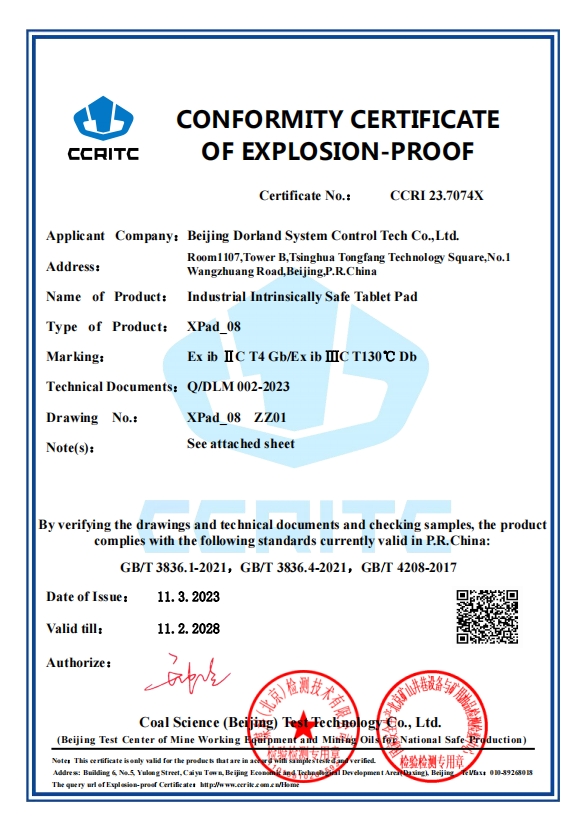

Certificate NO.:

CCRI 23.7074X
IP Grade:

IP67
OS:

Android 13.0
Screen:

8 inch 1200*800/1920*1200
Memory:

8GB RAM + 128GB ROM
T card:

support
CPU:

Qualcomm QCM6490 1*A78 2.7GHz+3*A78 2.4GHz+4*A55 1.9GHz
Cameras:

Front: 5.0MP + Rear: 13.0MP
Battery:

7000mAh
Frequency band:

EU: 5G-NR：N1/N3/N7/N8/N28/N38/N41/N77/N78/N79 LTE-FDD：B1/B2/B3/B5/B7/B8/B20/B26/B28 LTE-TDD：B38/B39/B40/B41 TD-WCDMA：B34/B39 WCDMA：B1/B3/B5/B8 GSM：B2/B3/B5/B8
Frequency band:

US： 5G-NR：N2/N5/N12/N25/N30/N38/N41/N48/N66/N71/N77/N78 LTE-FDD：B2/B4/B5/B7/B12/B13/B14/B17/B25/B29/B30/B46/B66/B71 LTE-TDD：B38/B41/B42/B43/B48 WCDMA：B2/B4/B5 GSM：B2/B3/B5/B8
Dimension:

209*130*13.9mm
Weight:

530g
Bluetooth:

BT5.2
WIFI:

802.11 a/b/g/n/ac/ax, 2.4GHz/5GHz, 2x2 MIMO
NFC:

support
GPS:

U-blox M8Q, Support: GPS, Glonass
