XPad_08

<
>

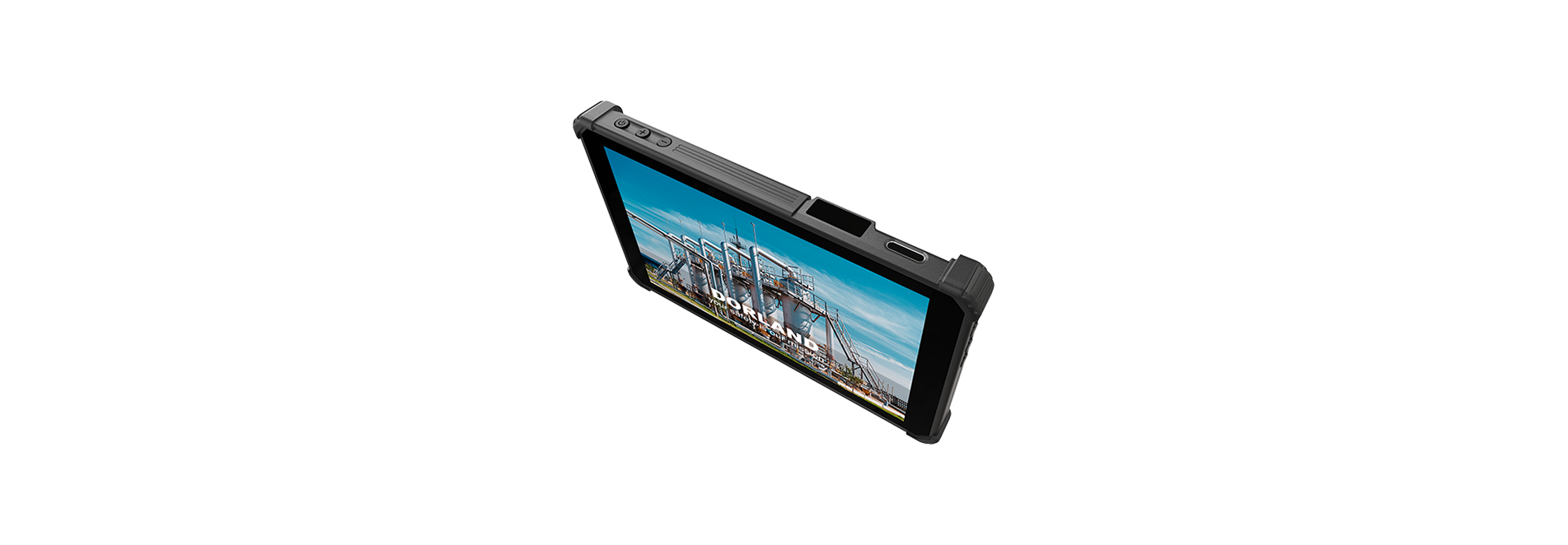

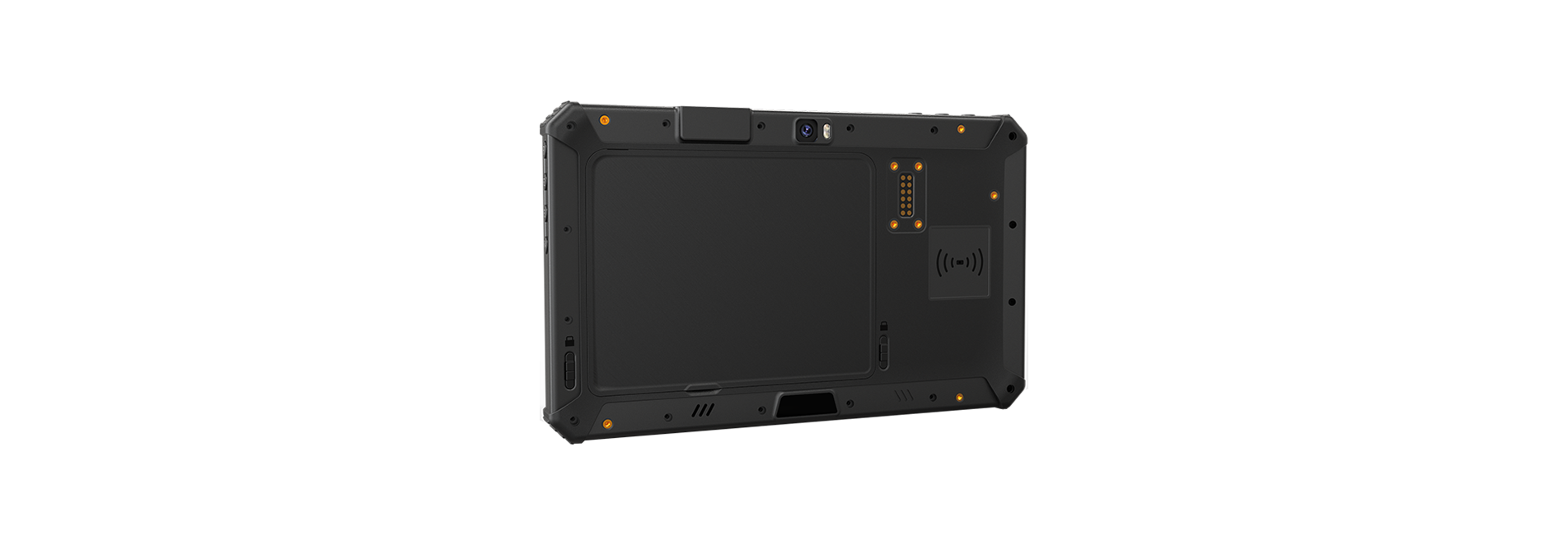

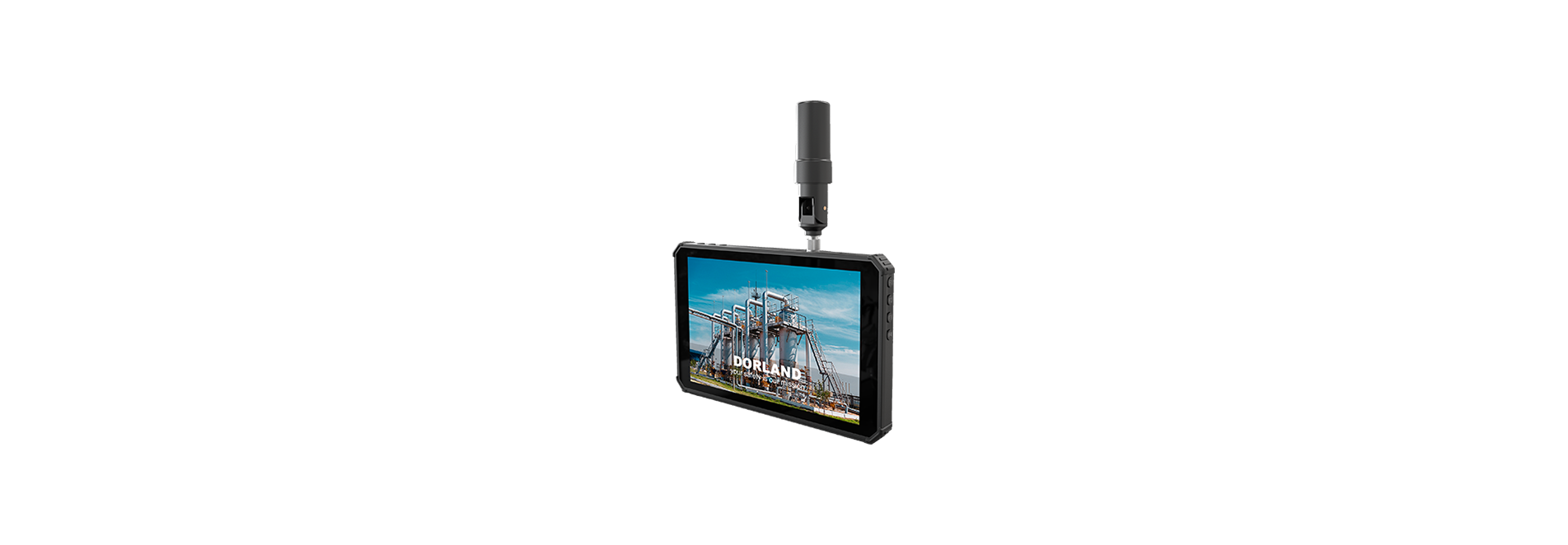

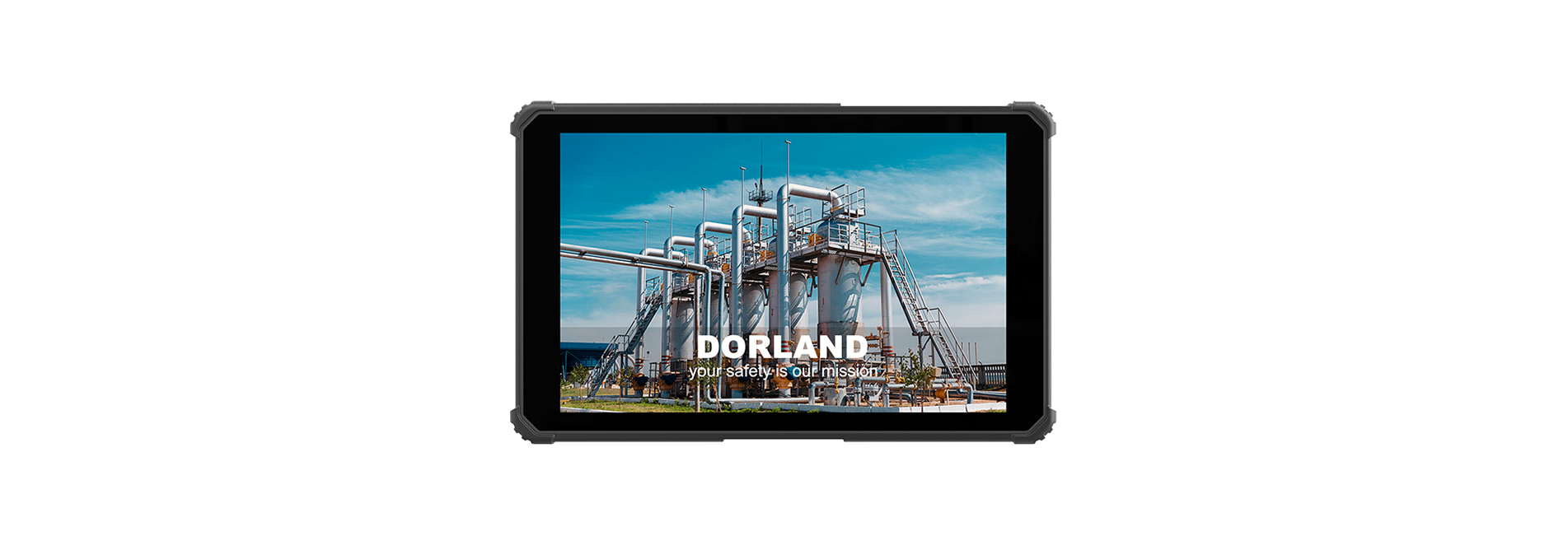

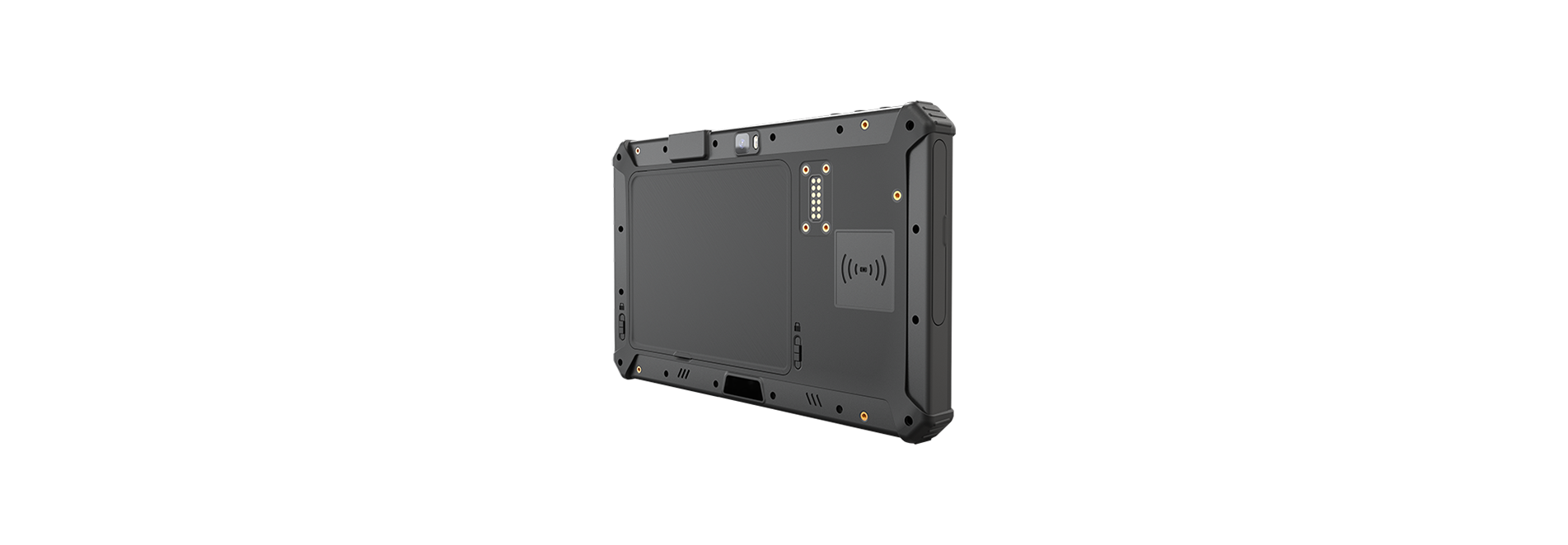

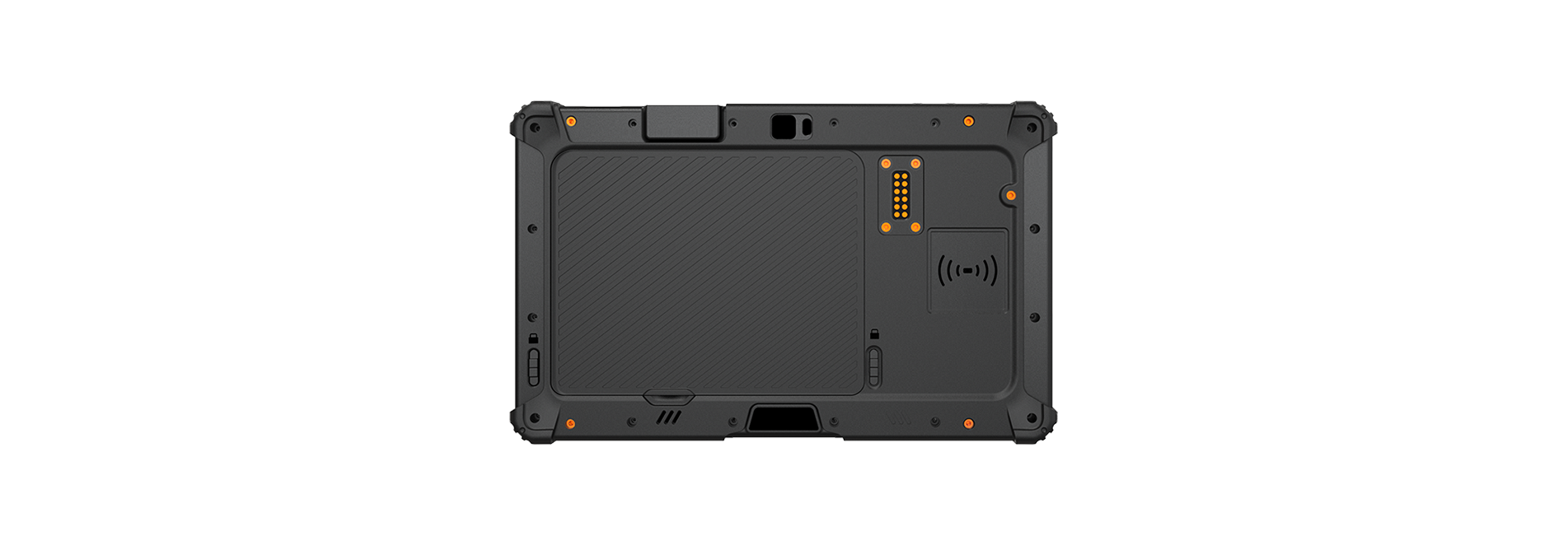

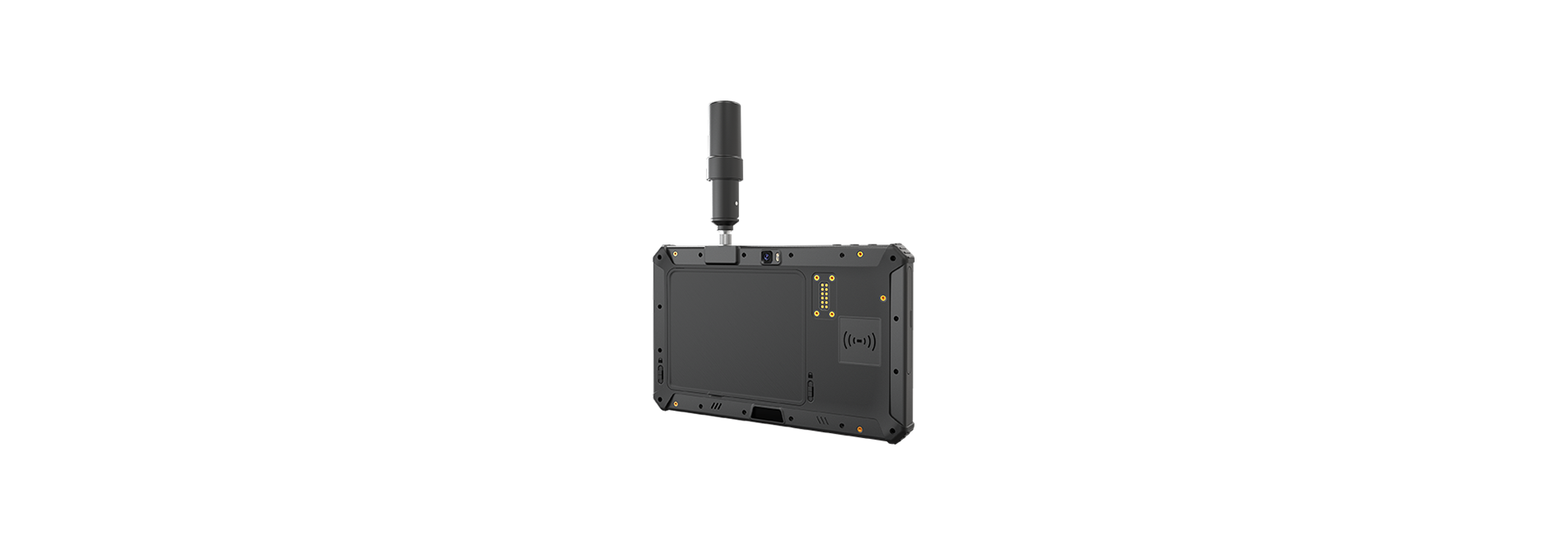

DORLAND Industrial Intrinsically Safe 4G Tablet PC/Pad XPad_08

Marking: Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

IP Grade:IP67

CPU: Qualcomm QCM6490 1*A78 2.7GHz+3*A78 2.4GHz+4*A55 1.9GHz

Battery: 7000mAh

Developed by Beijing Dorland System Control Technology Co., LTD., the industrial explosion-proof Pad XPad_08_4G adopted advanced technology of Germany with intrinsically safe circuit, 8.0” touch screen and 8.0 Megapixel (Front Camera) 13 Megapixel (Rear Camera with Auto Focus) camera. Its waterproof and dustproof performance can meet the IP67 standards.

In addition, built-in position system, elevation measurement, compass, and other functions suitable for outdoor construction and pipeline inspection. It can also cooperate with OA office system, checking positioning system and data acquisition system etc. Especially it is used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas. It is convenient for users to dispatch communicate timely.


  • Marking:

    Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

  • Certificate NO.:

    CCRI 23.7074X

  • IP Grade:

    IP67

  • OS:

    Android 10.0

  • Screen:

    8 inch 1200*800

  • Memory:

    4GB RAM + 64GB ROM

  • CPU:

    Qualcomm QCM6490 1*A78 2.7GHz+3*A78 2.4GHz+4*A55 1.9GHz

  • Cameras:

    Front: 8.0MP + Rear: 13.0MP

  • Battery:

    7000mAh

  • Frequency band:

    GSM:850/900/1800/1900 EVDO:BC0 WCDMA: B1/B2/B5/B8 TDD-LTE: Band38/Band39/Band40/Band41 FDD-LTE:Band1/Band2/Band3/band4/band5/Band7/band8/band17/band20/band28

  • Dimension:

    209*130*13.9mm

  • Weight:

    520g

  • Bluetooth:

    BT4.2

  • WIFI:

    802.11 a/b/g/n/ac, 2.4GHz/5GHz

  • NFC:

    support

  • Position system:

    GNSS UBlox M8N /high-precision GNSS Ublox F9P (Optional)

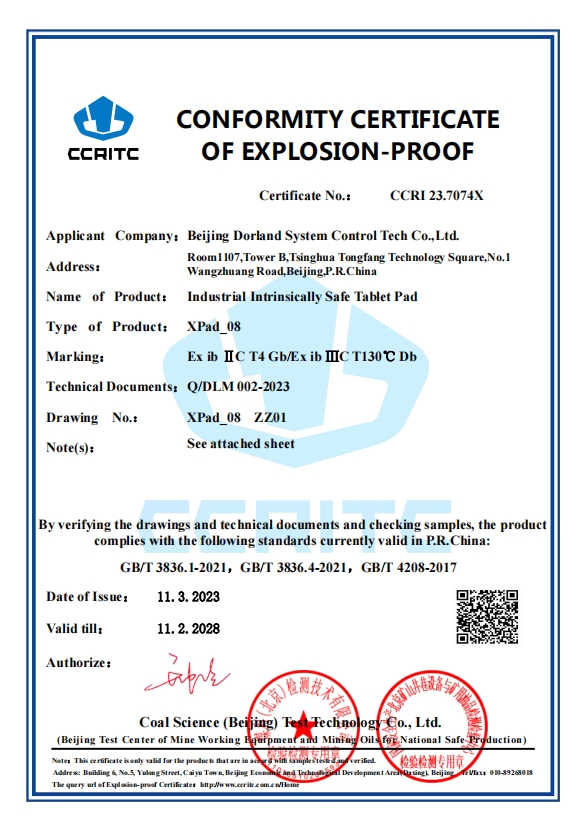

XPad_08 Ex proof Certificate EN

Download

XPad_08 Inspection Report

+ Download
+
