EX_08 PRO

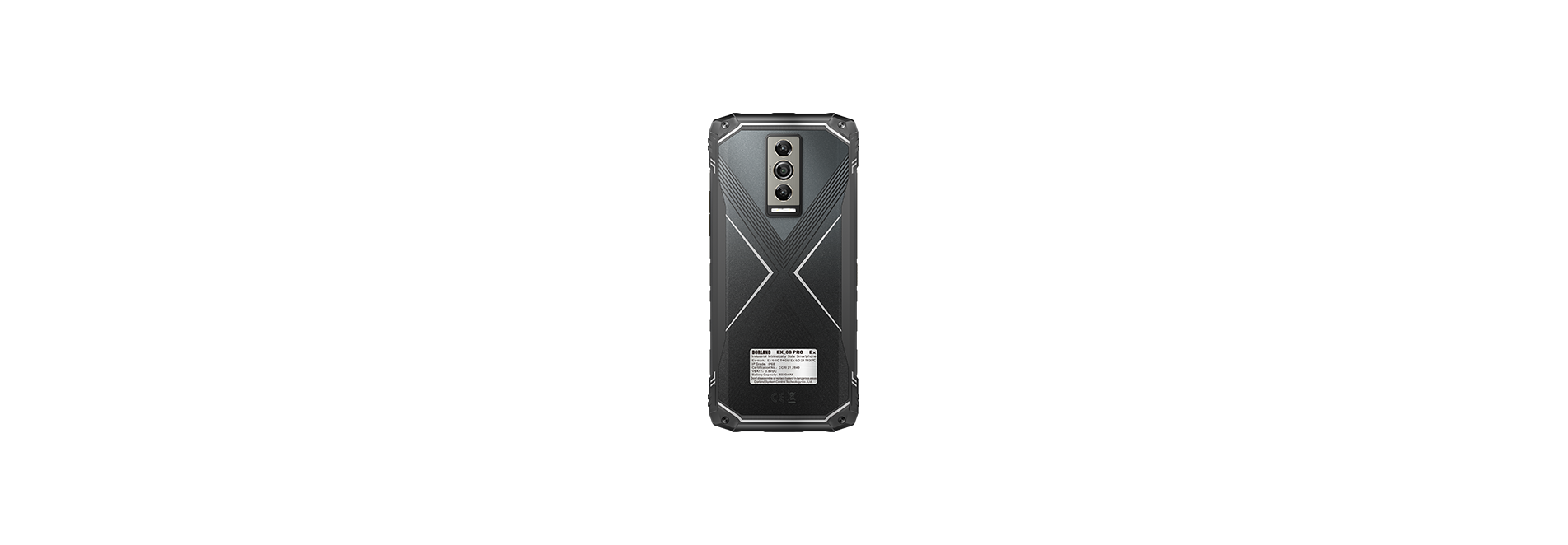

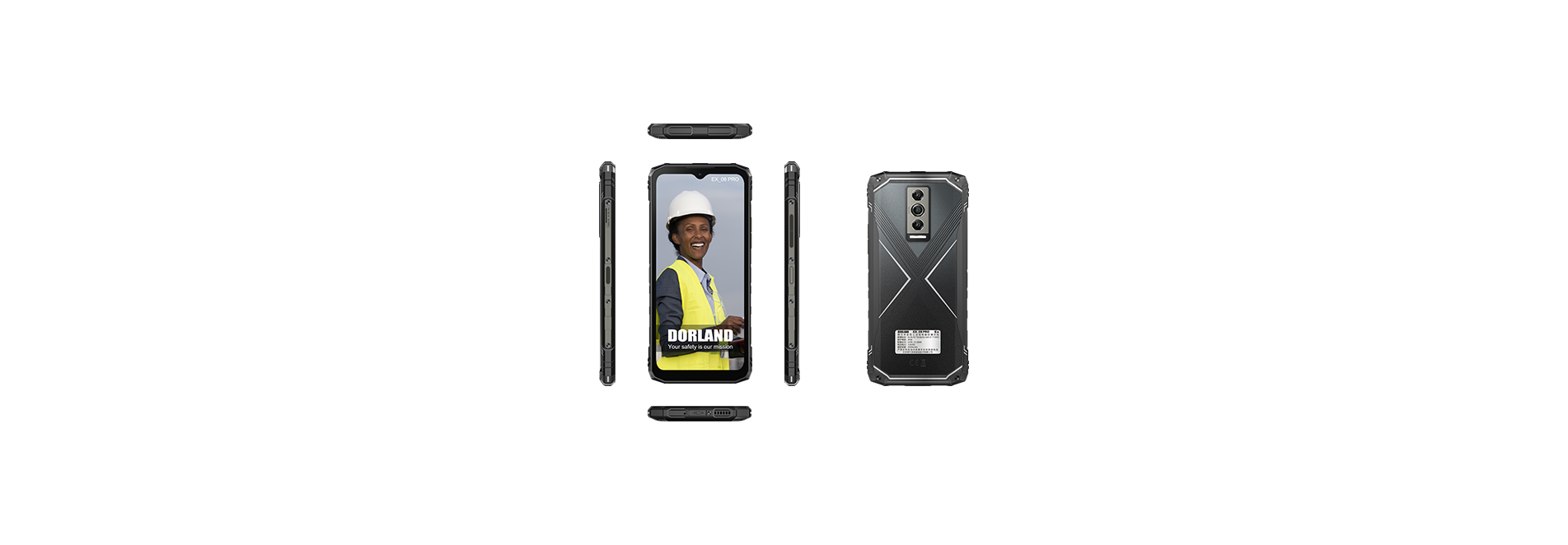

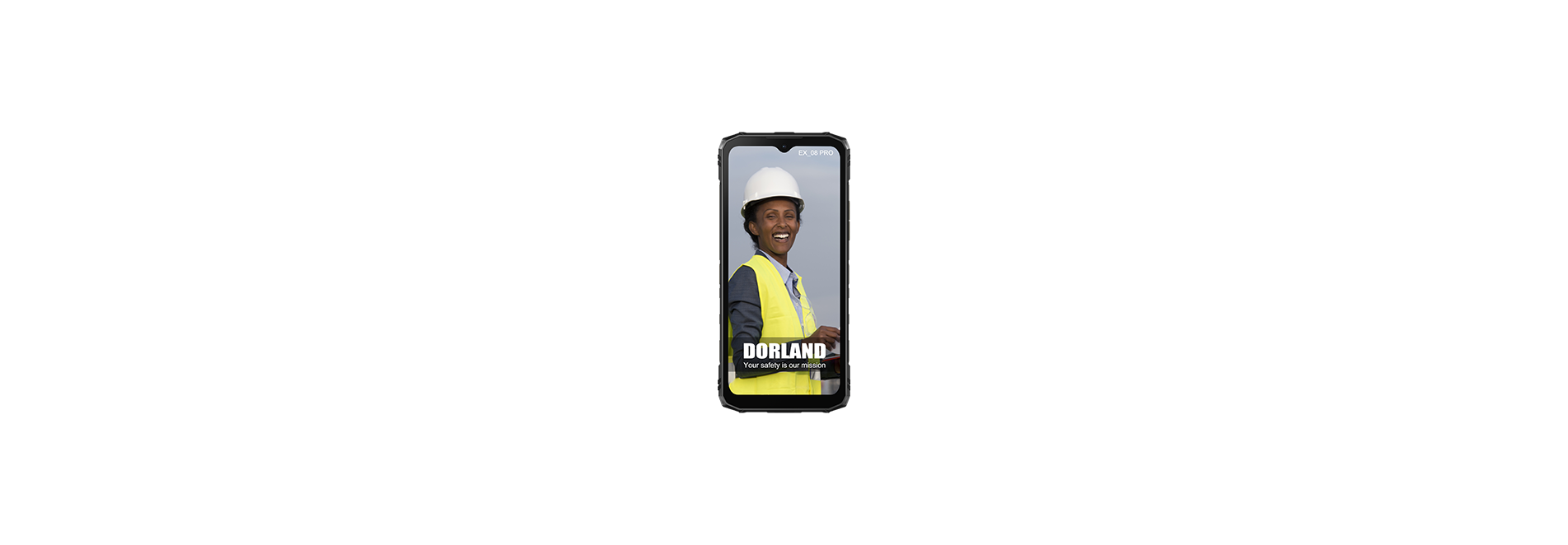

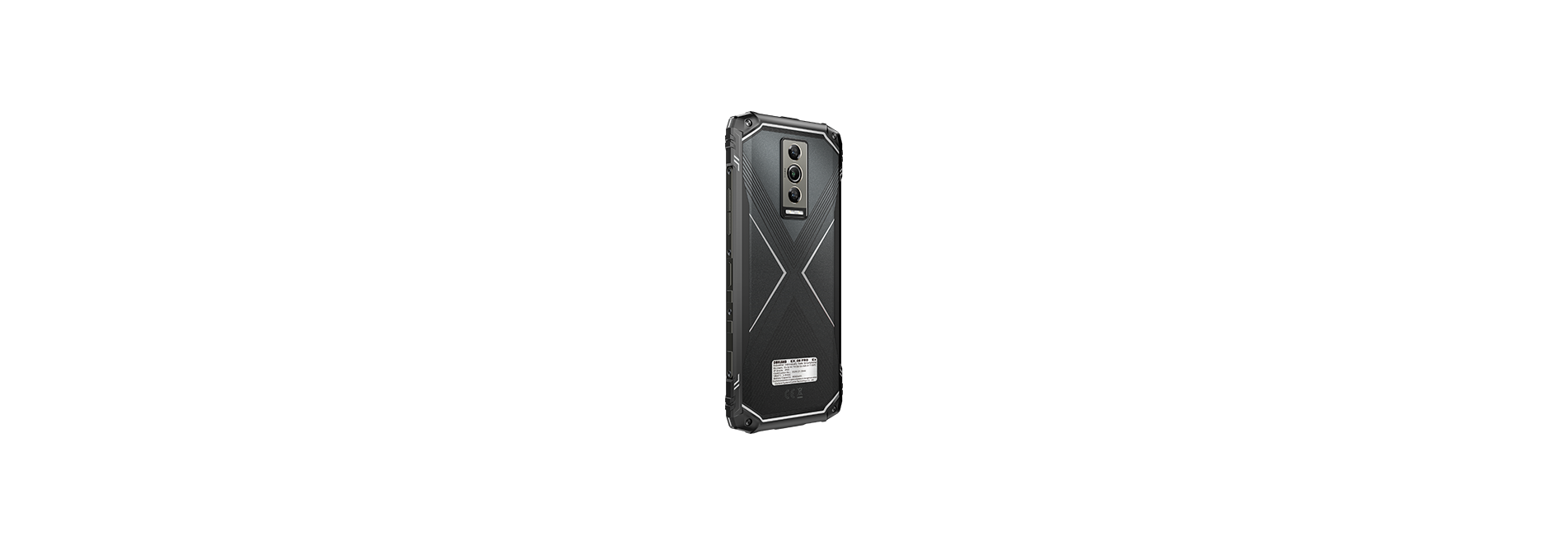

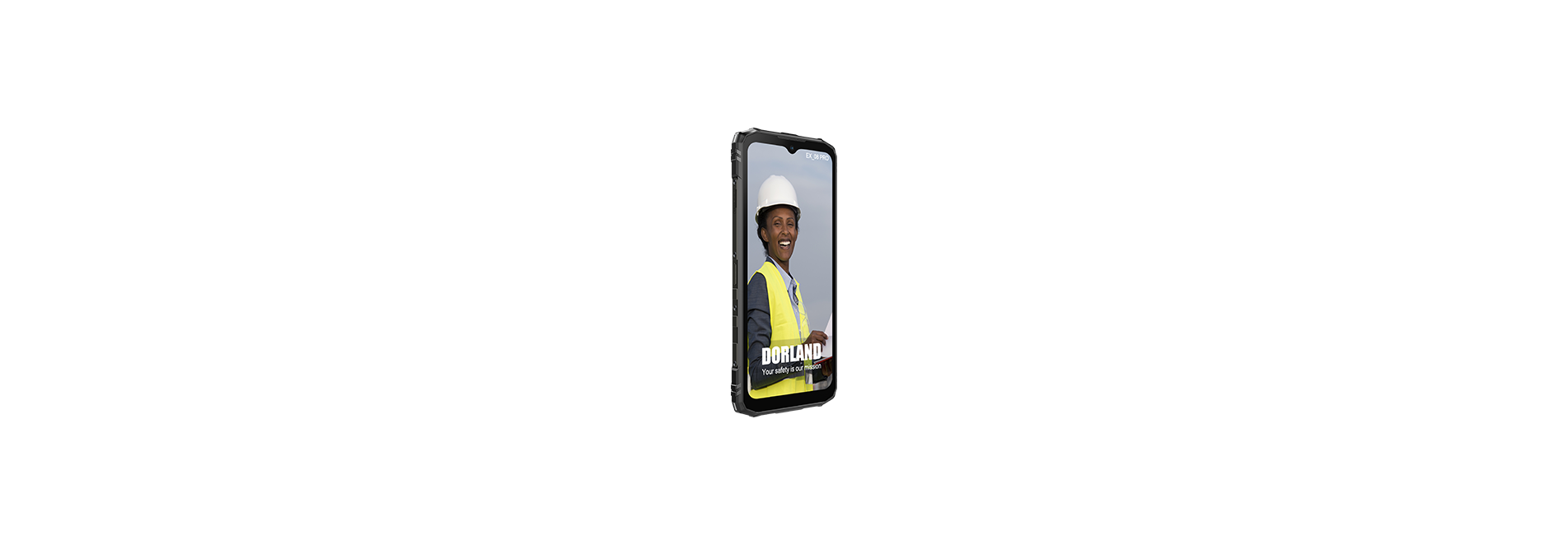

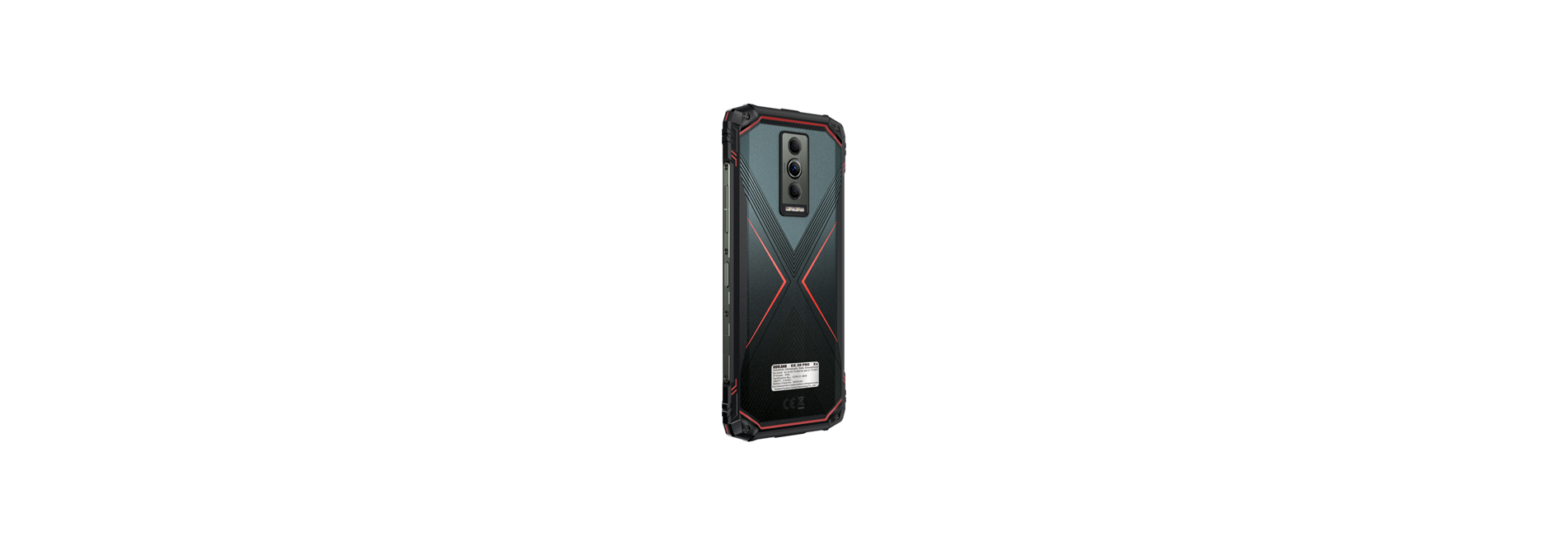

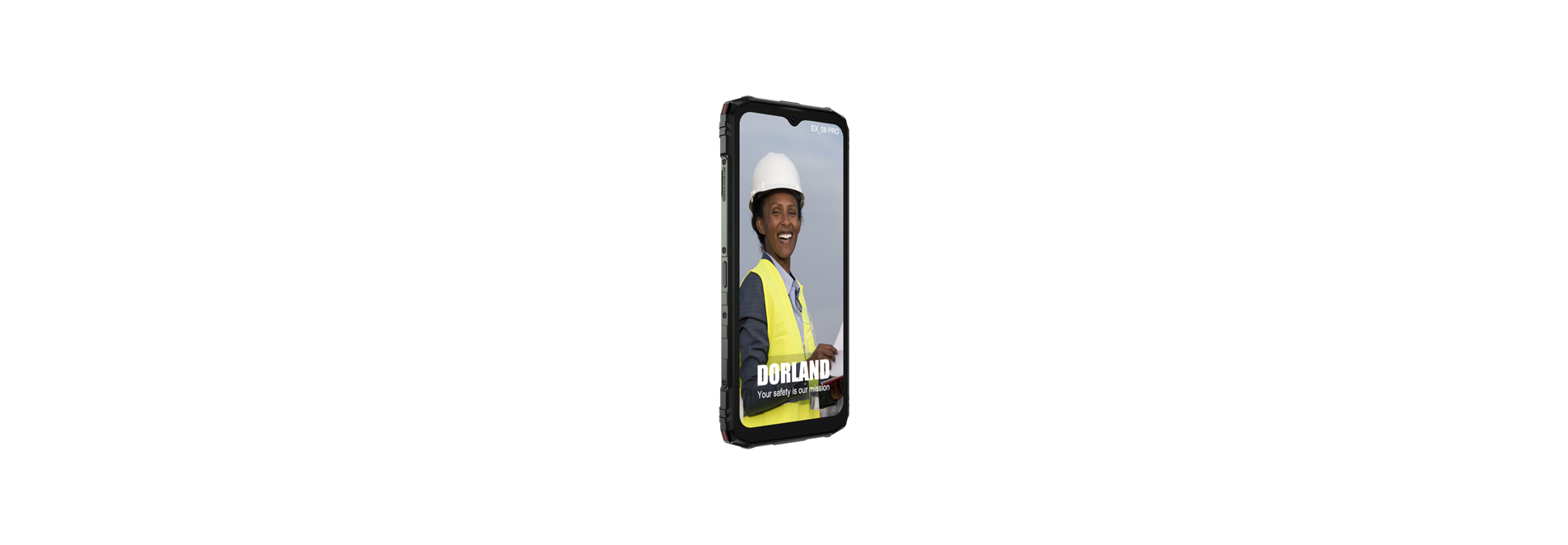

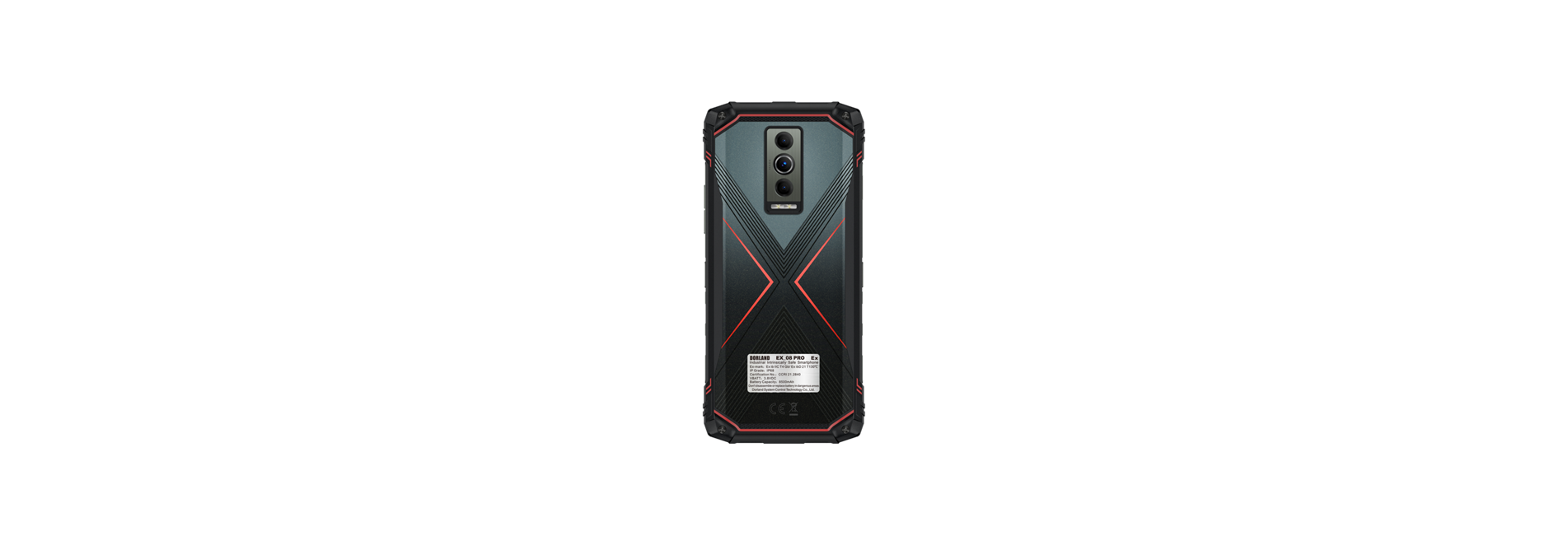

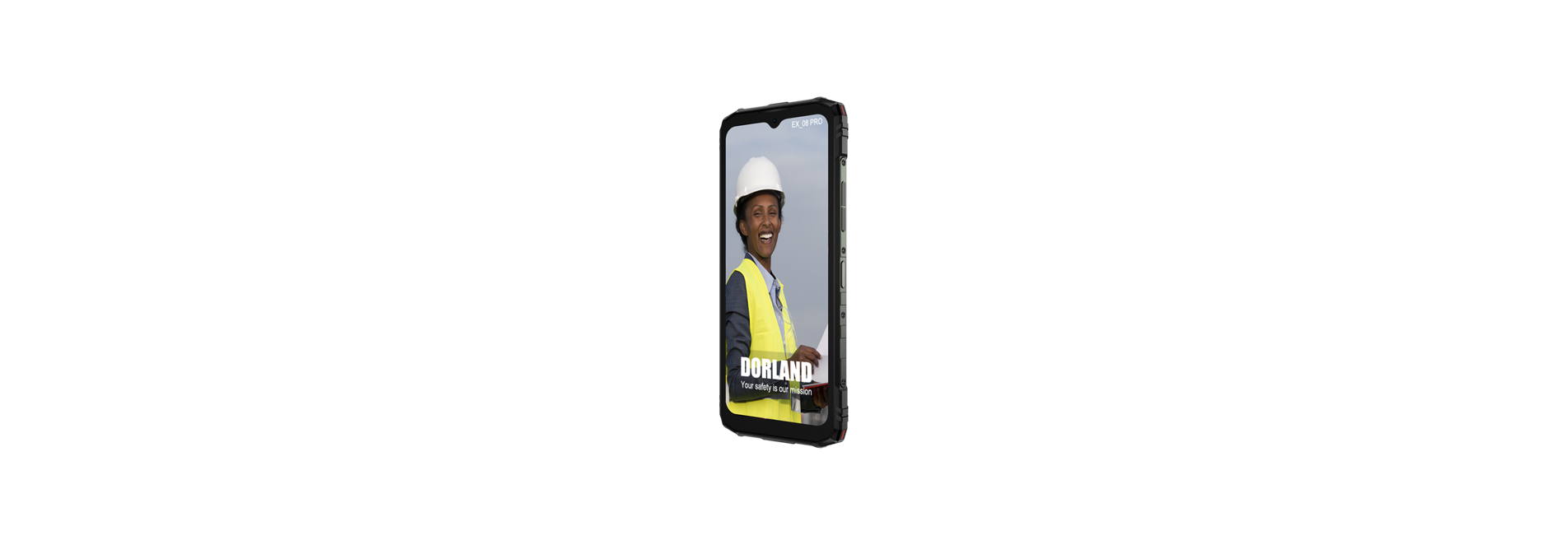

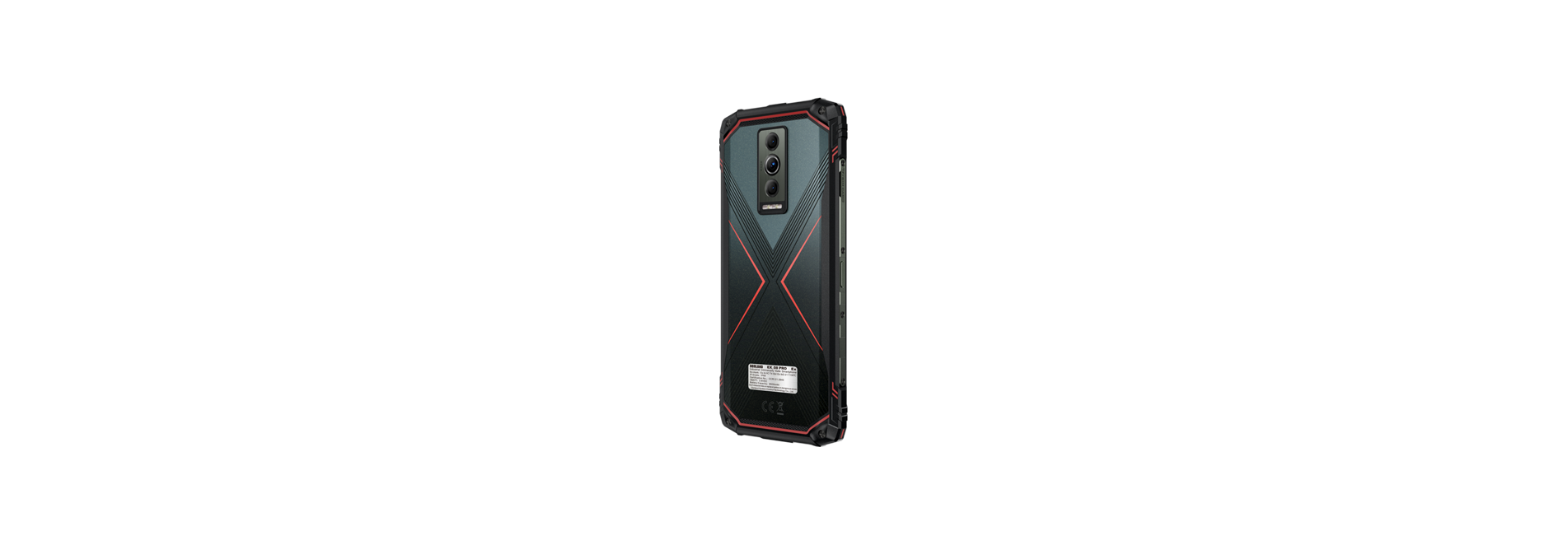

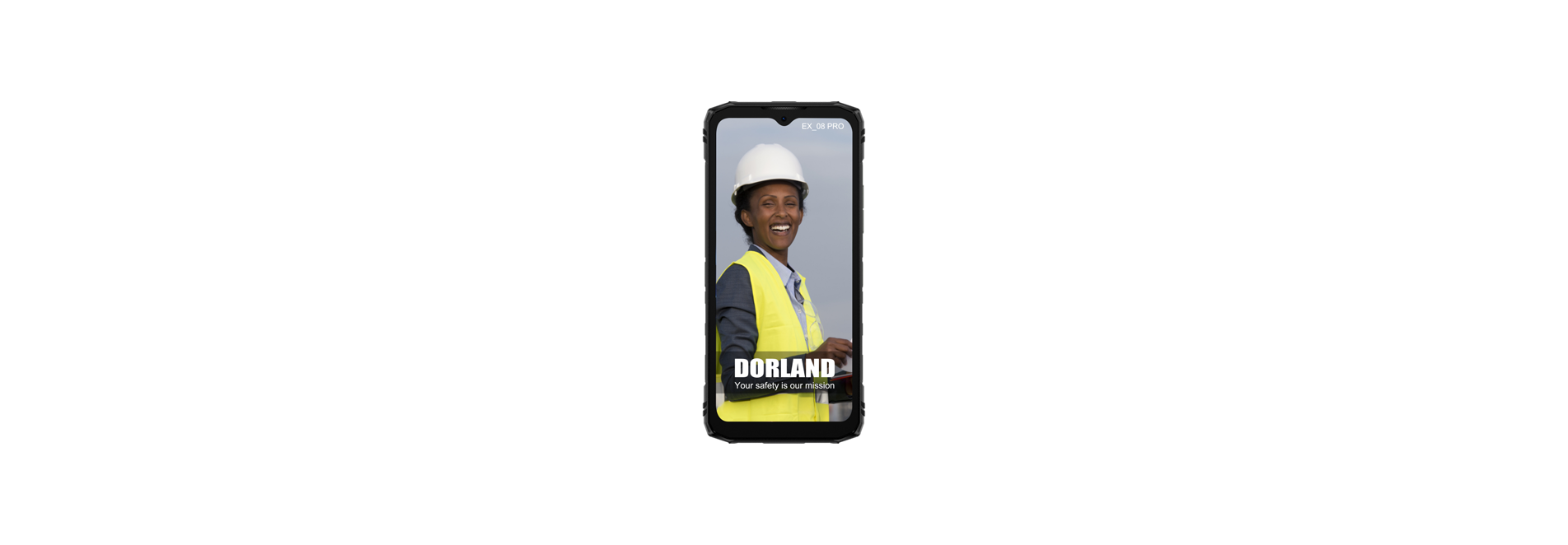

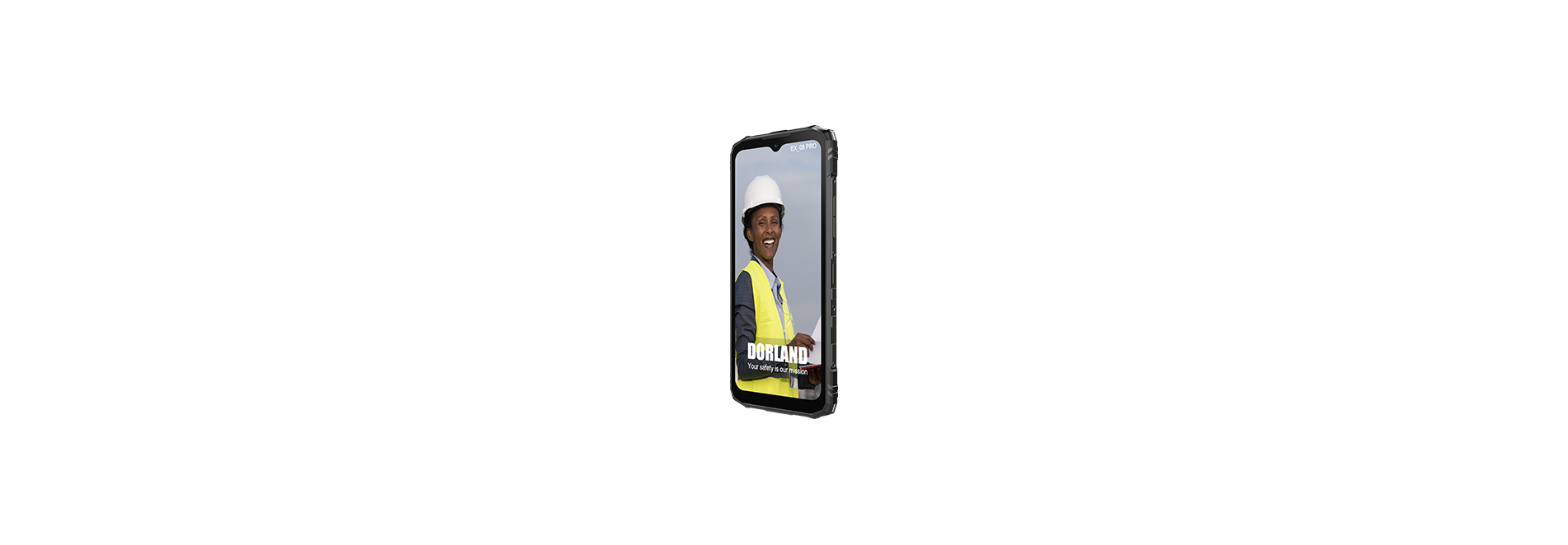

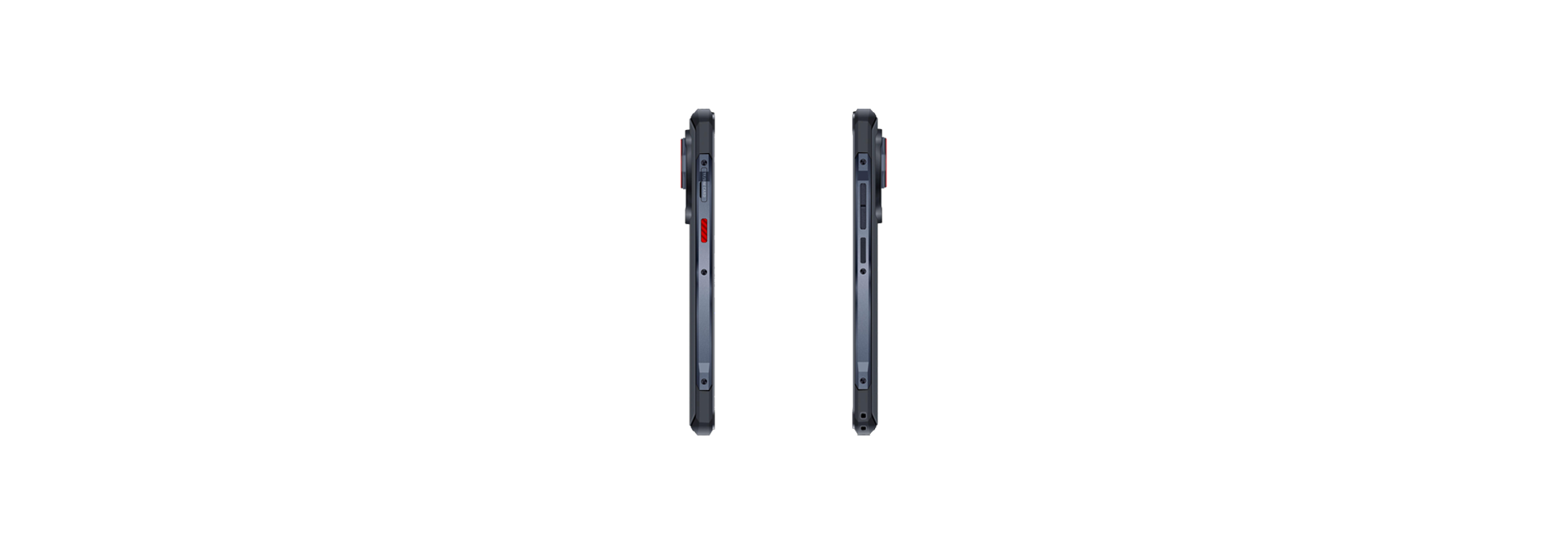

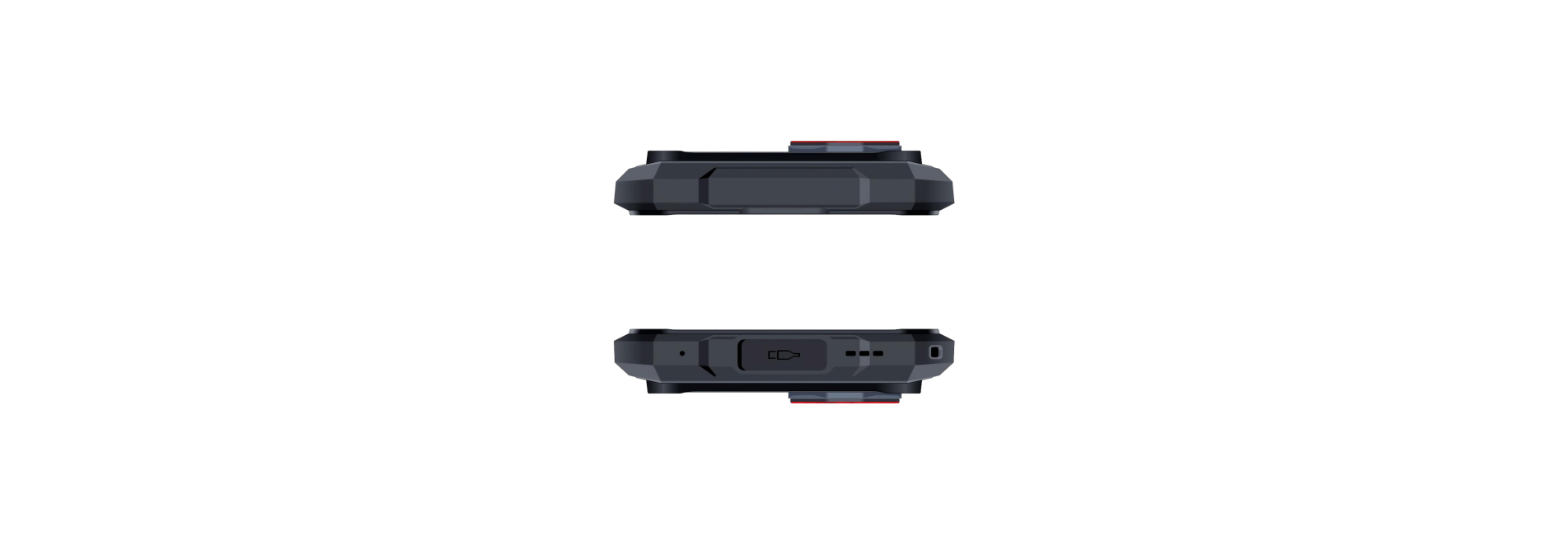

Dorland Industrial Intrinsically Safe Smartphone EX_08 PRO

Ex-mark: Ex ib IIC T4 Gb / Ex ibD 21 T130℃

IP Grade: IP68

Camera: 48MP+8MP+2MP+20 MP (REAR) 16/32MP (FRONT)

Battery: 8500mAh

Product Introduction
Technical Parameters

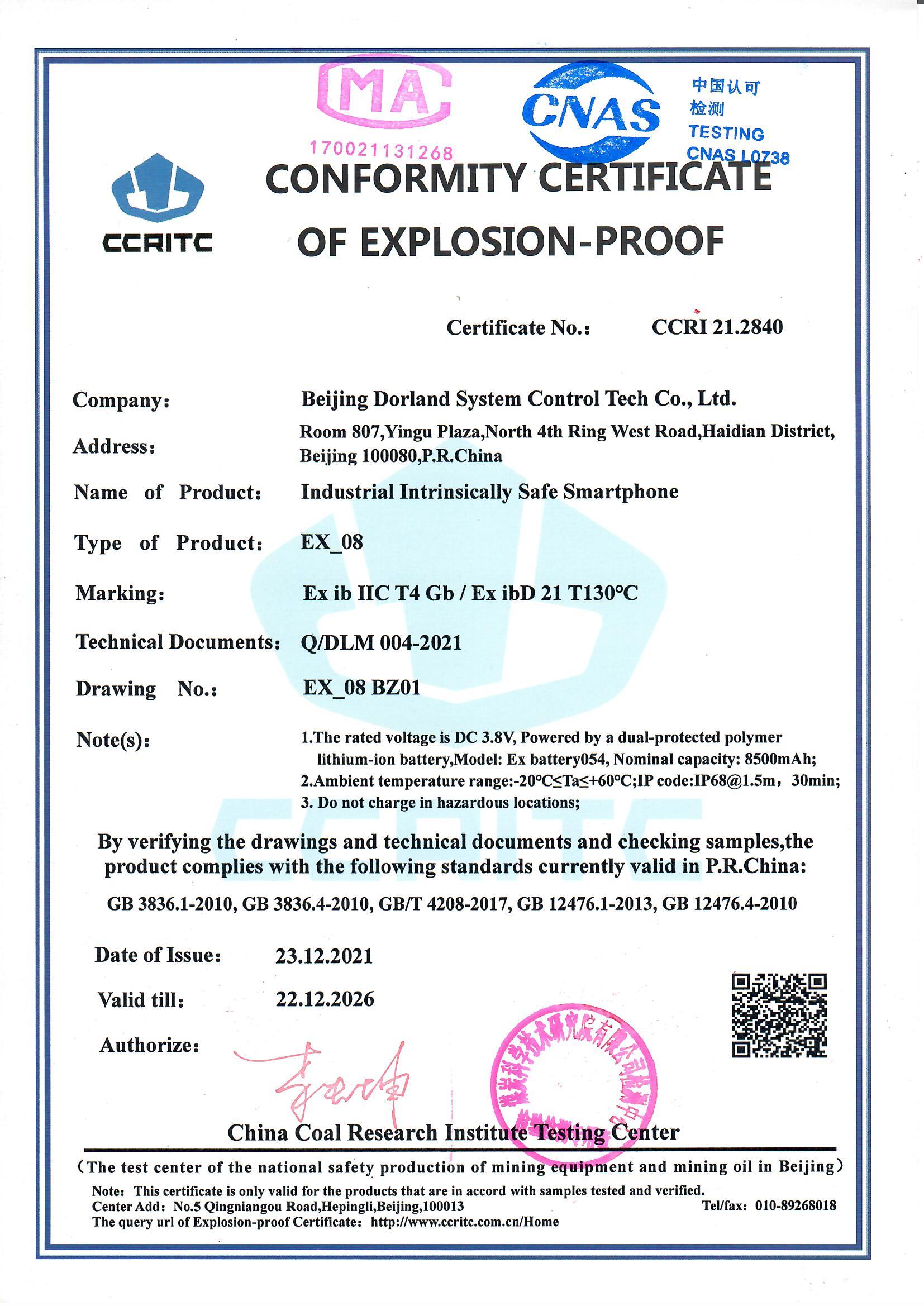

Product Certificate
Product Report

Developed by Beijing Dorland System Control Technology Co. Ltd., the industrial Intrinsically Safe Smartphone Ex_08 PRO adopts advanced technology with intrinsically safe circuit, 6.217” 19:9 touch screen and 16/32M (Front Camera) &48M+8M+2M+20M (Rear Camera). Its waterproof and dustproof performance can meet the international IP68 standards. Side fingerprint unlock function, NFC function meets read-write needs on any occasion. In addition, built-in Beidou+Galileo+Glonass+GPS and other functions are suitable for outdoor construction and pipeline inspection. It can also cooperate with OA office system, checking positioning system and data acquisition system etc. This model is especially suitably used in dangerous environment such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas. It is convenient for users’ timely production dispatching and communication.

Ex-mark:

Ex ib IIC T4 Gb / Ex ibD 21 T130℃
Certificate no.:

CCRI 21.2840
IP Grade:

IP68
OS:

Android 10.0/12.0
Screen:

6.217 inches, 19:9 720*1520
Memory:

8GB+128/256GB
Platform:

MT6785U 8 core 2x Cortex A76 2.05GHz 256KB L2 6x Cortex A55 2.0GHz 128KB L2
Camera:

48MP+8MP+2MP+20 MP (REAR) 16/32MP (FRONT)
Battery:

8500mAh
Frequency:

GSM（B2/3/5/8） CDMA（BC0/BC1/BC10） WCDMA（B1/2/4/5/6/8/19） FDD（1/2/3/4/5/7/8/12/17/18/19/20/25/26/28AB/66） TDD（B38/40/41） EDGE/GPRS: support
Size:

167*81.4*15.5mm
WIFI:

Support 2.4G/5G（802.11ac/a/b/g/n）
USB interface:

Type C
Navigation:

Support Beidou, Galileo, Glonass, GPS
Bluetooth:

5.0
Side fingerprint identification:

Support
