Ex screen K10

DORLAND Industrial Intrinsically Safe Tablet PC/Pad Ex screen K10

Marking: Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

Certificate NO.: CCRI 23.7389X

IP Grade:IP65

Battery: 10000mAh

Product Introduction
Technical Parameters

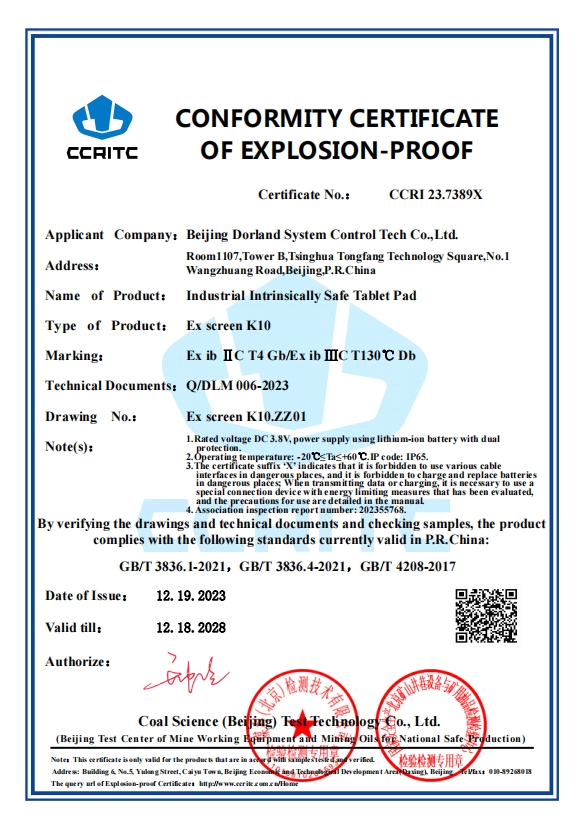

Product Certificate
Product Report

Beijing DORLAND System Control Technology Co., Ltd. recently launched Ex screen K10, intrinsically safe intelligent industrial-grade explosion-proof tablet Pad. It adopts advanced technology and intrinsically safe circuit design, with a strong appearance and strong body. This product adopts Android 12.0 operating system and 10.1 inches touch screen design, equipped with front 5 MP + rear 8 MP cameras, its waterproof and dust-proof performance reaches the international IP65 standard.

In addition, we also configured GPS / Beidou / GLONASS, altitude measurement, compass and other functions suitable for outdoor construction and pipeline inspection, which can cooperate with OA office system, patrol positioning system and data acquisition system And other applications. It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Marking:

Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db
Certificate NO.:

CCRI 23.7389X
IP Grade:

IP65
CPU:

RK3568, Quad-Cores, Up to 2.0GHz
GPU:

Mali-G5 2-2EE
Memory:

RAM 4GB + ROM 64/128GB
OS:

Android 12 / StarKylin 1.0 (one out of two)
Screen:

10.1 inch IPS 16:10 800*1280
Cameras:

Front: 5.0MP + Rear: 8.0MP
Battery:

Lithium-ion polymer battery 3.8V/10000mAh
Frequency:

2G：GSM: 900/1800 3G：WCDMA: B1/5/8 4G：FDD-LTE: B1/B3/B5/B7/B8/B20 TDD-LTE: B40
Dimension:

274.9*188.7*22.2mm
Weight:

1028g
GPS:

GPS+Glonass+ Beidou
Bluetooth:

BT5.0 (BLE)
Expansion module (optional):

NFC module, QR code scanning module, charging base, car holder, car charger, detachable battery
