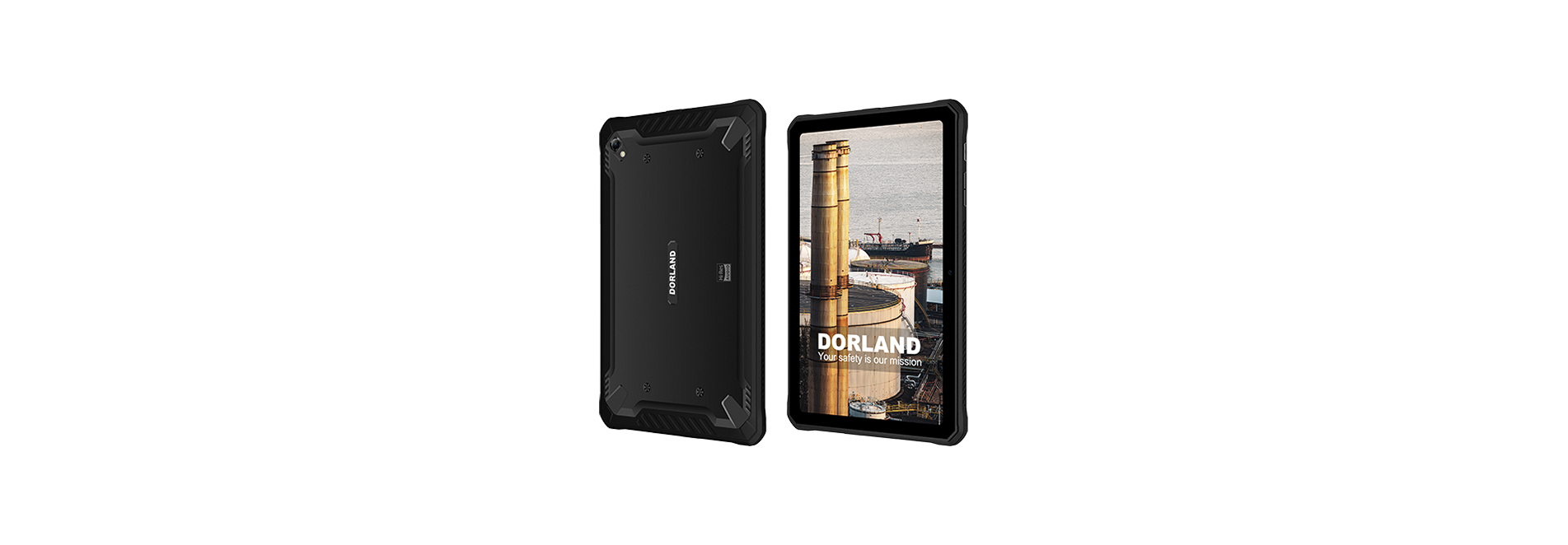

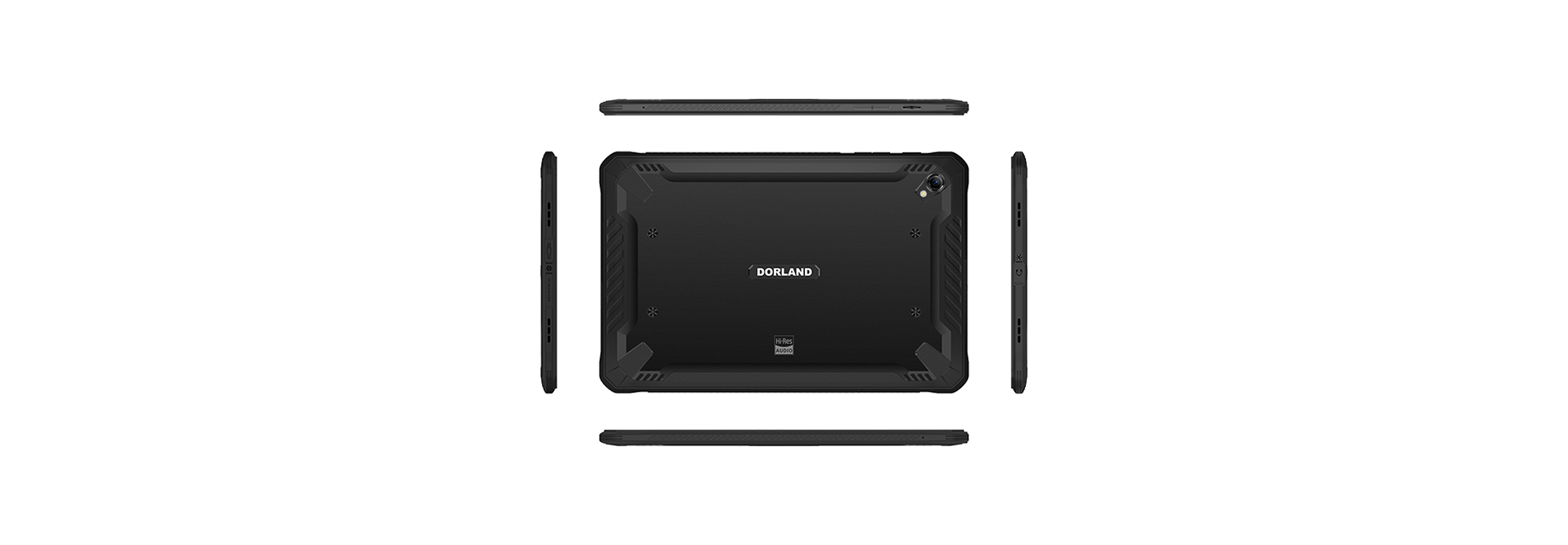

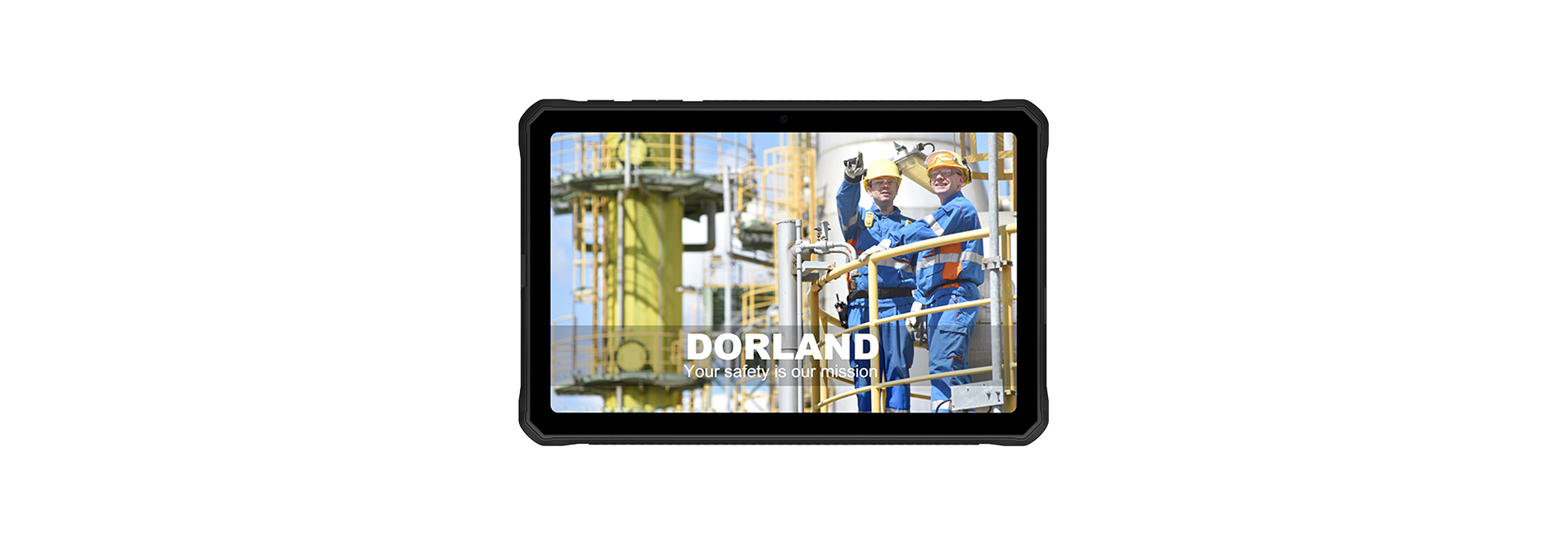

Ex Tablet08

<
>

DORLAND Industrial Intrinsically Safe Tablet Pad Ex Tablet08

Marking: Ex ib IIC T4 Gb / Ex ibD 21 T130℃

Battery:9000mAh Lithium-ion polymer battery

Cameras: Front 16 MP + Rear 20 MP, with flash function

OS: Android 13.0

Beijing DORLAND System Control Technology Co., Ltd. recently launched Ex Tablet 08, intrinsically safe intelligent industrial-grade explosion-proof tablet PAD. It adopts advanced technology and intrinsically safe circuit design, with a strong appearance and strong body. This product adopts 10.36 inch touch screen design, 9000mAh super big battery, equipped with front 16 MP + rear 20 MP cameras, its waterproof and dust-proof performance reaches the international IP68 standard.

In addition, we also configured GPS / Beidou / Galileo / GLONASS, altitude measurement, compass and other functions suitable for outdoor construction and pipeline inspection, which can cooperate with OA office system, patrol positioning system and data acquisition system And other applications. It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.


  • Marking:

    Ex ib IIC T4 Gb / Ex ibD 21 T130℃

  • Certificate NO.:

    CCRI 20.2107

  • IP Grade:

    IP68

  • OS:

    Android 13.0

  • Screen:

    10.36 inch IPS screen 1200*1920

  • Memory:

    8GB RAM+128GB ROM, uMCP(RAM expanded 8+3,8+5,8+7 Three speed over clocking)

  • CPU:

    MT8781 (MT6789 (NEXT-G)--G99) 8 core 2x 2.2Ghz Cortex A76&6x 2.0Ghz Cortex A55

  • Cameras:

    Front 16 MP + Rear 20 MP, with flash function

  • Battery:

    9000mAh Lithium-ion polymer battery

  • Frequency band:

    GSM:B2/B3/B5/B8 WCDMA:B1/2/4/5/8 FDD:B1/2/3/4/5/7/8/12/17/18/19/20/25/26/28AB/66/71 TDD:B34/38/39/40/41 EDGE/GPRS: SUPPORT

  • GPS:

    Beidou,Galileo,Glonass,GPS

  • Bluetooth:

    BT 5.2

  • WIFI:

    Support WiFi6

  • Dimension:

    249.1*167.8*17.3mm

  • Weight:

    Single head 1030g / total weight of finished product 1826g

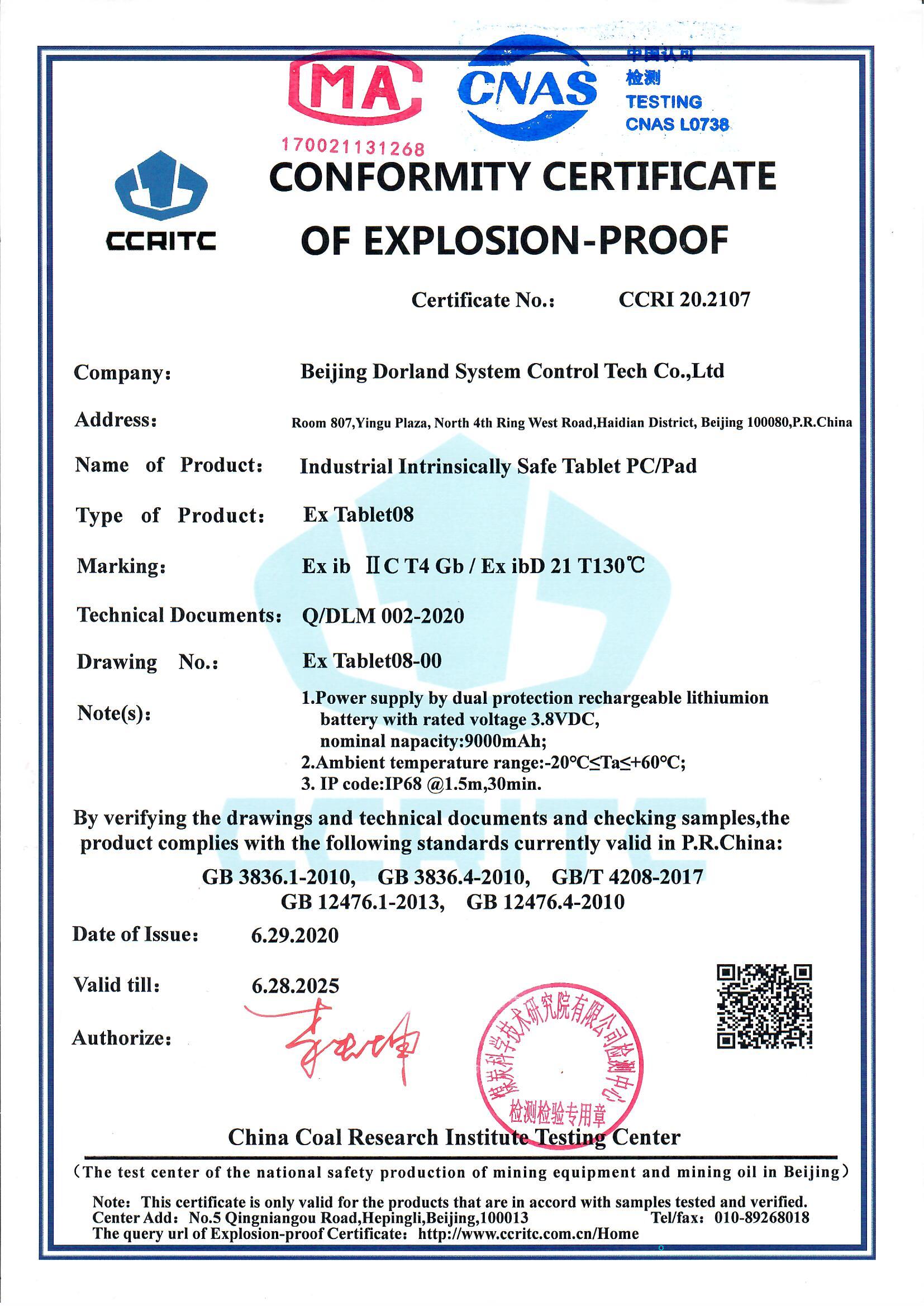

Ex Tablet08 Certificate

Download

Ex Tablet08 Inspection Report

+ Download
+
