Ex Tablet12

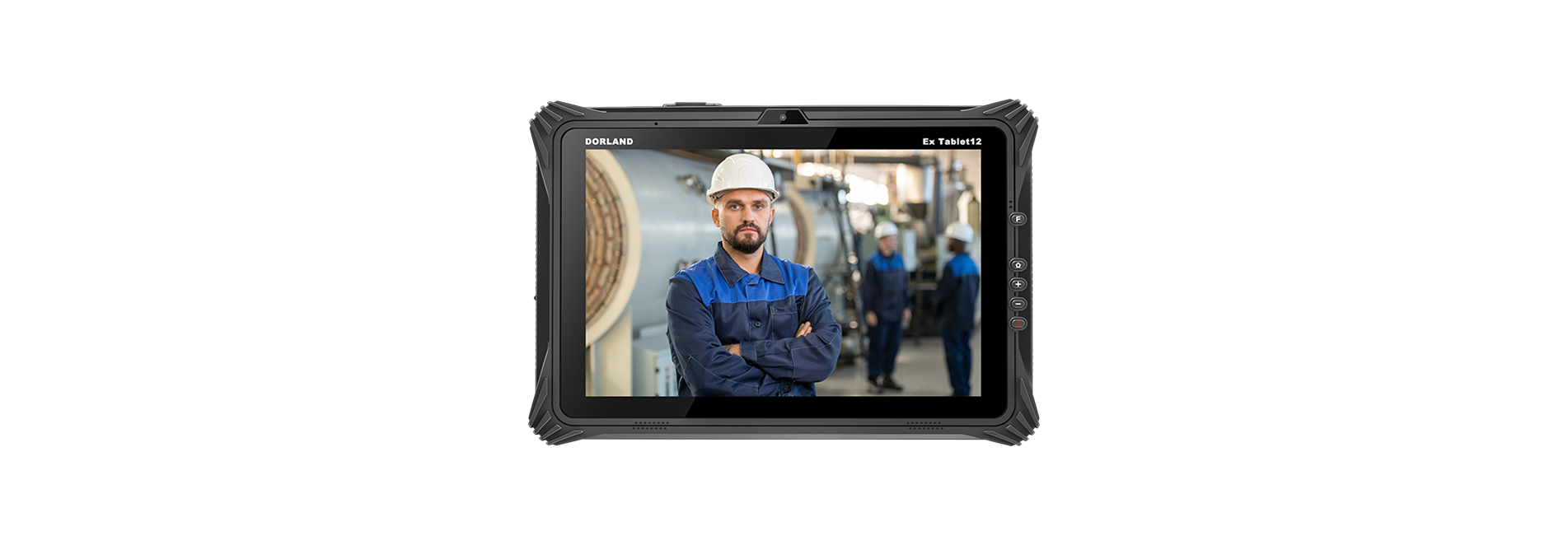

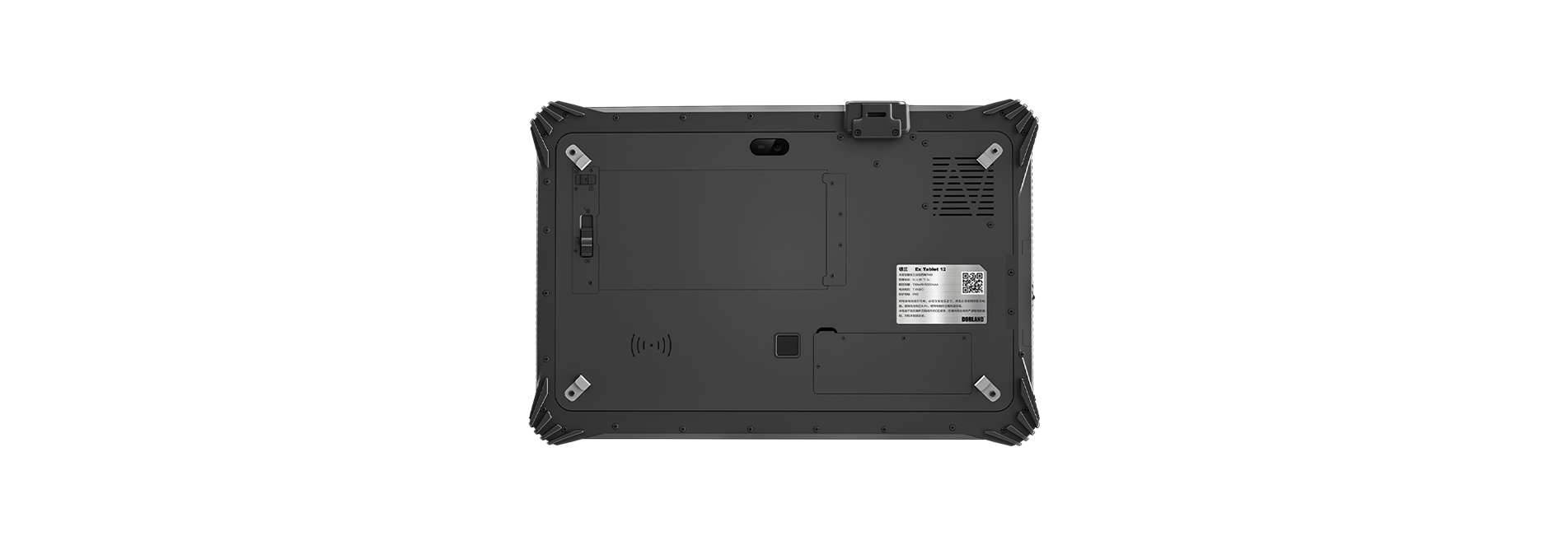

DORLAND Industrial Intrinsically Safe Tablet PC/Pad Ex Tablet12

Marking: Ex ic IIB T5 Gc

IP Grade: IP65

OS: windows 11/10 (Home / Pro / IOT 64 bit)

CPU: 12th Generation KBL-R Intel® Core™ i5-1235U / i7-1255U

Product Introduction
Technical Parameters

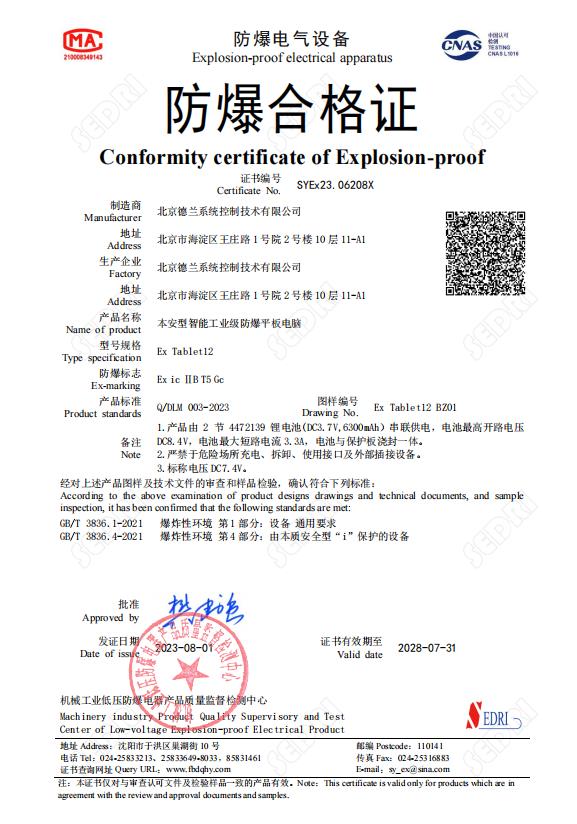

Product Certificate
Product Report

Beijing DORLAND System Control Technology Co., Ltd. recently launched Ex Tablet 12, intrinsically safe intelligent industrial-grade explosion-proof tablet computer. It adopts advanced technology and intrinsically safe circuit design, with a strong appearance and strong body. This product adopts windows 11/10 operating system and 12.2 inch touch screen design, equipped with front 2 MP + rear 8 MP cameras, its waterproof and dust-proof performance reaches the international IP65 standard.

In addition, we also configured GPS / Beidou / GLONASS, altitude measurement, compass and other functions suitable for outdoor construction and pipeline inspection, which can cooperate with OA office system, patrol positioning system and data acquisition system And other applications. It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Marking:

Ex ic IIB T5 Gc
IP Grade:

IP65
OS:

windows 11/10 (Home / Pro / IOT 64 bit)
Screen:

12.2 inch 16:10 1200*1920
Memory:

8GB/16GB/64GB DDR4L RAM + 128GB NGFF SSD(Detachable) / 512GB
CPU:

12th Generation KBL-R Intel® Core™ i5-1235U / i7-1255U
Cameras:

Front:2.0MP + Rear: 8.0MP
Battery:

Lithium-ion polymer battery 7.4V/700mAh(Non-removable) + 7.4V/6300mAh(Pluggable, Hot Swap)
Dimension:

339.3*230.3*26 mm
Weight:

Device unit: 1500g
GPS:

U-blox M8Q, Support: GPS, Glonass, Beidou
Bluetooth:

BT5.1 (BLE) class1 transmitted distance：10m
WIFI:

WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G+5.8G WIFI
Module extension(Choose one from four):

(10/100/1000M) Ethernet interface/(RS232)9-line full function/USB2.0 Big USB/Two-dimension barcode
