Versatile_5G

DORLAND Industrial Intrinsically Safe 5G Smartphone Versatile_5G

Marking：Ex ib IIC T4 Gb/ Ex ib IIIC T130℃ Db

Protection Grade：IP68

Memory: 12GB RAM(12GB+Up to 8GB Extended RAM) +256GB ROM

CPU: MTK Dimensity 1080 Octa Core 2.6GHz

Product Introduction
Technical Parameters
Product Certificate
Product Report

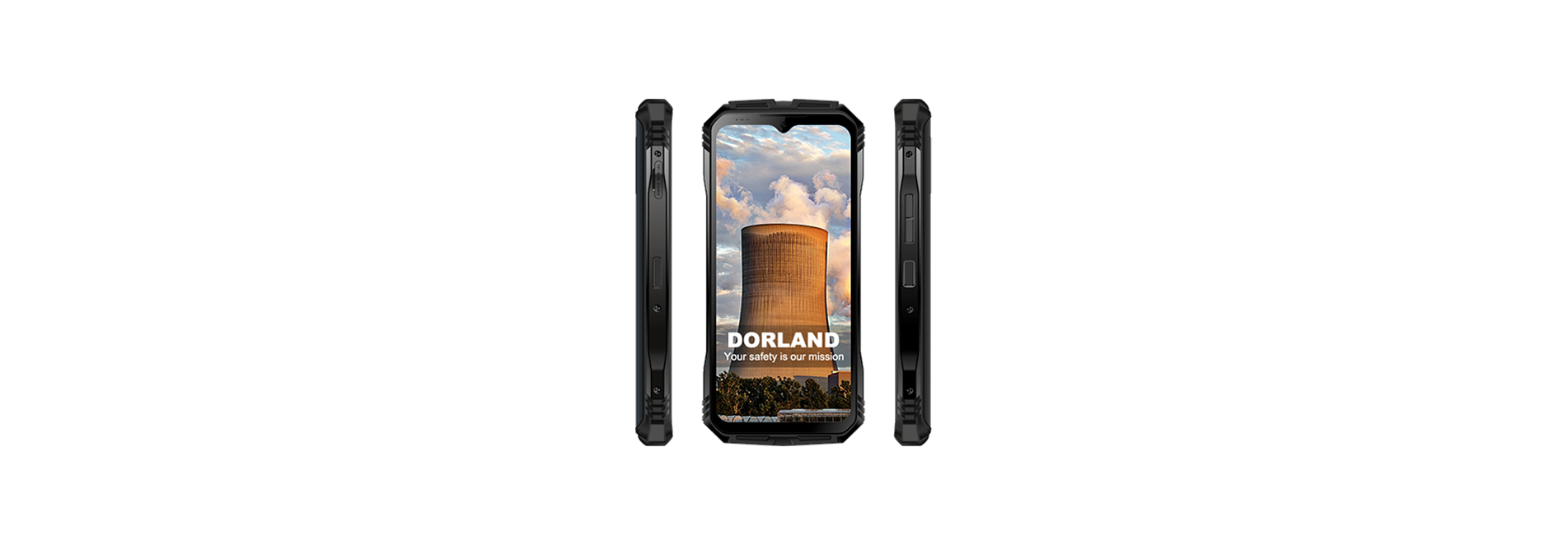

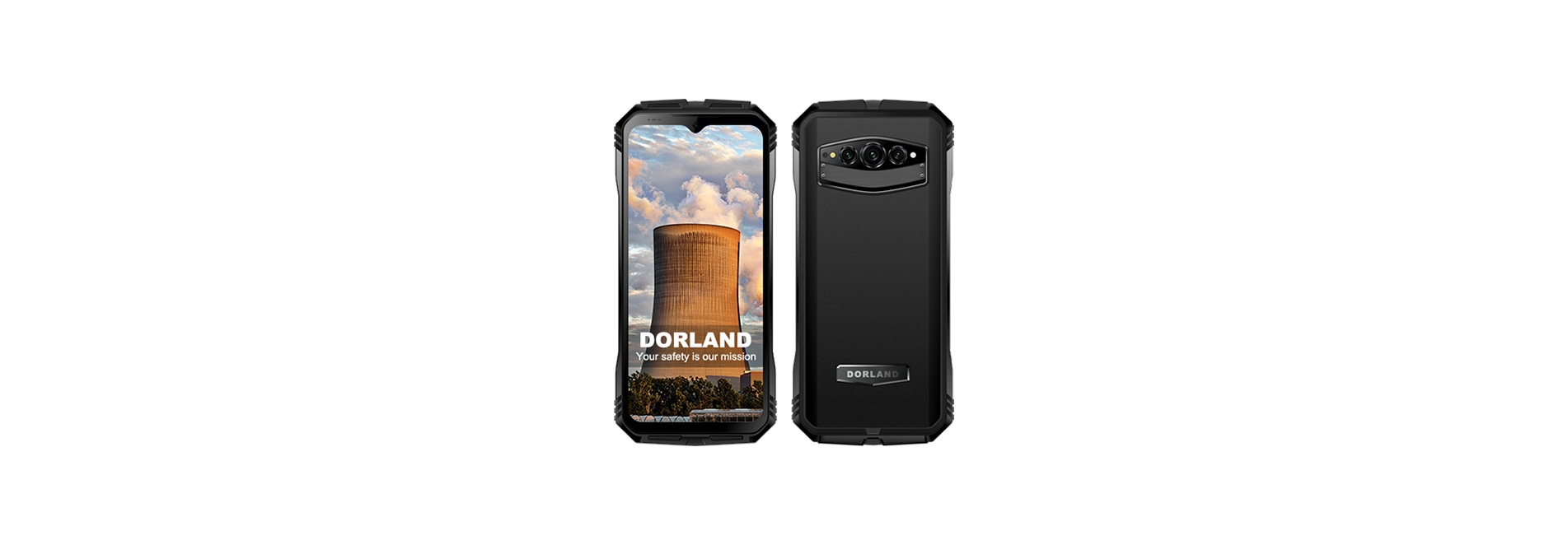

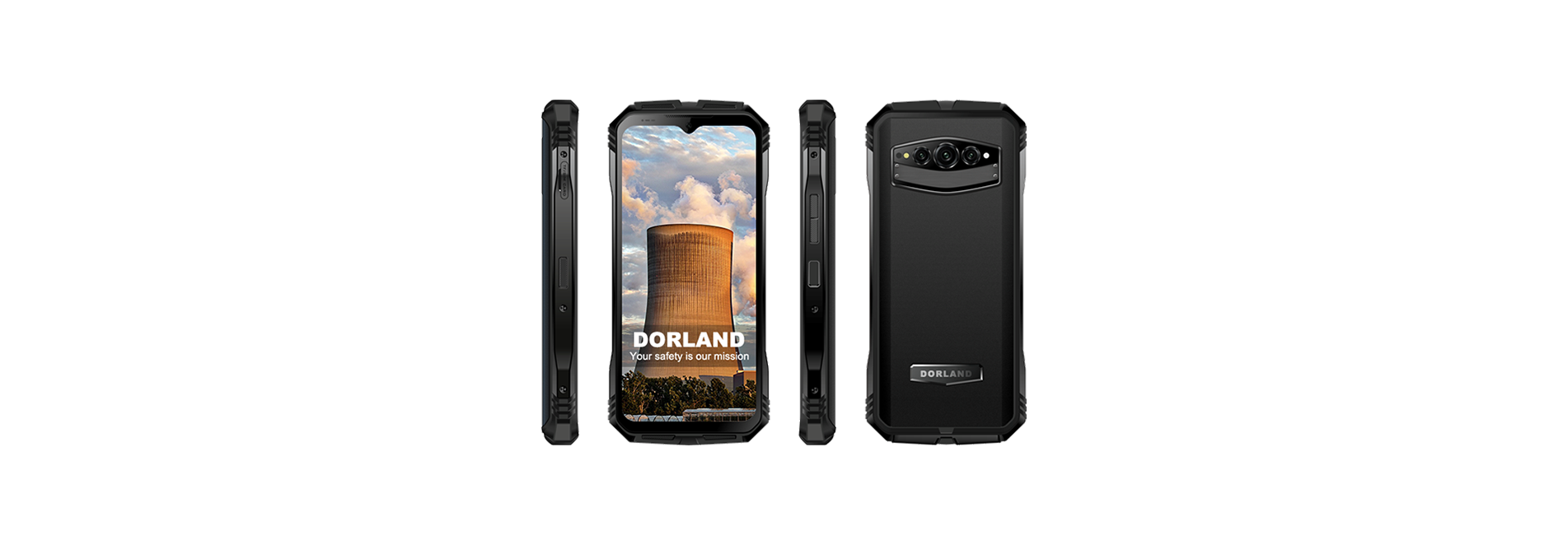

Beijing DORLAND System Control Technology Co., Ltd. recently industrial intrinsically safe 5G smartphone Versatile_5G, using 5g advanced technology, intrinsically safe circuit design, aggressive appearance, strong body. The mobile phone adopts a 6.583 "high-definition screen, with a rear four shot 108 + 20+ 16MP, and supports face recognition and standard NFC. Its waterproof and dust-proof performance reaches the international IP68 standard.

In addition, it supports fingerprint one key unlocking, Bluetooth, WiFi and other functions to meet the reading and writing requirements of various scenes. We have also configured GPS+ GLONASS+ Beidou+Galileo positioning and other functions suitable for outdoor construction and pipeline inspection, which can cooperate with OA office system, patrol positioning system, data acquisition system and other applications. It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Marking：

Ex ib IIC T4 Gb / Ex ibD 21 T130°C

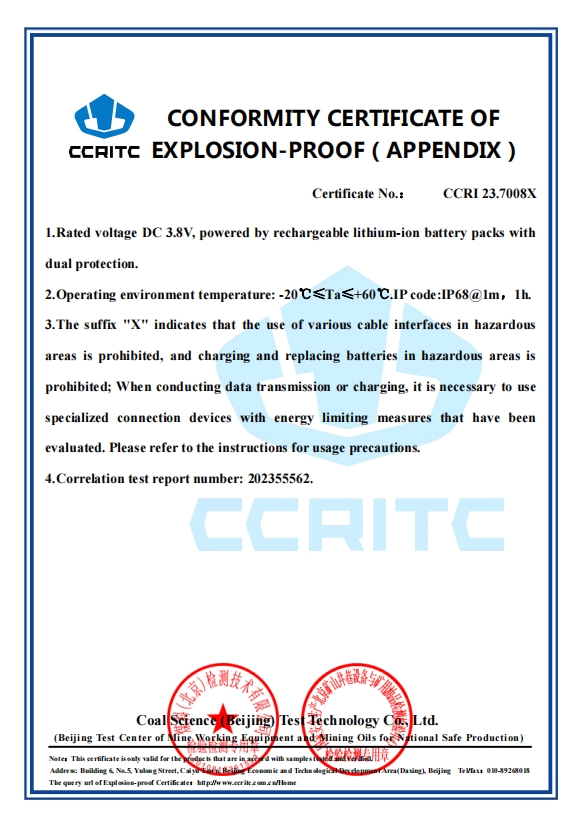

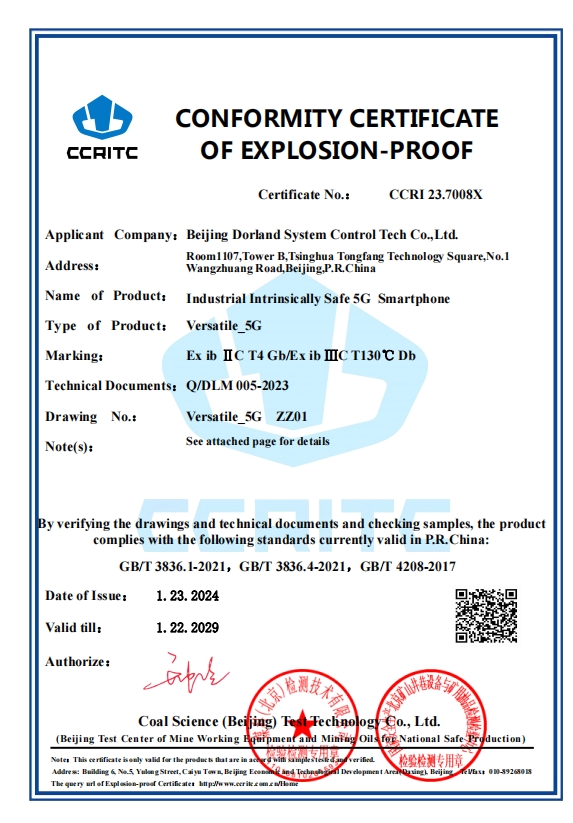

Certificate No.：

CCRI 23.7008X
Protection Grade：

IP68
OS:

Android 12.0
Screen:

6.583inch, FHD+, 1080×2408 FHD+
Memory:

12GB RAM(12GB+Up to 20GB Extended RAM) +512GB ROM
CPU:

MTK Dimensity 7050 Octa Core 2.6GHz 2 x Cortex A78 2.6GHz + 6 x Cortex A55 2.0GH
Cameras:

200M(rear)+24M(night vision)+16M(Wide Angle) 32MP(Front)
Battery:

10800mAh Battery voltage: 4.45V
Frequency:

GSM（B2/3/5/8） WCDMA（B1/2/4/5/6/8/19） CDMA：BC0/BC1/BC10 FDD：B1/2/3/4/5/7/8/12/17/18/19/20/25/26/28A/28B/66 TDD：B34/38/39/40/41 NR: N1/N3/N7/N28/N38/N41/N77/N78/N79
NFC:

yes
Fingerprint ID:

fingerprint unlocking
GPS:

GLONASS, BEIDOU, Galileo, GPS(four choose four)
