DORLAND Industrial Intrinsically Safe 5G satellite Smartphone Xtalki06

Xtalki06_5G

DORLAND Industrial Intrinsically Safe 5G satellite Smartphone Xtalki06_5G

Ex-Marking：Ex ib IIC T4 Gb / Ex ibD 21 T130°C

Operating system：Android 11.0

Protection grade：IP68

Dual mode Satellite phone：5G all network communication+satellite communication

Beijing DORLAND System Control Technology Co., Ltd. recently industrial intrinsically safe 5G smartphone Xtalki06_ 5G, using advanced technology, intrinsically safe circuit design, domineering appearance and solid body. This mobile phone adopts a 6-inch capacitive touch screen and is equipped with a rear 48 million pixel camera and a front 16 million pixel camera. Its waterproof and dustproof performance meets the international IP68 standard,This mobile phone also has DMR digital analog intercom function, and supports the frequency band of 400-470MHz.

In addition, this intercom mobile phone is equipped with NFC, Bluetooth and other functions as standard to meet the reading and writing needs of various scenes. We also have Beidou GPS positioning and other functions suitable for outdoor construction and pipeline inspection, It can cooperate with OA office system, patrol positioning system, data acquisition system and other applications.

It is especially suitable for the harsh environment of dangerous explosion, such as petroleum, chemical industry, pharmacy, military industry, oil depot, tank farm and other dangerous places with combustible and explosive gases, so as to facilitate the timely communication between users and production and dispatching.

Ex-Marking：

Ex ib IIC T4 Gb / Ex ibD 21 T130°C

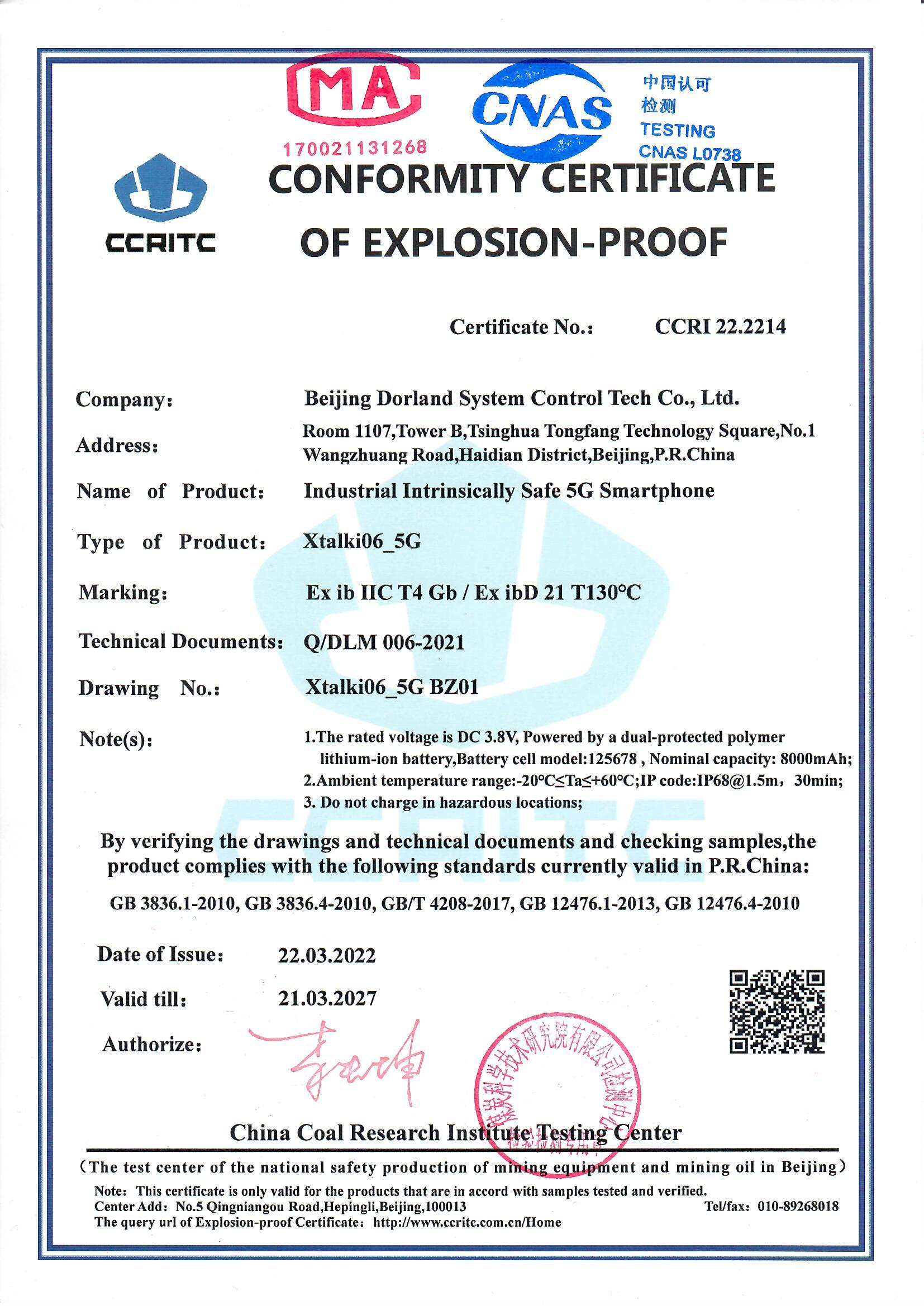

Explosion proof certificate number:

CCRI 22.2214
Operating system:

Android 11
Screen:

6-inch capacitive touch screen
Memory:

6GB+128GB, optional 8GB+256GB
Extended memory:

Extended memory support up to 1T
CPU:

MT6873 8-core 2.0GB
Camera function:

16 million pixels for front camera, 48 million pixels for rear camera, with flash support
Battery capacity:

8000mAh
Fingerprint unlocking:

support
Frequency bands:

GSM:B2,B3,B5,B8,BC0 WCDMA:B1,B2,B5,B8 TDSWCDMAB34 B39 EVDO,FDD:1/2/3/4/5/7/8/12/17/18/19/20/26/28 TDD:B34,B38,B39,B40,B41 TD-LTE:B38C/B39C/B40C/B41C/B39A+B41A/B3A+B41A LTE FDD:B1C/B2C/B3C/B7C/B1A+B3A/B1A+B3C 5G NR:n1/n3/n28/n41/n77/n78/n79 EN-DCB1-n78, B3-n78, B5-n78, B8-n78, B1A+B3A-n78, B3C-n78, B3C+B1A-n78, B3-n41, B39-n41；B3-n79；B39-n79
Size:

175.5*79.4*20.4mm
GPS：

Beidou/GPS/GLONASS/Galileo Four in One Quick Positioning and Navigation
Basic functions:

Satellite and 5G all network communication mobile network voice, SMS, and data functions
Featured features:

AI intelligent call noise reduction, SOS key, NFC, emergency flashlight, etc
Satellite antenna:

Supports detachable and expandable omnidirectional antennas and car antennas
Satellite voice rate:

1.2kbps/2.4kbps/4.0kbps
Satellite communication frequency band:

Large S-band (2170-2200MHz downlink frequency band, 1980-2010MHz uplink frequency band)
Wireless connection:

802.11a/b/g/n wireless network; Supports 5G and 2.4G frequency bands; Bluetooth 5.0 with BLE support
Sensors:

Environmental luminosity sensing; Infrared distance sensor, gravity sensing; Gyroscope, electronic compass, pressure sensor
