EXTRA_5G PRO

Dorland Industrial Intrinsically Safe 5G Smartphone EXTRA_5G PRO

Ex-mark:Ex ib IIC T4 Gb/ Ex ib IIIC T130℃ Db

Certificate No.:CCRI 22.2641X

IP Grade:IP68

OS:Android 12.0

Product Introduction
Technical Parameters

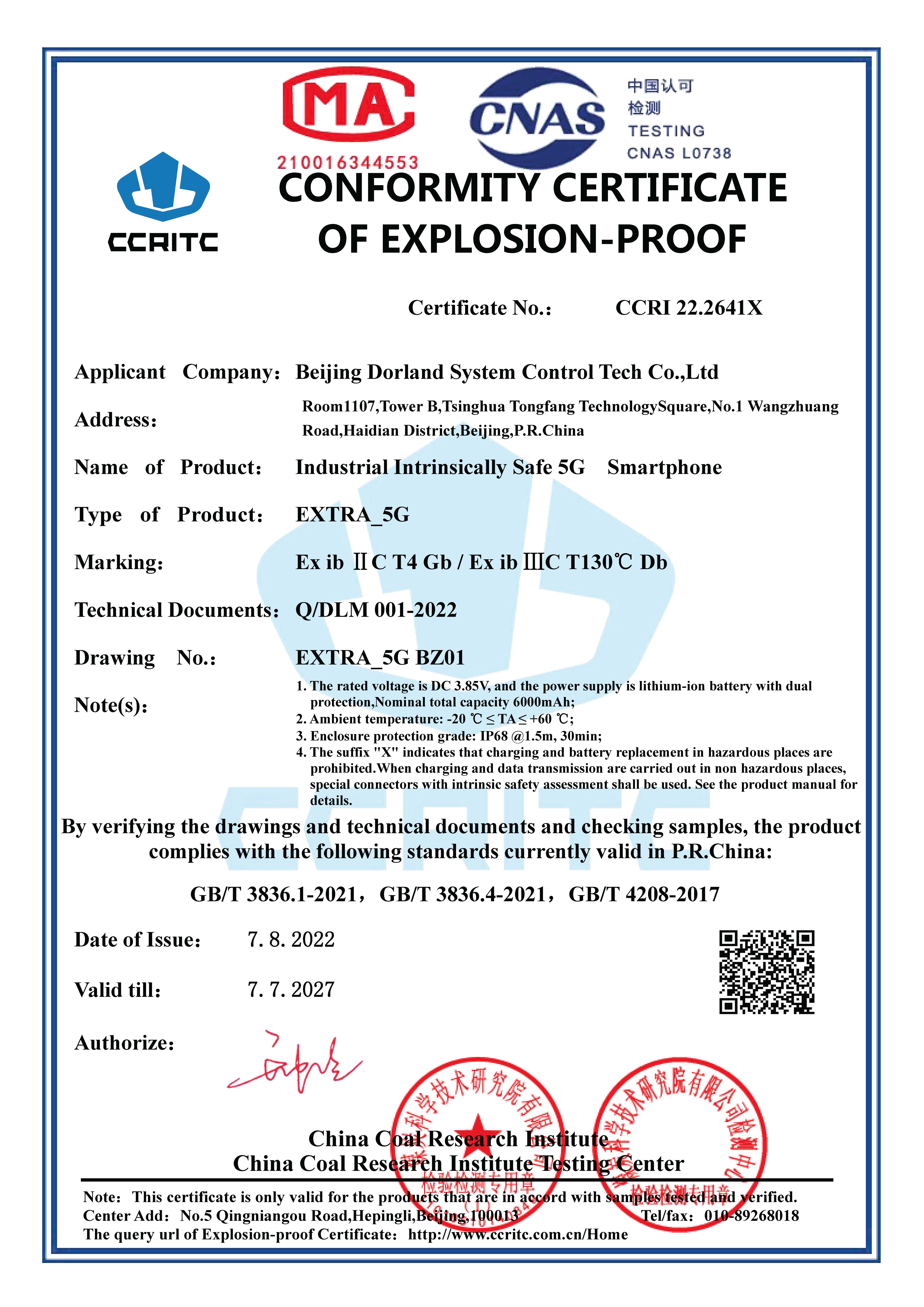

Product Certificate
Product Report

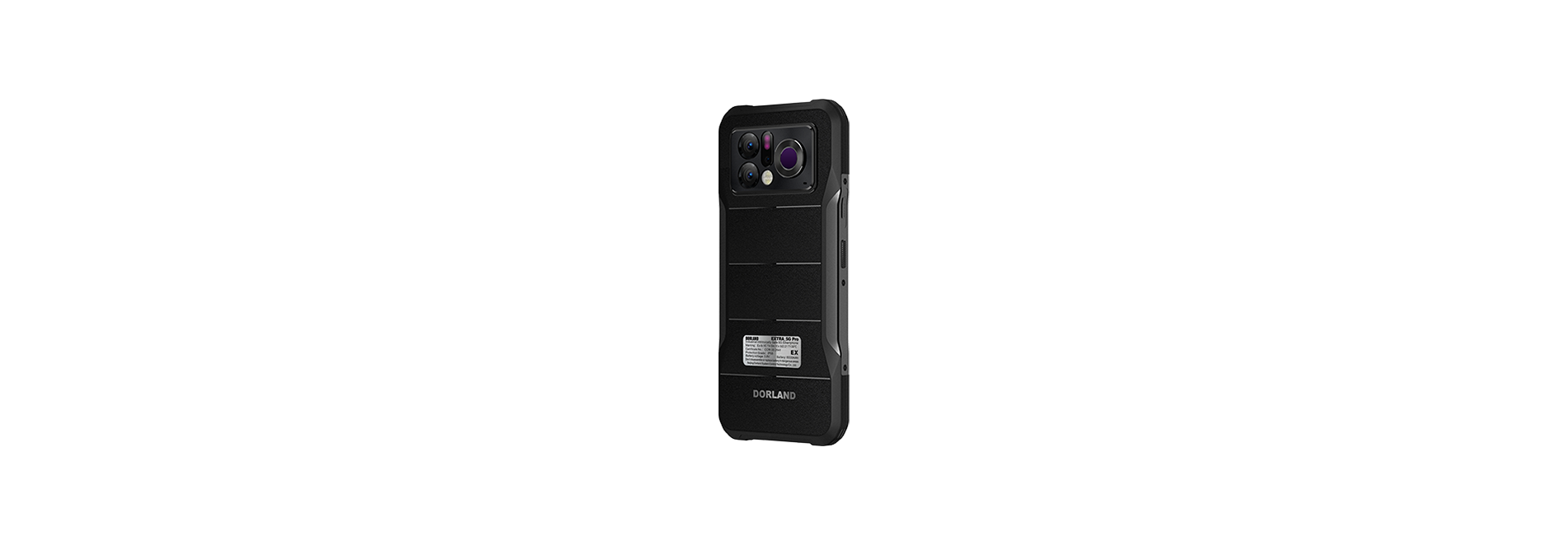

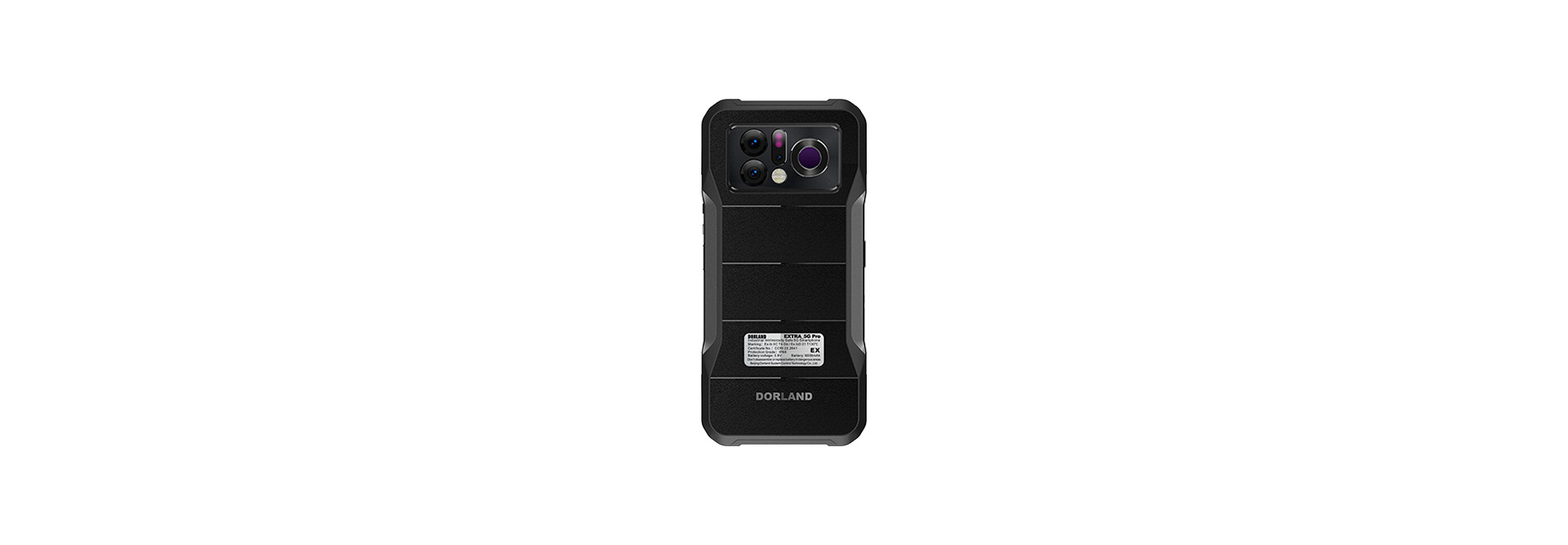

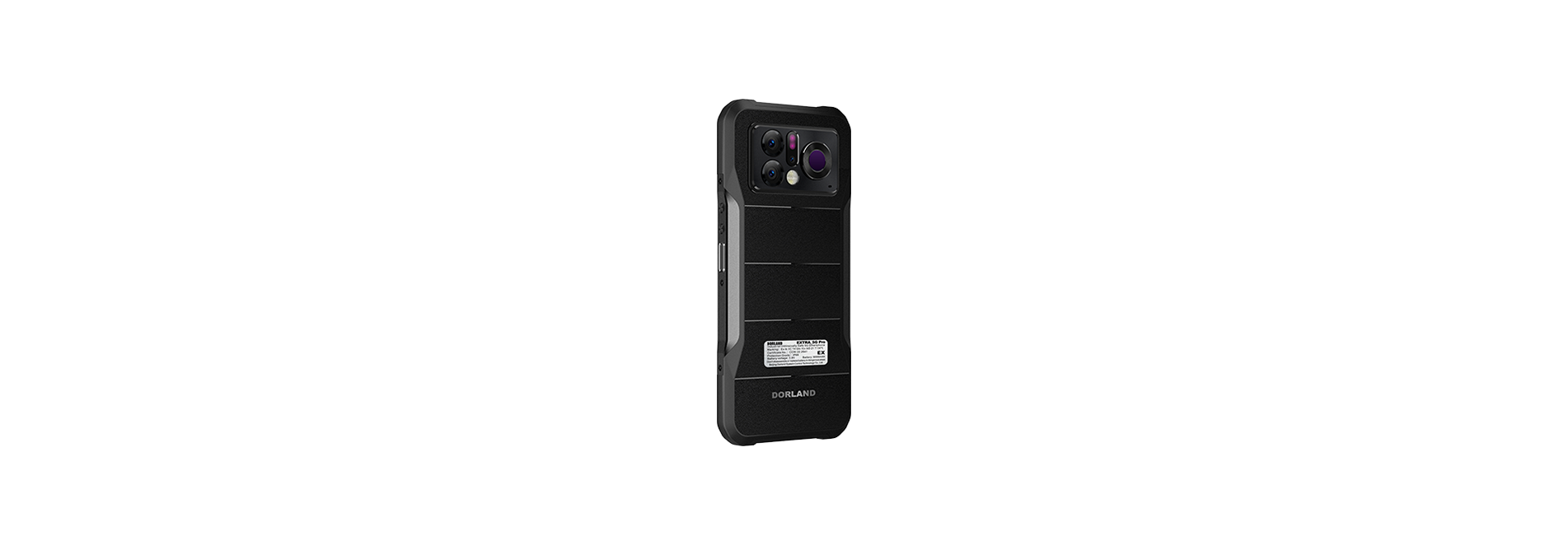

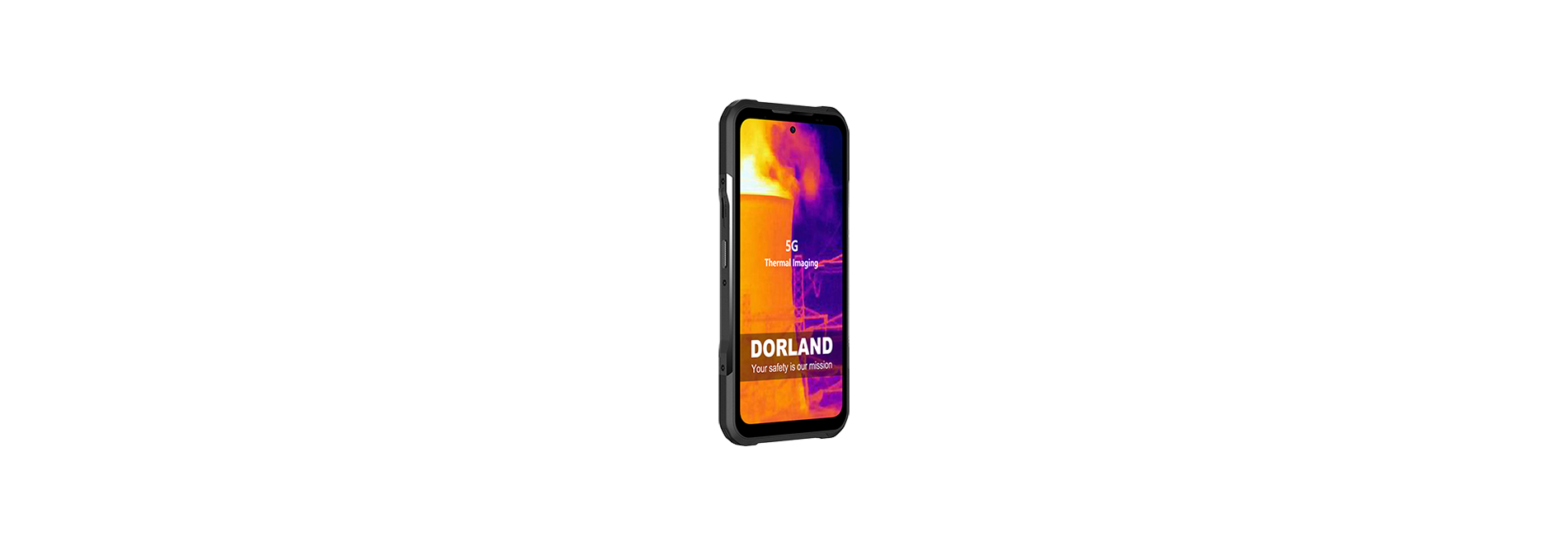

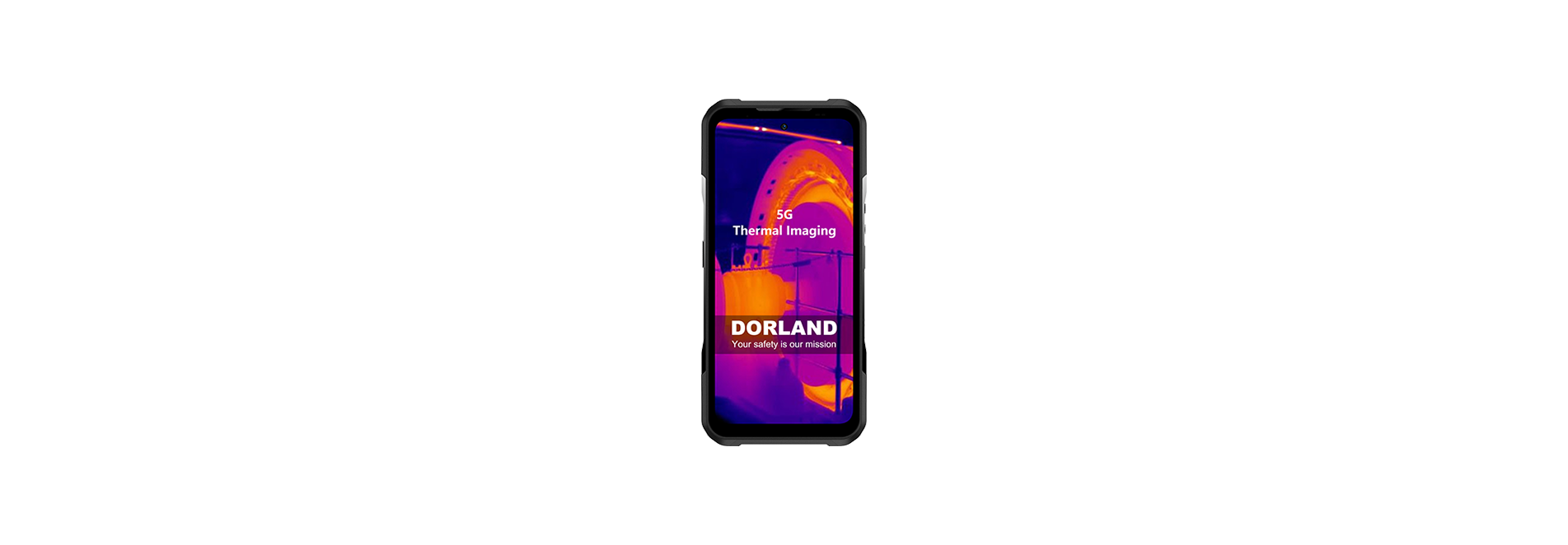

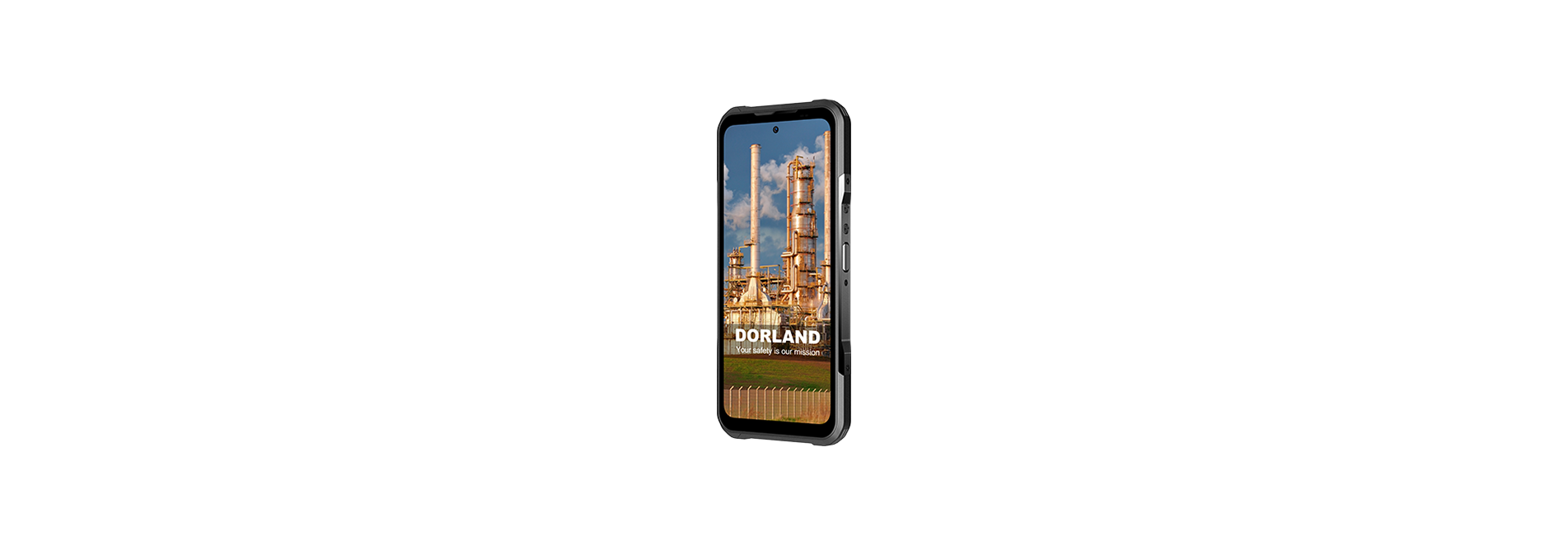

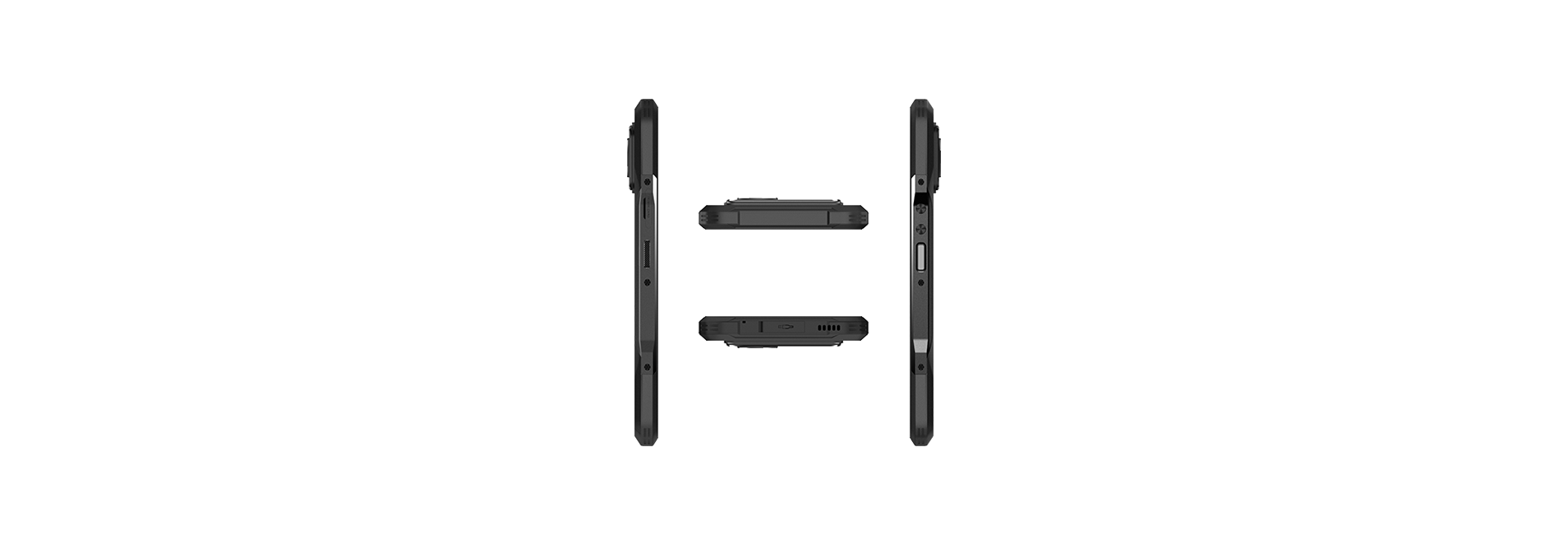

Beijing DORLAND System Control Technology Co., Ltd. recently industrial intrinsically safe 5G smartphone EXTRA_5G PRO, using 5g advanced technology, intrinsically safe circuit design, domineering appearance and solid body. The mobile phone adopts 6.43 "high-definition screen, rear three camera 64 + 24 + 8MP+thermal imaging camera, and supports face recognition and standard NFC. Its waterproof and dustproof performance meets the international IP68 standard.

In addition, it supports fingerprint one click unlocking, Bluetooth, WiFi and other functions to meet the reading and writing needs of various scenes. We also configure GPS positioning and other functions suitable for outdoor construction and pipeline inspection in the mobile phone, which can cooperate with OA office system, inspection and positioning system, data acquisition system and other applications. It is especially suitable for the harsh environment of dangerous explosion, such as petroleum, chemical industry, pharmacy, military industry, oil depot, tank farm and other dangerous places with combustible and explosive gases, so as to facilitate the timely communication between users and production and dispatching.

Ex-mark:

Ex ib IIC T4 Gb/ Ex ib IIIC T130℃ Db
Certificate No.:

CCRI 22.2641X
IP Grade:

IP68
OS:

Android 12.0
Screen:

6.43 inches, 20:9 1080*2400 FHD+
Memory:

12GB+256GB（Extended RAM：3GB/5GB/8GB）
Expanded memory:

Up to 2TB
CPU:

MT6833 Dimensity 700, Octa Core 2.2GHz
Camera:

64MP(main camera)+24MP(night vision camera)+8MP(fusion camera)/16MP (front)
Battery:

6000mAh 3.85V
Frequency:

N1/3/5/7/8/20/28/38/40/41/77/78/79 FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66 TDD: B34/38/39/40/41 WCDMA: B1/2/4/5/6/8/19 CDMA: BC0/BC1/BC10 GSM: B2/3/5/8WIFI: Support, 2.4G / 5G(802.11ac/a/b/g/n)
GPS：

Support, Beidou, Galileo, Glonass, GPS Choose three from four
Bluetooth:

Ver 5.1
Side fingerprint identification:

Support
Face recognition:

Support
