XPad_07 5G

Intrinsically Safe Industrial Explosion-proof Pad XPad_07 5G

Explosive-proof grade：Ex ib IIC T4 Gb/ Ex ib IIIC T130℃ Db

Protection grade：IP67

Certification No.：CCRI 23.2951x

Software platform:Android 15.0

Product Introduction
Technical Parameters

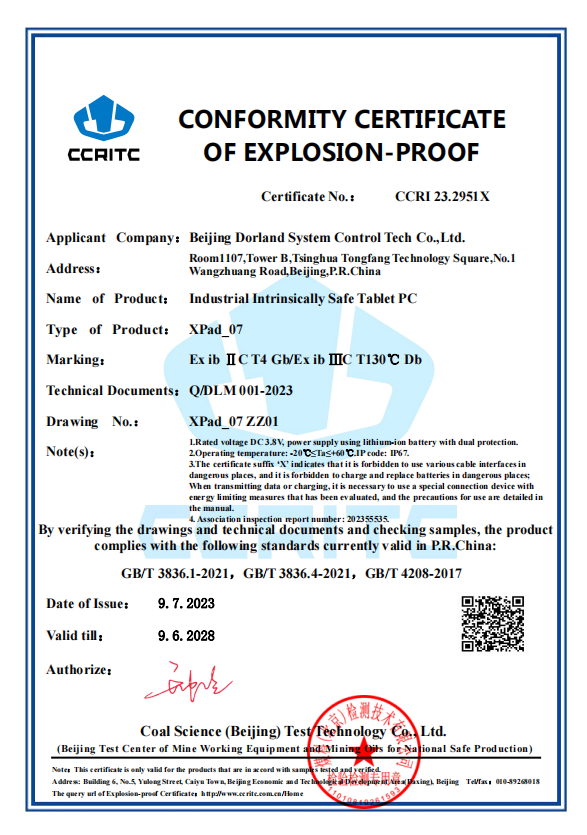

Product Certificate
Product Report

DORLAND System Control Tech Co., Ltd. has recently launched the intrinsically safe intelligent industrial grade explosion-proof tablet computer XPad_07 5G, which adopts advanced technology, intrinsically safe circuit design, powerful appearance, and sturdy body. This PAD adopts an 8.0-inch touch screen design and is equipped with a front 5-megapixel and rear 16 megapixel ultra high definition camera.

Its waterproof and dustproof performance meets the international IP67 standard; In addition, we have also equipped the PAD with various functions suitable for outdoor construction, pipeline inspection, etc., such as Beidou/GPS/Galileo/GLONASS (optional single Beidou satellite positioning module) system, altitude measurement, compass, etc., which can be used in conjunction with OA office system, inspection positioning system, data acquisition system and other applications. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.

Ex-Marking：

Ex ib IIC T4 Gb / Ex ib IIIC T130°C Db
Protection grade：

IP67
Certification No.：

CCRI 23.2951x
Software platform:

Android 15.0
LCD Parameter:

8-inch IPS screen resolution: 1920 * 1200
CPU：

Qualcomm ® Snapdragon SM4350 PRO, 8-core 2.2GHz
Camera:

Rear camera with 16 megapixel autofocus and flash, front camera with 5 megapixel
Memory:

8GB RAM+128GB ROM
Storage Card:

T-Flash
Network:

GSM: 850/900/1800/1900 EVDO: BC0 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39 TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B20/B28 5G NR:N1/N3/N28/N41/N78/N79
Battery Capacity:

9000mAh
Dimensions:

235*146*13mm
Weight:

Approximately 594 grams
Bluetooth:

BT5.1
WiFi:

Wifi6-Ready, 802.11ac, a/b/g/n, Frequency 2.4GHz/5GHz
NFC:

Yes
G-Sensor:

Yes
Gyroscope:

Yes
Light Sensor:

Yes
E-compass:

Yes
GPS:

uBlox GPS GALILEO/GLONASS/BEIDOU/GPS
