XPad_07 5G

<
>

Intrinsically Safe Industrial Explosion-proof Pad XPad_07 5G

Explosive-proof grade:Ex ib IIC T4 Gb / Ex ibD 21 T130°C

Protection grade:IP67

Certification No.:CCRI 18.2218

Software platform:Android 12.0

Developed by Beijing Dorland System Control Technology Co., LTD., the industrial explosion-proof Pad XPad_07 5G adopted advanced technology with intrinsically safe circuit, 8.0” touch screen and 5 Megapixel (Front Camera) 13 Megapixel (Rear Camera with Auto Focus) camera. Its waterproof and dustproof performance can meet the IP67 standards; In addition, built-in GALILEO /GLONASS /BEIDOU /GPS positioning system, elevation measurement, compass, and other functions suitable for outdoor construction and pipeline inspection. It can also cooperate with OA office system, checking positioning system and data acquisition system etc. Especially it is used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas. It is convenient for users to dispatch communicate timely.

  • Ex-Marking:

    Ex ib IIC T4 Gb / Ex ib D21 T130°C

  • Protection grade:

    IP67

  • Certification No.:

    CCRI 18.2218

  • Software platform:

    Android 12.0

  • Touch Lens:

    Capacitive Touch screen

  • LCD Parameter:

    TFT,8inch, 1280*800/1920*1200 resolution Touchable hd large screen, visible with strong light

  • CPU:

    Qualcomm Snapdragon SM4350 2*Kryo 460 Gold(A76) 2.0GHz + 6*Kryo 460 Silver(A55) 1.8GHz

  • Camera:

    1300M AF,5M (front) rear camera with flash light

  • Memory:

    6/8GB RAM + 128/256GB ROM

  • Storage Card:

    T-Flash

  • Network:

    GSM: 850/900/1800/1900 EVDO: BC0 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39 TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B20/B28 5G NR:N1/N3/N28/N41/N78/N79

  • Battery Capacity:

    8000mAh

  • Dimensions:

    235*146*13mm

  • Weight:

    598g

  • Bluetooth:

    BT5.1

  • WiFi:

    Wifi6-Ready, 802.11ac, a/b/g/n, Frequency 2.4GHz/5GHz

  • NFC:

    Yes

  • G-Sensor:

    Yes

  • Gyroscope:

    Yes

  • Light Sensor:

    Yes

  • E-compass:

    Yes

  • GPS:

    uBlox GPS GALILEO/GLONASS/BEIDOU/GPS

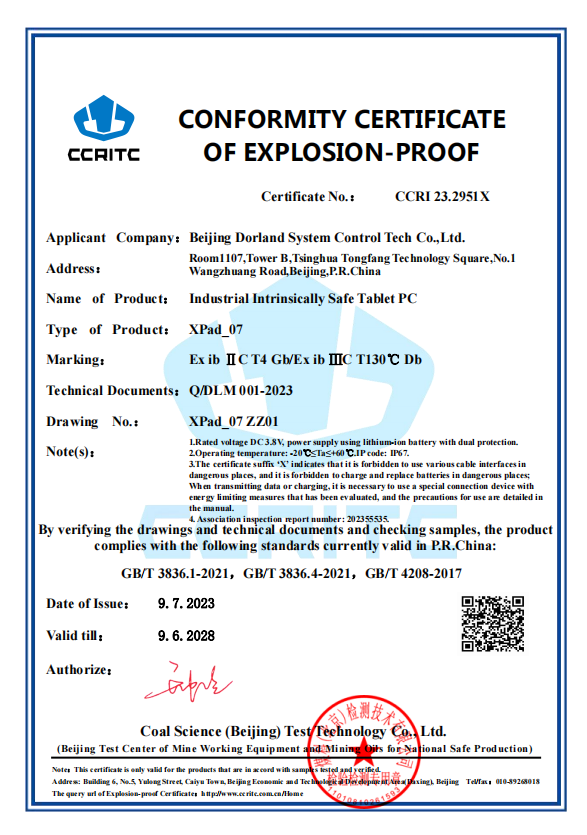

XPad_07 5G certification

Download

XPad_07 5G Inspection Report

+ Download
+
