Ex Tablet09

DORLAND Industrial Intrinsically Safe Tablet Pad Ex Tablet09

Marking:Ex ib IIC T4 Gb / Ex ibD 21 T130℃

Certificate NO.:CCRI 23.2102X

OS:Android 13.0

IP Grade: IP68

Product Introduction
Technical Parameters
Product Certificate
Product Report

Beijing DORLAND System Control Technology Co., Ltd. recently launched Ex Tablet 09, intrinsically safe intelligent industrial-grade explosion-proof tablet PAD. It adopts advanced technology and intrinsically safe circuit design, with a strong appearance and strong body. This product adopts 10.1 inch touch screen design, 20000mAh super big battery, equipped with front 16 MP + rear 16 MP cameras, its waterproof and dust-proof performance reaches the international IP68 standard.

In addition, we also configured GPS / Galileo / GLONASS, altitude measurement, compass and other functions suitable for outdoor construction and pipeline inspection, which can cooperate with OA office system, patrol positioning system and data acquisition system And other applications. It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Marking:

Ex ib IIC T4 Gb / Ex ibD 21 T130℃

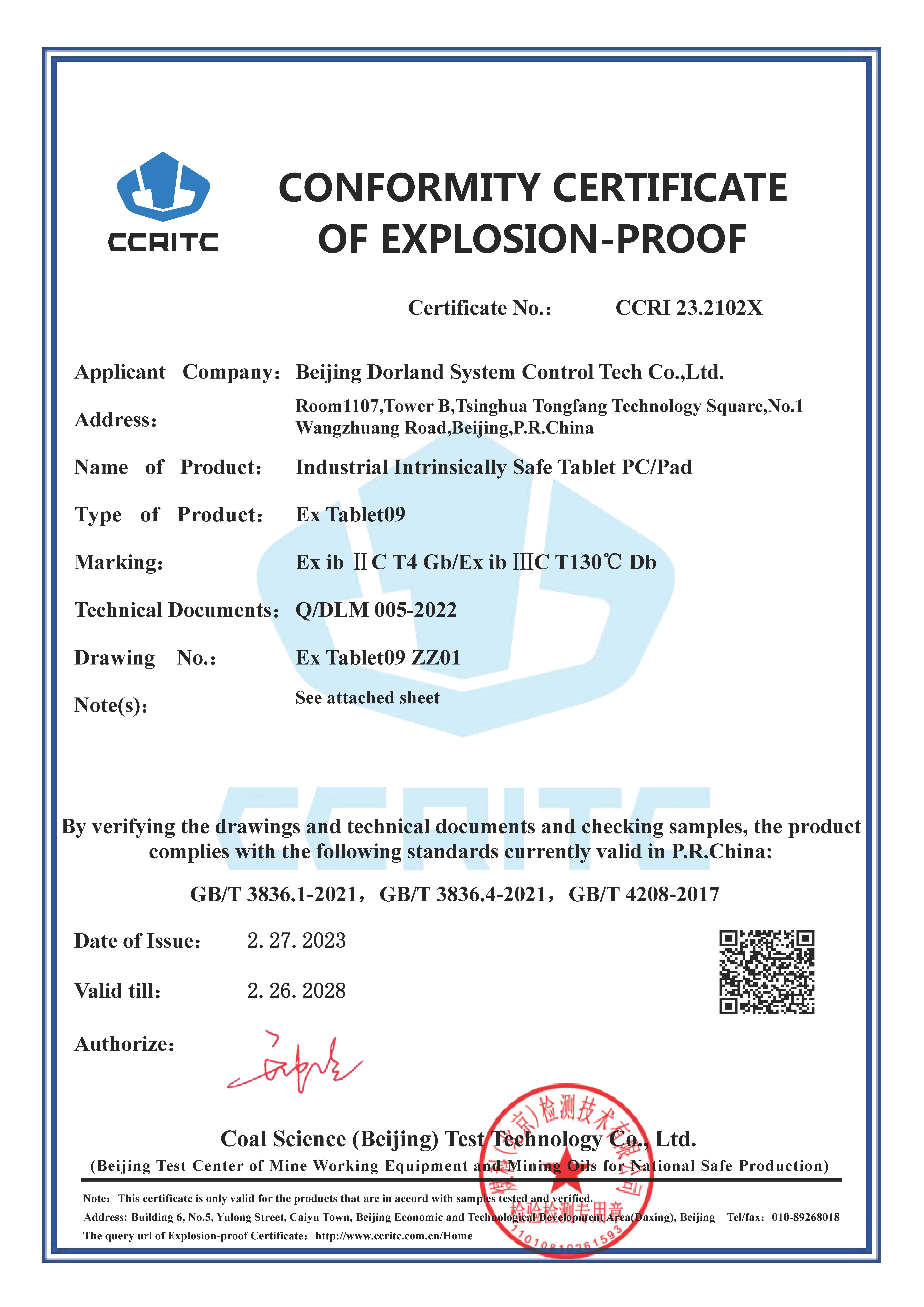

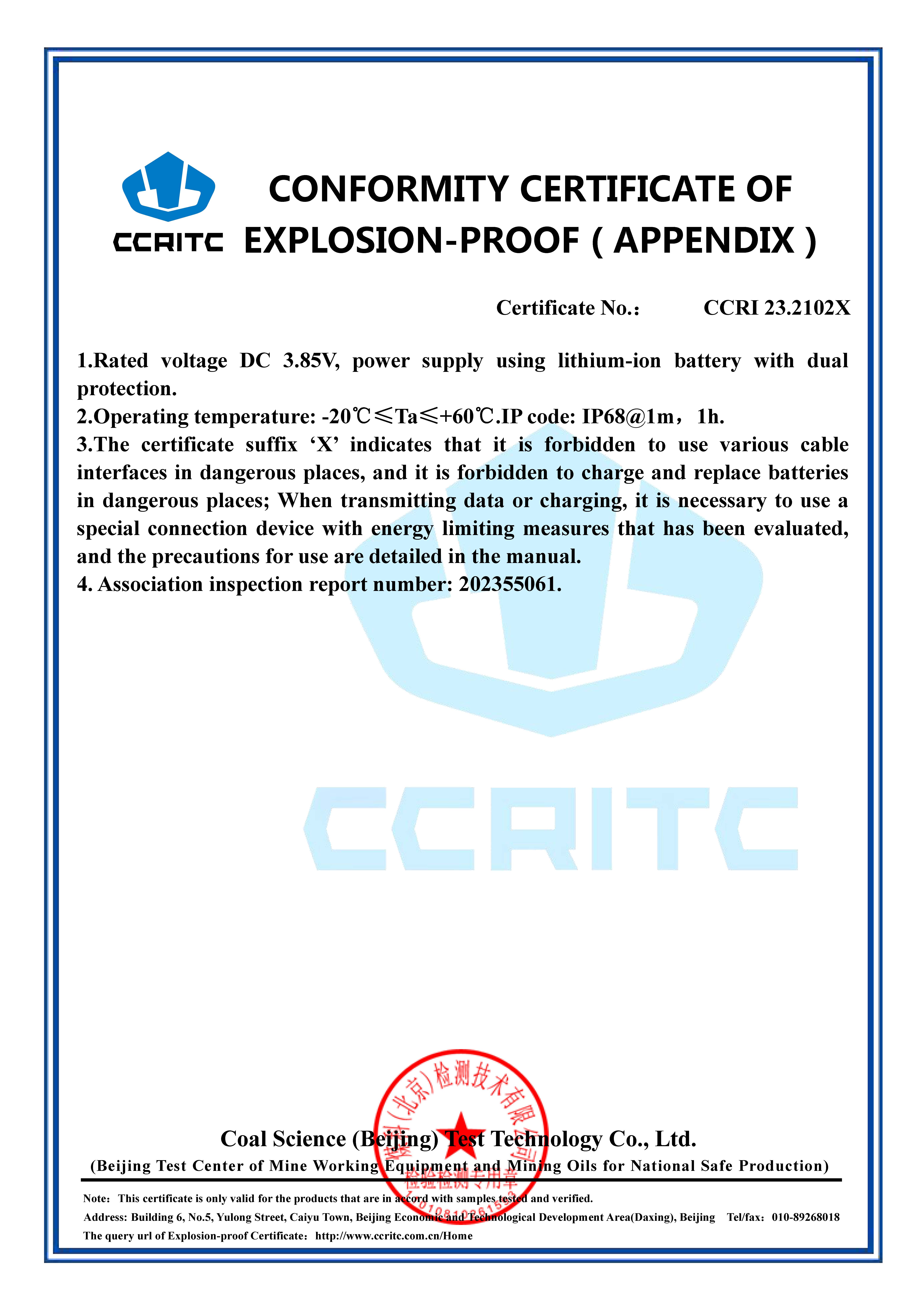

Certificate NO.:

CCRI 23.2102X
IP Grade:

IP68
OS:

Android 13.0
Screen:

10.1 inch IPS screen 1200*1920
Memory:

8GB + 256GB DDR4X, max up to 1TB
CPU:

MT8788 4*Cortex-A73 2.0GHz/4*Cortex-A53 2.0GHz Octa-core
Cameras:

Front 16 MP + Rear 16 MP, with flash and autofocus function
Battery:

20000mAh Lithium-ion polymer battery
Frequency band:

GSM: B5/B8/B3/B2 WCDMA: B1/B2/B4/B5/B8 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B18/B19/B20/B25/B26/B28A/B28B/B66 TDD-LTE: B38/B39/B40/B41 EDGE/GPRS: SUPPORT
GPS:

GPS + Galileo + Glonass
Bluetooth:

BT4.2
WIFI:

IEEE802.11 a/b/g/n/ac 2.4/5G
