iDEN5G_T2UHF

Dorland Industrial Intrinsically Safe Handheld Terminal iDEN5G_T2UHF

Explosive-proof grade:Ex ib IIC T4 Gb/Ex ib IIIC T130℃ Db

IP grade:IP67

Certification No.:CCRI 22.7021X

CPU Platform:Dimensity 720 8-core 2.0GHz high-performance processor

Product Introduction
Technical Parameters

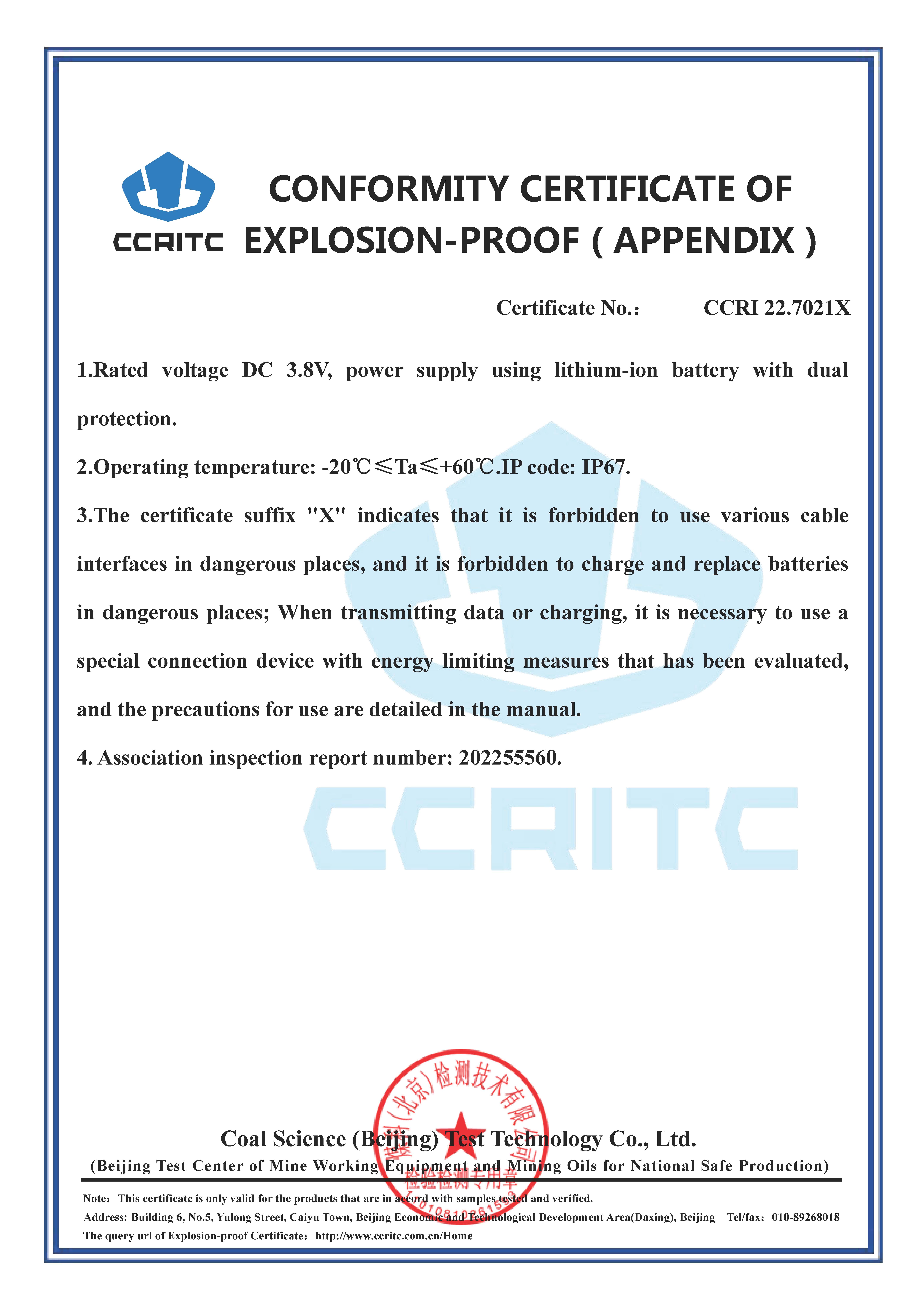

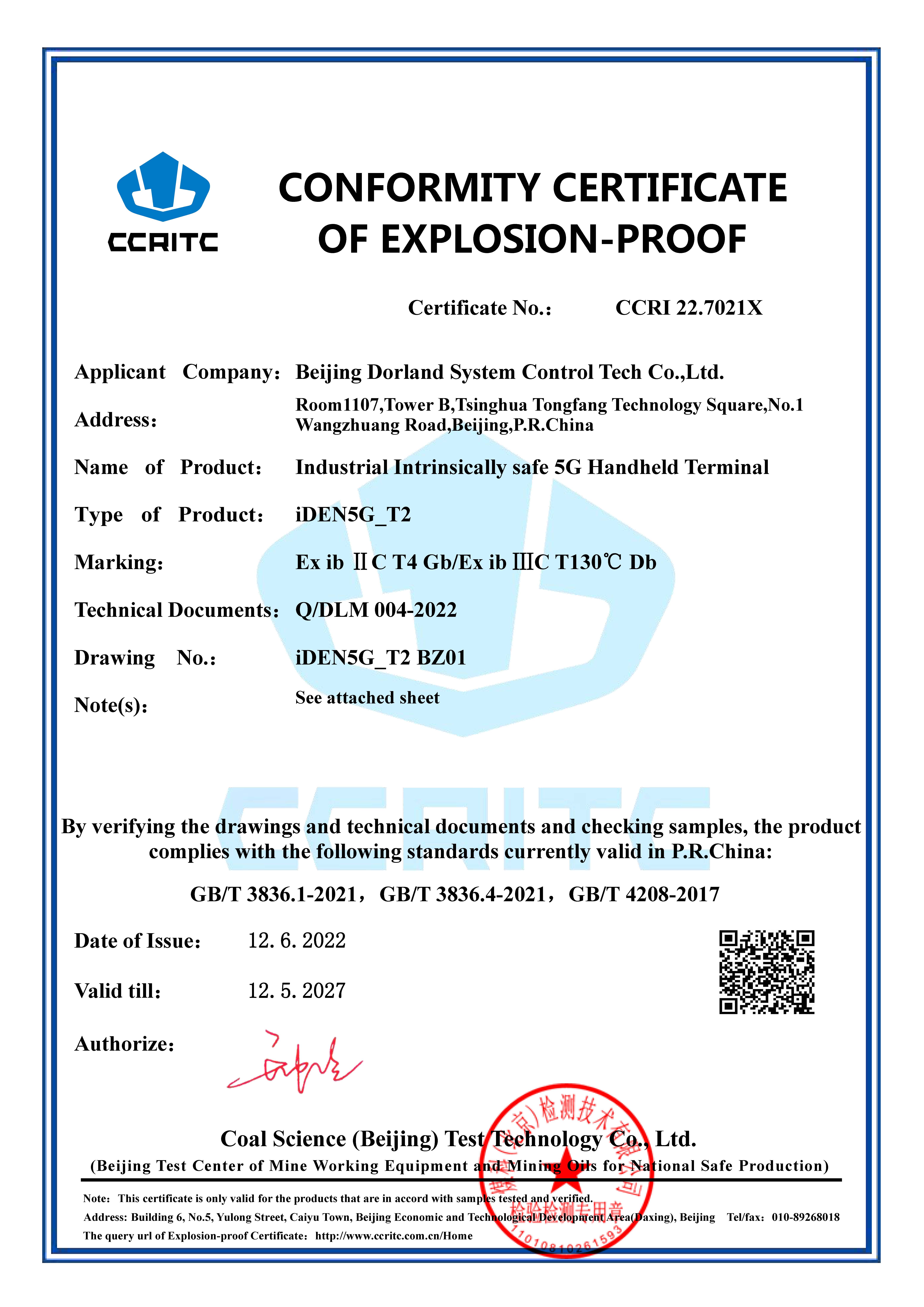

Product Certificate
Product Report

Developed by Beijing Dorland System Control Technology Co., LTD., the industrial intrinsically safe EX handheld terminal iDEN5G_T2UHF adopted advanced technology with intrinsically safe circuit. It can be flexible matching 1D / 2D bar code scanning, UHF, HF and other functions, the full realization of the handheld terminal highly integrated and freely optional features. In addition, especially it’s used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas. It is convenient for users to dispatch communicate timely.

Explosive-proof grade:

Ex ib IIC T4 Gb/Ex ib IIIC T130℃ Db
Certification No.:

CCRI 22.7021X
IP grade:

IP67
Software OS:

android11.0
Touch Lens:

6.21 inch, resolution 1520 * 720 pixels
Frequency:

Domestic&Eurasian: 2G: B2/B3/B5/B8 3G: WCDMA: B1/B5/B8,CDMA BC0,TD-SCDMA: B34/B39 4G: FDD-LTE: B1/B3/B5/B7/B8/B20,TDD-LTE: B34/B38/B39/B40/B41 5G: N1/N3/N38/N41/N77/N78/N79 American edition: 2G: B2/B3/B5 3G: B1/B2/B4/B5, CDMA BC0/BC1 (USA) 4G: B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41 5G: N1/N3/N38/N41/N77/N78/N79
Memory (ROM+RAM):

64GB+4GB (standard configuration), 128GB+6GB (optional configuration)
CPU Platform:

Dimensity 720 8-core 2.0GHz high-performance processor
Camera:

16 million rear camera+300 million sub camera, 5 million pixels front, auto focus
Battery capacity:

Lithium battery 3.8V power supply, 4500mAh, removable Handle: lithium battery 3.6V power supply, 6700mAh, removable
Dimension (H*W*D):

168mm*97mm*145mm
Weight:

680g (including battery)
