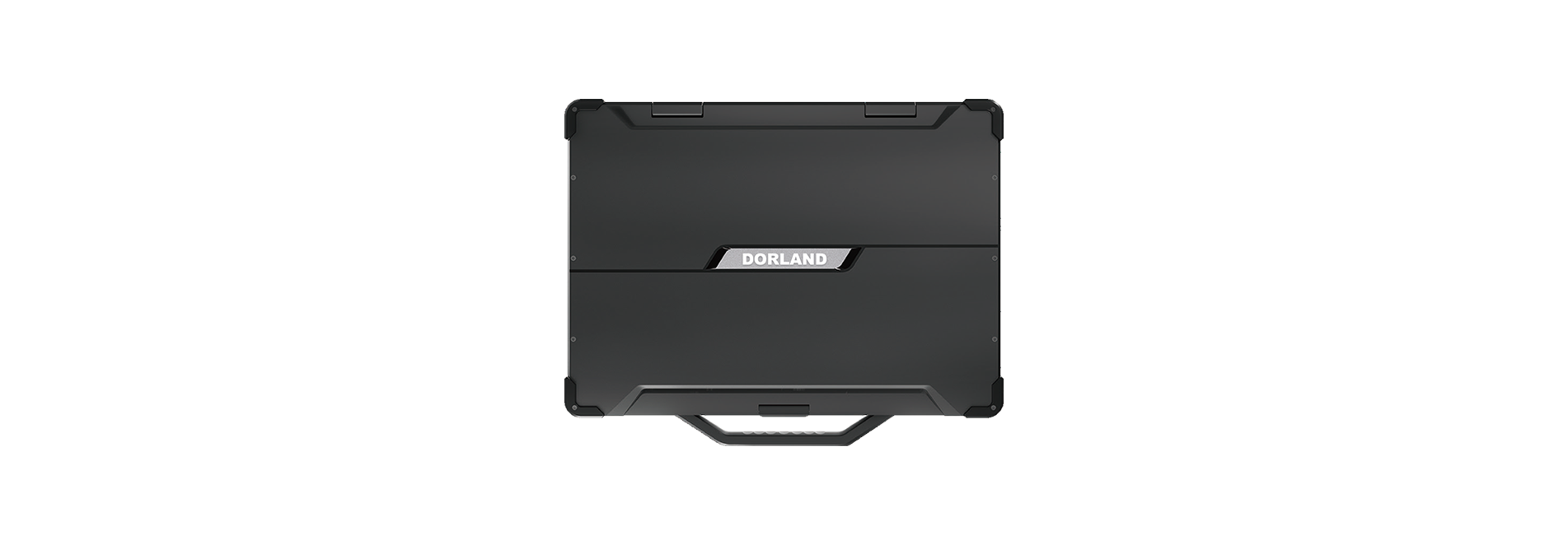

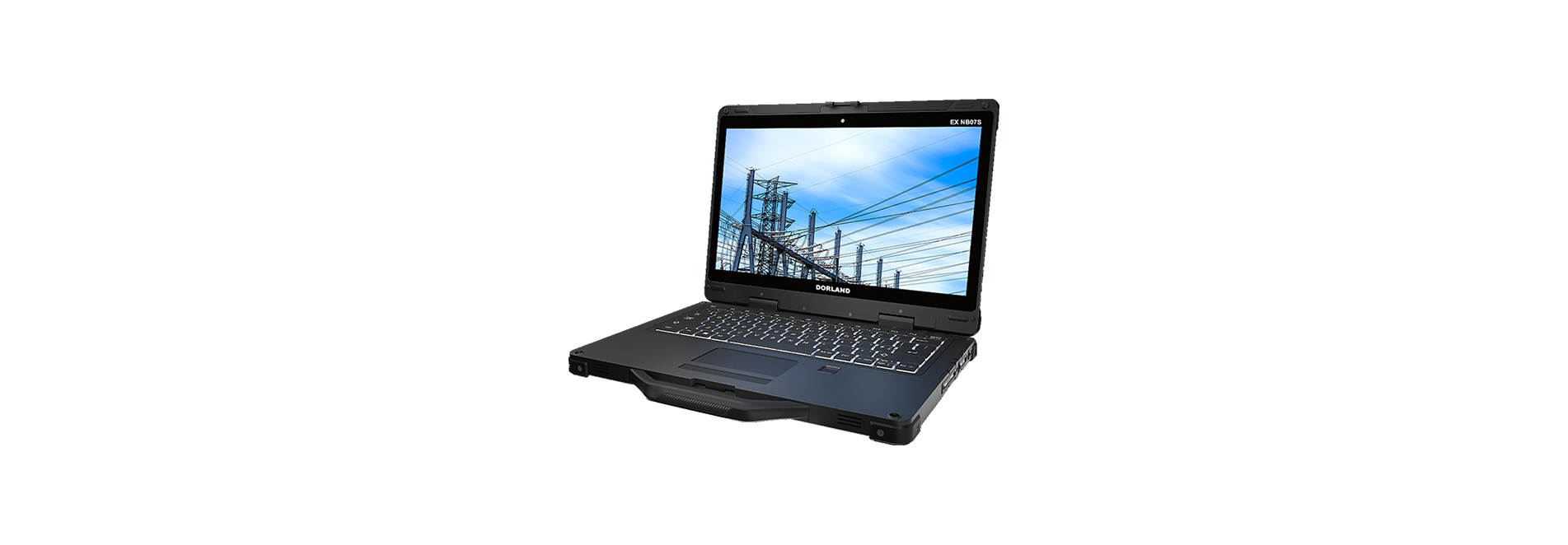

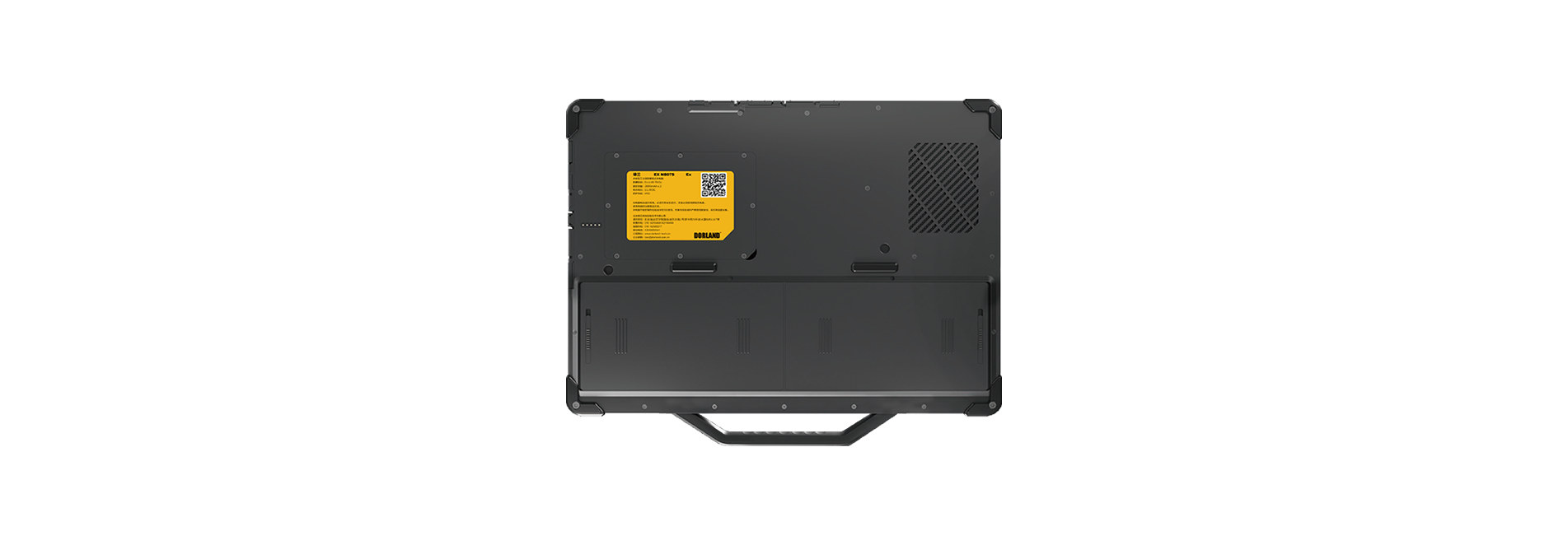

DORLAND Industrial Intrinsically Safe Notebook Ex NB07S

Developed by Beijing Dorland System Control Technology Co., LTD., the industrial intrinsically safe & solid Notebook Ex NB07S adopted advanced technology with intrinsically safe circuit, 13.3” screen（touch screen is optional） and 2.0 Megapixel (Front Camera). Its waterproof and dustproof performance can meet the IP65 standards.

In addition, the Notebook supports fingerprint identification, WIFI and Bluetooth, built-in GPS, compass and other functions suitable for outdoor construction and pipeline inspection. It can also cooperate with OA office system, checking positioning system and data acquisition system etc. Especially it is used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, military industry, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas. It is convenient for users to dispatch communicate timely.

Ex-mark:

Ex ic IIB T5 Gc
Certification No.:

CCRI
IP grade:

IP65
Weight:

2.1KG
Dimension:

332*233*26 mm(Host)
LCD:

13.3" 16:9 1920(H)×1080(V) FHD 400cd/㎡
Camera:

Front 2.0MP，Anti camera LED
Speaker:

Built-in 8Ω/1W x2
Mic:

*2 Internal Digit MIC
Battery (Pluggable):

Type: *2 External polymer lithium ion battery
Capacitive: 5600mAh/11.1V (2800mAh/11.1V x2 )
CPU Speed:

Processor 4 core 8 threads, processor base frequency 2.40 GHz, maximum frequency 4.20 GHz/processor with 4 cores and 8 threads，processor base frequency 2.80 GHz, maximum frequency 4.70 GHz
CPU Type:

i5-1135G7 (11th Generation Intel Tiger Lake UP3 -28W)/i7-1165G7 (11th Generation Intel Tiger Lake UP3-28W）
GPU:

Gen 12 Intel® Iris® Xe Graphics
RAM:

8GB / 16GB
SSD:

256GB / 512GB
TPM:

Built-in TPM2.0 SLB9665T
Hall switch:

hall
Keyboard:

78 key, with LED backlight
WIFI:

Intel AX200: support wi-fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax
Bluetooth:

Ver. 5.1
4G:

Optional
GPS:

Optional Only batch restructuring is supported
Fingreprint:

*1 SPI fingreprint(Power on login)
USB3.0:

*3
Type C:

*1 Thunderbolt 4
Earphone Jack:

∮3.5mm Standard earphone jack *1 host
HDMI:

*1 (type-A)
SD Card:

*1
SIM Card:

*1
DC Jack:

DC 19V 3.42A power jack *1
Serial port:

DB9 (RS232) *1
RJ45 port:

Internet port *1(10/100/1000M Self-adaption)
Burglar lock hole(Right):

Kensington *1
Heat dissipation air outlet(Right):

*1
Left extension dock:

Optional *1 External GPS antenna
POGO PIN:

Optional Pogo 5pin (USB interface definition)
P1:

Used to lock or open screen *1
Power:

*1 Light color is blue when boot(Blue will not too bright), Light off when machine closed.
Baterry:

*2 (red and green double - color ) Light color is red when charging, then become green when full charge , red light flash when low - power, it is not bright when discharge. ×1( red and green double - color ) Light color is red when charging, then become green when full charge , red light flash when low - power, it is not bright when discharge.
Caps lock:

*1(Built-in)
Power Adaptor:

100~240V Input 19V3.42A/65W output USA standard CE approval / USA standard / EU standard
OS:

Windows 10 home / IOT / Pro / Windows 11
Operate Temperature:

‘-20 °C to 60 °C
Store Temperature:

’-30 °C to 70 °C
Humidity:

95% Non-Condensing

Check the details Download
