DORLAND Industrial Intrinsically Safe Smart Watch

Beijing Dorland System Control Technology Co., Ltd. recently introduced the industrial intrinsically safe Smart Watch_Watch@ EX02 Plus, intrinsically safe circuit design, domineering appearance, and solid body. This watch is a dual-camera watch, the display is 1.6”, with touch function, a power-on button and a return button, with dual camera head difference 2M + Side 8M, magnetic charging, heart rate detection, battery is 1260 mAh , Android 10.7.The waterproof and dustproof performance of this watch meets the international IP67 standard. The explosion-proof certificate is Ex ib IIC T4 Gb / Ex ibD 21 T130 ℃ dust and gas double explosion-proof certification.

In addition, this watch rear sensor can perform a variety of sports Accurate pattern recognition analysis, heart rate detection, sleep analysis, exercise effect evaluation; we also configure GPS positioning and other functions suitable for outdoor construction, pipeline inspection and other functions inside the watch, which can cooperate with OA office systems, Various applications such as inspection positioning system, data acquisition system and so on. Especially suitable for hazardous environments with dangerous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank areas and other dangerous places with flammable and explosive gases, which is convenient for users to communicate with production and dispatch in a timely manner.

Ex-Marking：

Ex ib IIC T4 Gb / Ex ibD 21 T130℃
IP Grade：

IP67
CPU：

MT6762 eight core
Memery：

DDR4 6GB，EMMC128GB
SIM card：

Stand alone standby, handsfree call, nano Sim
Support frequency band：

GSM 850 / 900 / 1800 / 1900 WCDMA B1/B2/B5 TD-SCDMA B34/B39
LTE-FDDB1/B2/B3/B5/B7/B8/B12/B17/B20 LTE-TDDB38/B39/B40/B41(100MHz)
Touch screen：

1.6-inch 400 * 400 resolution HD full circle screen
Camera：

Front 2 million / side 8 million high pixel dual camera
Bluetooth：

Support, version 5.0
Support：

WIFI, GPS, heart rate, pedometer，Blood oxygen
Data interface：

Pogo pin + magnetic cable / power bank
Portable power bank：

Support 5v1a charging and universal 5pin USB cable charging
Battery：

Watch 1260mah / 3.8V, power bank 900mAh (it is forbidden to use power bank in dangerous areas)
Standby time：

48 hours of smart watch + 40 hours of battery life
Music playing：

6 hours for smart watch + 5 hours for power bank
Talk time：

Smart watch 3 hours + power bank 2.5 hours
Operating system：

Android 11.0
Sports：

Outdoor running, outdoor walking, indoor running, cycling, basketball, football, table tennis, badminton, rope skipping
Set up：

Network and Internet, connected devices, applications and notifications, batteries, displays, sounds, storage, location information, systems, about mobile phones
Health：

Heart rate and pacing
Weather：

Local weather < plug in SIM card network >
Network and Internet：

WLAN, hotspot and network sharing, flight mode, mobile network, traffic usage
Application and notification：

Default application, permission manager, special application permission
Mobile assistant：

Scan QR code connection; Enable remote shooting, music control, send files, find mobile phones
System：

language and input method, date and time, reset option
Support APP language：

simplified Chinese, traditional Chinese, English, etc.
Android ：

phone Android version 6.0 and above
iPhone：

Support system version 11.0 and above. It can be set through mobile phone - General - about this machine, check the version. If it is lower than version 11.0, please upgrade it first
watch：

Diameter 50.7* thickness 16mm
Strap：

PU watchband, removable, switch lug, 22mm width, total length 272mm, adjustable range 173-252mm
Net Weight (watch) ：

73.5 G

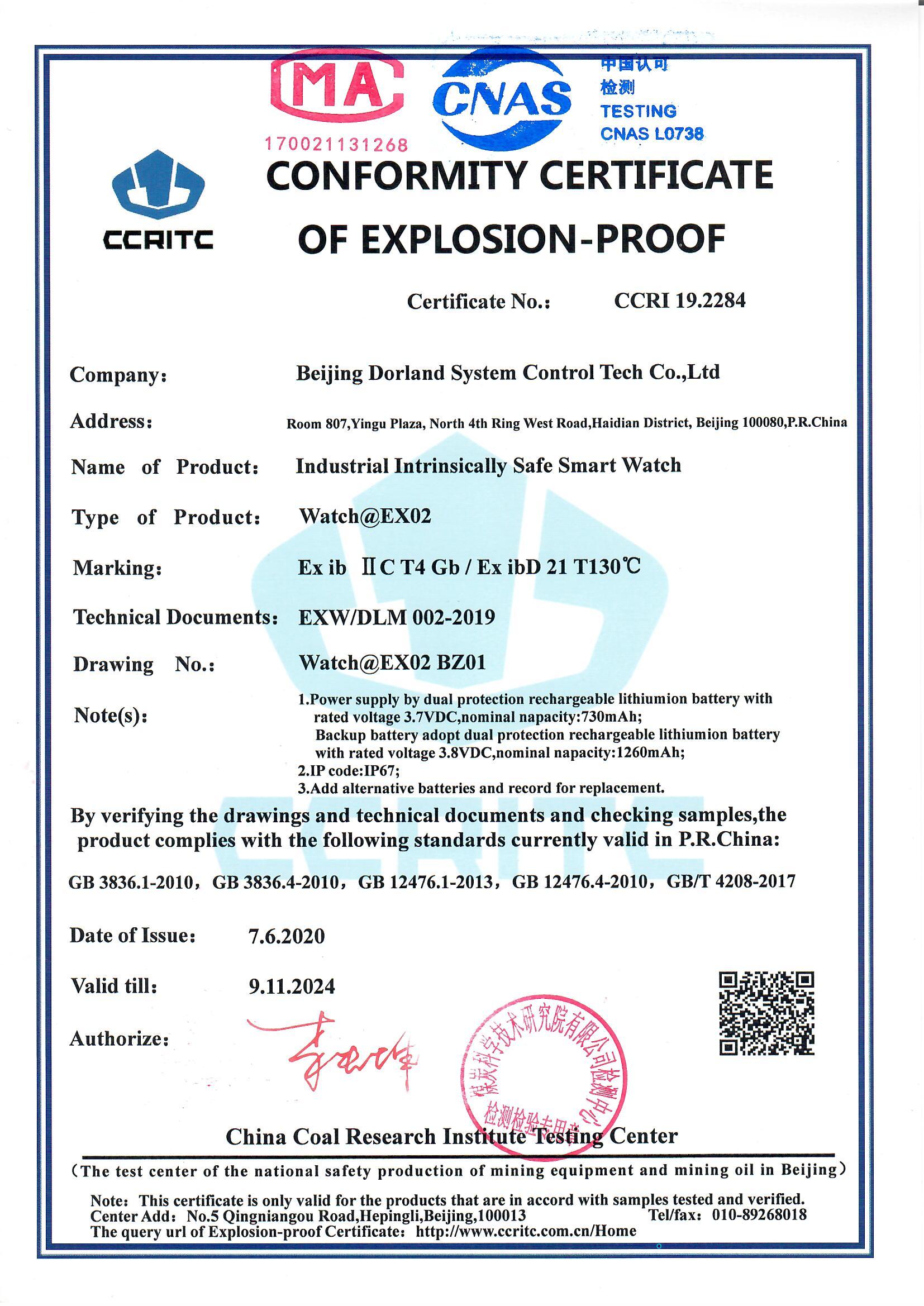

Watch@ EX02 Plus Explosion proof Certificate EN

Download

Watch@ EX02 Plus Inspection Report

Check the details Download
