DORLAND Industrial Intrinsically Safe 5G Smartphone EXTRA

Beijing DORLAND System Control Technology Co., Ltd. recently industrial intrinsically safe 5G smartphone EXTRA_5G, using 5g advanced technology, intrinsically safe circuit design, domineering appearance and solid body. The mobile phone adopts 6.43 "high-definition screen, rear three camera 64 + 20 + 8MP, and supports face recognition and standard NFC.

Its waterproof and dustproof performance meets the international IP68 standard. In addition, it supports fingerprint one click unlocking, Bluetooth, WiFi and other functions to meet the reading and writing needs of various scenes.

We also configure GPS positioning and other functions suitable for outdoor construction and pipeline inspection in the mobile phone, which can cooperate with OA office system, inspection and positioning system, data acquisition system and other applications. It is especially suitable for the harsh environment of dangerous explosion, such as petroleum, chemical industry, pharmacy, military industry, oil depot, tank farm and other dangerous places with combustible and explosive gases, so as to facilitate the timely communication between users and production and dispatching.

Marking：

Ex ib IIC T4 Gb/ Ex ib IIIC T130℃ Db
IP code：

IP68
Unit weight (including battery)：

296g
Dimensions (mm)：

170.5*81.2*14MM
Operating system：

Android R（11.0）
CPU：

MT6833（5G-C）"8 nucleus；2x ARM Cortex-A76 2.2GHz 256KB L2 6x ARM Cortex-A55 2.0GHz 128KB L2 1MB L3" 7nm
GPU MODEL：

"ARM NATT MC2 "
Network format：

GSM/WCDMA/CDMA/FDD/TDD/SA/NSA
Frequency band：

GSM（B2/3/5/8） CDMA：BC0/BC1/BC10 WCDMA：B1/2/4/5/6/8/19 TDD：B34/38/39/40/41
FDD：B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66 SA：n1/3/5/8/20/28/38/41/77/78/79
NSA：B1+n78、B3+n78、B5+n78、B8+n78、B1+n79、B3+n79、B8+n79、B3+n41、B8+n41、B39+n41、B1+n38、B40+n77
Memory：

8GB+256GB
Type of SIM card：

SUPPORT Nano SIM+Nano SIM+TF card 2+1 Bayonet Slot
Memory Card type：

T-flash card
Extended memory：

Up to 256G
Front Facing Camera：

Front Facing 1600W Sensor：Samsung S5K3P9sp 1600W
Rear Camera：

Rear 6400W Main camera 2000W night vision 800W wide Angle
Inductor：

Night Vision SNOY IMX350 2000W
Optical Size:

1/2.8inch
Pixel Size：

3880*5184
Aperture：

1.8±5%
Optical stabilization：

N/A
Angle:

78.1°
Phase focusing：

FF
FLASH：

SUPPORTS 2 infrared night vision lights
Software features：

Video, Picture
Screen Size：

6.43 inch LTPS blind hole screen
Resolution：

1080*2400 FHD
Pixel density：

409ppi
Aspect ratio：

20:9
Screen ratio：

85%
Brightness:

500cd/m2
Contrast ratio：

80000:1
Navigation：

SUPPORT Beidou,Galileo,Glonass,GPS Three out of four
WIFI：

SUPPORT 2.4G/5G（802.11ac/a/b/g/n）
Bluetooth：

SUPPORT BT5.1
FM：

SUPPORT / Plug headphones to support outgoing
OTG：

Yes
NFC：

Yes
Sensors：

Gravity, distance, light, compass, geomagnetism, gyroscopes
Unlock mode：

Side fingerprinting
Wireless charging：

Yes
Electric meter：

Yes
Quick Charge：

Yes
Sound amplifier：

SMART amplifier, AW88194
Screen fitting method：

capacitive touch screen, Khang Ninh GG3, full fit
Power key：

Yes
Volume key：

Yes
Custom key：

Yes
Menu key：

Yes
Return key：

Yes
PORT：

Earphone, charging port TYPE-C
Capacity：

Non-removable, 6000mAH real power
Battery material：

Lithium Cobalt Oxide
VOLTAGE：

4.4 v
Support Language：

Simplified Chinese, traditional Chinese, English, etc.

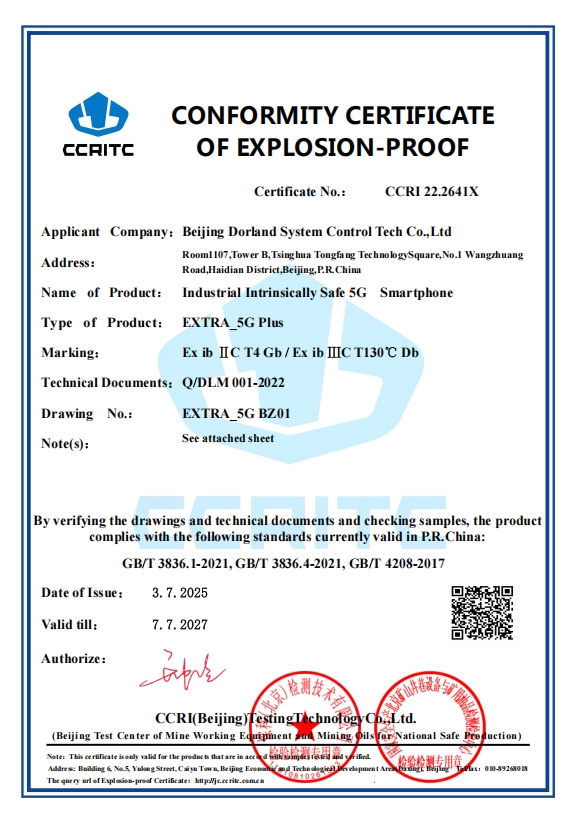

EXTRA_5G Certificate

Download

Check the details Download
